Toyota Corolla CP

1983-08 → 1987-07 · chassis AE86 · catalogue 161450 · United States

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

4 part groups · 2 illustrations

Illustrations

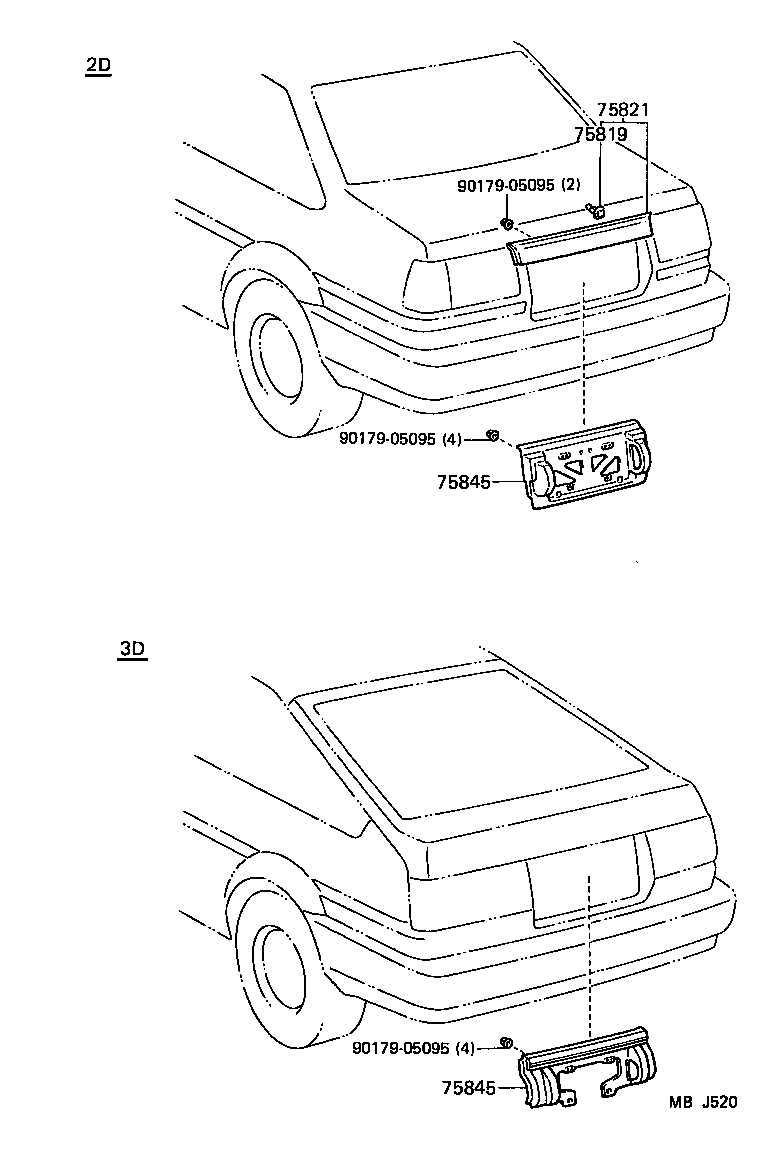

Figure MBF490 MBF490 1983-08 → 1985-08 Figure MBJ520 MBJ520 1985-08 → —

Part groups

PNCDescription
75129 Cushion, Rear License Plate
75819 Clip, Luggage Compartment Door Moulding
75821 Moulding, Luggage Compartment Door Back
75845 Moulding, Body Lower Back Panel, Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
