Toyota Corolla CP
1983-08 → 1987-07 · chassis AE86 · catalogue 161450 · United States
Discontinued model
Data version 1988-01
Meter
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 83100B | Bulb, Combination Meter, NO.1 |
| 83100G | Glass, Combination Meter |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83102 | Plate Sub-assy, Combination Meter Circuit, NO.1 |
| 83109 | Bulb, Combination Meter, NO.2 |
| 83110 | Speedometer Assy |
| 83132 | Case, Combination Meter |

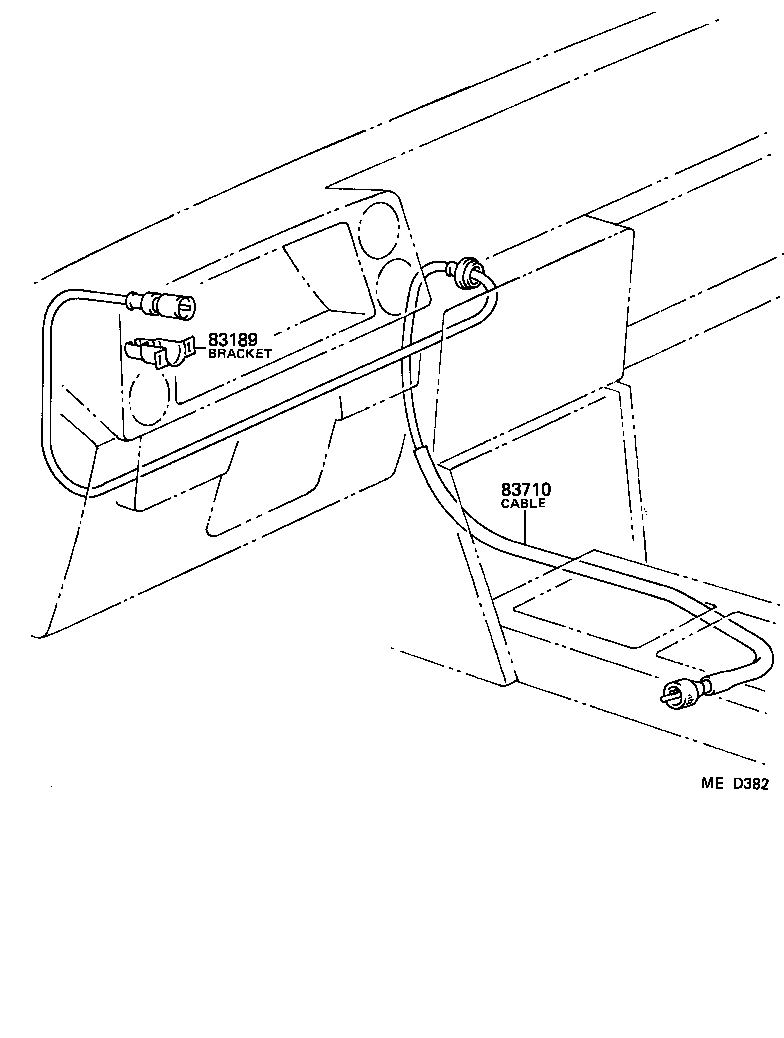

| 83189 | Bracket, Meter |
| 83270 | Tachometer Assy, Engine |
| 83310 | Gage Assy, Fuel Receiver |
| 83410 | Gage Assy, Water Temperature Receiver |
| 83710 | Cable Assy, Speedometer Drive, NO.1 |
| 83910 | Clock Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
