Toyota Corolla CP
1983-08 → 1987-07 · chassis AE86 · catalogue 161450 · United States
Discontinued model
Data version 1988-01

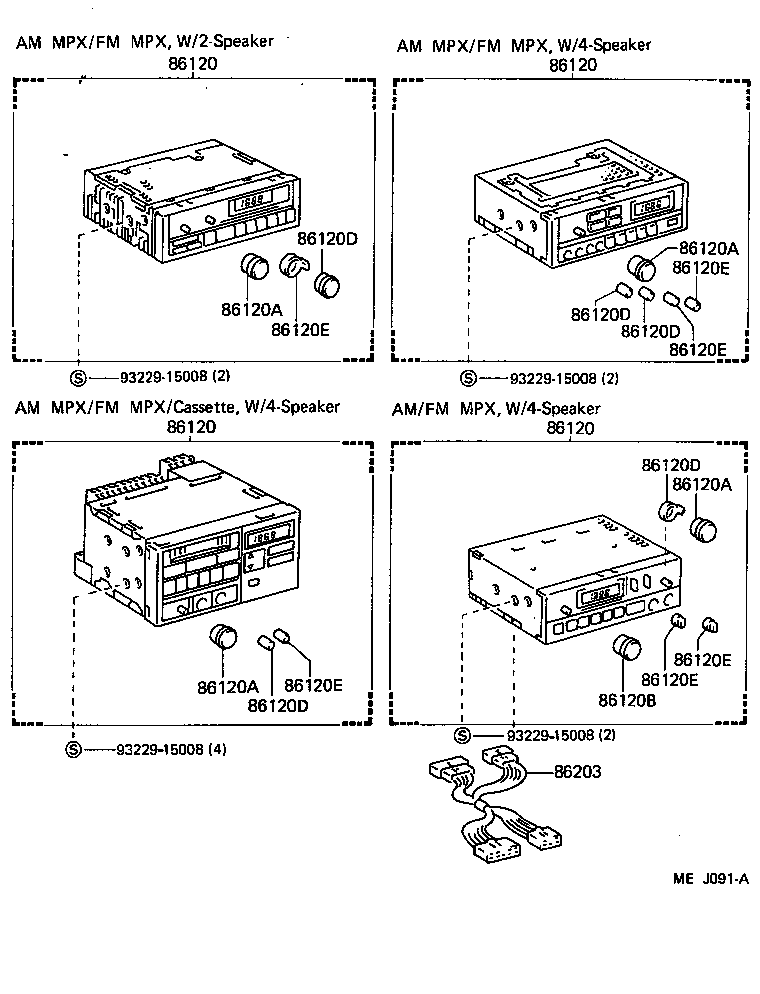

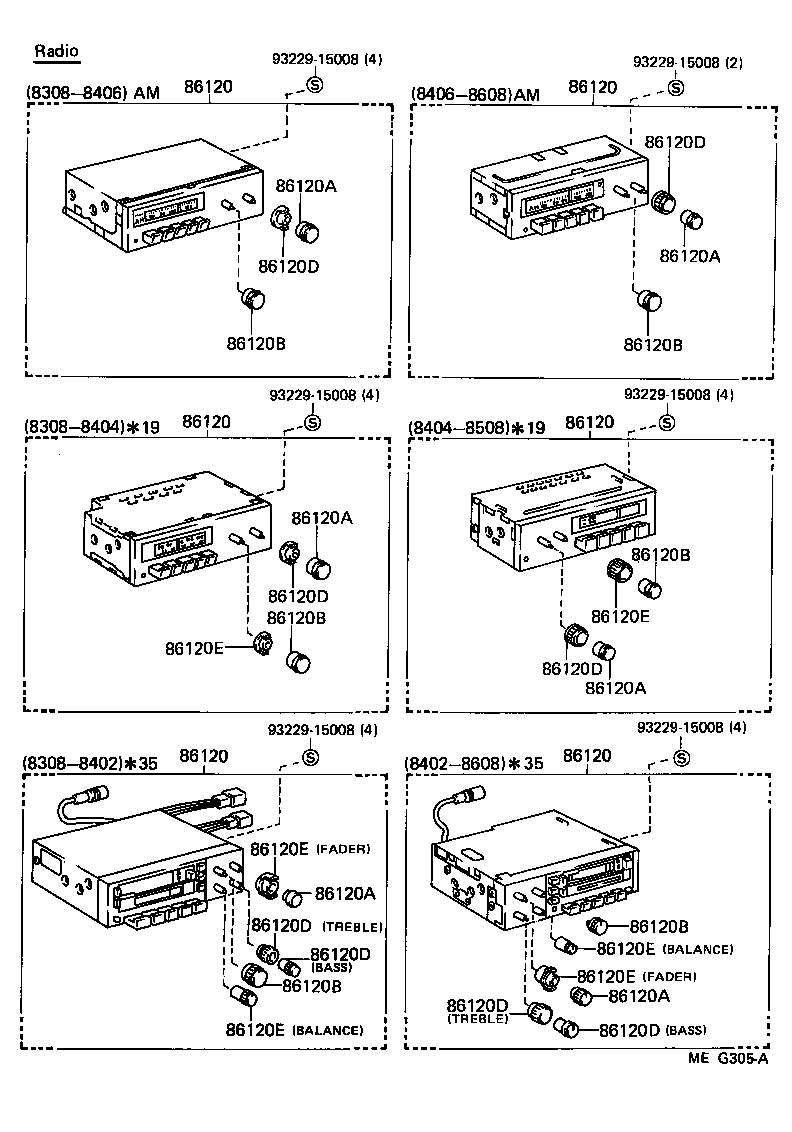

Radio Receiver & Amplifier & Condenser
10 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 86011A | Condenser, Radio Setting |
| 86120 | Receiver Assy, Radio |
| 86120A | Knob, Radio Receiver Switch |
| 86120B | Knob, Radio Receiver Tuning, NO.1 |
| 86120D | Knob, Radio Receiver Tone |
| 86120E | Knob, Radio Receiver Balance |
| 86203 | Wire, Radio |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
| 86280 | Amplifier Assy, Stereo Component |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
