Shift Lever & Retainer

11 part groups · 2 illustrations

Illustrations

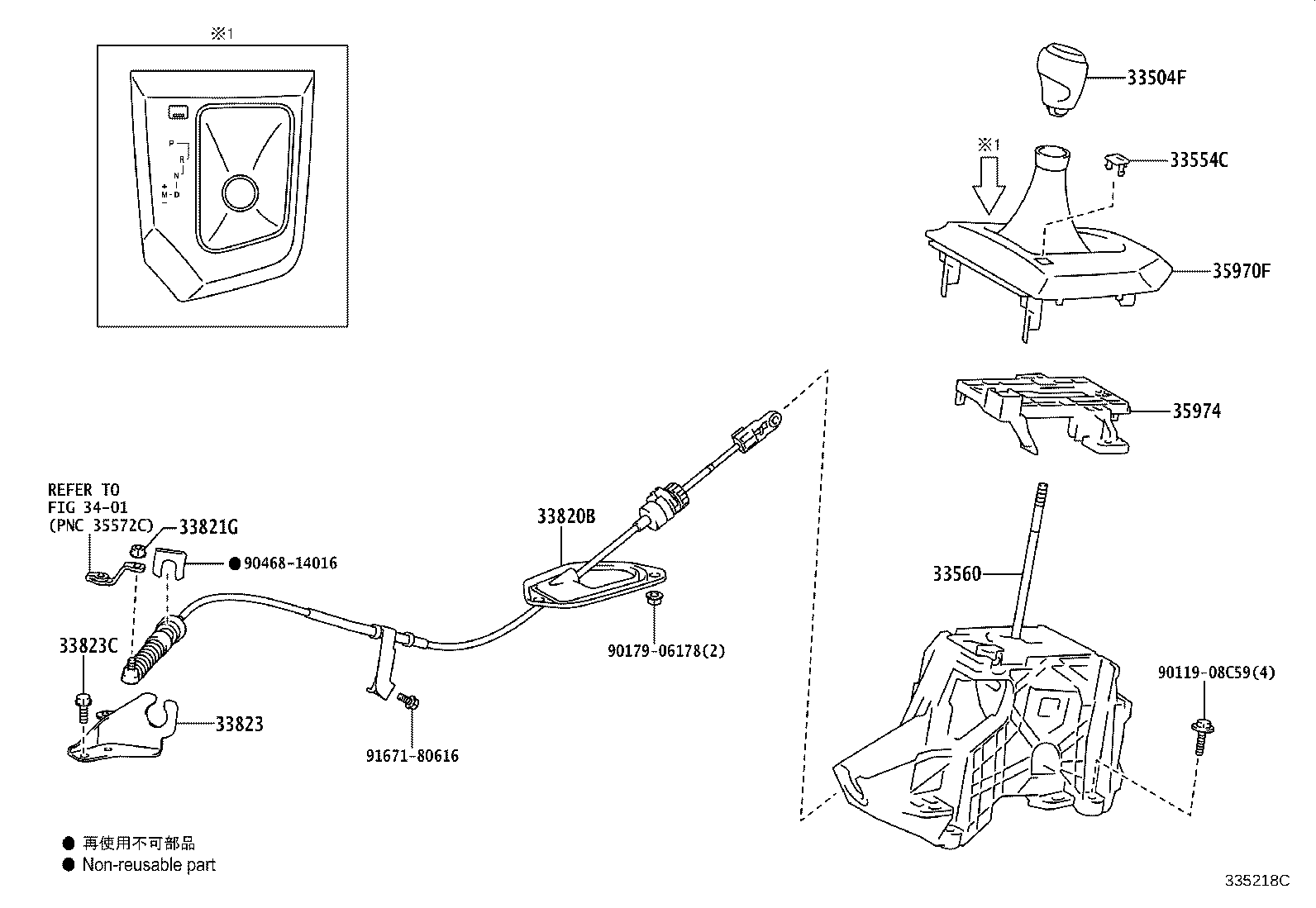

Figure 335217B 335217B 2015-06 → — Figure 335218C 335218C 2015-06 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33530F Lever Assy, Shift (FOR FLOOR SHIFT)
33554C Cover, Shift Lock Release Button
33560 Unit Assy, Shift Lock Control
335A0 Bracket Assy, Control Cable
33820B Cable Assy, Transmission Control
33821G Nut (FOR TRANSMISSION CONTROL CABLE)
33823 Bracket, Transmission Control Cable, NO.1
33823C Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
35970F Housing Assy, Position Indicator
35974 Housing, Position Indicator, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
