Toyota Scion IM/IM

2015-06 → 2018-05 · chassis ZRE186 · catalogue 165420 · United States

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

23 part groups · 2 illustrations

Illustrations

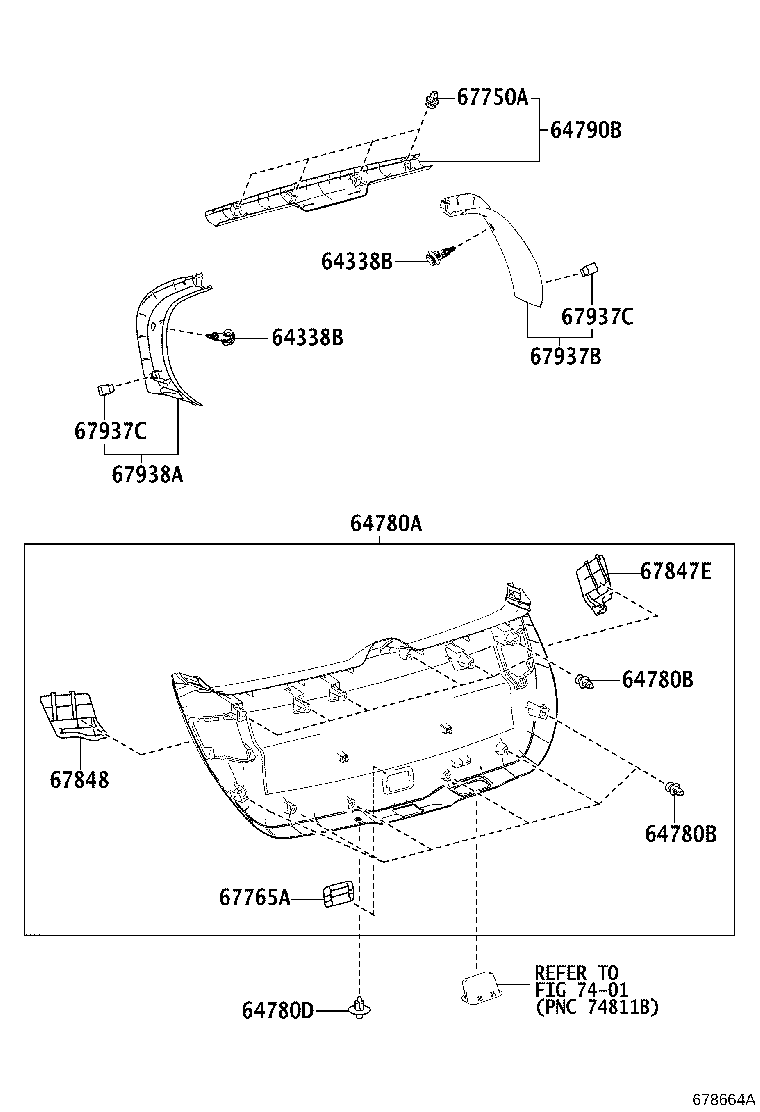

Figure 678663A 678663A 2015-06 → — Figure 678664A 678664A 2015-06 → —

Part groups

PNCDescription
64338B Hook, Package Tray Trim Garnish
64780A Panel Assy, Back Door Trim
64780B Clip(FOR BACK DOOR TRIM PANEL)
64780D Retainer(FOR BACK DOOR TRIM BOARD)
64790B Panel Assy, Back Door Trim, Upper
64818C Spacer, Back Window Glass, NO.1
64819B Spacer, Back Window Glass, NO.2
67005 Panel Sub-assy, Back Door
67005B Cushion(FOR BACK DOOR PANEL)
67750A Clip(FOR BACK DOOR TRIM)
67765A Cover, Back Door Service Hole, NO.1
67837N Seal, Back Door Dust Proof
67847E Cover, Back Door Service Hole, RH
67848 Cover, Back Door Service Hole, LH
67881A Weatherstrip, Back Door
67893A Protector, Back Door Panel, NO.1
67894B Protector, Back Door Panel, NO.2
67937B Garnish, Back Door Side, RH
67937C Clip(FOR BACK DOOR SIDE GARNISH)
67938A Garnish, Back Door Side, LH
68131 Glass, Back Door
75571F Mouldimg, Back Door Window
75575D Moulding, Back Window, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
