Toyota Scion IM/IM
2015-06 → 2018-05 · chassis ZRE186 · catalogue 165420 · United States
Supported model
Data version 2018-11

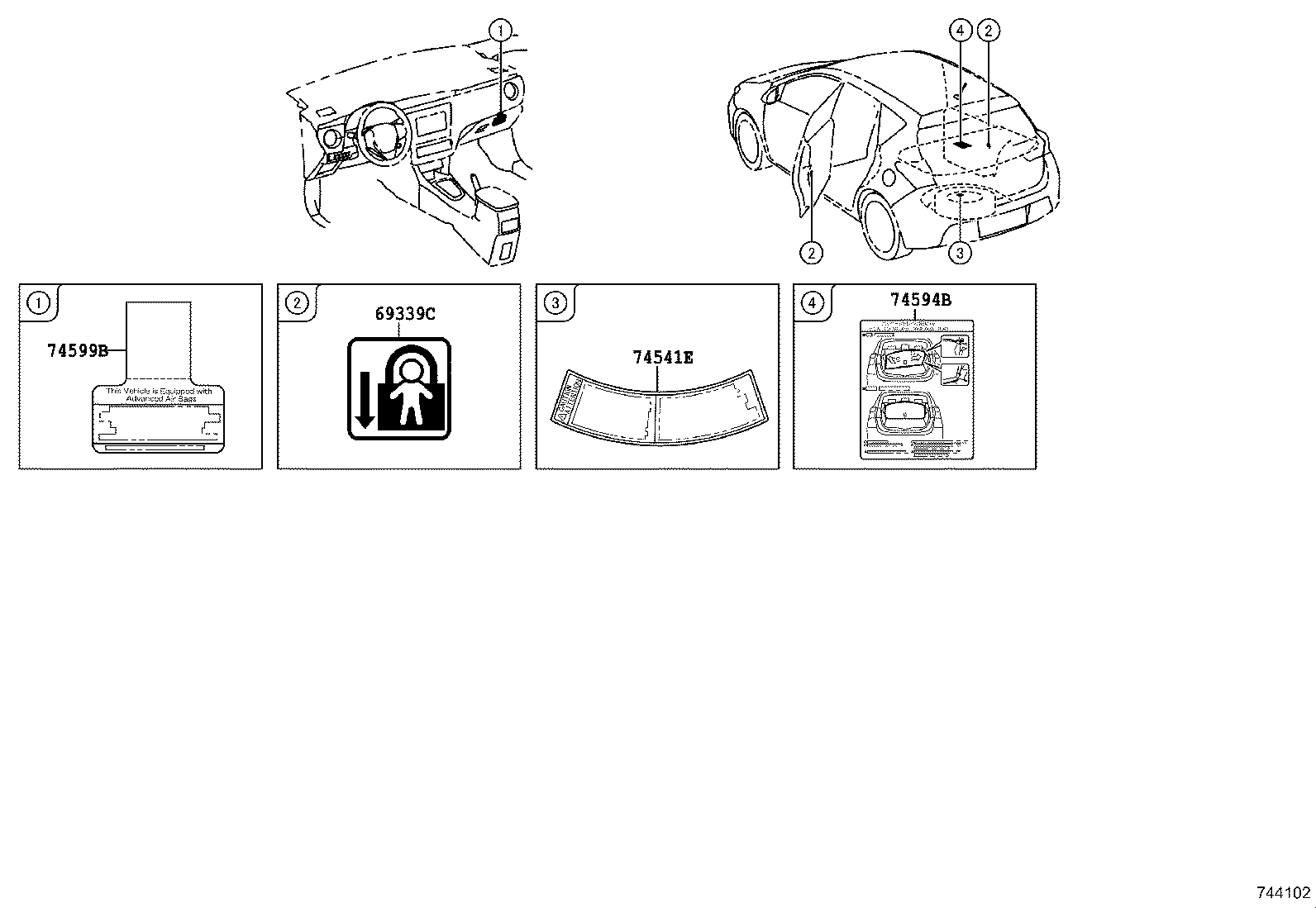

Caution Plate (EXTERIOR & INTERIOR)
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11298B | Label, Emission Control Information |
| 16793B | Label, Cooling Fan Information |
| 69339C | Label, Child Protector Information |
| 74514A | Label, Certification Regulation Information |
| 74541E | Plate, Compact Spare Tire Caution |
| 74594B | Label, Package Tray Trim Information |
| 74596A | Label, Side Airbag Caution |
| 74599B | Label, Driver & Passenger Airbag Information |
| 74751 | Label, Tire Pressure Information |
| 88723E | Label, Cooler Service Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
