Toyota Scion IM/IM

2015-06 → 2018-05 · chassis ZRE186 · catalogue 165420 · United States

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Pre-collision System

6 part groups · 2 illustrations

Illustrations

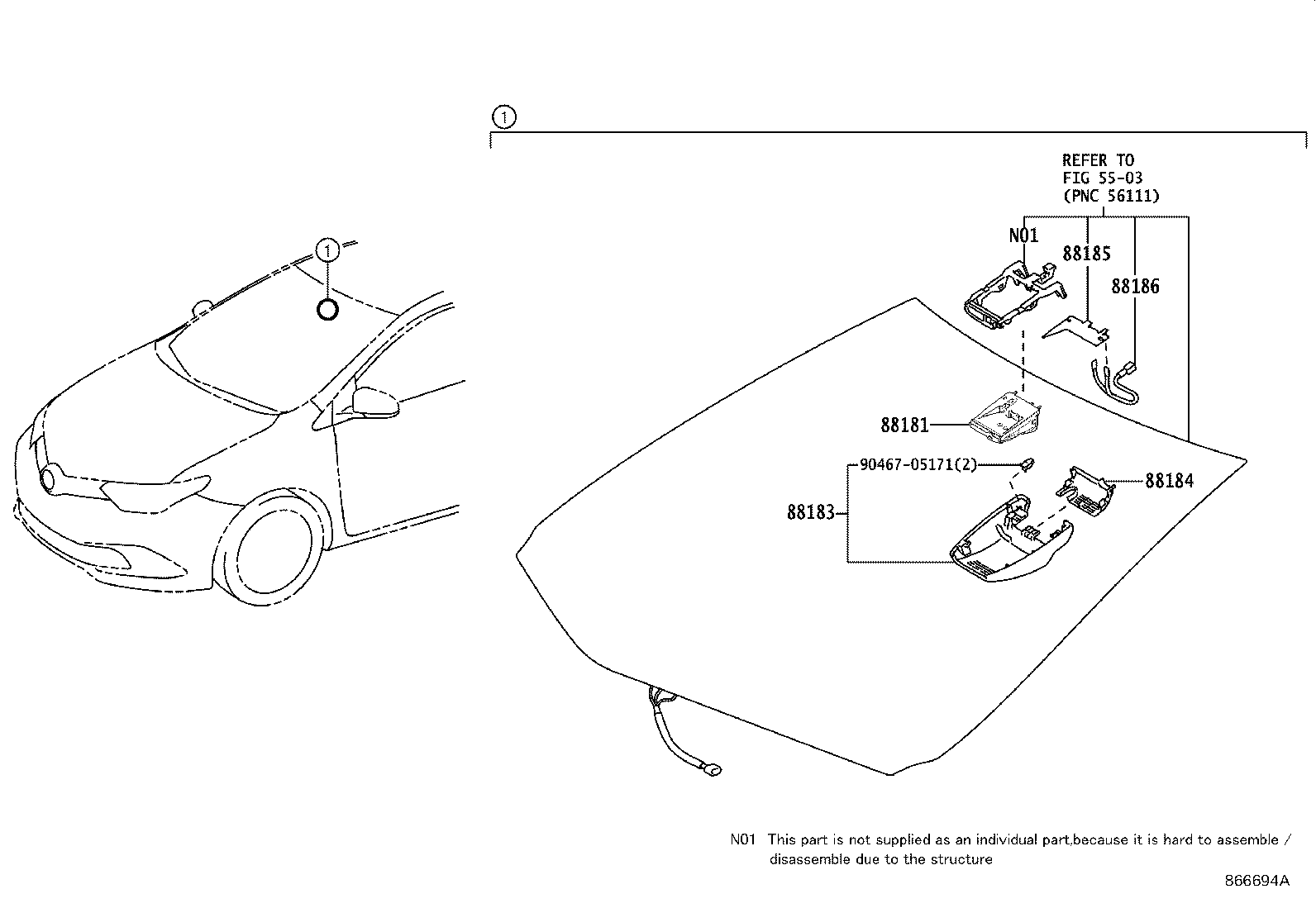

Figure 866564A 866564A 2016-08 → 2016-11 Figure 866694A 866694A 2016-11 → —

Part groups

PNCDescription
86652F Buzzer, Skid Control
88181 Sensor, Pre-collision City
88183 Cover, Pre-collision City
88184 Cover, Pre-collision City, 2ND
88185 Heater, Pre-collision City
88186 Wire, Pre-collision City Heater
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
