Toyota Corolla Hatchback
2018-06 → present · chassis MZEA12 · catalogue 165430 · United States
Supported model
Data version 2022-09

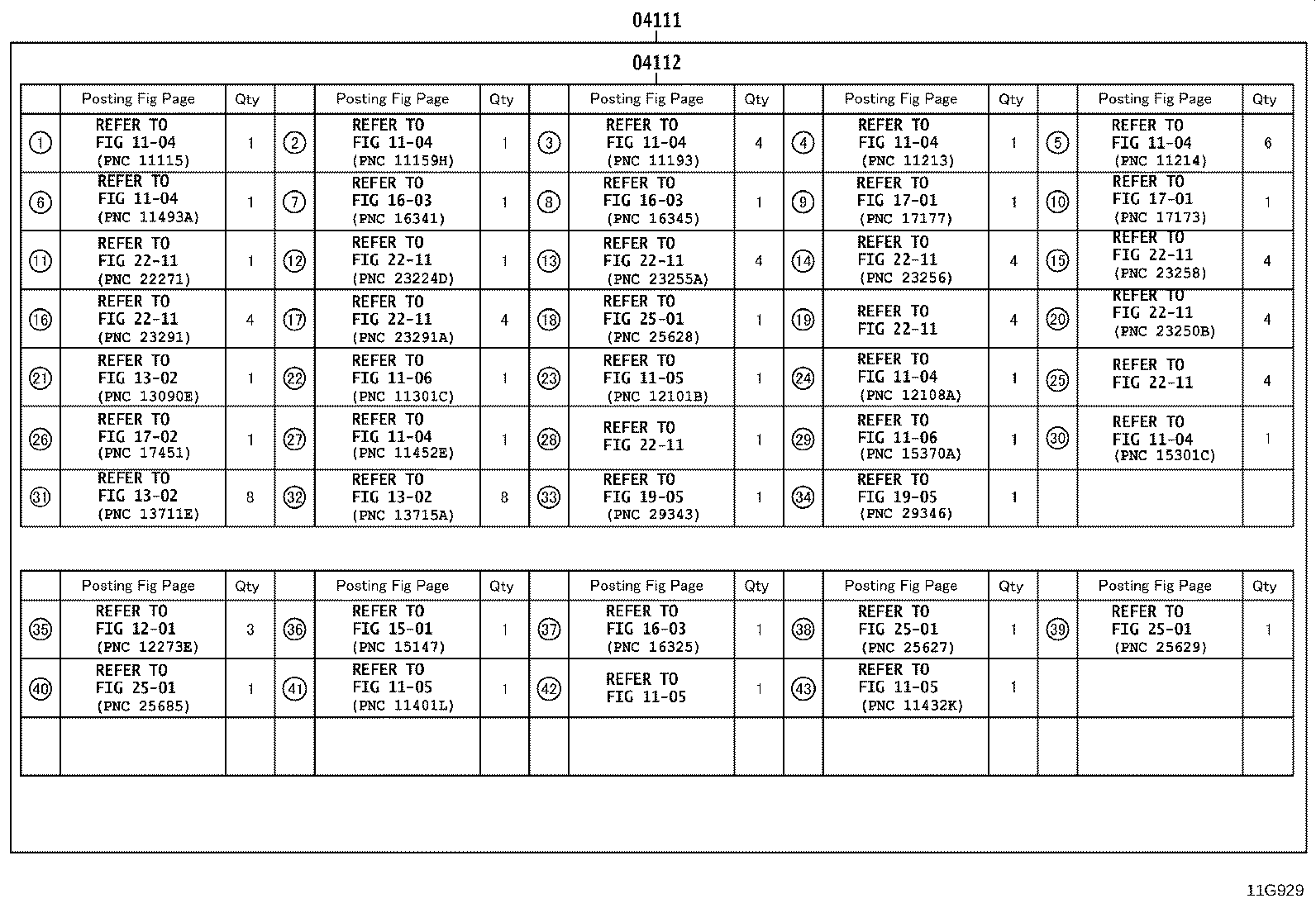

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04111 — Gasket Kit, Engine Overhaul | ||||
| 04111-24110 |
Gasket Kit, Engine Overhaul
2018-06 → 2021-07
ended
|
M20AFKS MZEA12 | — | |
| 04111-24111 |
Gasket Kit, Engine Overhaul
2021-07 → 2022-09
ended
|
M20AFKS MZEA12 CVT | — | |
| 04111-24111 |
Gasket Kit, Engine Overhaul
2021-07 → —
|
M20AFKS MZEA12 6F | — | |
| 04111-24200 |
Gasket Kit, Engine Overhaul
2022-09 → —
|
M20AFKS MZEA12 | — | |
| 04112 — Gasket Kit, Engine Valve Grind | ||||
| 04112-24060 |
Gasket Kit, Engine Valve Grind
2018-06 → 2021-07
ended
|
M20AFKS MZEA12 | — | |
| 04112-24061 |
Gasket Kit, Engine Valve Grind
2021-07 → 2022-09
ended
|
M20AFKS MZEA12 CVT | — | |
| 04112-24061 |
Gasket Kit, Engine Valve Grind
2021-07 → —
|
M20AFKS MZEA12 6F | — | |
| 04112-24120 |
Gasket Kit, Engine Valve Grind
2022-09 → —
|
M20AFKS MZEA12 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
