Toyota Corolla Hatchback
2018-06 → present · chassis MZEA12 · catalogue 165430 · United States
Supported model
Data version 2022-09

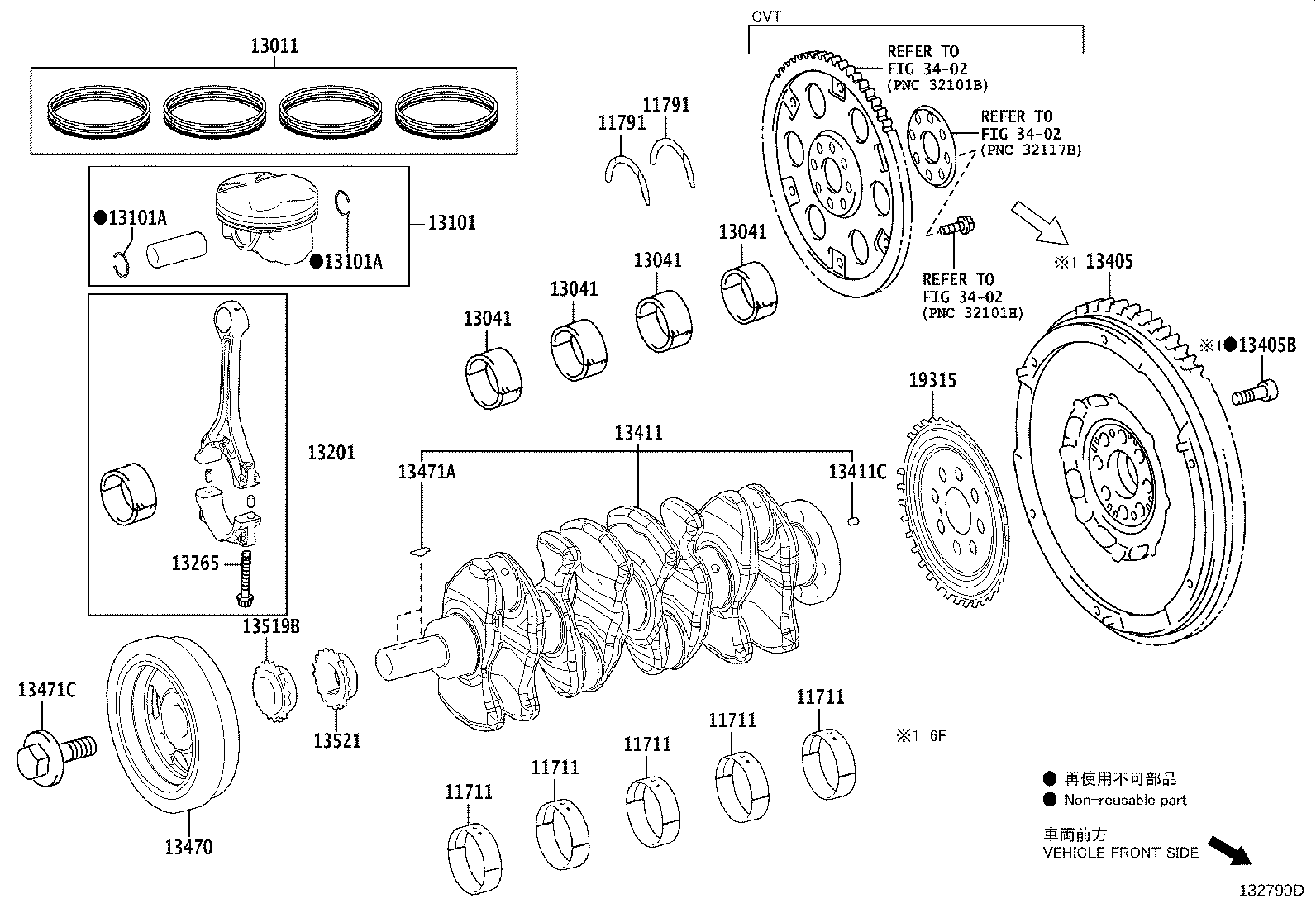

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11711 — Bearing, Crankshaft | ||||
| 11701-24010-01 note |
Bearing, Crankshaft
2018-06 → 2022-09
ended
|
M20AFKS MZEA12 CVT | — | |
| 11701-24010-01 note |
Bearing, Crankshaft
2018-06 → —
|
M20AFKS MZEA12 6F | — | |
| 11701-24010-02 note |
Bearing, Crankshaft
2018-06 → 2022-09
ended
|
M20AFKS MZEA12 CVT | — | |
| 11701-24010-02 note |
Bearing, Crankshaft
2018-06 → —
|
M20AFKS MZEA12 6F | — | |
| 11701-24010-03 note |
Bearing, Crankshaft
2018-06 → 2022-09
ended
|
M20AFKS MZEA12 CVT | — | |
| 11701-24010-03 note |
Bearing, Crankshaft
2018-06 → —
|
M20AFKS MZEA12 6F | — | |
| 11701-24010-04 note |
Bearing, Crankshaft
2018-06 → 2022-09
ended
|
M20AFKS MZEA12 CVT | — | |
| 11701-24010-04 note |
Bearing, Crankshaft
2018-06 → —
|
M20AFKS MZEA12 6F | — | |
| 11701-24010-05 note |
Bearing, Crankshaft
2018-06 → —
|
M20AFKS MZEA12 6F | — | |
| 11701-24010-05 note |
Bearing, Crankshaft
2018-06 → 2022-09
ended
|
M20AFKS MZEA12 CVT | — | |
| 11701-24010-06 note |
Bearing, Crankshaft
2018-06 → 2022-09
ended
|
M20AFKS MZEA12 CVT | — | |
| 11701-24010-06 note |
Bearing, Crankshaft
2018-06 → —
|
M20AFKS MZEA12 6F | — | |
| 11701-24010-01 note |
Bearing, Crankshaft
2022-09 → 2023-03
ended
|
M20AFKS MZEA12 | — | |
| 11701-24010-02 note |
Bearing, Crankshaft
2022-09 → 2023-03
ended
|
M20AFKS MZEA12 | — | |
| 11701-24010-03 note |
Bearing, Crankshaft
2022-09 → 2023-03
ended
|
M20AFKS MZEA12 | — | |
| 11701-24010-04 note |
Bearing, Crankshaft
2022-09 → 2023-03
ended
|
M20AFKS MZEA12 | — | |
| 11701-24010-05 note |
Bearing, Crankshaft
2022-09 → 2023-03
ended
|
M20AFKS MZEA12 | — | |
| 11701-24010-06 note |
Bearing, Crankshaft
2022-09 → 2023-03
ended
|
M20AFKS MZEA12 | — | |
| 11701-24011-01 note |
Bearing, Crankshaft
2023-03 → —
|
M20AFKS MZEA12 | — | |
| 11701-24011-02 note |
Bearing, Crankshaft
2023-03 → —
|
M20AFKS MZEA12 | — | |
| 11701-24011-03 note |
Bearing, Crankshaft
2023-03 → —
|
M20AFKS MZEA12 | — | |
| 11701-24011-04 note |
Bearing, Crankshaft
2023-03 → —
|
M20AFKS MZEA12 | — | |
| 11701-24011-05 note |
Bearing, Crankshaft
2023-03 → —
|
M20AFKS MZEA12 | — | |
| 11701-24011-06 note |
Bearing, Crankshaft
2023-03 → —
|
M20AFKS MZEA12 | — | |
| 11791 — Washer, Crankshaft Thrust, Upper | ||||
| 11791-15030 note |
Washer, Crankshaft Thrust, Upper
2019-06 → 2022-09
ended
|
M20AFKS MZEA12 CVT | — | |
| 11791-15030 note |
Washer, Crankshaft Thrust, Upper
2019-06 → —
|
M20AFKS MZEA12 6F | — | |
| 11791-24030 note |
Washer, Crankshaft Thrust, Upper
2018-06 → 2019-05
ended
|
M20AFKS MZEA12 | — | |
| 11791-15030 note |
Washer, Crankshaft Thrust, Upper
2022-09 → —
|
M20AFKS MZEA12 | — | |
| 13011 — Ring Set, Piston | ||||
| 13011-24040 note |
Ring Set, Piston
2018-06 → 2022-09
ended
|
M20AFKS MZEA12 CVT | — | |
| 13011-24040 note |
Ring Set, Piston
2018-06 → —
|
M20AFKS MZEA12 6F | — | |
| 13011-24040 note |
Ring Set, Piston
2022-09 → —
|
M20AFKS MZEA12 | — | |
| 13041 — Bearing, Connecting Rod | ||||
| 13041-24020-01 note |
Bearing, Connecting Rod
2018-06 → 2022-09
ended
|
M20AFKS MZEA12 CVT | — | |
| 13041-24020-01 note |
Bearing, Connecting Rod
2018-06 → —
|
M20AFKS MZEA12 6F | — | |
| 13041-24020-02 note |
Bearing, Connecting Rod
2018-06 → —
|
M20AFKS MZEA12 6F | — | |
| 13041-24020-02 note |
Bearing, Connecting Rod
2018-06 → 2022-09
ended
|
M20AFKS MZEA12 CVT | — | |
| 13041-24020-03 note |
Bearing, Connecting Rod
2018-06 → 2022-09
ended
|
M20AFKS MZEA12 CVT | — | |
| 13041-24020-03 note |
Bearing, Connecting Rod
2018-06 → —
|
M20AFKS MZEA12 6F | — | |
| 13041-24020-01 note |
Bearing, Connecting Rod
2022-09 → —
|
M20AFKS MZEA12 | — | |
| 13041-24020-02 note |
Bearing, Connecting Rod
2022-09 → —
|
M20AFKS MZEA12 | — | |
| 13041-24020-03 note |
Bearing, Connecting Rod
2022-09 → —
|
M20AFKS MZEA12 | — | |
| 13101 — Piston Sub-assy, W/Pin | ||||
| 13101-24040 note |
Piston Sub-assy, W/Pin
2018-06 → 2022-09
ended
|
M20AFKS MZEA12 CVT | — | |
| 13101-24040 note |
Piston Sub-assy, W/Pin
2018-06 → —
|
M20AFKS MZEA12 6F | — | |
| 13101-24040 note |
Piston Sub-assy, W/Pin
2022-09 → —
|
M20AFKS MZEA12 | — | |
| 13101A — Ring, Hole Snap(FOR PISTON PIN) | ||||
| 90520-19019 |
Ring, Hole Snap(FOR PISTON PIN)
2018-06 → 2022-09
ended
|
M20AFKS MZEA12 CVT | — | |
| 90520-19019 |
Ring, Hole Snap(FOR PISTON PIN)
2018-06 → —
|
M20AFKS MZEA12 6F | — | |
| 90520-19019 |
Ring, Hole Snap(FOR PISTON PIN)
2022-09 → —
|
M20AFKS MZEA12 | — | |
| 13201 — Rod Sub-assy, Connecting | ||||
| 13201-29825-A0 note |
Rod Sub-assy, Connecting
2018-06 → 2019-03
ended
|
M20AFKS MZEA12 | — | |
| 13201-29825-B0 note |
Rod Sub-assy, Connecting
2018-06 → 2019-03
ended
|
M20AFKS MZEA12 | — | |
| 13201-29825-C0 note |
Rod Sub-assy, Connecting
2018-06 → 2019-03
ended
|
M20AFKS MZEA12 | — | |
| 13201-29835-A0 note |
Rod Sub-assy, Connecting
2019-04 → 2022-09
ended
|
M20AFKS MZEA12 CVT | — | |
| 13201-29835-A0 note |
Rod Sub-assy, Connecting
2019-04 → —
|
M20AFKS MZEA12 6F | — | |
| 13201-29835-B0 note |
Rod Sub-assy, Connecting
2019-04 → 2022-09
ended
|
M20AFKS MZEA12 CVT | — | |
| 13201-29835-B0 note |
Rod Sub-assy, Connecting
2019-04 → —
|
M20AFKS MZEA12 6F | — | |
| 13201-29835-C0 note |
Rod Sub-assy, Connecting
2019-04 → 2022-09
ended
|
M20AFKS MZEA12 CVT | — | |
| 13201-29835-C0 note |
Rod Sub-assy, Connecting
2019-04 → —
|
M20AFKS MZEA12 6F | — | |
| 13201-29835-A0 note |
Rod Sub-assy, Connecting
2022-09 → —
|
M20AFKS MZEA12 | — | |
| 13201-29835-B0 note |
Rod Sub-assy, Connecting
2022-09 → —
|
M20AFKS MZEA12 | — | |
| 13201-29835-C0 note |
Rod Sub-assy, Connecting
2022-09 → —
|
M20AFKS MZEA12 | — | |
| 13265 — Bolt, Connecting Rod | ||||
| 13265-25020 |
Bolt, Connecting Rod
2018-06 → 2022-09
ended
|
M20AFKS MZEA12 CVT | — | |
| 13265-25020 |
Bolt, Connecting Rod
2018-06 → —
|
M20AFKS MZEA12 6F | — | |
| 13265-25020 |
Bolt, Connecting Rod
2022-09 → —
|
M20AFKS MZEA12 | — | |
| 13405 — Flywheel Sub-assy | ||||
| 13450-24020 |
Flywheel Sub-assy
2018-06 → —
|
M20AFKS MZEA12 6F | — | |
| 13405B — Bolt, Flywheel Setting | ||||
| 90110-12015 |
Bolt, Flywheel Setting
2018-06 → —
|
M20AFKS MZEA12 6F | — | |
| 13411 — Crankshaft | ||||
| 13401-24010 |
Crankshaft
2018-06 → 2022-09
ended
|
M20AFKS MZEA12 CVT | — | |
| 13401-24010 |
Crankshaft
2018-06 → —
|
M20AFKS MZEA12 6F | — | |
| 13401-24010 |
Crankshaft
2022-09 → —
|
M20AFKS MZEA12 | — | |
| 13411C — Pin, Straight(FOR CRANKSHAFT) | ||||
| 90250-06035 |
Pin, Straight(FOR CRANKSHAFT)
2018-06 → —
|
M20AFKS MZEA12 6F | — | |
| 90250-06035 |
Pin, Straight(FOR CRANKSHAFT)
2018-06 → 2022-09
ended
|
M20AFKS MZEA12 CVT | — | |
| 90250-06035 |
Pin, Straight(FOR CRANKSHAFT)
2022-09 → —
|
M20AFKS MZEA12 | — | |
| 13470 — Pulley Assy, Crankshaft | ||||
| 13470-24010 |
Pulley Assy, Crankshaft
2018-06 → 2022-09
ended
|
M20AFKS MZEA12 CVT | — | |
| 13470-24010 |
Pulley Assy, Crankshaft
2018-06 → —
|
M20AFKS MZEA12 6F | — | |
| 13470-24010 |
Pulley Assy, Crankshaft
2022-09 → —
|
M20AFKS MZEA12 | — | |
| 13471A — Key, Crankshaft(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-04001 |
Key, Crankshaft(FOR CRANKSHAFT PULLEY SET)
2018-06 → 2022-09
ended
|
M20AFKS MZEA12 CVT | — | |
| 90280-04001 |
Key, Crankshaft(FOR CRANKSHAFT PULLEY SET)
2018-06 → —
|
M20AFKS MZEA12 6F | — | |
| 90280-04001 |
Key, Crankshaft(FOR CRANKSHAFT PULLEY SET)
2022-09 → —
|
M20AFKS MZEA12 | — | |
| 13471C — Bolt(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-16020 |
Bolt(FOR CRANKSHAFT PULLEY SET)
2018-06 → —
|
M20AFKS MZEA12 6F | — | |
| 90119-16020 |
Bolt(FOR CRANKSHAFT PULLEY SET)
2018-06 → 2022-09
ended
|
M20AFKS MZEA12 CVT | — | |
| 90119-16020 |
Bolt(FOR CRANKSHAFT PULLEY SET)
2022-09 → —
|
M20AFKS MZEA12 | — | |
| 13519B — Sprocket, Oil Pump Drive | ||||
| 13519-24010 |
Sprocket, Oil Pump Drive
2018-06 → 2022-09
ended
|
M20AFKS MZEA12 CVT | — | |
| 13519-24010 |
Sprocket, Oil Pump Drive
2018-06 → —
|
M20AFKS MZEA12 6F | — | |
| 13519-24010 |
Sprocket, Oil Pump Drive
2022-09 → —
|
M20AFKS MZEA12 | — | |
| 13521 — Gear OR Sprocket, Crankshaft Timing | ||||
| 13521-24010 |
Gear OR Sprocket, Crankshaft Timing
2018-06 → 2022-09
ended
|
M20AFKS MZEA12 CVT | — | |
| 13521-24010 |
Gear OR Sprocket, Crankshaft Timing
2018-06 → —
|
M20AFKS MZEA12 6F | — | |
| 13521-24010 |
Gear OR Sprocket, Crankshaft Timing
2022-09 → —
|
M20AFKS MZEA12 | — | |
| 19315 — Plate, Crank Angle Sensor, NO.1 | ||||
| 19315-24010 |
Plate, Crank Angle Sensor, NO.1
2018-06 → 2022-09
ended
|
M20AFKS MZEA12 CVT | — | |
| 19315-24010 |
Plate, Crank Angle Sensor, NO.1
2018-06 → —
|
M20AFKS MZEA12 6F | — | |
| 19315-24010 |
Plate, Crank Angle Sensor, NO.1
2022-09 → —
|
M20AFKS MZEA12 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
