Toyota Corolla Hatchback

2018-06 → present · chassis MZEA12 · catalogue 165430 · United States

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

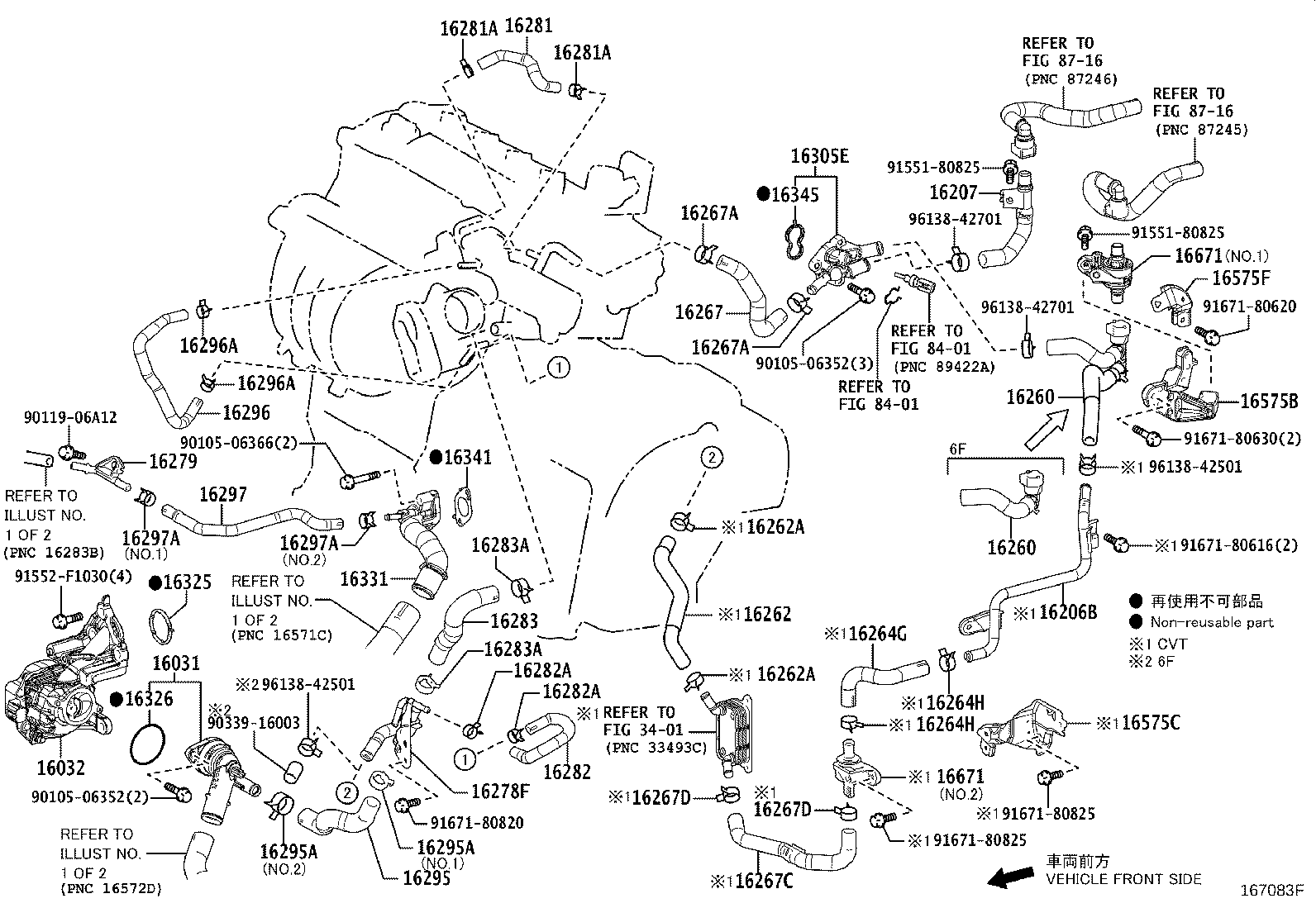

Exploded illustration 167083F 16671 — VALVE, WATER (4 parts) 16671 — VALVE, WATER (4 parts) 8716 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8716 — not listed in this catalogue 16032 — HOUSING SUB-ASSY, WATER INLET W/WATER PUMP (3 parts) 16206B — PIPE SUB-ASSY, WATER BY-PASS, NO.3 (1 parts) 16207 — PIPE SUB-ASSY, WATER BY-PASS, NO.2 (3 parts) 16260 — HOSE ASSY, WATER BY-PASS (2 parts) 16260 — HOSE ASSY, WATER BY-PASS (2 parts) 16262 — HOSE, WATER INLET (2 parts) 16262A — CLIP(FOR WATER INLET HOSE) (2 parts) 16262A — CLIP(FOR WATER INLET HOSE) (2 parts) 16264H — CLIP(FOR WATER BY-PASS HOSE NO.3) (1 parts) 16264G — HOSE, WATER BY-PASS, NO.3 (1 parts) 16264H — CLIP(FOR WATER BY-PASS HOSE NO.3) (1 parts) 16267 — HOSE, WATER BY-PASS, NO.3 (3 parts) 16267A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) (3 parts) 16267A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) (3 parts) 16267C — HOSE, WATER BY-PASS, NO.4 (1 parts) 16267D — CLIP(FOR WATER BY-PASS HOSE NO.4) (1 parts) 16267D — CLIP(FOR WATER BY-PASS HOSE NO.4) (1 parts) 16278F — HOSE, WATER BY-PASS, NO.2 (3 parts) 16279 — PIPE, WATER BY-PASS, NO.3 (3 parts) 16281 — HOSE, WATER BY-PASS, NO.4 (3 parts) 16281A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) (3 parts) 16281A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) (3 parts) 16282 — HOSE, WATER BY-PASS, NO.5 (3 parts) 16282A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) (3 parts) 16282A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) (3 parts) 16283 — HOSE, WATER BY-PASS, NO.6 (2 parts) 16283A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) (3 parts) 16283A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) (3 parts) 16296 — HOSE, WATER BY-PASS, NO.8 (3 parts) 16296A — CLIP(FOR WATER BY-PASS HOSE NO.8) (3 parts) 16296A — CLIP(FOR WATER BY-PASS HOSE NO.8) (3 parts) 16297 — HOSE, WATER BY-PASS, NO.9 (3 parts) 16297A — CLIP(FOR WATER BY-PASS HOSE NO.9) (6 parts) 16297A — CLIP(FOR WATER BY-PASS HOSE NO.9) (6 parts) 16295A — CLIP(FOR WATER BY-PASS HOSE NO.7) (6 parts) 16295 — HOSE, WATER BY-PASS, NO.7 (3 parts) 16295A — CLIP(FOR WATER BY-PASS HOSE NO.7) (6 parts) 16305E — OUTLET SUB-ASSY, WATER BY-PASS (3 parts) 16325 — GASKET, WATER INLET HOUSING, NO.1 (3 parts) 16331 — OUTLET, WATER (3 parts) 16341 — GASKET, WATER OUTLET (3 parts) 16345 — GASKET, WATER OUTLET PIPE (3 parts) 16575B — BRACKET, WATER HOSE CLAMP, NO.2 (3 parts) 16575C — BRACKET, WATER HOSE CLAMP, NO.1 (1 parts) 16575F — BRACKET, WATER HOSE CLAMP, NO.3 (3 parts) 9010506352 — not listed in this catalogue 9010506352 — not listed in this catalogue 9010506366 — not listed in this catalogue 9011906A12 — not listed in this catalogue 9155180825 — not listed in this catalogue 9155180825 — not listed in this catalogue 91552F1030 — not listed in this catalogue 9167180616 — not listed in this catalogue 9167180620 — not listed in this catalogue 9167180630 — not listed in this catalogue 9167180820 — not listed in this catalogue 9167180825 — not listed in this catalogue 9167180825 — not listed in this catalogue 9613842501 — not listed in this catalogue 9613842701 — not listed in this catalogue 9613842701 — not listed in this catalogue 3401 — not listed in this catalogue 9033916003 — not listed in this catalogue 9613842501 — not listed in this catalogue 16031 — WATER INLET SUB-ASSY, W/THERMOSTAT (4 parts) 16326 — GASKET, WATER INLET HOUSING, NO.2 (3 parts)
167083F · 49 callouts, 23 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
103 parts on this figure
Part number Description Fitment Price
16031 — Water Inlet Sub-assy, W/Thermostat
16031-24010 Water Inlet Sub-assy, W/Thermostat
2018-06 → 2019-09 ended
M20AFKS MZEA12 —
16031-24011 Water Inlet Sub-assy, W/Thermostat
2019-10 → 2022-09 ended
M20AFKS MZEA12 CVT —
16031-24011 Water Inlet Sub-assy, W/Thermostat
2019-10 → —
M20AFKS MZEA12 6F —
16031-24040 Water Inlet Sub-assy, W/Thermostat
2022-09 → —
M20AFKS MZEA12 —
16032 — Housing Sub-assy, Water Inlet W/Water Pump
16032-24010 Housing Sub-assy, Water Inlet W/Water Pump
2018-06 → —
M20AFKS MZEA12 6F —
16032-24010 Housing Sub-assy, Water Inlet W/Water Pump
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
16032-24020 Housing Sub-assy, Water Inlet W/Water Pump
2022-09 → —
M20AFKS MZEA12 —
16206B — Pipe Sub-assy, Water By-pass, NO.3
16207-24010 Pipe Sub-assy, Water By-pass, NO.3
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
16207 — Pipe Sub-assy, Water By-pass, NO.2
16207-24020 Pipe Sub-assy, Water By-pass, NO.2
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
16207-24020 Pipe Sub-assy, Water By-pass, NO.2
2018-06 → —
M20AFKS MZEA12 6F —
16207-24020 Pipe Sub-assy, Water By-pass, NO.2
2022-09 → —
M20AFKS MZEA12 —
16260 — Hose Assy, Water By-pass
16260-24080 Hose Assy, Water By-pass
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
16260-24090 Hose Assy, Water By-pass
2018-06 → —
M20AFKS MZEA12 6F —
16262 — Hose, Water Inlet
16262-24010 Hose, Water Inlet
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
16262-24020 Hose, Water Inlet
2022-09 → —
M20AFKS MZEA12 —
16262A — Clip(FOR WATER INLET HOSE)
96138-42501 Clip(FOR WATER INLET HOSE)
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
96138-42501 Clip(FOR WATER INLET HOSE)
2022-09 → —
M20AFKS MZEA12 —
16264G — Hose, Water By-pass, NO.3
16264-24010 Hose, Water By-pass, NO.3
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
16264H — Clip(FOR WATER BY-PASS HOSE NO.3)
96138-42501 Clip(FOR WATER BY-PASS HOSE NO.3)
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
16267 — Hose, Water By-pass, NO.3
16267-24040 Hose, Water By-pass, NO.3
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
16267-24040 Hose, Water By-pass, NO.3
2018-06 → —
M20AFKS MZEA12 6F —
16267-24040 Hose, Water By-pass, NO.3
2022-09 → —
M20AFKS MZEA12 —
16267A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
96138-42101 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
96138-42101 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2018-06 → —
M20AFKS MZEA12 6F —
96138-42101 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2022-09 → —
M20AFKS MZEA12 —
16267C — Hose, Water By-pass, NO.4
16267-24010 Hose, Water By-pass, NO.4
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
16267D — Clip(FOR WATER BY-PASS HOSE NO.4)
96138-42501 Clip(FOR WATER BY-PASS HOSE NO.4)
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
16278F — Hose, Water By-pass, NO.2
16278-24010 Hose, Water By-pass, NO.2
2018-06 → —
M20AFKS MZEA12 6F —
16278-24010 Hose, Water By-pass, NO.2
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
16278-24010 Hose, Water By-pass, NO.2
2022-09 → —
M20AFKS MZEA12 —
16279 — Pipe, Water By-pass, NO.3
16279-24010 Pipe, Water By-pass, NO.3
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
16279-24010 Pipe, Water By-pass, NO.3
2018-06 → —
M20AFKS MZEA12 6F —
16279-24010 Pipe, Water By-pass, NO.3
2022-09 → —
M20AFKS MZEA12 —
16281 — Hose, Water By-pass, NO.4
16281-24030 Hose, Water By-pass, NO.4
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
16281-24030 Hose, Water By-pass, NO.4
2018-06 → —
M20AFKS MZEA12 6F —
16281-24030 Hose, Water By-pass, NO.4
2022-09 → —
M20AFKS MZEA12 —
16281A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
96138-41501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
96138-41501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2018-06 → —
M20AFKS MZEA12 6F —
96138-41501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2022-09 → —
M20AFKS MZEA12 —
16282 — Hose, Water By-pass, NO.5
16282-24020 Hose, Water By-pass, NO.5
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
16282-24020 Hose, Water By-pass, NO.5
2018-06 → —
M20AFKS MZEA12 6F —
16282-24020 Hose, Water By-pass, NO.5
2022-09 → —
M20AFKS MZEA12 —
16282A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
96138-41501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
96138-41501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2018-06 → —
M20AFKS MZEA12 6F —
96138-41501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2022-09 → —
M20AFKS MZEA12 —
16283 — Hose, Water By-pass, NO.6
16283-24010 Hose, Water By-pass, NO.6
2018-06 → —
M20AFKS MZEA12 —
16283-24010 Hose, Water By-pass, NO.6
2022-09 → —
M20AFKS MZEA12 —
16283A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
96138-42501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
96138-42501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2018-06 → —
M20AFKS MZEA12 6F —
96138-42501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2022-09 → —
M20AFKS MZEA12 —
16295 — Hose, Water By-pass, NO.7
16295-24010 Hose, Water By-pass, NO.7
2018-06 → —
M20AFKS MZEA12 6F —
16295-24010 Hose, Water By-pass, NO.7
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
16295-24010 Hose, Water By-pass, NO.7
2022-09 → —
M20AFKS MZEA12 —
16295A — Clip(FOR WATER BY-PASS HOSE NO.7)
96138-42501 note Clip(FOR WATER BY-PASS HOSE NO.7)
2018-06 → —
M20AFKS MZEA12 6F —
96138-42501 note Clip(FOR WATER BY-PASS HOSE NO.7)
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
96138-42701 note Clip(FOR WATER BY-PASS HOSE NO.7)
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
96138-42701 note Clip(FOR WATER BY-PASS HOSE NO.7)
2018-06 → —
M20AFKS MZEA12 6F —
96138-42501 note Clip(FOR WATER BY-PASS HOSE NO.7)
2022-09 → —
M20AFKS MZEA12 —
96138-42701 note Clip(FOR WATER BY-PASS HOSE NO.7)
2022-09 → —
M20AFKS MZEA12 —
16296 — Hose, Water By-pass, NO.8
16296-24020 Hose, Water By-pass, NO.8
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
16296-24020 Hose, Water By-pass, NO.8
2018-06 → —
M20AFKS MZEA12 6F —
16296-24020 Hose, Water By-pass, NO.8
2022-09 → —
M20AFKS MZEA12 —
16296A — Clip(FOR WATER BY-PASS HOSE NO.8)
96138-41501 Clip(FOR WATER BY-PASS HOSE NO.8)
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
96138-41501 Clip(FOR WATER BY-PASS HOSE NO.8)
2018-06 → —
M20AFKS MZEA12 6F —
96138-41501 Clip(FOR WATER BY-PASS HOSE NO.8)
2022-09 → —
M20AFKS MZEA12 —
16297 — Hose, Water By-pass, NO.9
16297-24010 Hose, Water By-pass, NO.9
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
16297-24010 Hose, Water By-pass, NO.9
2018-06 → —
M20AFKS MZEA12 6F —
16297-24010 Hose, Water By-pass, NO.9
2022-09 → —
M20AFKS MZEA12 —
16297A — Clip(FOR WATER BY-PASS HOSE NO.9)
90467-15022 note Clip(FOR WATER BY-PASS HOSE NO.9)
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
90467-15022 note Clip(FOR WATER BY-PASS HOSE NO.9)
2018-06 → —
M20AFKS MZEA12 6F —
96138-41501 note Clip(FOR WATER BY-PASS HOSE NO.9)
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
96138-41501 note Clip(FOR WATER BY-PASS HOSE NO.9)
2018-06 → —
M20AFKS MZEA12 6F —
90467-15022 note Clip(FOR WATER BY-PASS HOSE NO.9)
2022-09 → —
M20AFKS MZEA12 —
96138-41501 note Clip(FOR WATER BY-PASS HOSE NO.9)
2022-09 → —
M20AFKS MZEA12 —
16305E — Outlet Sub-assy, Water By-pass
16305-24010 Outlet Sub-assy, Water By-pass
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
16305-24010 Outlet Sub-assy, Water By-pass
2018-06 → —
M20AFKS MZEA12 6F —
16305-24010 Outlet Sub-assy, Water By-pass
2022-09 → —
M20AFKS MZEA12 —
16325 — Gasket, Water Inlet Housing, NO.1
16325-25010 Gasket, Water Inlet Housing, NO.1
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
16325-25010 Gasket, Water Inlet Housing, NO.1
2018-06 → —
M20AFKS MZEA12 6F —
16325-25010 Gasket, Water Inlet Housing, NO.1
2022-09 → —
M20AFKS MZEA12 —
16326 — Gasket, Water Inlet Housing, NO.2
16326-47020 Gasket, Water Inlet Housing, NO.2
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
16326-47020 Gasket, Water Inlet Housing, NO.2
2018-06 → —
M20AFKS MZEA12 6F —
16326-47020 Gasket, Water Inlet Housing, NO.2
2022-09 → —
M20AFKS MZEA12 —
16331 — Outlet, Water
16331-24030 Outlet, Water
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
16331-24030 Outlet, Water
2018-06 → —
M20AFKS MZEA12 6F —
16331-24030 Outlet, Water
2022-09 → —
M20AFKS MZEA12 —
16341 — Gasket, Water Outlet
16341-24010 Gasket, Water Outlet
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
16341-24010 Gasket, Water Outlet
2018-06 → —
M20AFKS MZEA12 6F —
16341-24010 Gasket, Water Outlet
2022-09 → —
M20AFKS MZEA12 —
16345 — Gasket, Water Outlet Pipe
16345-24010 Gasket, Water Outlet Pipe
2018-06 → —
M20AFKS MZEA12 6F —
16345-24010 Gasket, Water Outlet Pipe
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
16345-24010 Gasket, Water Outlet Pipe
2022-09 → —
M20AFKS MZEA12 —
16575B — Bracket, Water Hose Clamp, NO.2
16575-24050 Bracket, Water Hose Clamp, NO.2
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
16575-24050 Bracket, Water Hose Clamp, NO.2
2018-06 → —
M20AFKS MZEA12 6F —
16575-24050 Bracket, Water Hose Clamp, NO.2
2022-09 → —
M20AFKS MZEA12 —
16575C — Bracket, Water Hose Clamp, NO.1
16575-24010 Bracket, Water Hose Clamp, NO.1
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
16575F — Bracket, Water Hose Clamp, NO.3
16575-24060 Bracket, Water Hose Clamp, NO.3
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
16575-24060 Bracket, Water Hose Clamp, NO.3
2018-06 → —
M20AFKS MZEA12 6F —
16575-24060 Bracket, Water Hose Clamp, NO.3
2022-09 → —
M20AFKS MZEA12 —
16671 — Valve, Water
16671-24010 note Valve, Water
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
16671-24010 note Valve, Water
2018-06 → —
M20AFKS MZEA12 6F —
16671-24020 note Valve, Water
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
16671-25070 Valve, Water
2022-09 → —
M20AFKS MZEA12 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
