Toyota Corolla Hatchback

2018-06 → present · chassis MZEA12 · catalogue 165430 · United States

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

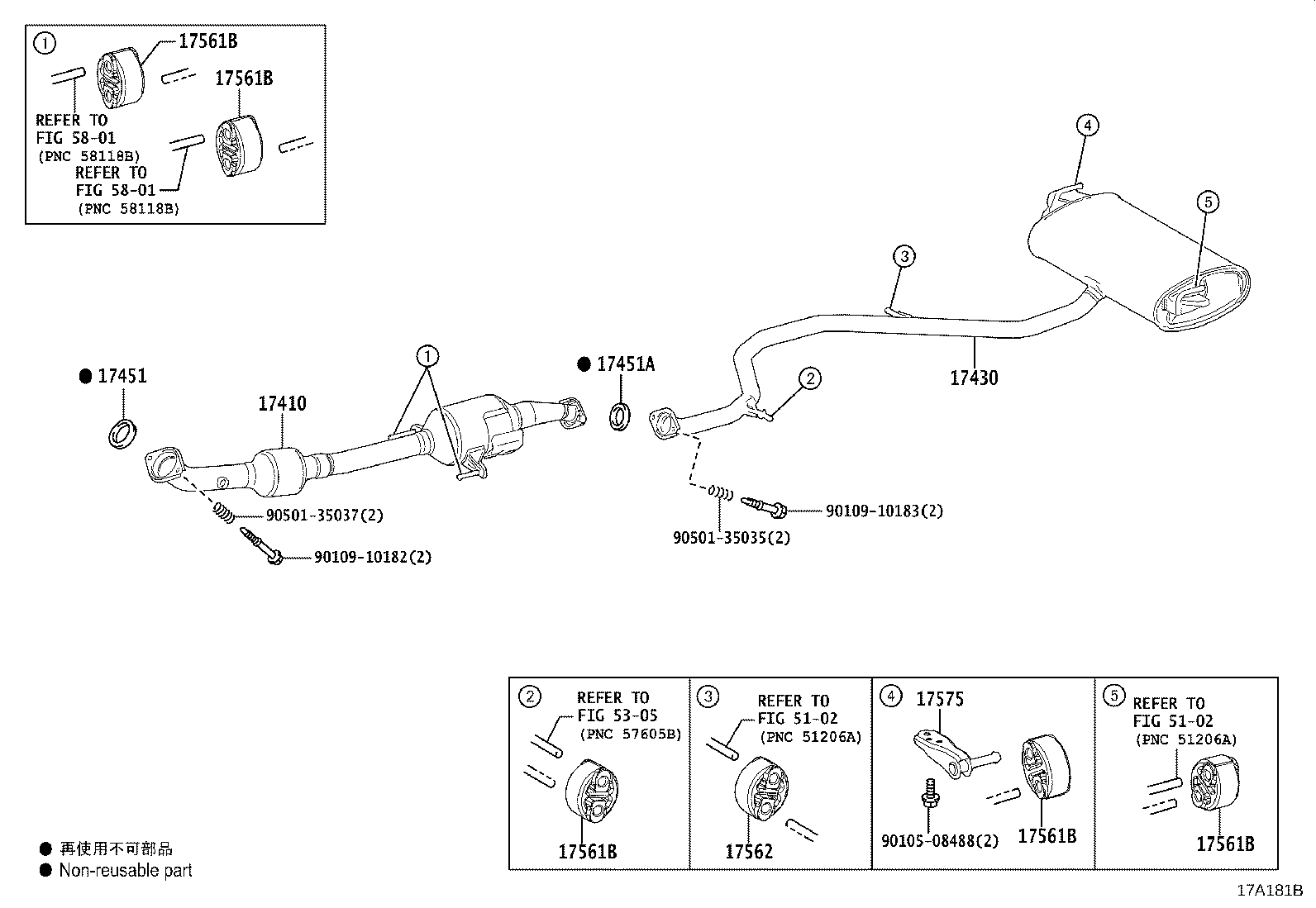

Exploded illustration 17A181B 5801 — not listed in this catalogue 5801 — not listed in this catalogue 5305 — not listed in this catalogue 5102 — not listed in this catalogue 5102 — not listed in this catalogue 17430 — PIPE ASSY, EXHAUST, TAIL (3 parts) 17451A — GASKET, EXHAUST PIPE, NO.2 (4 parts) 17451 — GASKET, EXHAUST PIPE (4 parts) 17410 — PIPE ASSY, EXHAUST, FRONT (6 parts) 9010910183 — not listed in this catalogue 9010910182 — not listed in this catalogue 9050135037 — not listed in this catalogue 9050135035 — not listed in this catalogue 17561B — SUPPORT, EXHAUST PIPE, NO.1 (3 parts) 17561B — SUPPORT, EXHAUST PIPE, NO.1 (3 parts) 9010508488 — not listed in this catalogue 17575 — BRACKET, EXHAUST PIPE SUPPORT, NO.5 (3 parts) 17562 — SUPPORT, EXHAUST PIPE, NO.2 (3 parts) 17561B — SUPPORT, EXHAUST PIPE, NO.1 (3 parts) 17561B — SUPPORT, EXHAUST PIPE, NO.1 (3 parts) 17561B — SUPPORT, EXHAUST PIPE, NO.1 (3 parts)
17A181B · 11 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
26 parts on this figure
Part number Description Fitment Price
17410 — Pipe Assy, Exhaust, Front
17410-24250 Pipe Assy, Exhaust, Front
2018-06 → 2020-06 ended
M20AFKS MZEA12 —
17410-24470 Pipe Assy, Exhaust, Front
2020-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
17410-24470 Pipe Assy, Exhaust, Front
2020-06 → —
M20AFKS MZEA12 6F —
17410-24470 Pipe Assy, Exhaust, Front
2022-09 → 2023-08 ended
M20AFKS MZEA12 —
17410-24750 note Pipe Assy, Exhaust, Front
2023-03 → 2023-08 ended
M20AFKS MZEA12 —
17410-24750 Pipe Assy, Exhaust, Front
2023-08 → 2025-07 ended
M20AFKS MZEA12 —
17430 — Pipe Assy, Exhaust, Tail
17430-24360 Pipe Assy, Exhaust, Tail
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
17430-24360 Pipe Assy, Exhaust, Tail
2018-06 → —
M20AFKS MZEA12 6F —
17430-24360 Pipe Assy, Exhaust, Tail
2022-09 → —
M20AFKS MZEA12 —
17451 — Gasket, Exhaust Pipe
17451-28040 Gasket, Exhaust Pipe
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
17451-28040 Gasket, Exhaust Pipe
2018-06 → —
M20AFKS MZEA12 6F —
17451-28040 Gasket, Exhaust Pipe
2022-09 → 2023-11 ended
M20AFKS MZEA12 —
17451-28041 Gasket, Exhaust Pipe
2023-11 → —
M20AFKS MZEA12 —
17451A — Gasket, Exhaust Pipe, NO.2
17451-23042 Gasket, Exhaust Pipe, NO.2
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
17451-23042 Gasket, Exhaust Pipe, NO.2
2018-06 → —
M20AFKS MZEA12 6F —
17451-23042 Gasket, Exhaust Pipe, NO.2
2022-09 → 2023-11 ended
M20AFKS MZEA12 —
17451-23043 Gasket, Exhaust Pipe, NO.2
2023-11 → —
M20AFKS MZEA12 —
17561B — Support, Exhaust Pipe, NO.1
17565-22040 Support, Exhaust Pipe, NO.1
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
17565-22040 Support, Exhaust Pipe, NO.1
2018-06 → —
M20AFKS MZEA12 6F —
17565-22040 Support, Exhaust Pipe, NO.1
2022-09 → —
M20AFKS MZEA12 —
17562 — Support, Exhaust Pipe, NO.2
17565-28010 Support, Exhaust Pipe, NO.2
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
17565-28010 Support, Exhaust Pipe, NO.2
2018-06 → —
M20AFKS MZEA12 6F —
17565-28010 Support, Exhaust Pipe, NO.2
2022-09 → —
M20AFKS MZEA12 —
17575 — Bracket, Exhaust Pipe Support, NO.5
17575-37030 Bracket, Exhaust Pipe Support, NO.5
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
17575-37030 Bracket, Exhaust Pipe Support, NO.5
2018-06 → —
M20AFKS MZEA12 6F —
17575-37030 Bracket, Exhaust Pipe Support, NO.5
2022-09 → —
M20AFKS MZEA12 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
