Toyota Corolla Hatchback

2018-06 → present · chassis MZEA12 · catalogue 165430 · United States

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

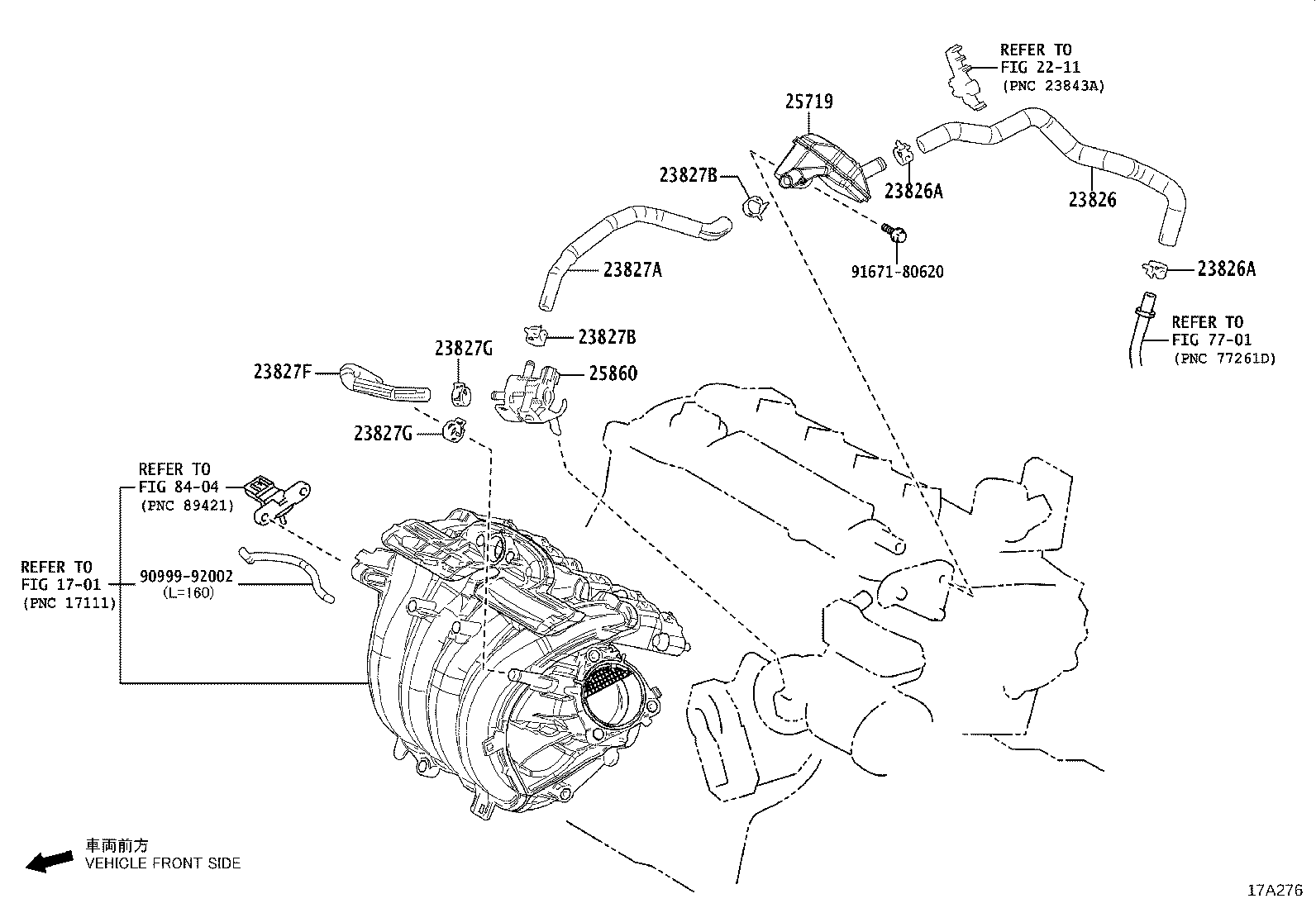

Exploded illustration 17A276 23827B — CLIP(FOR FUEL VAPOR FEED HOSE, NO.2) (3 parts) 23827G — CLIP(FOR FUEL VAPOR FEED HOSE, NO.3) (3 parts) 23827B — CLIP(FOR FUEL VAPOR FEED HOSE, NO.2) (3 parts) 23827G — CLIP(FOR FUEL VAPOR FEED HOSE, NO.3) (3 parts) 8404 — not listed in this catalogue 2211 — not listed in this catalogue 7701 — not listed in this catalogue 1701 — not listed in this catalogue 23826 — HOSE, FUEL VAPOR FEED, NO.1 (3 parts) 23826A — CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) (3 parts) 23826A — CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) (3 parts) 23827A — HOSE, FUEL VAPOR FEED, NO.2 (3 parts) 23827F — HOSE, FUEL VAPOR FEED, NO.3 (3 parts) 25719 — TANK, VACUUM SURGE (3 parts) 25860 — VALVE ASSY, VACUUM SWITCHING, NO.1 (3 parts) 9167180620 — not listed in this catalogue 9099992002 — not listed in this catalogue
17A276 · 11 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
24 parts on this figure
Part number Description Fitment Price
23826 — Hose, Fuel Vapor Feed, NO.1
23826-24030 Hose, Fuel Vapor Feed, NO.1
2018-06 → —
M20AFKS MZEA12 6F —
23826-24030 Hose, Fuel Vapor Feed, NO.1
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
23826-24030 Hose, Fuel Vapor Feed, NO.1
2022-09 → —
M20AFKS MZEA12 —
23826A — Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
96136-41901 Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
96136-41901 Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
2018-06 → —
M20AFKS MZEA12 6F —
96136-41901 Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
2022-09 → —
M20AFKS MZEA12 —
23827A — Hose, Fuel Vapor Feed, NO.2
23826-24070 Hose, Fuel Vapor Feed, NO.2
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
23826-24070 Hose, Fuel Vapor Feed, NO.2
2018-06 → —
M20AFKS MZEA12 6F —
23826-24070 Hose, Fuel Vapor Feed, NO.2
2022-09 → —
M20AFKS MZEA12 —
23827B — Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
96136-41901 Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
96136-41901 Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
2018-06 → —
M20AFKS MZEA12 6F —
96136-41901 Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
2022-09 → —
M20AFKS MZEA12 —
23827F — Hose, Fuel Vapor Feed, NO.3
23826-24080 Hose, Fuel Vapor Feed, NO.3
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
23826-24080 Hose, Fuel Vapor Feed, NO.3
2018-06 → —
M20AFKS MZEA12 6F —
23826-24080 Hose, Fuel Vapor Feed, NO.3
2022-09 → —
M20AFKS MZEA12 —
23827G — Clip(FOR FUEL VAPOR FEED HOSE, NO.3)
96136-41901 Clip(FOR FUEL VAPOR FEED HOSE, NO.3)
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
96136-41901 Clip(FOR FUEL VAPOR FEED HOSE, NO.3)
2018-06 → —
M20AFKS MZEA12 6F —
96136-41901 Clip(FOR FUEL VAPOR FEED HOSE, NO.3)
2022-09 → —
M20AFKS MZEA12 —
25719 — Tank, Vacuum Surge
25719-24020 Tank, Vacuum Surge
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
25719-24020 Tank, Vacuum Surge
2018-06 → —
M20AFKS MZEA12 6F —
25719-24020 Tank, Vacuum Surge
2022-09 → —
M20AFKS MZEA12 —
25860 — Valve Assy, Vacuum Switching, NO.1
25860-24040 Valve Assy, Vacuum Switching, NO.1
2018-06 → 2022-09 ended
M20AFKS MZEA12 CVT —
25860-24040 Valve Assy, Vacuum Switching, NO.1
2018-06 → —
M20AFKS MZEA12 6F —
25860-24040 Valve Assy, Vacuum Switching, NO.1
2022-09 → —
M20AFKS MZEA12 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
