Toyota Corolla Hatchback
2018-06 → present · chassis MZEA12 · catalogue 165430 · United States
Supported model
Data version 2022-09

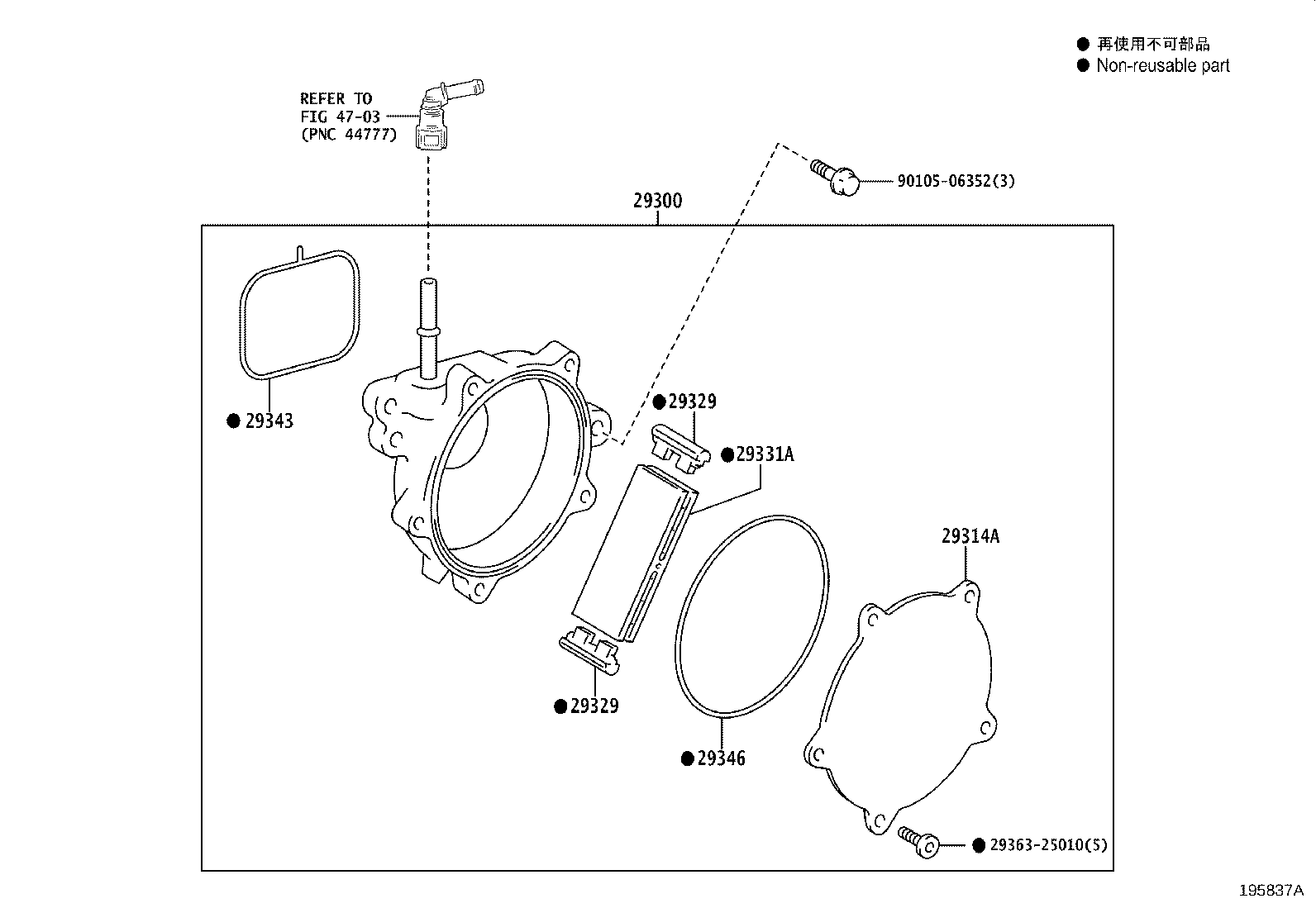

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 29300 — Pump Assy, Vacuum | ||||
| 29300-24011 |
Pump Assy, Vacuum
2018-06 → —
|
M20AFKS MZEA12 6F | — | |
| 29300-24011 |
Pump Assy, Vacuum
2018-06 → 2022-09
ended
|
M20AFKS MZEA12 CVT | — | |
| 29300-24011 |
Pump Assy, Vacuum
2022-09 → —
|
M20AFKS MZEA12 | — | |
| 29314A — Cover, End | ||||
| 29314-25010 |
Cover, End
2018-06 → 2022-09
ended
|
M20AFKS MZEA12 CVT | — | |
| 29314-25010 |
Cover, End
2018-06 → —
|
M20AFKS MZEA12 6F | — | |
| 29314-25010 |
Cover, End
2022-09 → —
|
M20AFKS MZEA12 | — | |
| 29329 — Cap, Vacuum Pump Vane | ||||
| 29329-24011 |
Cap, Vacuum Pump Vane
2018-06 → 2022-09
ended
|
M20AFKS MZEA12 CVT | — | |
| 29329-24011 |
Cap, Vacuum Pump Vane
2018-06 → —
|
M20AFKS MZEA12 6F | — | |
| 29329-24011 |
Cap, Vacuum Pump Vane
2022-09 → —
|
M20AFKS MZEA12 | — | |
| 29331A — Vane, Vacuum Pump | ||||
| 29331-24010 |
Vane, Vacuum Pump
2018-06 → 2022-09
ended
|
M20AFKS MZEA12 CVT | — | |
| 29331-24010 |
Vane, Vacuum Pump
2018-06 → —
|
M20AFKS MZEA12 6F | — | |
| 29331-24010 |
Vane, Vacuum Pump
2022-09 → —
|
M20AFKS MZEA12 | — | |
| 29343 — Ring, O Vacuum Pump, NO.1 | ||||
| 29343-25010 |
Ring, O Vacuum Pump, NO.1
2018-06 → 2022-09
ended
|
M20AFKS MZEA12 CVT | — | |
| 29343-25010 |
Ring, O Vacuum Pump, NO.1
2018-06 → —
|
M20AFKS MZEA12 6F | — | |
| 29343-25010 |
Ring, O Vacuum Pump, NO.1
2022-09 → —
|
M20AFKS MZEA12 | — | |
| 29346 — Ring, O Vacuum Pump Cover | ||||
| 29346-25010 |
Ring, O Vacuum Pump Cover
2018-06 → 2022-09
ended
|
M20AFKS MZEA12 CVT | — | |
| 29346-25010 |
Ring, O Vacuum Pump Cover
2018-06 → —
|
M20AFKS MZEA12 6F | — | |
| 29346-25010 |
Ring, O Vacuum Pump Cover
2022-09 → —
|
M20AFKS MZEA12 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
