Toyota Corolla Hatchback
2018-06 → present · chassis MZEA12 · catalogue 165430 · United States
Supported model
Data version 2022-09

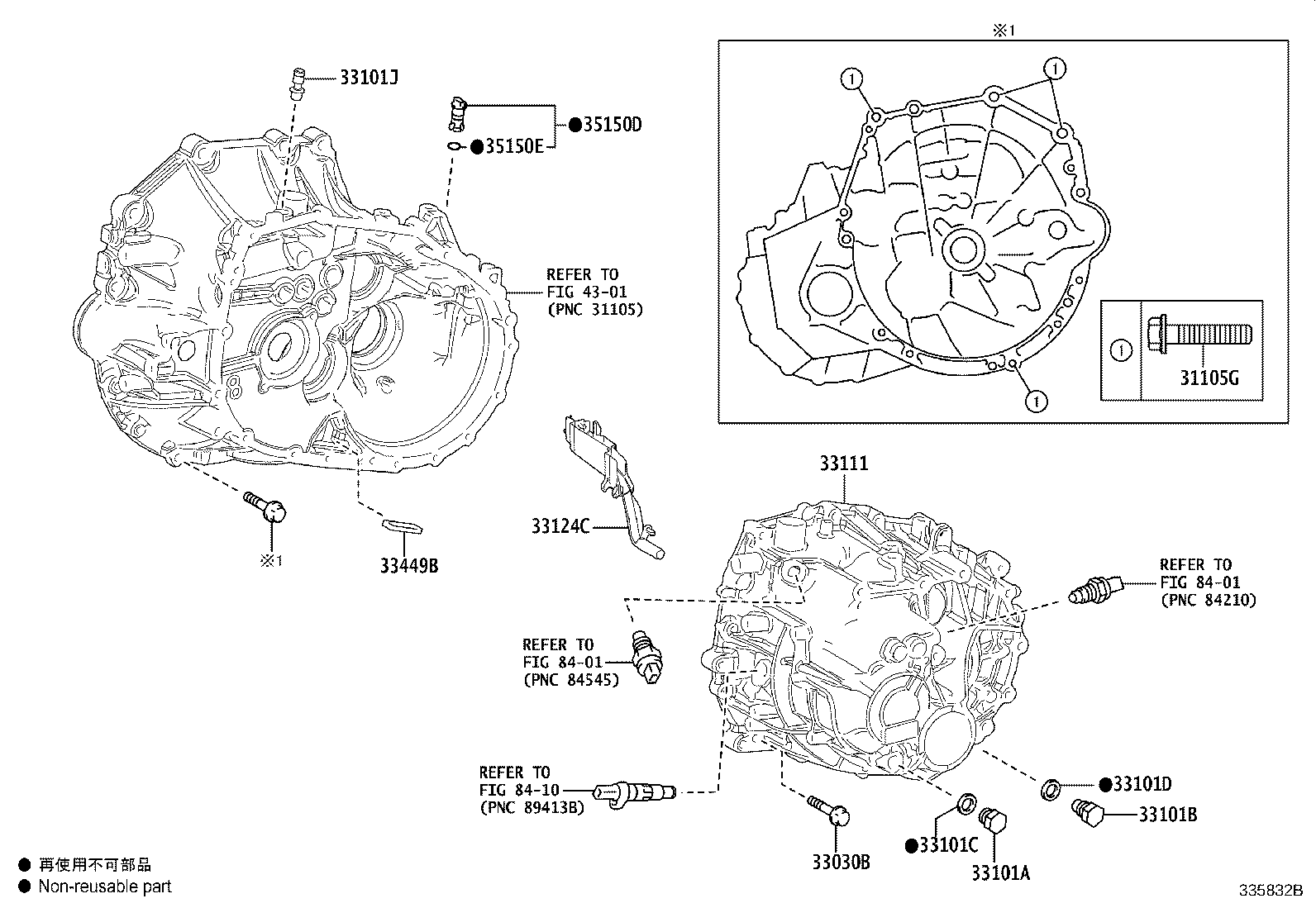

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 31105G — Bolt(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90105-10591 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2018-06 → —
|
MZEA12 6F | — | |
| 91552-81250 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2018-06 → —
|
MZEA12 6F | — | |
| 91553-80830 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2018-06 → —
|
MZEA12 6F | — | |
| 33030B — Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 91551-10840 note |
Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
2018-06 → —
|
MZEA12 6F | — | |
| 33101A — Plug(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18033 |
Plug(FOR MANUAL TRANSMISSION FILLER)
2018-06 → —
|
MZEA12 6F | — | |
| 33101B — Plug(FOR MANUAL TRANSMISSION DRAIN) | ||||
| 90341-18085 |
Plug(FOR MANUAL TRANSMISSION DRAIN)
2018-06 → —
|
MZEA12 6F | — | |
| 33101C — Gasket(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
2018-06 → —
|
MZEA12 6F | — | |
| 33101D — Gasket(FOR MANUAL TRANSMISSION DRAIN PLUG) | ||||
| 90430-18008 |
Gasket(FOR MANUAL TRANSMISSION DRAIN PLUG)
2018-06 → —
|
MZEA12 6F | — | |
| 33101J — Plug, Breather | ||||
| 90930-03085 |
Plug, Breather
2018-06 → —
|
MZEA12 6F | — | |
| 33111 — Case, Manual Transmission | ||||
| 33111-12350 |
Case, Manual Transmission
2018-06 → —
|
MZEA12 6F | — | |
| 33124C — Pipe, Oil Receiver, NO.1(MTM) | ||||
| 33124-12090 |
Pipe, Oil Receiver, NO.1(MTM)
2018-06 → —
|
MZEA12 6F | — | |
| 33449B — Magnet, Transmission | ||||
| 33449-60010 |
Magnet, Transmission
2018-06 → —
|
MZEA12 6F | — | |
| 35150D — Plug Assy, Transmission Case | ||||
| 35150-44010 |
Plug Assy, Transmission Case
2018-06 → —
|
MZEA12 6F | — | |
| 35150E — Ring, O (FOR TRANSMISSION CASE PLUG) | ||||
| 90301-09173 |
Ring, O (FOR TRANSMISSION CASE PLUG)
2018-06 → —
|
MZEA12 6F | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
