Toyota Corolla Hatchback

2018-06 → present · chassis MZEA12 · catalogue 165430 · United States

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

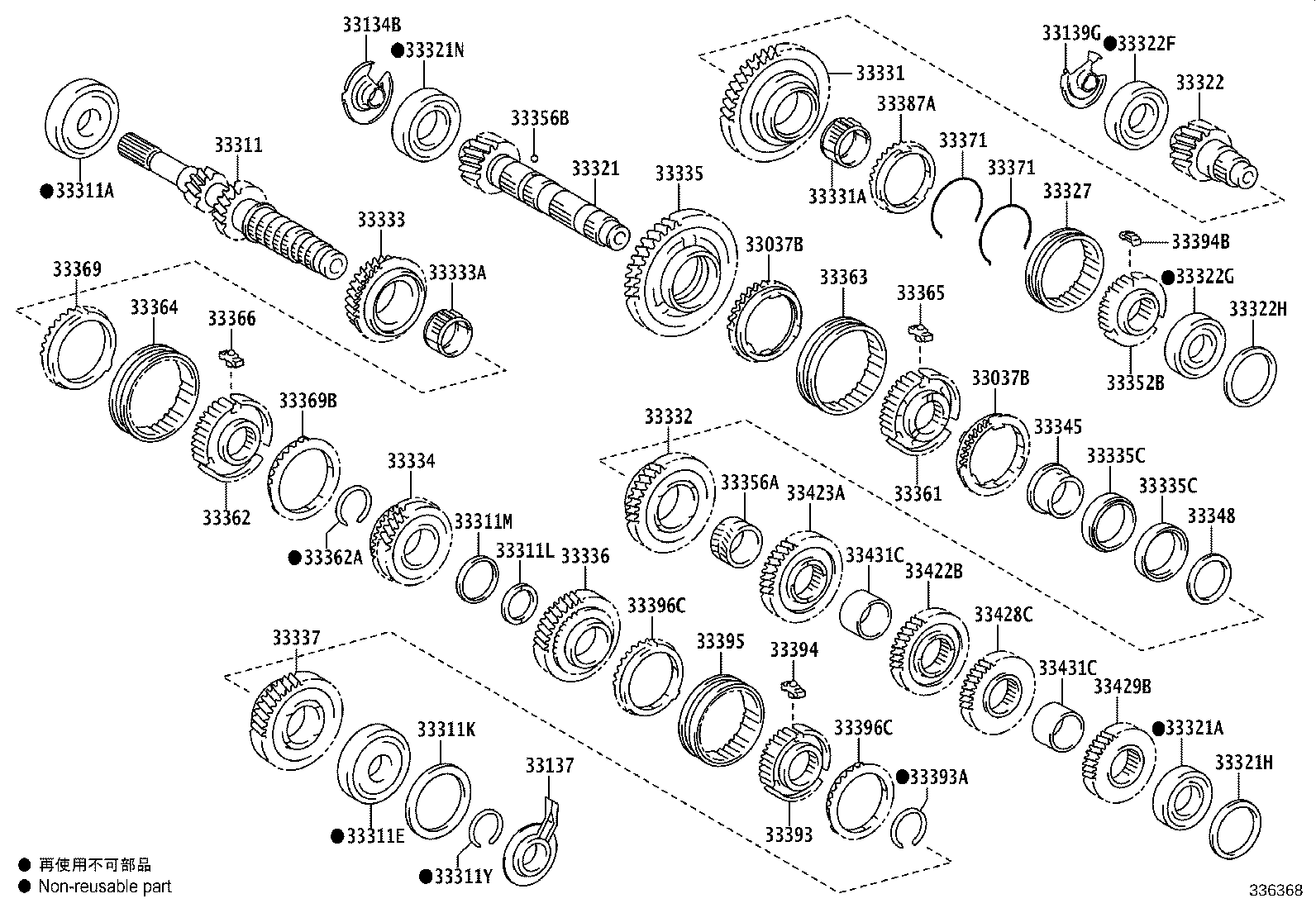

Exploded illustration 336368 33311 — SHAFT, INPUT (1 parts) 33333 — GEAR, 3RD (1 parts) 33333A — BEARING, NEEDLE ROLLER (FOR 3RD GEAR) (1 parts) 33334 — GEAR, 4TH (1 parts) 33362 — HUB, TRANSMISSION CLUTCH, NO.2 (1 parts) 33364 — SLEEVE, TRANSMISSION HUB, NO.2 (1 parts) 33369B — RING, SYNCHRONIZER, NO.4 (1 parts) 33369 — RING, SYNCHRONIZER, NO.3 (1 parts) 33321 — SHAFT, OUTPUT (1 parts) 33356B — BALL, 2ND GEAR BEARING INNER RACE LOCK (1 parts) 33332 — GEAR, 2ND (1 parts) 33423A — GEAR, 3RD DRIVEN (1 parts) 33422B — GEAR, 4TH DRIVEN (1 parts) 33428C — GEAR, 5TH DRIVEN (1 parts) 33429B — GEAR, 6TH DRIVEN (1 parts) 33431C — SPACER, OUTPUT GEAR (1 parts) 33431C — SPACER, OUTPUT GEAR (1 parts) 33335C — BEARING, NEEDLE ROLLER(FOR 1ST GEAR) (1 parts) 33335C — BEARING, NEEDLE ROLLER(FOR 1ST GEAR) (1 parts) 33345 — BUSH, 1ST GEAR (1 parts) 33037B — RING SET, SYNCHRONIZER, NO.1 (1 parts) 33037B — RING SET, SYNCHRONIZER, NO.1 (1 parts) 33361 — HUB, TRANSMISSION CLUTCH, NO.1 (1 parts) 33363 — SLEEVE, TRANSMISSION HUB, NO.1 (1 parts) 33335 — GEAR, 1ST (1 parts) 33322 — SHAFT, OUTPUT, NO.2 (1 parts) 33322F — BEARING(FOR REVERSE GEAR SHAFT FRONT) (1 parts) 33394 — KEY, SYNCHROMESH SHIFTING, NO.3 (1 parts) 33394B — KEY, SYNCHROMESH SHIFTING, NO.3 (1 parts) 33352B — HUB, TRANSMISSION CLUTCH, NO.4 (1 parts) 33331 — GEAR, REVERSE (1 parts) 33327 — SLEEVE, TRANSMISSION HUB, NO.4 (1 parts) 33371 — SPRING, SYNCHROMESH SHIFTING KEY, NO.1 (1 parts) 33371 — SPRING, SYNCHROMESH SHIFTING KEY, NO.1 (1 parts) 33387A — RING, REVERSE SYNCHRONIZER (1 parts) 33331A — BEARING (FOR REVERSE GEAR) (1 parts) 33322G — BEARING(FOR REVERSE GEAR SHAFT REAR) (1 parts) 33139G — COVER, REVERSE GEAR SHAFT (1 parts) 33311K — SHIM (FOR INPUT SHAFT REAR BEARING) (14 parts) 33137 — COVER, INPUT SHAFT(MTM) (1 parts) 33311A — BEARING (FOR INPUT SHAFT FRONT) (1 parts) 33311E — BEARING, RADIAL BALL (FOR INPUT SHAFT REAR) (2 parts) 33311L — SPACER(FOR INPUT SHAFT INNER) (1 parts) 33336 — GEAR, 5TH (1 parts) 33337 — GEAR SUB-ASSY, 6TH (1 parts) 33395 — SLEEVE, TRANSMISSION HUB, NO.3 (2 parts) 33396C — RING, SYNCHRONIZER, NO.5(MTM) (1 parts) 33396C — RING, SYNCHRONIZER, NO.5(MTM) (1 parts) 33393 — HUB, TRANSMISSION CLUTCH, NO.3 (1 parts) 33311M — SPACER(FOR INPUT SHAFT OUTER) (1 parts) 33311Y — RING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING) (8 parts) 33362A — RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) (6 parts) 33393A — RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) (6 parts) 33321H — SHIM (FOR OUTPUT SHAFT REAR BEARING) (37 parts) 33348 — WASHER, 1ST GEAR THRUST (1 parts) 33322H — SHIM(FOR REVERSE GEAR SHAFT REAR BEARING) (13 parts) 33321A — BEARING (FOR OUTPUT SHAFT REAR) (1 parts) 33356A — RACE, 2ND GEAR BEARING INNER (1 parts) 33321N — BEARING (FOR OUTPUT SHAFT FRONT) (1 parts) 33134B — COVER, OUTPUT SHAFT(MTM) (1 parts) 33365 — KEY, SYNCHROMESH SHIFTING, NO.1 (1 parts) 33366 — KEY, SYNCHROMESH SHIFTING, NO.2 (1 parts)
336368 · 62 callouts Full size ↗
137 parts on this figure
Part number Description Fitment Price
33037B — Ring Set, Synchronizer, NO.1
33037-12100 Ring Set, Synchronizer, NO.1
2018-06 → —
MZEA12 6F —
33134B — Cover, Output Shaft(MTM)
33134-12040 Cover, Output Shaft(MTM)
2018-06 → —
MZEA12 6F —
33137 — Cover, Input Shaft(MTM)
33137-12030 Cover, Input Shaft(MTM)
2018-06 → —
MZEA12 6F —
33139G — Cover, Reverse Gear Shaft
33139-12020 Cover, Reverse Gear Shaft
2018-06 → —
MZEA12 6F —
33311 — Shaft, Input
33311-12310 Shaft, Input
2018-06 → —
MZEA12 6F —
33311A — Bearing (FOR INPUT SHAFT FRONT)
90363-25094 Bearing (FOR INPUT SHAFT FRONT)
2018-06 → —
MZEA12 6F —
33311E — Bearing, Radial Ball (FOR INPUT SHAFT REAR)
90363-33014 Bearing, Radial Ball (FOR INPUT SHAFT REAR)
2018-06 → 2020-04 ended
MZEA12 6F —
90363-33015 Bearing, Radial Ball (FOR INPUT SHAFT REAR)
2020-04 → —
MZEA12 6F —
33311K — Shim (FOR INPUT SHAFT REAR BEARING)
90564-61114 note Shim (FOR INPUT SHAFT REAR BEARING)
2020-04 → —
MZEA12 6F —
90564-61115 note Shim (FOR INPUT SHAFT REAR BEARING)
2020-04 → —
MZEA12 6F —
90564-61116 note Shim (FOR INPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-61117 note Shim (FOR INPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-61118 note Shim (FOR INPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-61119 note Shim (FOR INPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-61120 note Shim (FOR INPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-61121 note Shim (FOR INPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-61122 note Shim (FOR INPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-61123 note Shim (FOR INPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-61124 note Shim (FOR INPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-61125 note Shim (FOR INPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-61126 note Shim (FOR INPUT SHAFT REAR BEARING)
2018-06 → 2020-04 ended
MZEA12 6F —
90564-61162 note Shim (FOR INPUT SHAFT REAR BEARING)
2018-06 → 2020-04 ended
MZEA12 6F —
33311L — Spacer(FOR INPUT SHAFT INNER)
35469-12030 Spacer(FOR INPUT SHAFT INNER)
2018-06 → —
MZEA12 6F —
33311M — Spacer(FOR INPUT SHAFT OUTER)
35469-12040 Spacer(FOR INPUT SHAFT OUTER)
2018-06 → —
MZEA12 6F —
33311Y — Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
90520-31064 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90520-31065 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90520-31066 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90520-31067 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90520-31068 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2018-06 → 2020-04 ended
MZEA12 6F —
90520-31069 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2018-06 → 2020-04 ended
MZEA12 6F —
90520-31070 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2020-04 → —
MZEA12 6F —
90520-31071 note Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2020-04 → —
MZEA12 6F —
33321 — Shaft, Output
33321-12390 Shaft, Output
2018-06 → —
MZEA12 6F —
33321A — Bearing (FOR OUTPUT SHAFT REAR)
90366-32037 Bearing (FOR OUTPUT SHAFT REAR)
2018-06 → —
MZEA12 6F —
33321H — Shim (FOR OUTPUT SHAFT REAR BEARING)
90564-50294 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-50295 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-50296 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-50297 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-50298 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-50299 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-50300 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-50301 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-50302 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-50303 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-50304 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-50305 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-50306 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-50307 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-50308 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-50309 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-50310 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-50311 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-50312 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-50313 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-50314 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-50315 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-50316 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-50317 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-50318 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-50319 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-50320 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-50321 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-50322 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-50323 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-50324 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-50325 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-50326 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-50327 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-50328 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-50329 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-50330 note Shim (FOR OUTPUT SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
33321N — Bearing (FOR OUTPUT SHAFT FRONT)
90366-36016 Bearing (FOR OUTPUT SHAFT FRONT)
2018-06 → —
MZEA12 6F —
33322 — Shaft, Output, NO.2
33322-12040 Shaft, Output, NO.2
2018-06 → —
MZEA12 6F —
33322F — Bearing(FOR REVERSE GEAR SHAFT FRONT)
90363-28018 Bearing(FOR REVERSE GEAR SHAFT FRONT)
2018-06 → —
MZEA12 6F —
33322G — Bearing(FOR REVERSE GEAR SHAFT REAR)
90363-26002 Bearing(FOR REVERSE GEAR SHAFT REAR)
2018-06 → —
MZEA12 6F —
33322H — Shim(FOR REVERSE GEAR SHAFT REAR BEARING)
90564-52078 note Shim(FOR REVERSE GEAR SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-52079 note Shim(FOR REVERSE GEAR SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-52080 note Shim(FOR REVERSE GEAR SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-52081 note Shim(FOR REVERSE GEAR SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-52082 note Shim(FOR REVERSE GEAR SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-52083 note Shim(FOR REVERSE GEAR SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-52084 note Shim(FOR REVERSE GEAR SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-52085 note Shim(FOR REVERSE GEAR SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-52086 note Shim(FOR REVERSE GEAR SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-52087 note Shim(FOR REVERSE GEAR SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-52088 note Shim(FOR REVERSE GEAR SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-52089 note Shim(FOR REVERSE GEAR SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
90564-52090 note Shim(FOR REVERSE GEAR SHAFT REAR BEARING)
2018-06 → —
MZEA12 6F —
33327 — Sleeve, Transmission Hub, NO.4
33327-12020 Sleeve, Transmission Hub, NO.4
2018-06 → —
MZEA12 6F —
33331 — Gear, Reverse
33331-12100 Gear, Reverse
2018-06 → —
MZEA12 6F —
33331A — Bearing (FOR REVERSE GEAR)
90364-33018 Bearing (FOR REVERSE GEAR)
2018-06 → —
MZEA12 6F —
33332 — Gear, 2ND
33332-12210 Gear, 2ND
2018-06 → —
MZEA12 6F —
33333 — Gear, 3RD
33034-12250 Gear, 3RD
2018-06 → —
MZEA12 6F —
33333A — Bearing, Needle Roller (FOR 3RD GEAR)
90364-41004 Bearing, Needle Roller (FOR 3RD GEAR)
2018-06 → —
MZEA12 6F —
33334 — Gear, 4TH
33035-12240 Gear, 4TH
2018-06 → —
MZEA12 6F —
33335 — Gear, 1ST
33335-12260 Gear, 1ST
2018-06 → —
MZEA12 6F —
33335C — Bearing, Needle Roller(FOR 1ST GEAR)
90365-48002 Bearing, Needle Roller(FOR 1ST GEAR)
2018-06 → —
MZEA12 6F —
33336 — Gear, 5TH
33336-12240 Gear, 5TH
2018-06 → —
MZEA12 6F —
33337 — Gear Sub-assy, 6TH
33337-12090 Gear Sub-assy, 6TH
2018-06 → —
MZEA12 6F —
33345 — Bush, 1ST Gear
33345-12050 Bush, 1ST Gear
2018-06 → —
MZEA12 6F —
33348 — Washer, 1ST Gear Thrust
33348-12020 Washer, 1ST Gear Thrust
2018-06 → —
MZEA12 6F —
33352B — Hub, Transmission Clutch, NO.4
33352-12020 Hub, Transmission Clutch, NO.4
2018-06 → —
MZEA12 6F —
33356A — Race, 2ND Gear Bearing Inner
33356-12020 Race, 2ND Gear Bearing Inner
2018-06 → —
MZEA12 6F —
33356B — Ball, 2ND Gear Bearing Inner Race Lock
90360-06004 Ball, 2ND Gear Bearing Inner Race Lock
2018-06 → —
MZEA12 6F —
33361 — Hub, Transmission Clutch, NO.1
33361-12120 Hub, Transmission Clutch, NO.1
2018-06 → —
MZEA12 6F —
33362 — Hub, Transmission Clutch, NO.2
33362-12090 Hub, Transmission Clutch, NO.2
2018-06 → —
MZEA12 6F —
33362A — Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
90520-38023 note Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2018-06 → —
MZEA12 6F —
90520-38024 note Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2018-06 → —
MZEA12 6F —
90520-38025 note Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2018-06 → —
MZEA12 6F —
90520-38026 note Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2018-06 → —
MZEA12 6F —
90520-38027 note Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2018-06 → —
MZEA12 6F —
90520-38028 note Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2018-06 → —
MZEA12 6F —
33363 — Sleeve, Transmission Hub, NO.1
33363-12030 Sleeve, Transmission Hub, NO.1
2018-06 → —
MZEA12 6F —
33364 — Sleeve, Transmission Hub, NO.2
33364-12070 Sleeve, Transmission Hub, NO.2
2018-06 → —
MZEA12 6F —
33365 — Key, Synchromesh Shifting, NO.1
33365-20080 Key, Synchromesh Shifting, NO.1
2018-06 → —
MZEA12 6F —
33366 — Key, Synchromesh Shifting, NO.2
33365-20080 Key, Synchromesh Shifting, NO.2
2018-06 → —
MZEA12 6F —
33369 — Ring, Synchronizer, NO.3
33369-12060 Ring, Synchronizer, NO.3
2018-06 → —
MZEA12 6F —
33369B — Ring, Synchronizer, NO.4
33381-12020 Ring, Synchronizer, NO.4
2018-06 → —
MZEA12 6F —
33371 — Spring, Synchromesh Shifting Key, NO.1
33371-52010 Spring, Synchromesh Shifting Key, NO.1
2018-06 → —
MZEA12 6F —
33387A — Ring, Reverse Synchronizer
33387-12010 Ring, Reverse Synchronizer
2018-06 → —
MZEA12 6F —
33393 — Hub, Transmission Clutch, NO.3
33393-12100 Hub, Transmission Clutch, NO.3
2018-06 → —
MZEA12 6F —
33393A — Ring, Shaft Snap (FOR TRANSMISSION CLUTCH HUB NO.3)
90520-34045 note Ring, Shaft Snap (FOR TRANSMISSION CLUTCH HUB NO.3)
2018-06 → —
MZEA12 6F —
90520-34046 note Ring, Shaft Snap (FOR TRANSMISSION CLUTCH HUB NO.3)
2018-06 → —
MZEA12 6F —
90520-34047 note Ring, Shaft Snap (FOR TRANSMISSION CLUTCH HUB NO.3)
2018-06 → —
MZEA12 6F —
90520-34048 note Ring, Shaft Snap (FOR TRANSMISSION CLUTCH HUB NO.3)
2018-06 → —
MZEA12 6F —
90520-34049 note Ring, Shaft Snap (FOR TRANSMISSION CLUTCH HUB NO.3)
2018-06 → —
MZEA12 6F —
90520-34050 note Ring, Shaft Snap (FOR TRANSMISSION CLUTCH HUB NO.3)
2018-06 → —
MZEA12 6F —
33394 — Key, Synchromesh Shifting, NO.3
33365-20080 Key, Synchromesh Shifting, NO.3
2018-06 → —
MZEA12 6F —
33394B — Key, Synchromesh Shifting, NO.3
33394-52010 Key, Synchromesh Shifting, NO.3
2018-06 → —
MZEA12 6F —
33395 — Sleeve, Transmission Hub, NO.3
33395-12060 Sleeve, Transmission Hub, NO.3
2018-06 → 2021-03 ended
MZEA12 6F —
33395-12061 Sleeve, Transmission Hub, NO.3
2021-03 → —
MZEA12 6F —
33396C — Ring, Synchronizer, NO.5(MTM)
33396-12040 Ring, Synchronizer, NO.5(MTM)
2018-06 → —
MZEA12 6F —
33422B — Gear, 4TH Driven
33422-12160 Gear, 4TH Driven
2018-06 → —
MZEA12 6F —
33423A — Gear, 3RD Driven
33423-12120 Gear, 3RD Driven
2018-06 → —
MZEA12 6F —
33428C — Gear, 5TH Driven
33428-12220 Gear, 5TH Driven
2018-06 → —
MZEA12 6F —
33429B — Gear, 6TH Driven
33429-12080 Gear, 6TH Driven
2018-06 → —
MZEA12 6F —
33431C — Spacer, Output Gear
33431-12060 Spacer, Output Gear
2018-06 → —
MZEA12 6F —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
