Toyota Corolla Hatchback
2018-06 → present · chassis MZEA12 · catalogue 165430 · United States
Supported model
Data version 2022-09

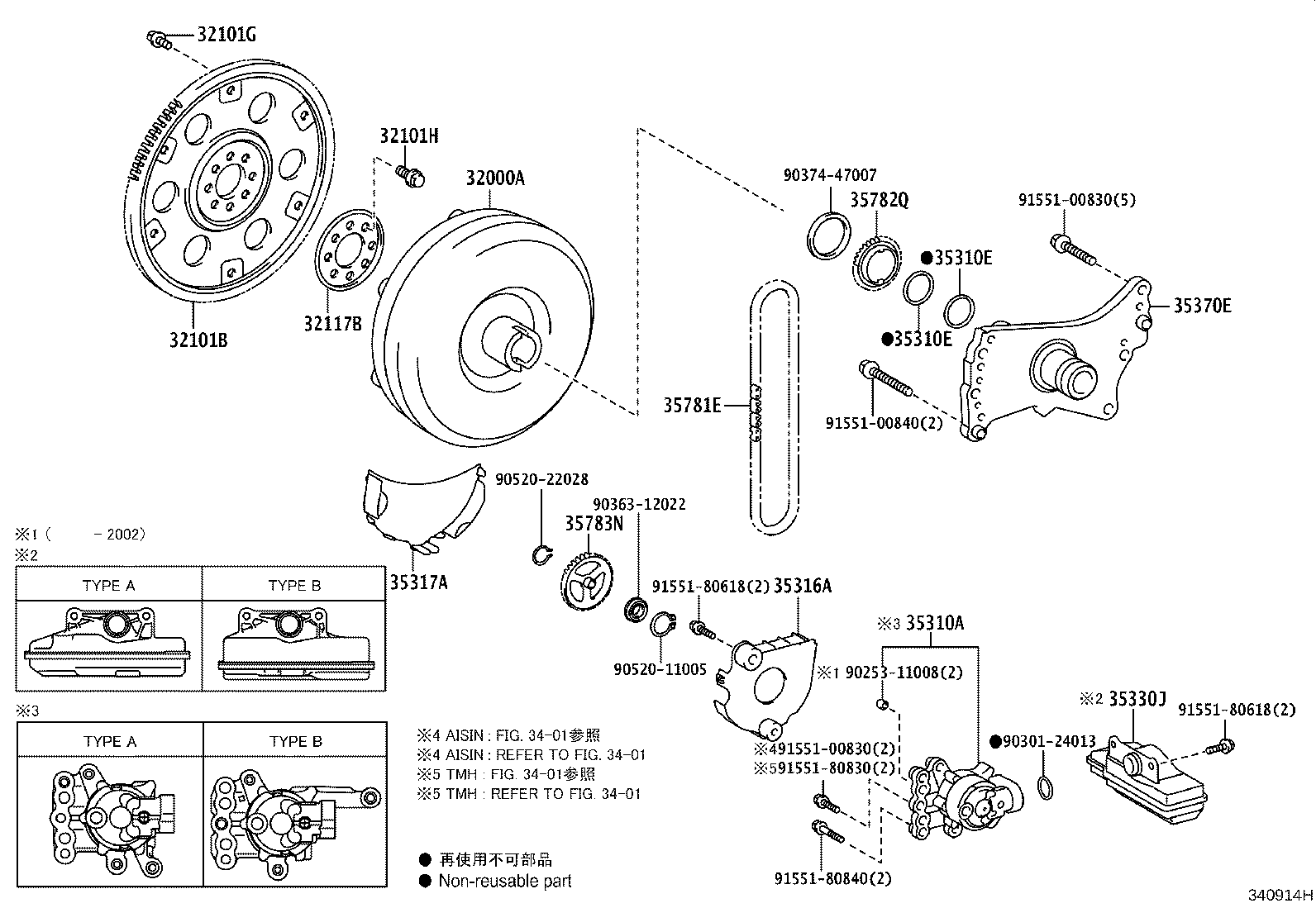

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 32000A — Converter Assy, Torque | ||||
| 32000-12460 note |
Converter Assy, Torque
2018-12 → 2022-08
ended
|
MZEA12 CVT | — | |
| 32000-12520 note |
Converter Assy, Torque
2018-06 → 2022-08
ended
|
MZEA12 CVT | — | |
| 32000-12460 note |
Converter Assy, Torque
2022-09 → —
|
MZEA12 | — | |
| 32000-12520 note |
Converter Assy, Torque
2022-09 → —
|
MZEA12 | — | |
| 32101B — Gear Sub-assy, Drive Plate & Ring | ||||
| 32101-12120 |
Gear Sub-assy, Drive Plate & Ring
2018-06 → 2022-08
ended
|
MZEA12 CVT | — | |
| 32101-12120 |
Gear Sub-assy, Drive Plate & Ring
2022-09 → —
|
MZEA12 | — | |
| 32101G — Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90109-09001 note |
Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
2018-06 → 2022-08
ended
|
MZEA12 CVT | — | |
| 90119-09025 note |
Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
2018-06 → 2022-08
ended
|
MZEA12 CVT | — | |
| 90109-09001 note |
Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
2022-09 → —
|
MZEA12 | — | |
| 90119-09025 note |
Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
2022-09 → —
|
MZEA12 | — | |
| 32101H — Bolt, Hexagon(FOR DRIVE PLATE SETTING) | ||||
| 90105-12404 |
Bolt, Hexagon(FOR DRIVE PLATE SETTING)
2018-06 → 2022-08
ended
|
MZEA12 CVT | — | |
| 90105-12404 |
Bolt, Hexagon(FOR DRIVE PLATE SETTING)
2022-09 → —
|
MZEA12 | — | |
| 32117B — Spacer, Drive Plate, Rear | ||||
| 32117-33010 |
Spacer, Drive Plate, Rear
2018-06 → 2022-08
ended
|
MZEA12 CVT | — | |
| 32117-33010 |
Spacer, Drive Plate, Rear
2022-09 → —
|
MZEA12 | — | |
| 35310A — Pump Assy, Front Oil | ||||
| 35310-12200 note |
Pump Assy, Front Oil
2018-06 → 2022-08
ended
|
MZEA12 CVT | — | |
| 35310-28050 note |
Pump Assy, Front Oil
2021-07 → 2022-08
ended
|
MZEA12 CVT | — | |
| 35310-12200 note |
Pump Assy, Front Oil
2022-09 → 2023-08
ended
|
MZEA12 | — | |
| 35310-28050 note |
Pump Assy, Front Oil
2022-09 → 2023-08
ended
|
MZEA12 | — | |
| 35310-33170 note |
Pump Assy, Front Oil
2023-03 → 2023-08
ended
|
MZEA12 | — | |
| 35310-33170 note |
Pump Assy, Front Oil
2023-08 → 2023-11
ended
|
MZEA12 | — | |
| 35310-42010 note |
Pump Assy, Front Oil
2023-03 → 2023-08
ended
|
MZEA12 | — | |
| 35310-42010 note |
Pump Assy, Front Oil
2023-08 → —
|
MZEA12 | — | |
| 35310-42010 note |
Pump Assy, Front Oil
2023-11 → —
|
MZEA12 | — | |
| 35310E — Seal, Type T Oil (FOR FRONT OIL PUMP) | ||||
| 35617-12060 note |
Seal, Type T Oil (FOR FRONT OIL PUMP)
2018-06 → 2022-08
ended
|
MZEA12 CVT | — | |
| 35617-12070 note |
Seal, Type T Oil (FOR FRONT OIL PUMP)
2018-12 → 2022-08
ended
|
MZEA12 CVT | — | |
| 35617-12060 note |
Seal, Type T Oil (FOR FRONT OIL PUMP)
2022-09 → 2023-08
ended
|
MZEA12 | — | |
| 35617-12070 note |
Seal, Type T Oil (FOR FRONT OIL PUMP)
2022-09 → 2023-08
ended
|
MZEA12 | — | |
| 35316A — Plate, Transmission Oil Pump Separator, NO.1 | ||||
| 35316-12010 note |
Plate, Transmission Oil Pump Separator, NO.1
2018-06 → 2022-08
ended
|
MZEA12 CVT | — | |
| 35316-12020 note |
Plate, Transmission Oil Pump Separator, NO.1
2018-12 → 2022-08
ended
|
MZEA12 CVT | — | |
| 35316-12010 note |
Plate, Transmission Oil Pump Separator, NO.1
2022-09 → —
|
MZEA12 | — | |
| 35316-12020 note |
Plate, Transmission Oil Pump Separator, NO.1
2022-09 → —
|
MZEA12 | — | |
| 35317A — Plate, Transmission Oil Pump Separator, NO.2 | ||||
| 35317-12010 note |
Plate, Transmission Oil Pump Separator, NO.2
2018-06 → 2022-08
ended
|
MZEA12 CVT | — | |
| 35317-12020 note |
Plate, Transmission Oil Pump Separator, NO.2
2018-12 → 2022-08
ended
|
MZEA12 CVT | — | |
| 35317-12010 note |
Plate, Transmission Oil Pump Separator, NO.2
2022-09 → —
|
MZEA12 | — | |
| 35317-12020 note |
Plate, Transmission Oil Pump Separator, NO.2
2022-09 → —
|
MZEA12 | — | |
| 35330J — Strainer Assy, Oil | ||||
| 35330-12080 note |
Strainer Assy, Oil
2018-06 → 2022-03
ended
|
MZEA12 CVT | — | |
| 35330-12090 note |
Strainer Assy, Oil
2018-12 → 2022-08
ended
|
MZEA12 CVT | — | |
| 35330-28040 note |
Strainer Assy, Oil
2021-07 → 2022-08
ended
|
MZEA12 CVT | — | |
| 35330-12090 note |
Strainer Assy, Oil
2022-09 → 2023-08
ended
|
MZEA12 | — | |
| 35330-28040 note |
Strainer Assy, Oil
2022-09 → —
|
MZEA12 | — | |
| 35330-28040 note |
Strainer Assy, Oil
2023-08 → —
|
MZEA12 | — | |
| 35330-28040 note |
Strainer Assy, Oil
2023-04 → 2023-08
ended
|
MZEA12 | — | |
| 35330-33080 note |
Strainer Assy, Oil
2023-03 → 2023-04
ended
|
MZEA12 | — | |
| 35370E — Shaft Assy, Stator (CVT) | ||||
| 35370-12120 note |
Shaft Assy, Stator (CVT)
2018-06 → 2022-08
ended
|
MZEA12 CVT | — | |
| 35370-12130 note |
Shaft Assy, Stator (CVT)
2018-12 → 2022-08
ended
|
MZEA12 CVT | — | |
| 35370-12120 note |
Shaft Assy, Stator (CVT)
2022-09 → —
|
MZEA12 | — | |
| 35370-12130 note |
Shaft Assy, Stator (CVT)
2022-09 → —
|
MZEA12 | — | |
| 35781E — Chain, Transmission Drive | ||||
| 35781-12010 |
Chain, Transmission Drive
2018-06 → 2022-05
ended
|
MZEA12 CVT | — | |
| 35781-33010 note |
Chain, Transmission Drive
2022-06 → 2022-08
ended
|
MZEA12 CVT | — | |
| 35781-42010 note |
Chain, Transmission Drive
2022-06 → 2022-08
ended
|
MZEA12 CVT | — | |
| 35781-42010 note |
Chain, Transmission Drive
2022-09 → —
|
MZEA12 | — | |
| 35782Q — Sprocket, Drive | ||||
| 35782-12070 |
Sprocket, Drive
2018-06 → 2022-08
ended
|
MZEA12 CVT | — | |
| 35782-12070 |
Sprocket, Drive
2022-09 → —
|
MZEA12 | — | |
| 35783N — Sprocket, Driven | ||||
| 35783-12060 |
Sprocket, Driven
2018-06 → 2022-08
ended
|
MZEA12 CVT | — | |
| 35783-12060 |
Sprocket, Driven
2022-09 → —
|
MZEA12 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
