Toyota Corolla Hatchback

2018-06 → present · chassis MZEA12 · catalogue 165430 · United States

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

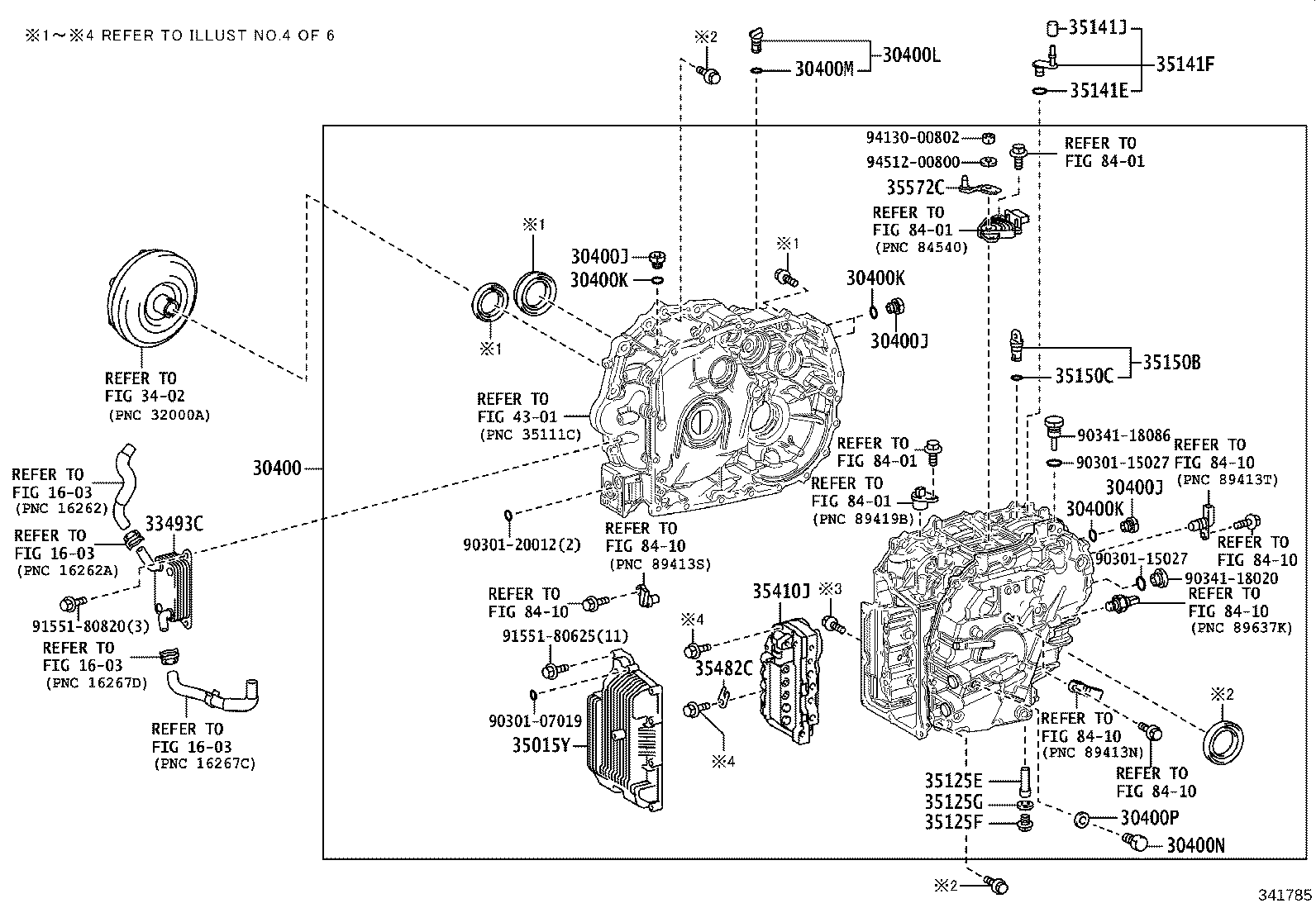

Exploded illustration 341785 35410J — BODY ASSY, TRANSMISSION VALVE (10 parts) 35015Y — COVER SUB-ASSY, TRANSAXLE SIDE (10 parts) 35482C — CLAMP, TEMPERATURE SENSOR (2 parts) 1603 — not listed in this catalogue 3402 — not listed in this catalogue 8401 — not listed in this catalogue 4301 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8410 — not listed in this catalogue 8410 — not listed in this catalogue 8410 — not listed in this catalogue 8410 — not listed in this catalogue 8410 — not listed in this catalogue 8401 — not listed in this catalogue 8410 — not listed in this catalogue 8410 — not listed in this catalogue 1603 — not listed in this catalogue 1603 — not listed in this catalogue 1603 — not listed in this catalogue 35141E — RING, O(FOR BREATHER PLUG) (2 parts) 35141F — PLUG, BREATHER, NO.1(CVT) (2 parts) 35572C — LEVER, TRANSMISSION CONTROL SHAFT (2 parts) 35125G — GASKET, OVERFLOW PLUG(CVT) (2 parts) 35125E — TUBE, OVERFLOW(CVT) (2 parts) 35125F — PLUG, OVERFLOW(CVT) (2 parts) 30400J — PLUG, TRANSAXLE HOLE (2 parts) 30400J — PLUG, TRANSAXLE HOLE (2 parts) 30400K — GASKET, TRANSAXLE HOLE PLUG (2 parts) 30400K — GASKET, TRANSAXLE HOLE PLUG (2 parts) 30400J — PLUG, TRANSAXLE HOLE (2 parts) 30400K — GASKET, TRANSAXLE HOLE PLUG (2 parts) 9030107019 — not listed in this catalogue 9030115027 — not listed in this catalogue 9030115027 — not listed in this catalogue 9034118086 — not listed in this catalogue 9034118020 — not listed in this catalogue 9155180625 — not listed in this catalogue 9030120012 — not listed in this catalogue 9413000802 — not listed in this catalogue 9451200800 — not listed in this catalogue 35141J — PLUG, BREATHER, NO.2(CVT) (2 parts) 9155180820 — not listed in this catalogue 33493C — COOLER, TRANSMISSION OIL (2 parts) 30400M — GASKET, FILLER PLUG(CVT) (2 parts) 30400L — PLUG , FILLER(CVT) (2 parts) 30400N — PLUG, REFILL(CVT) (2 parts) 30400P — GASKET, REFILL PLUG(CVT) (2 parts) 35150C — RING, O (FOR TRANSMISSION CASE PLUG) (2 parts) 35150B — PLUG ASSY, TRANSMISSION CASE (2 parts) 30400 — TRANSAXLE ASSY, CONTINUOUSLY VARIABLE (10 parts)
341785 · 24 callouts, 27 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
64 parts on this figure
Part number Description Fitment Price
30400 — Transaxle Assy, Continuously Variable
30400-12510 note Transaxle Assy, Continuously Variable
2021-07 → 2022-08 ended
MZEA12 CVT —
30400-12530 note Transaxle Assy, Continuously Variable
2021-07 → 2022-08 ended
MZEA12 CVT —
30400-12740 note Transaxle Assy, Continuously Variable
2018-06 → 2021-07 ended
MZEA12 CVT —
30400-12760 note Transaxle Assy, Continuously Variable
2018-12 → 2021-07 ended
MZEA12 CVT —
30400-12510 note Transaxle Assy, Continuously Variable
2022-09 → 2023-08 ended
MZEA12 —
30400-12530 note Transaxle Assy, Continuously Variable
2022-09 → 2023-08 ended
MZEA12 —
30400-12540 note Transaxle Assy, Continuously Variable
2023-03 → 2023-08 ended
MZEA12 —
30400-12540 note Transaxle Assy, Continuously Variable
2023-08 → —
MZEA12 —
30400-12590 note Transaxle Assy, Continuously Variable
2023-03 → 2023-08 ended
MZEA12 —
30400-12590 note Transaxle Assy, Continuously Variable
2023-08 → —
MZEA12 —
30400J — Plug, Transaxle Hole
90341-08001 Plug, Transaxle Hole
2018-06 → 2022-08 ended
MZEA12 CVT —
90341-08001 Plug, Transaxle Hole
2022-09 → —
MZEA12 —
30400K — Gasket, Transaxle Hole Plug
90301-06196 Gasket, Transaxle Hole Plug
2018-06 → 2022-08 ended
MZEA12 CVT —
90301-06196 Gasket, Transaxle Hole Plug
2022-09 → —
MZEA12 —
30400L — Plug , Filler(CVT)
35150-44010 Plug , Filler(CVT)
2018-06 → 2022-08 ended
MZEA12 CVT —
35150-44010 Plug , Filler(CVT)
2022-09 → —
MZEA12 —
30400M — Gasket, Filler Plug(CVT)
90301-09173 Gasket, Filler Plug(CVT)
2018-06 → 2022-08 ended
MZEA12 CVT —
90301-09173 Gasket, Filler Plug(CVT)
2022-09 → —
MZEA12 —
30400N — Plug, Refill(CVT)
90341-18077 Plug, Refill(CVT)
2018-06 → 2022-08 ended
MZEA12 CVT —
90341-18077 Plug, Refill(CVT)
2022-09 → —
MZEA12 —
30400P — Gasket, Refill Plug(CVT)
90430-18008 Gasket, Refill Plug(CVT)
2018-06 → 2022-08 ended
MZEA12 CVT —
90430-18008 Gasket, Refill Plug(CVT)
2022-09 → —
MZEA12 —
33493C — Cooler, Transmission Oil
33493-12090 Cooler, Transmission Oil
2018-06 → 2022-08 ended
MZEA12 CVT —
33493-12090 Cooler, Transmission Oil
2022-09 → —
MZEA12 —
35015Y — Cover Sub-assy, Transaxle Side
35015-12010 note Cover Sub-assy, Transaxle Side
2018-06 → 2022-05 ended
MZEA12 CVT —
35015-12020 note Cover Sub-assy, Transaxle Side
2018-12 → 2022-05 ended
MZEA12 CVT —
35015-33010 note Cover Sub-assy, Transaxle Side
2022-06 → 2022-08 ended
MZEA12 CVT —
35015-42010 note Cover Sub-assy, Transaxle Side
2022-06 → 2022-08 ended
MZEA12 CVT —
35015-33010 note Cover Sub-assy, Transaxle Side
2022-09 → 2023-08 ended
MZEA12 —
35015-33020 note Cover Sub-assy, Transaxle Side
2023-03 → 2023-04 ended
MZEA12 —
35015-42010 note Cover Sub-assy, Transaxle Side
2022-09 → 2023-08 ended
MZEA12 —
35015-42020 note Cover Sub-assy, Transaxle Side
2023-08 → —
MZEA12 —
35015-42020 note Cover Sub-assy, Transaxle Side
2023-04 → 2023-08 ended
MZEA12 —
35015-42020 note Cover Sub-assy, Transaxle Side
2023-03 → 2023-08 ended
MZEA12 —
35125E — Tube, Overflow(CVT)
35125-12500 Tube, Overflow(CVT)
2018-06 → 2022-08 ended
MZEA12 CVT —
35125-12500 Tube, Overflow(CVT)
2022-09 → —
MZEA12 —
35125F — Plug, Overflow(CVT)
90341-18016 Plug, Overflow(CVT)
2018-06 → 2022-08 ended
MZEA12 CVT —
90341-18016 Plug, Overflow(CVT)
2022-09 → —
MZEA12 —
35125G — Gasket, Overflow Plug(CVT)
90430-18008 Gasket, Overflow Plug(CVT)
2018-06 → 2022-08 ended
MZEA12 CVT —
90430-18008 Gasket, Overflow Plug(CVT)
2022-09 → —
MZEA12 —
35141E — Ring, O(FOR BREATHER PLUG)
90301-09173 Ring, O(FOR BREATHER PLUG)
2018-06 → 2022-08 ended
MZEA12 CVT —
90301-09173 Ring, O(FOR BREATHER PLUG)
2022-09 → —
MZEA12 —
35141F — Plug, Breather, NO.1(CVT)
90930-03240 Plug, Breather, NO.1(CVT)
2018-06 → 2022-08 ended
MZEA12 CVT —
90930-03240 Plug, Breather, NO.1(CVT)
2022-09 → —
MZEA12 —
35141J — Plug, Breather, NO.2(CVT)
90930-03243 Plug, Breather, NO.2(CVT)
2018-06 → 2022-08 ended
MZEA12 CVT —
90930-03243 Plug, Breather, NO.2(CVT)
2022-09 → —
MZEA12 —
35150B — Plug Assy, Transmission Case
35150-12020 note Plug Assy, Transmission Case
2023-03 → 2023-08 ended
MZEA12 —
35150-12020 Plug Assy, Transmission Case
2023-08 → —
MZEA12 —
35150C — Ring, O (FOR TRANSMISSION CASE PLUG)
90301-11008 note Ring, O (FOR TRANSMISSION CASE PLUG)
2023-03 → 2023-08 ended
MZEA12 —
90301-11008 Ring, O (FOR TRANSMISSION CASE PLUG)
2023-08 → —
MZEA12 —
35410J — Body Assy, Transmission Valve
35410-12880 note Body Assy, Transmission Valve
2018-06 → 2020-05 ended
MZEA12 CVT —
35410-12881 note Body Assy, Transmission Valve
2020-06 → 2022-08 ended
MZEA12 CVT —
35410-12A30 note Body Assy, Transmission Valve
2018-12 → 2020-06 ended
MZEA12 CVT —
35410-52290 note Body Assy, Transmission Valve
2020-06 → 2022-08 ended
MZEA12 CVT —
35410-12881 note Body Assy, Transmission Valve
2022-09 → 2023-08 ended
MZEA12 —
35410-12A80 note Body Assy, Transmission Valve
2023-03 → 2023-08 ended
MZEA12 —
35410-12A80 note Body Assy, Transmission Valve
2023-08 → —
MZEA12 —
35410-42080 note Body Assy, Transmission Valve
2023-03 → 2023-08 ended
MZEA12 —
35410-42080 note Body Assy, Transmission Valve
2023-08 → —
MZEA12 —
35410-52290 note Body Assy, Transmission Valve
2022-09 → 2023-08 ended
MZEA12 —
35482C — Clamp, Temperature Sensor
35482-73010 Clamp, Temperature Sensor
2018-06 → 2022-08 ended
MZEA12 CVT —
35482-73010 Clamp, Temperature Sensor
2022-09 → —
MZEA12 —
35572C — Lever, Transmission Control Shaft
35572-12190 Lever, Transmission Control Shaft
2018-06 → 2022-08 ended
MZEA12 CVT —
35572-12190 Lever, Transmission Control Shaft
2022-09 → —
MZEA12 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
