Toyota Corolla Hatchback
2018-06 → present · chassis MZEA12 · catalogue 165430 · United States
Supported model
Data version 2022-09

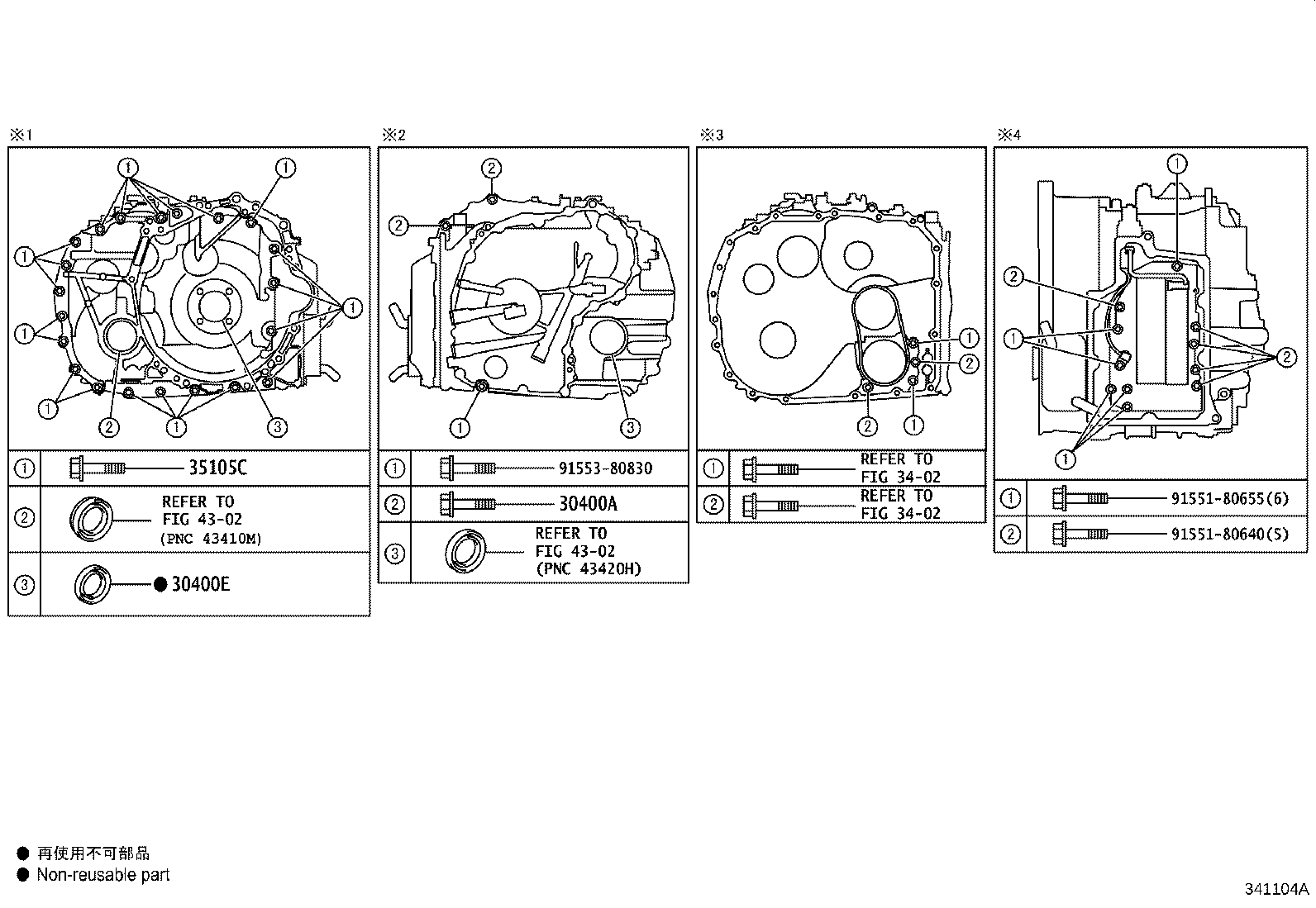

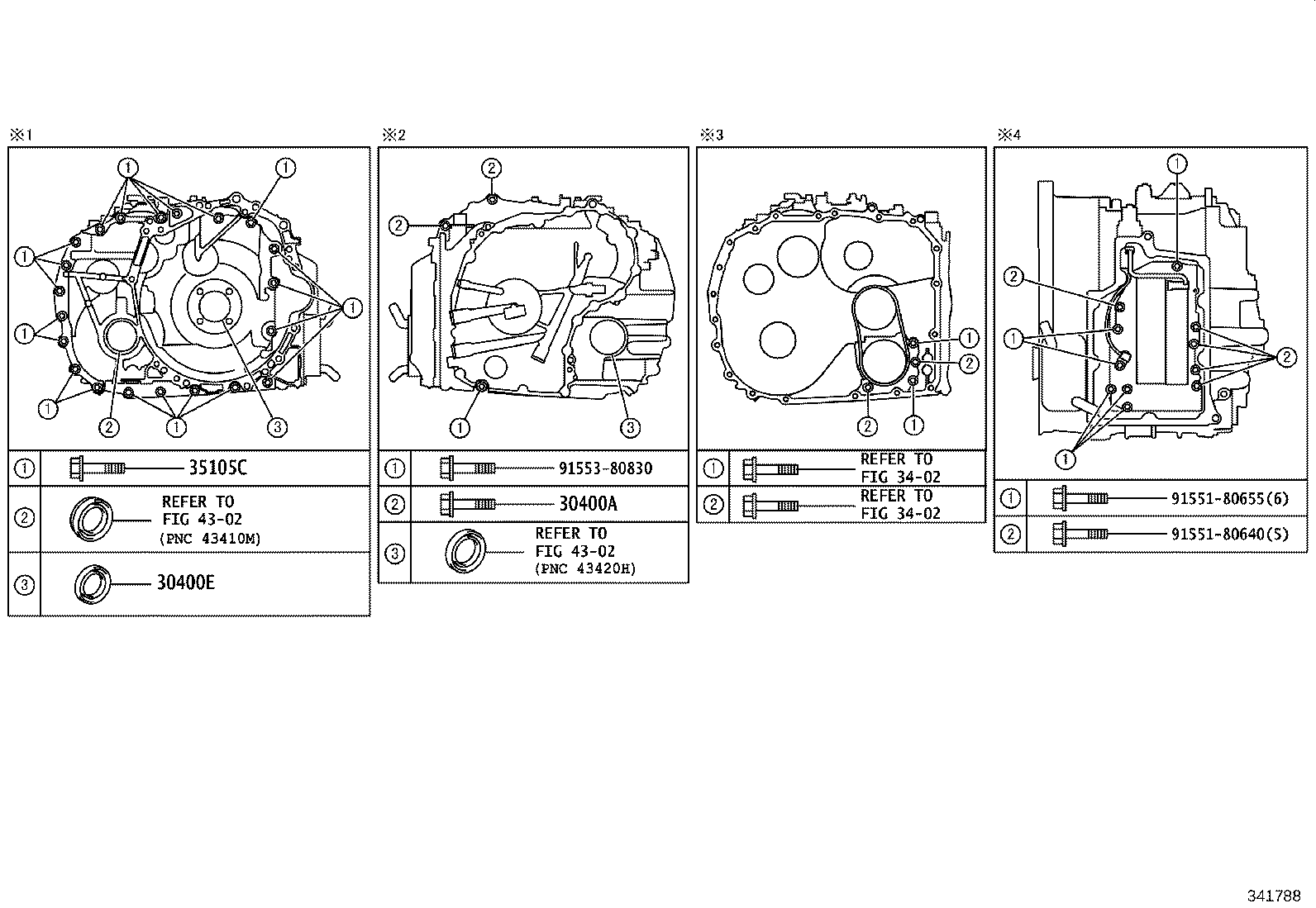

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 30400A — Bolt(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 91552-81250 |
Bolt(FOR TRANSAXLE & ENGINE SETTING)
2018-06 → 2022-08
ended
|
MZEA12 CVT | — | |
| 91552-81250 |
Bolt(FOR TRANSAXLE & ENGINE SETTING)
2022-09 → —
|
MZEA12 | — | |
| 30400E — Seal, Type T Oil(FOR CVT OIL PUMP) | ||||
| 90311-41019 |
Seal, Type T Oil(FOR CVT OIL PUMP)
2018-06 → 2022-08
ended
|
MZEA12 CVT | — | |
| 90311-41019 |
Seal, Type T Oil(FOR CVT OIL PUMP)
2022-09 → —
|
MZEA12 | — | |
| 35105C — Bolt(FOR TRANSAXLE HOUSING & CASE SET) | ||||
| 91551-00830 |
Bolt(FOR TRANSAXLE HOUSING & CASE SET)
2020-08 → 2022-08
ended
|
MZEA12 CVT | — | |
| 91551-10830 |
Bolt(FOR TRANSAXLE HOUSING & CASE SET)
2018-06 → 2020-07
ended
|
MZEA12 CVT | — | |
| 91551-00830 |
Bolt(FOR TRANSAXLE HOUSING & CASE SET)
2022-09 → —
|
MZEA12 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
