Toyota Corolla Hatchback
2018-06 → present · chassis MZEA12 · catalogue 165430 · United States
Supported model
Data version 2022-09

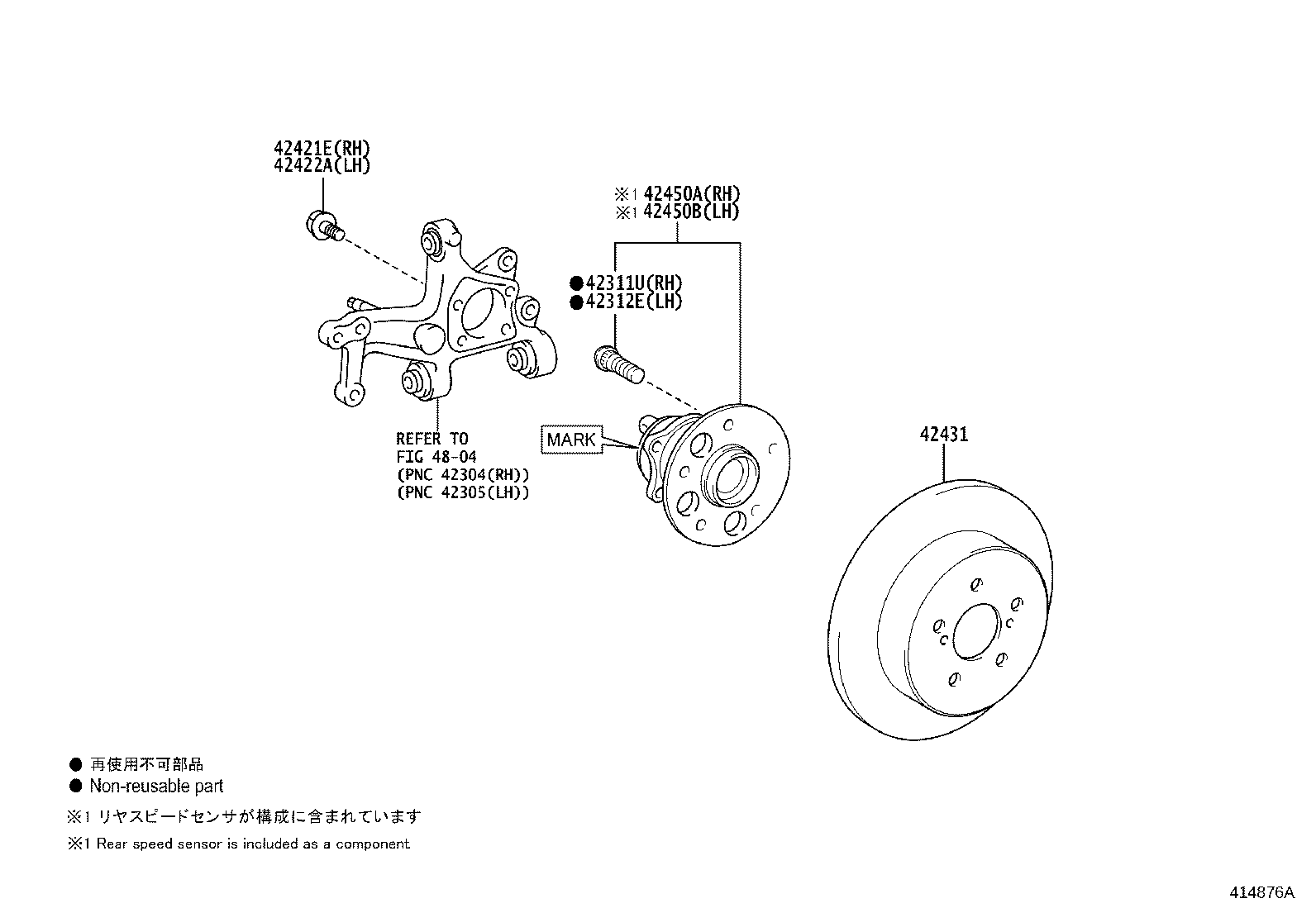

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 42311U — Bolt, Hub(FOR REAR AXLE RH) | ||||
| 90942-02049 |
Bolt, Hub(FOR REAR AXLE RH)
2018-06 → —
|
MZEA12 | — | |
| 90942-02049 |
Bolt, Hub(FOR REAR AXLE RH)
2022-09 → —
|
MZEA12 | — | |
| 42312E — Bolt, Hub(FOR REAR AXLE LH) | ||||
| 90942-02049 |
Bolt, Hub(FOR REAR AXLE LH)
2018-06 → —
|
MZEA12 | — | |
| 90942-02049 |
Bolt, Hub(FOR REAR AXLE LH)
2022-09 → —
|
MZEA12 | — | |
| 42421E — Bolt (FOR REAR AXLE BEARING CASE RH) | ||||
| 90105-12406 |
Bolt (FOR REAR AXLE BEARING CASE RH)
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 90105-12406 |
Bolt (FOR REAR AXLE BEARING CASE RH)
2018-06 → —
|
MZEA12 6F | — | |
| 90105-12406 |
Bolt (FOR REAR AXLE BEARING CASE RH)
2022-09 → —
|
MZEA12 | — | |
| 42422A — Bolt (FOR REAR AXLE BEARING CASE LH) | ||||
| 90105-12406 |
Bolt (FOR REAR AXLE BEARING CASE LH)
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 90105-12406 |
Bolt (FOR REAR AXLE BEARING CASE LH)
2018-06 → —
|
MZEA12 6F | — | |
| 90105-12406 |
Bolt (FOR REAR AXLE BEARING CASE LH)
2022-09 → —
|
MZEA12 | — | |
| 42431 — Disc, Rear | ||||
| 42431-12270 |
Disc, Rear
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 42431-12270 |
Disc, Rear
2018-06 → —
|
MZEA12 6F | — | |
| 42431-12270 |
Disc, Rear
2022-09 → —
|
MZEA12 | — | |
| 42450A — Hub & Bearing Assy, Rear Axle, RH | ||||
| 42450-12210 note |
Hub & Bearing Assy, Rear Axle, RH
2019-11 → 2022-12
ended
|
MZEA12 | — | |
| 42450-12220 note |
Hub & Bearing Assy, Rear Axle, RH
2018-06 → 2019-11
ended
|
MZEA12 | — | |
| 42450-76020 note |
Hub & Bearing Assy, Rear Axle, RH
2018-06 → 2022-12
ended
|
MZEA12 | — | |
| 42450-12210 note |
Hub & Bearing Assy, Rear Axle, RH
2022-09 → 2022-12
ended
|
MZEA12 | — | |
| 42450-12211 note |
Hub & Bearing Assy, Rear Axle, RH
2023-01 → —
|
MZEA12 | — | |
| 42450-76020 note |
Hub & Bearing Assy, Rear Axle, RH
2022-09 → 2023-01
ended
|
MZEA12 | — | |
| 42450B — Hub & Bearing Assy, Rear Axle, LH | ||||
| 42450-12210 note |
Hub & Bearing Assy, Rear Axle, LH
2019-11 → 2022-12
ended
|
MZEA12 | — | |
| 42450-12220 note |
Hub & Bearing Assy, Rear Axle, LH
2018-06 → 2019-11
ended
|
MZEA12 | — | |
| 42450-76020 note |
Hub & Bearing Assy, Rear Axle, LH
2018-06 → 2022-12
ended
|
MZEA12 | — | |
| 42450-12210 note |
Hub & Bearing Assy, Rear Axle, LH
2022-09 → 2022-12
ended
|
MZEA12 | — | |
| 42450-12211 note |
Hub & Bearing Assy, Rear Axle, LH
2023-01 → —
|
MZEA12 | — | |
| 42450-76020 note |
Hub & Bearing Assy, Rear Axle, LH
2022-09 → 2023-01
ended
|
MZEA12 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
