Toyota Corolla Hatchback

2018-06 → present · chassis MZEA12 · catalogue 165430 · United States

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

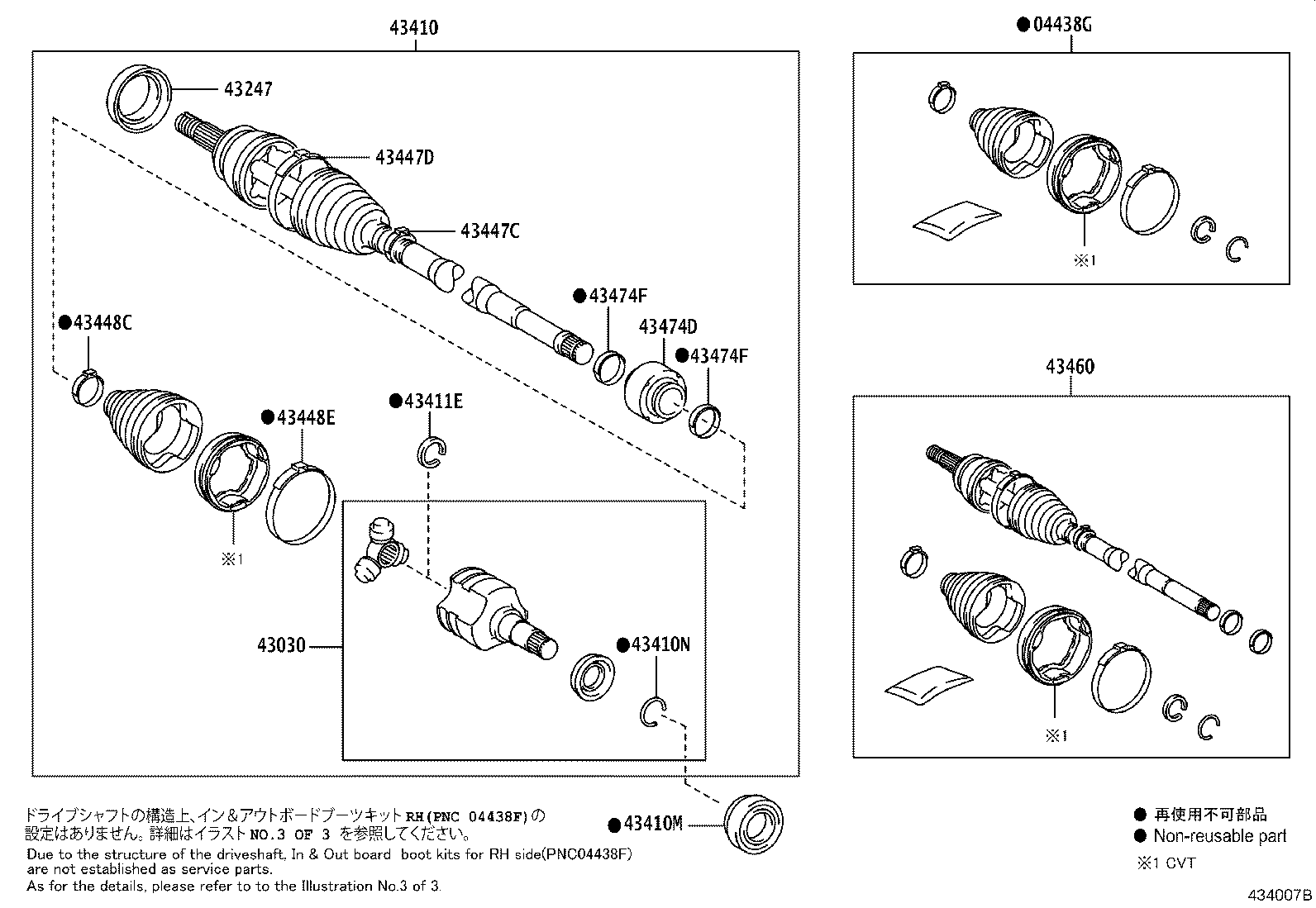

Exploded illustration 434007B 43447C — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (3 parts) 43474D — DAMPER, FRONT DRIVE SHAFT, RH (3 parts) 43447D — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (2 parts) 43474F — CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) (3 parts) 43448E — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) (2 parts) 43448C — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) (2 parts) 43410N — RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) (2 parts) 43411E — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) (3 parts) 43474F — CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) (3 parts) 43410M — OIL SEAL, FRONT DRIVE SHAFT, RH (2 parts) 43410 — SHAFT ASSY, FRONT DRIVE, RH (3 parts) 43030 — JOINT ASSY, FRONT DRIVE INBOARD, RH (2 parts) 04438G — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH (3 parts) 43460 — SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH (3 parts) 43247 — DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 (3 parts)
434007B · 15 callouts Full size ↗
36 parts on this figure
Part number Description Fitment Price
04438G — Boot Kit, Front Drive Shaft Inboard Joint, RH
04437-12440 Boot Kit, Front Drive Shaft Inboard Joint, RH
2018-06 → —
MZEA12 6F —
04437-47033 Boot Kit, Front Drive Shaft Inboard Joint, RH
2018-06 → 2022-09 ended
MZEA12 CVT —
04437-47033 Boot Kit, Front Drive Shaft Inboard Joint, RH
2022-09 → —
MZEA12 —
43030 — Joint Assy, Front Drive Inboard, RH
43040-12160 Joint Assy, Front Drive Inboard, RH
2018-06 → 2022-08 ended
MZEA12 CVT CND —
43040-12160 Joint Assy, Front Drive Inboard, RH
2022-09 → —
MZEA12 CND —
43247 — Deflector, Front Wheel Bearing Dust, NO.2
43247-47010 note Deflector, Front Wheel Bearing Dust, NO.2
2018-06 → 2022-09 ended
MZEA12 CVT —
43247-76010 Deflector, Front Wheel Bearing Dust, NO.2
2018-06 → —
MZEA12 6F —
43247-47010 Deflector, Front Wheel Bearing Dust, NO.2
2022-09 → —
MZEA12 —
43410 — Shaft Assy, Front Drive, RH
43410-12B60 Shaft Assy, Front Drive, RH
2018-06 → 2022-09 ended
MZEA12 CVT —
43410-12C10 Shaft Assy, Front Drive, RH
2018-06 → —
MZEA12 6F —
43410-12B60 Shaft Assy, Front Drive, RH
2022-09 → —
MZEA12 —
43410M — Oil Seal, Front Drive Shaft, RH
90311-40047 Oil Seal, Front Drive Shaft, RH
2018-06 → 2022-08 ended
MZEA12 —
90311-40047 Oil Seal, Front Drive Shaft, RH
2022-09 → —
MZEA12 —
43410N — Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
90521-33002 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2018-06 → 2022-09 ended
MZEA12 CVT —
90521-33002 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2022-09 → —
MZEA12 —
43411E — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-12070 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2018-06 → 2022-09 ended
MZEA12 CVT —
43425-13010 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2018-06 → —
MZEA12 6F —
43425-12070 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2022-09 → —
MZEA12 —
43447C — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-12230 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2018-06 → 2022-09 ended
MZEA12 CVT —
43425-10040 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2018-06 → —
MZEA12 6F —
42345-12230 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2022-09 → —
MZEA12 —
43447D — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-12240 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2018-06 → 2022-09 ended
MZEA12 CVT —
42345-12240 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2022-09 → —
MZEA12 —
43448C — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12230 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2018-06 → 2022-09 ended
MZEA12 CVT —
42345-12230 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2022-09 → —
MZEA12 —
43448E — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12180 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2018-06 → 2022-09 ended
MZEA12 CVT —
42345-12180 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2022-09 → —
MZEA12 —
43460 — Shaft Assy, Front Drive Outboard Joint, RH
43460-49427 Shaft Assy, Front Drive Outboard Joint, RH
2018-06 → 2022-08 ended
MZEA12 CVT CND —
43460-80187 Shaft Assy, Front Drive Outboard Joint, RH
2018-06 → 2022-08 ended
MZEA12 6F —
43460-49427 Shaft Assy, Front Drive Outboard Joint, RH
2022-09 → —
MZEA12 CND —
43474D — Damper, Front Drive Shaft, RH
43474-12240 Damper, Front Drive Shaft, RH
2018-06 → —
MZEA12 6F —
43474-47020 Damper, Front Drive Shaft, RH
2018-06 → 2022-09 ended
MZEA12 CVT —
43474-47020 Damper, Front Drive Shaft, RH
2022-09 → —
MZEA12 —
43474F — Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-12100 Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2018-06 → 2022-09 ended
MZEA12 CVT —
42345-12370 Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2018-06 → —
MZEA12 6F —
42345-12100 Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2022-09 → —
MZEA12 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
