Toyota Corolla Hatchback

2018-06 → present · chassis MZEA12 · catalogue 165430 · United States

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

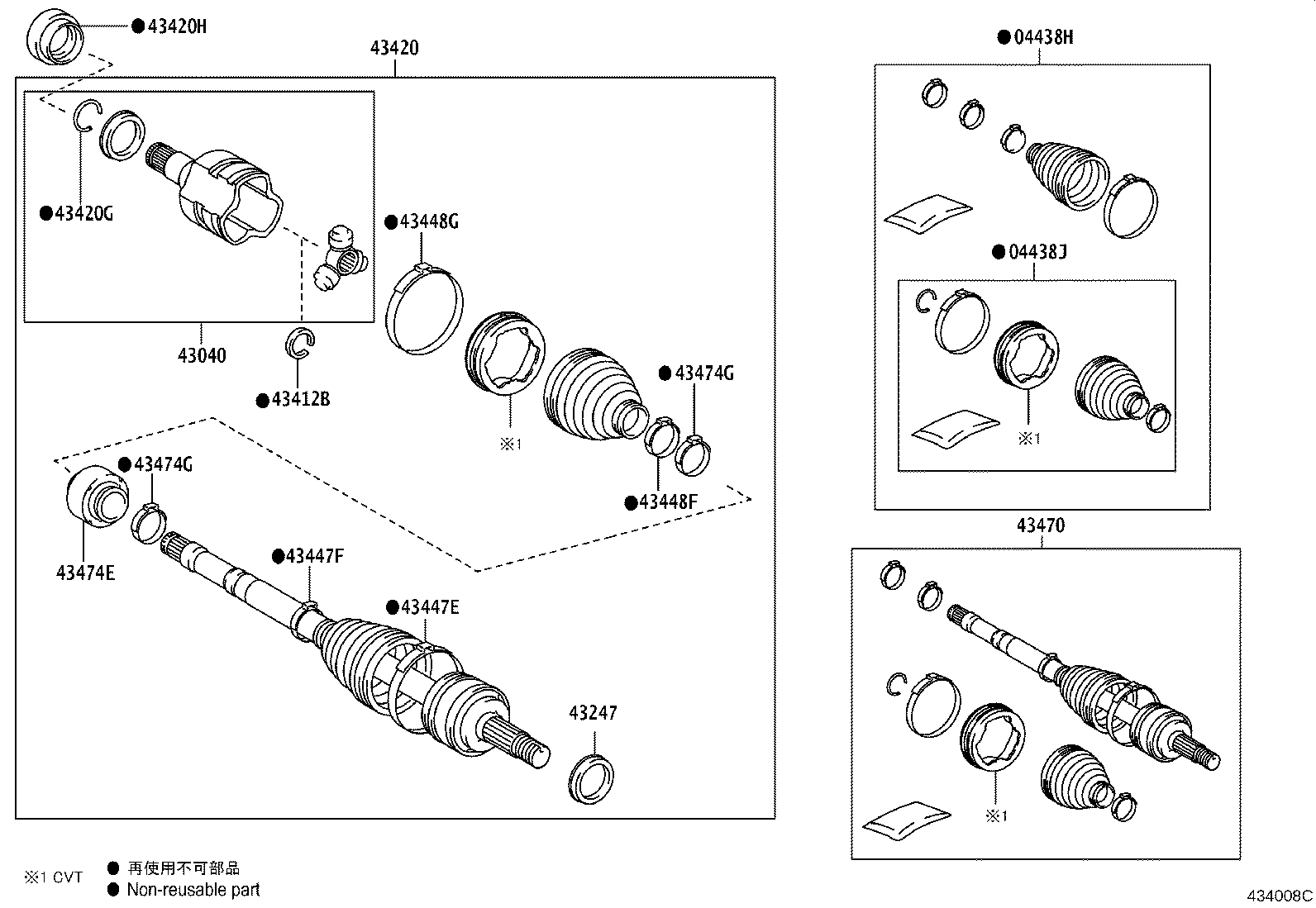

Exploded illustration 434008C 43247 — DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 (3 parts) 43420G — RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) (3 parts) 43412B — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) (3 parts) 43447E — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (2 parts) 43447F — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (2 parts) 43448F — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) (2 parts) 43474E — DAMPER, FRONT DRIVE SHAFT, LH (3 parts) 43448G — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) (2 parts) 43420H — OIL SEAL, FRONT DRIVE SHAFT, LH (2 parts) 43420 — SHAFT ASSY, FRONT DRIVE, LH (3 parts) 43040 — JOINT ASSY, FRONT DRIVE INBOARD, LH (2 parts) 04438J — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH (3 parts) 04438H — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH (4 parts) 43470 — SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH (3 parts) 43474G — CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) (3 parts) 43474G — CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) (3 parts)
434008C · 16 callouts Full size ↗
40 parts on this figure
Part number Description Fitment Price
04438H — Boot Kit, Front Drive Shaft, IN & Outboard, LH
04428-12790 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2018-06 → —
MZEA12 6F —
04428-47065 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2018-06 → 2019-11 ended
MZEA12 CVT —
04428-47066 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2019-11 → 2022-09 ended
MZEA12 CVT —
04428-47066 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2022-09 → —
MZEA12 —
04438J — Boot Kit, Front Drive Shaft Inboard Joint, LH
04437-12440 Boot Kit, Front Drive Shaft Inboard Joint, LH
2018-06 → —
MZEA12 6F —
04437-47033 Boot Kit, Front Drive Shaft Inboard Joint, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
04437-47033 Boot Kit, Front Drive Shaft Inboard Joint, LH
2022-09 → —
MZEA12 —
43040 — Joint Assy, Front Drive Inboard, LH
43040-12170 Joint Assy, Front Drive Inboard, LH
2018-06 → 2022-08 ended
MZEA12 CVT CND —
43040-12170 Joint Assy, Front Drive Inboard, LH
2022-09 → —
MZEA12 CND —
43247 — Deflector, Front Wheel Bearing Dust, NO.2
43247-47010 note Deflector, Front Wheel Bearing Dust, NO.2
2018-06 → 2022-09 ended
MZEA12 CVT —
43247-76010 Deflector, Front Wheel Bearing Dust, NO.2
2018-06 → —
MZEA12 6F —
43247-47010 Deflector, Front Wheel Bearing Dust, NO.2
2022-09 → —
MZEA12 —
43412B — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-12070 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2018-06 → 2022-09 ended
MZEA12 CVT —
43425-13010 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2018-06 → —
MZEA12 6F —
43425-12070 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2022-09 → —
MZEA12 —
43420 — Shaft Assy, Front Drive, LH
43420-12B00 Shaft Assy, Front Drive, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
43420-12B40 Shaft Assy, Front Drive, LH
2018-06 → —
MZEA12 6F —
43420-12B00 Shaft Assy, Front Drive, LH
2022-09 → —
MZEA12 —
43420G — Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
43425-10040 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2018-06 → —
MZEA12 6F —
90521-33002 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2018-06 → 2022-09 ended
MZEA12 CVT —
90521-33002 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2022-09 → —
MZEA12 —
43420H — Oil Seal, Front Drive Shaft, LH
90311-50058 Oil Seal, Front Drive Shaft, LH
2018-06 → 2022-08 ended
MZEA12 —
90311-50058 Oil Seal, Front Drive Shaft, LH
2022-09 → —
MZEA12 —
43447E — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-12240 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2018-06 → 2022-09 ended
MZEA12 CVT —
42345-12240 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2022-09 → —
MZEA12 —
43447F — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-12230 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2018-06 → 2022-09 ended
MZEA12 CVT —
42345-12230 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2022-09 → —
MZEA12 —
43448F — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12230 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2018-06 → 2022-09 ended
MZEA12 CVT —
42345-12230 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2022-09 → —
MZEA12 —
43448G — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12180 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2018-06 → 2022-09 ended
MZEA12 CVT —
42345-12180 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2022-09 → —
MZEA12 —
43470 — Shaft Assy, Front Drive Outboard Joint, LH
43470-80407 Shaft Assy, Front Drive Outboard Joint, LH
2018-06 → 2022-08 ended
MZEA12 CVT CND —
43470-80443 Shaft Assy, Front Drive Outboard Joint, LH
2018-06 → 2022-08 ended
MZEA12 6F —
43470-80407 Shaft Assy, Front Drive Outboard Joint, LH
2022-09 → —
MZEA12 CND —
43474E — Damper, Front Drive Shaft, LH
43474-12160 Damper, Front Drive Shaft, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
43474-12250 Damper, Front Drive Shaft, LH
2018-06 → —
MZEA12 6F —
43474-12160 Damper, Front Drive Shaft, LH
2022-09 → —
MZEA12 —
43474G — Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-12090 Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2018-06 → 2022-09 ended
MZEA12 CVT —
42345-74130 Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2018-06 → —
MZEA12 6F —
42345-12090 Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2022-09 → —
MZEA12 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
