Toyota Corolla Hatchback

2018-06 → present · chassis MZEA12 · catalogue 165430 · United States

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

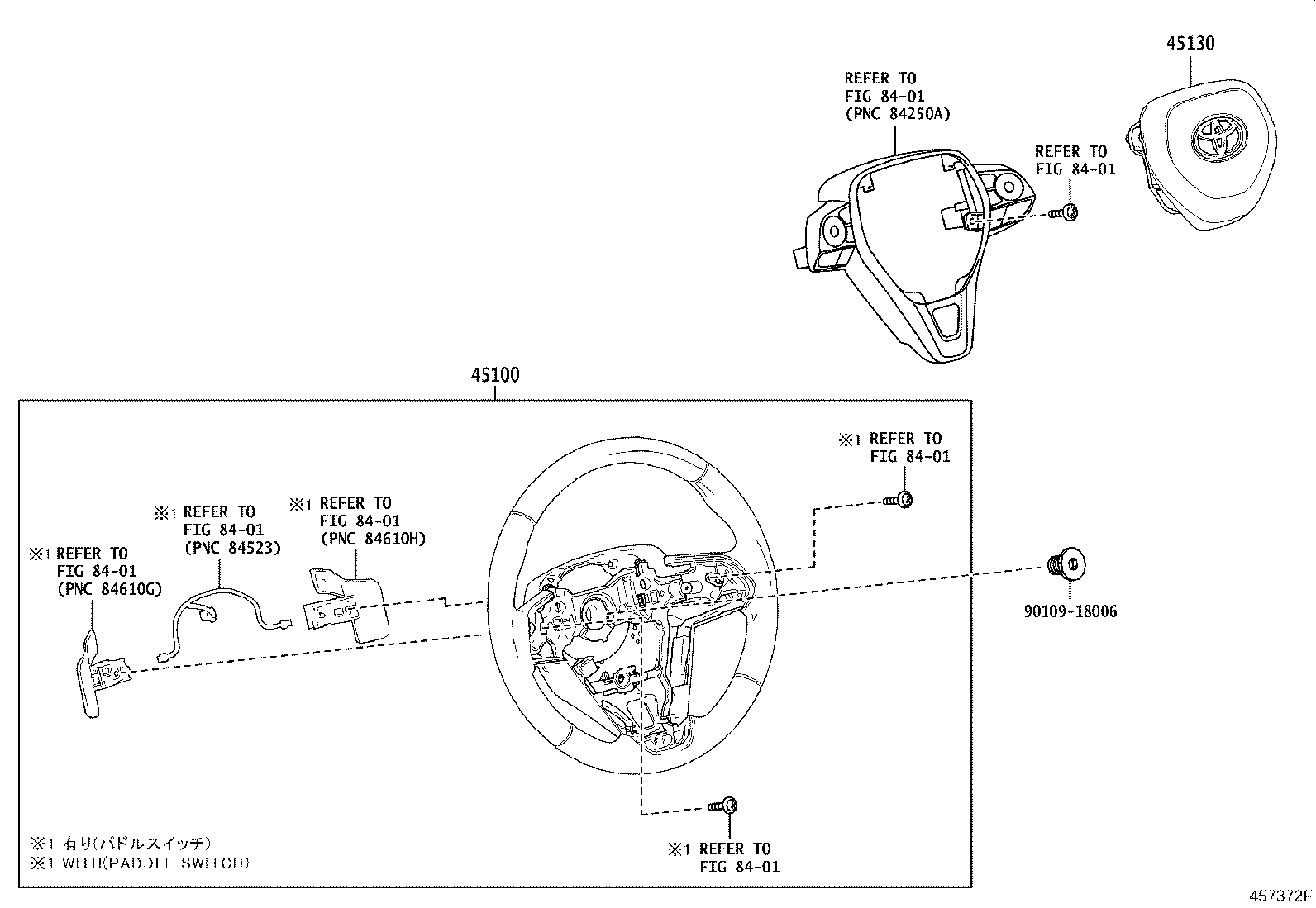

Exploded illustration 457372F 45130 — BUTTON ASSY, HORN (3 parts) 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 9010918006 — not listed in this catalogue 45100 — WHEEL ASSY, STEERING (17 parts)
457372F · 2 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
20 parts on this figure
Part number Description Fitment Price
45100 — Wheel Assy, Steering
45100-12G60-C0 note Wheel Assy, Steering
2018-06 → 2022-09 ended
MZEA12 CVT USA —
45100-12G60-C0 note Wheel Assy, Steering
2018-06 → —
MZEA12 6F CND —
45100-12G60-C0 note Wheel Assy, Steering
2018-06 → —
MZEA12 6F USA —
45100-12G60-C0 note Wheel Assy, Steering
2018-06 → 2022-09 ended
MZEA12 CVT CND —
45100-12G70-C0 note Wheel Assy, Steering
2018-06 → —
MZEA12 6F USA —
45100-12G70-C0 note Wheel Assy, Steering
2018-06 → —
MZEA12 6F CND —
45100-12G80-C0 note Wheel Assy, Steering
2018-06 → 2022-09 ended
MZEA12 CVT USA —
45100-12G80-C0 note Wheel Assy, Steering
2018-06 → 2022-09 ended
MZEA12 CVT CND —
45100-12G90-C0 note Wheel Assy, Steering
2018-06 → —
MZEA12 6F —
45100-12J00-C0 note Wheel Assy, Steering
2018-06 → 2022-09 ended
MZEA12 CVT —
45100-12G60-C0 note Wheel Assy, Steering
2022-09 → 2023-04 ended
MZEA12 CND —
45100-12G60-C0 note Wheel Assy, Steering
2022-09 → 2023-04 ended
MZEA12 USA —
45100-12G80-C0 note Wheel Assy, Steering
2022-09 → 2025-05 ended
MZEA12 USA —
45100-12G80-C0 note Wheel Assy, Steering
2022-09 → 2025-05 ended
MZEA12 CND —
45100-12J00-C0 note Wheel Assy, Steering
2022-09 → 2025-05 ended
MZEA12 —
45100-12J80-C0 note Wheel Assy, Steering
2023-04 → —
MZEA12 CND —
45100-12J80-C0 note Wheel Assy, Steering
2023-04 → —
MZEA12 USA —
45130 — Button Assy, Horn
45130-12D90-C0 note Button Assy, Horn
2018-06 → 2022-09 ended
MZEA12 CVT —
45130-12D90-C0 note Button Assy, Horn
2018-06 → —
MZEA12 6F —
45130-12D90-C0 note Button Assy, Horn
2022-09 → —
MZEA12 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
