Toyota Corolla Hatchback

2018-06 → present · chassis MZEA12 · catalogue 165430 · United States

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

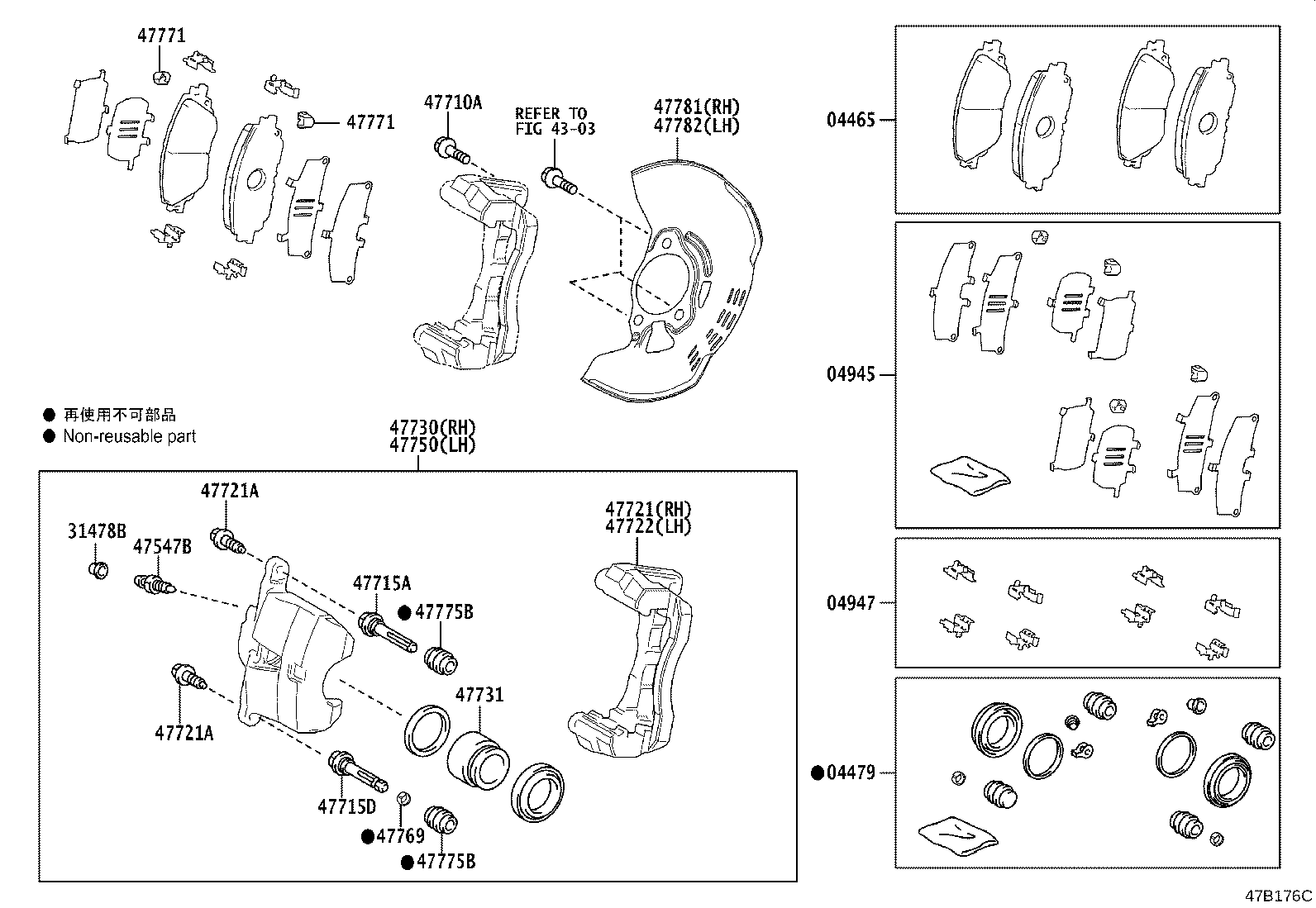

Exploded illustration 47B176C 4303 — not listed in this catalogue 47721A — BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) (3 parts) 47721A — BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) (3 parts) 47775B — BOOT, BUSH DUST, NO.1 (3 parts) 47721 — MOUNTING, FRONT DISC BRAKE CYLINDER, RH (3 parts) 47722 — MOUNTING, FRONT DISC BRAKE CYLINDER, LH (3 parts) 47730 — CYLINDER ASSY, FRONT DISC BRAKE, RH (3 parts) 47750 — CYLINDER ASSY, DISC BRAKE, LH (3 parts) 47715A — PIN, FRONT DISC BRAKE CYLINDER SLIDE (3 parts) 47547B — PLUG, BLEEDER(FOR FRONT DISC BRAKE) (3 parts) 31478B — CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) (3 parts) 47731 — PISTON, FRONT DISC BRAKE (3 parts) 47715D — PIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2 (3 parts) 47769 — BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) (3 parts) 47775B — BOOT, BUSH DUST, NO.1 (3 parts) 04465 — PAD KIT, DISC BRAKE, FRONT (3 parts) 47781 — COVER, DISC BRAKE DUST, FRONT RH (3 parts) 47710A — BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) (3 parts) 47771 — PLATE, PAD WEAR INDICATOR, NO.1 (3 parts) 47771 — PLATE, PAD WEAR INDICATOR, NO.1 (3 parts) 47782 — COVER, DISC BRAKE DUST, FRONT LH (3 parts) 04945 — SHIM KIT, ANTI SQUEAL, FRONT (3 parts) 04947 — FITTING KIT, DISC BRAKE, FRONT (4 parts) 04479 — CYLINDER KIT, DISC BRAKE, FRONT (3 parts)
47B176C · 23 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
61 parts on this figure
Part number Description Fitment Price
04465 — Pad Kit, Disc Brake, Front
04465-12670 note Pad Kit, Disc Brake, Front
2018-06 → —
MZEA12 6F —
04465-12670 note Pad Kit, Disc Brake, Front
2018-06 → 2022-09 ended
MZEA12 CVT —
04465-12670 note Pad Kit, Disc Brake, Front
2022-09 → —
MZEA12 —
04479 — Cylinder Kit, Disc Brake, Front
04478-12130 Cylinder Kit, Disc Brake, Front
2018-06 → 2022-09 ended
MZEA12 CVT —
04478-12130 Cylinder Kit, Disc Brake, Front
2018-06 → —
MZEA12 6F —
04478-12130 Cylinder Kit, Disc Brake, Front
2022-09 → —
MZEA12 —
04945 — Shim Kit, Anti Squeal, Front
04945-12120 Shim Kit, Anti Squeal, Front
2018-06 → 2022-09 ended
MZEA12 CVT —
04945-12120 Shim Kit, Anti Squeal, Front
2018-06 → —
MZEA12 6F —
04945-12120 Shim Kit, Anti Squeal, Front
2022-09 → —
MZEA12 —
04947 — Fitting Kit, Disc Brake, Front
04947-12050 Fitting Kit, Disc Brake, Front
2018-06 → 2018-09 ended
MZEA12 —
04947-47030 Fitting Kit, Disc Brake, Front
2018-10 → 2022-09 ended
MZEA12 CVT —
04947-47030 Fitting Kit, Disc Brake, Front
2018-10 → —
MZEA12 6F —
04947-47030 Fitting Kit, Disc Brake, Front
2022-09 → —
MZEA12 —
31478B — Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
31478-30010 Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
2018-06 → 2022-09 ended
MZEA12 CVT —
31478-30010 Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
2018-06 → —
MZEA12 6F —
31478-30010 Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
2022-09 → —
MZEA12 —
47547B — Plug, Bleeder(FOR FRONT DISC BRAKE)
47547-20010 Plug, Bleeder(FOR FRONT DISC BRAKE)
2018-06 → 2022-09 ended
MZEA12 CVT —
47547-20010 Plug, Bleeder(FOR FRONT DISC BRAKE)
2018-06 → —
MZEA12 6F —
47547-20010 Plug, Bleeder(FOR FRONT DISC BRAKE)
2022-09 → —
MZEA12 —
47710A — Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
90105-12208 note Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
2018-06 → 2022-09 ended
MZEA12 CVT —
90105-12208 note Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
2018-06 → —
MZEA12 6F —
90105-12208 note Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
2022-09 → —
MZEA12 —
47715A — Pin, Front Disc Brake Cylinder Slide
47715-52190 Pin, Front Disc Brake Cylinder Slide
2018-06 → 2022-09 ended
MZEA12 CVT —
47715-52190 Pin, Front Disc Brake Cylinder Slide
2018-06 → —
MZEA12 6F —
47715-52190 Pin, Front Disc Brake Cylinder Slide
2022-09 → —
MZEA12 —
47715D — Pin, Front Disc Brake Cylinder Slide, NO.2
47715-12A10 Pin, Front Disc Brake Cylinder Slide, NO.2
2018-06 → 2022-09 ended
MZEA12 CVT —
47715-12A10 Pin, Front Disc Brake Cylinder Slide, NO.2
2018-06 → —
MZEA12 6F —
47715-12A10 Pin, Front Disc Brake Cylinder Slide, NO.2
2022-09 → —
MZEA12 —
47721 — Mounting, Front Disc Brake Cylinder, RH
47721-12B10 Mounting, Front Disc Brake Cylinder, RH
2018-06 → 2022-09 ended
MZEA12 CVT —
47721-12B10 Mounting, Front Disc Brake Cylinder, RH
2018-06 → —
MZEA12 6F —
47721-12B10 Mounting, Front Disc Brake Cylinder, RH
2022-09 → —
MZEA12 —
47721A — Bolt(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90105-08164 note Bolt(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
2018-06 → —
MZEA12 6F —
90105-08164 note Bolt(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
2018-06 → 2022-09 ended
MZEA12 CVT —
90105-08164 note Bolt(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
2022-09 → —
MZEA12 —
47722 — Mounting, Front Disc Brake Cylinder, LH
47722-12B10 Mounting, Front Disc Brake Cylinder, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
47722-12B10 Mounting, Front Disc Brake Cylinder, LH
2018-06 → —
MZEA12 6F —
47722-12B10 Mounting, Front Disc Brake Cylinder, LH
2022-09 → —
MZEA12 —
47730 — Cylinder Assy, Front Disc Brake, RH
47730-12B10 Cylinder Assy, Front Disc Brake, RH
2018-06 → 2022-09 ended
MZEA12 CVT —
47730-12B10 Cylinder Assy, Front Disc Brake, RH
2018-06 → —
MZEA12 6F —
47730-12B10 Cylinder Assy, Front Disc Brake, RH
2022-09 → —
MZEA12 —
47731 — Piston, Front Disc Brake
47731-52210 Piston, Front Disc Brake
2018-06 → 2022-09 ended
MZEA12 CVT —
47731-52210 Piston, Front Disc Brake
2018-06 → —
MZEA12 6F —
47731-52210 Piston, Front Disc Brake
2022-09 → —
MZEA12 —
47750 — Cylinder Assy, Disc Brake, LH
47750-12B10 Cylinder Assy, Disc Brake, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
47750-12B10 Cylinder Assy, Disc Brake, LH
2018-06 → —
MZEA12 6F —
47750-12B10 Cylinder Assy, Disc Brake, LH
2022-09 → —
MZEA12 —
47769 — Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
47769-50010 Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
2018-06 → 2022-09 ended
MZEA12 CVT —
47769-50010 Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
2018-06 → —
MZEA12 6F —
47769-50010 Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
2022-09 → —
MZEA12 —
47771 — Plate, Pad Wear Indicator, NO.1
47771-33380 Plate, Pad Wear Indicator, NO.1
2018-06 → 2022-09 ended
MZEA12 CVT —
47771-33380 Plate, Pad Wear Indicator, NO.1
2018-06 → —
MZEA12 6F —
47771-33380 Plate, Pad Wear Indicator, NO.1
2022-09 → —
MZEA12 —
47775B — Boot, Bush Dust, NO.1
47775-52190 Boot, Bush Dust, NO.1
2018-06 → 2022-09 ended
MZEA12 CVT —
47775-52190 Boot, Bush Dust, NO.1
2018-06 → —
MZEA12 6F —
47775-52190 Boot, Bush Dust, NO.1
2022-09 → —
MZEA12 —
47781 — Cover, Disc Brake Dust, Front RH
47781-10080 Cover, Disc Brake Dust, Front RH
2018-06 → 2022-09 ended
MZEA12 CVT —
47781-10080 Cover, Disc Brake Dust, Front RH
2018-06 → —
MZEA12 6F —
47781-10080 Cover, Disc Brake Dust, Front RH
2022-09 → —
MZEA12 —
47782 — Cover, Disc Brake Dust, Front LH
47782-10080 Cover, Disc Brake Dust, Front LH
2018-06 → 2022-09 ended
MZEA12 CVT —
47782-10080 Cover, Disc Brake Dust, Front LH
2018-06 → —
MZEA12 6F —
47782-10080 Cover, Disc Brake Dust, Front LH
2022-09 → —
MZEA12 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
