Toyota Corolla Hatchback
2018-06 → present · chassis MZEA12 · catalogue 165430 · United States
Supported model
Data version 2022-09

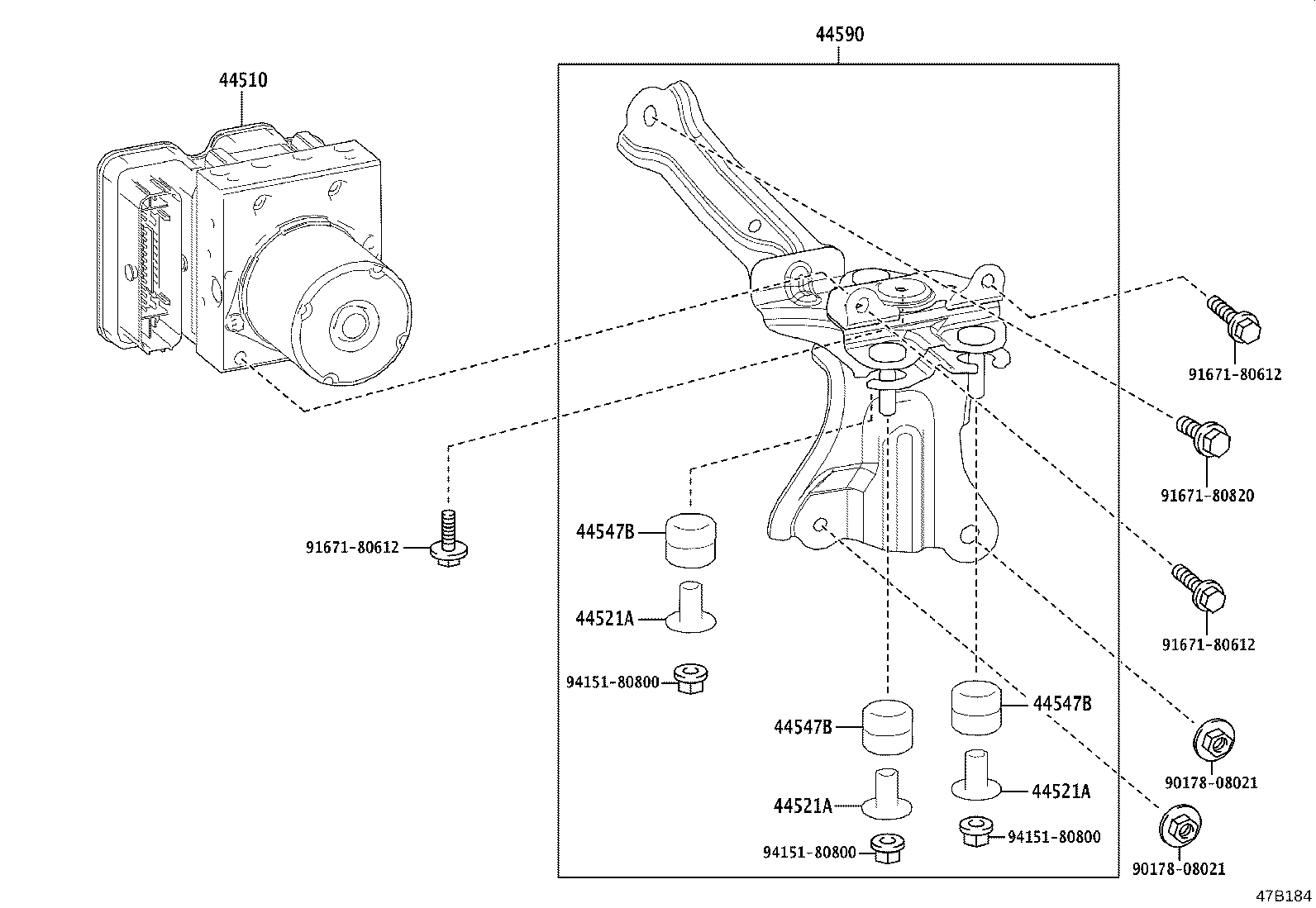

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44510 — Actuator Assy, Brake | ||||
| 44050-12E60 |
Actuator Assy, Brake
2018-06 → 2019-07
ended
|
MZEA12 | — | |
| 44050-12G30 |
Actuator Assy, Brake
2019-08 → 2022-09
ended
|
MZEA12 CVT | — | |
| 44050-12G30 |
Actuator Assy, Brake
2019-08 → —
|
MZEA12 6F | — | |
| 44050-12K80 note |
Actuator Assy, Brake
2023-03 → 2023-04
ended
|
MZEA12 | — | |
| 44050-12K81 note |
Actuator Assy, Brake
2023-05 → 2023-08
ended
|
MZEA12 | — | |
| 44050-12K81 note |
Actuator Assy, Brake
2023-08 → —
|
MZEA12 | — | |
| 44050-12L20 note |
Actuator Assy, Brake
2022-09 → 2023-08
ended
|
MZEA12 | — | |
| 44521A — Collar, Brake Actuator Case, NO.1 | ||||
| 44521-33020 |
Collar, Brake Actuator Case, NO.1
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 44521-33020 |
Collar, Brake Actuator Case, NO.1
2018-06 → —
|
MZEA12 6F | — | |
| 44521-33020 |
Collar, Brake Actuator Case, NO.1
2022-09 → —
|
MZEA12 | — | |
| 44547B — Cushion, Brake Actuator Bracket | ||||
| 44547-33100 |
Cushion, Brake Actuator Bracket
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 44547-33100 |
Cushion, Brake Actuator Bracket
2018-06 → —
|
MZEA12 6F | — | |
| 44547-33100 |
Cushion, Brake Actuator Bracket
2022-09 → —
|
MZEA12 | — | |
| 44590 — Bracket Assy, Brake Actuator | ||||
| 44590-12230 |
Bracket Assy, Brake Actuator
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 44590-12230 |
Bracket Assy, Brake Actuator
2018-06 → —
|
MZEA12 6F | — | |
| 44590-12290 |
Bracket Assy, Brake Actuator
2022-09 → —
|
MZEA12 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
