Toyota Corolla Hatchback

2018-06 → present · chassis MZEA12 · catalogue 165430 · United States

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

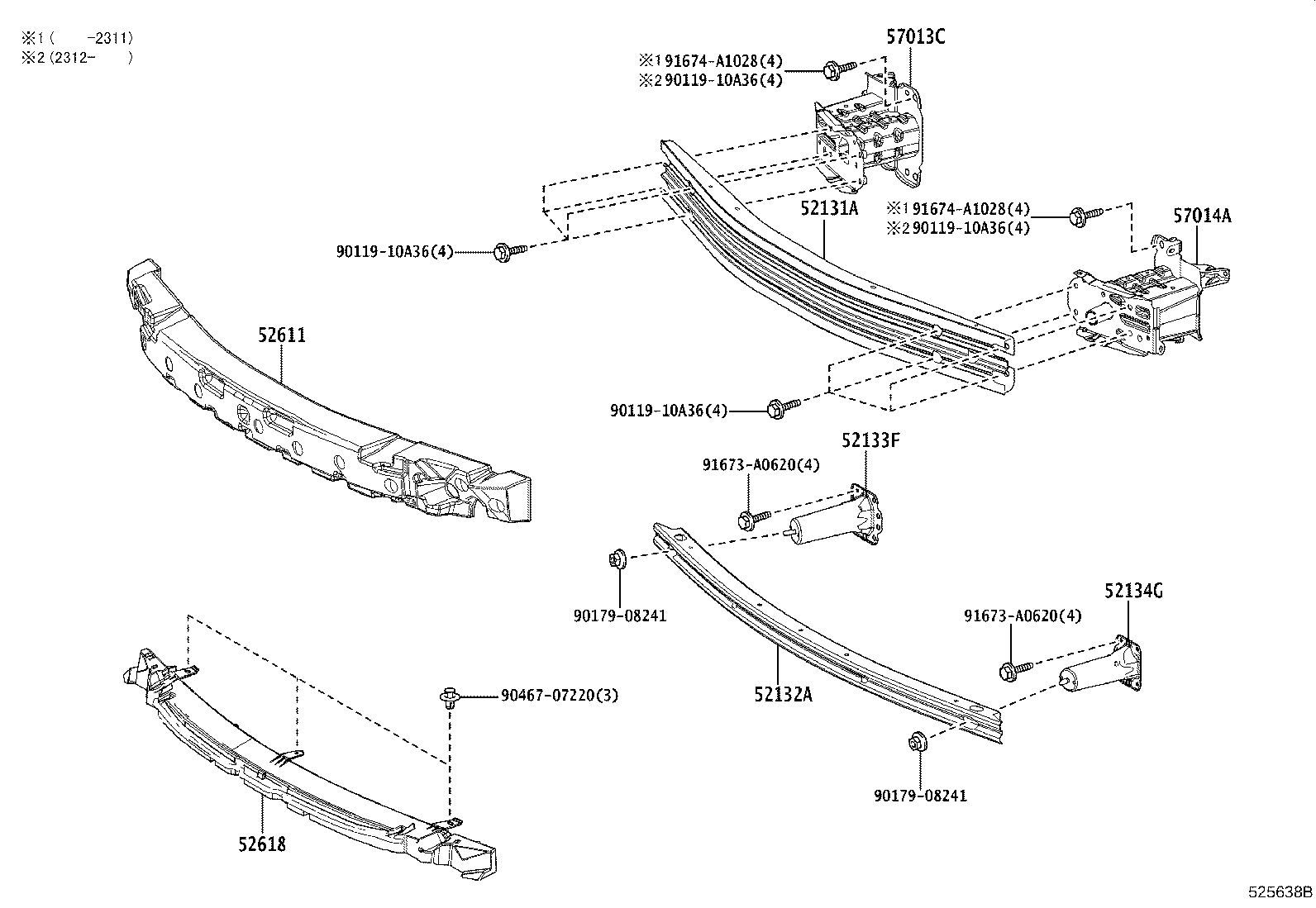

Exploded illustration 525638B 52131A — REINFORCEMENT, FRONT BUMPER (2 parts) 52132A — REINFORCEMENT, FRONT BUMPER, NO.2 (4 parts) 52133F — BRACKET, FRONT BUMPER, RH (3 parts) 52134G — BRACKET, FRONT BUMPER, LH (3 parts) 52611 — ABSORBER, FRONT BUMPER ENERGY (3 parts) 52618 — ABSORBER, FRONT BUMPER, LOWER (3 parts) 57013C — BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH (3 parts) 57014A — BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH (3 parts) 9017908241 — not listed in this catalogue 9017908241 — not listed in this catalogue 9046707220 — not listed in this catalogue 9011910A36 — not listed in this catalogue 91673A0620 — not listed in this catalogue 91673A0620 — not listed in this catalogue 9011910A36 — not listed in this catalogue 91674A1028 — not listed in this catalogue 9011910A36 — not listed in this catalogue 91674A1028 — not listed in this catalogue 9011910A36 — not listed in this catalogue
525638B · 8 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
24 parts on this figure
Part number Description Fitment Price
52131A — Reinforcement, Front Bumper
52131-12310 Reinforcement, Front Bumper
2018-06 → —
MZEA12 —
52131-12310 Reinforcement, Front Bumper
2022-09 → —
MZEA12 —
52132A — Reinforcement, Front Bumper, NO.2
52132-12160 Reinforcement, Front Bumper, NO.2
2018-06 → 2022-09 ended
MZEA12 CVT —
52132-12160 Reinforcement, Front Bumper, NO.2
2018-06 → —
MZEA12 6F —
52132-12160 Reinforcement, Front Bumper, NO.2
2022-09 → 2024-09 ended
MZEA12 —
52132-12161 Reinforcement, Front Bumper, NO.2
2024-10 → —
MZEA12 —
52133F — Bracket, Front Bumper, RH
52133-12190 Bracket, Front Bumper, RH
2018-06 → 2022-09 ended
MZEA12 CVT —
52133-12190 Bracket, Front Bumper, RH
2018-06 → —
MZEA12 6F —
52133-12190 Bracket, Front Bumper, RH
2022-09 → —
MZEA12 —
52134G — Bracket, Front Bumper, LH
52133-12190 Bracket, Front Bumper, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
52133-12190 Bracket, Front Bumper, LH
2018-06 → —
MZEA12 6F —
52133-12190 Bracket, Front Bumper, LH
2022-09 → —
MZEA12 —
52611 — Absorber, Front Bumper Energy
52611-12410 Absorber, Front Bumper Energy
2018-06 → 2022-09 ended
MZEA12 CVT —
52611-12410 Absorber, Front Bumper Energy
2018-06 → —
MZEA12 6F —
52611-12460 Absorber, Front Bumper Energy
2022-09 → —
MZEA12 —
52618 — Absorber, Front Bumper, Lower
52618-12100 Absorber, Front Bumper, Lower
2018-06 → 2022-09 ended
MZEA12 CVT —
52618-12100 Absorber, Front Bumper, Lower
2018-06 → —
MZEA12 6F —
52618-12100 Absorber, Front Bumper, Lower
2022-09 → —
MZEA12 —
57013C — Bracket Sub-assy, Front Side Member, RH
57013-12070 Bracket Sub-assy, Front Side Member, RH
2018-06 → 2022-09 ended
MZEA12 CVT —
57013-12070 Bracket Sub-assy, Front Side Member, RH
2018-06 → —
MZEA12 6F —
57013-12070 Bracket Sub-assy, Front Side Member, RH
2022-09 → —
MZEA12 —
57014A — Bracket Sub-assy, Front Side Member, LH
57014-12070 Bracket Sub-assy, Front Side Member, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
57014-12070 Bracket Sub-assy, Front Side Member, LH
2018-06 → —
MZEA12 6F —
57014-12070 Bracket Sub-assy, Front Side Member, LH
2022-09 → —
MZEA12 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
