Toyota Corolla Hatchback
2018-06 → present · chassis MZEA12 · catalogue 165430 · United States
Supported model
Data version 2022-09

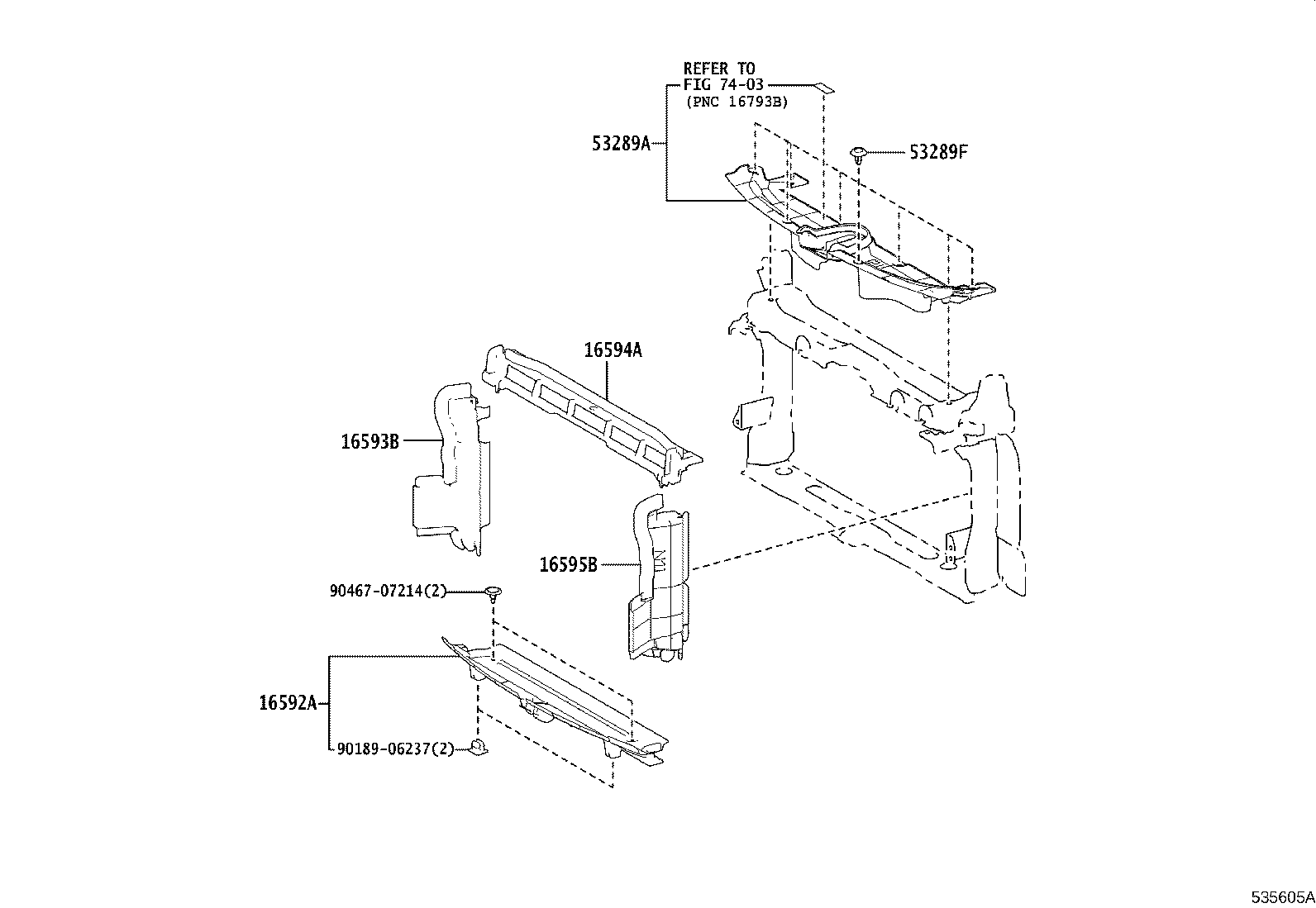

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16592A — Guide, Radiator Air, NO.3 | ||||
| 16592-24010 |
Guide, Radiator Air, NO.3
2018-06 → —
|
M20AFKS MZEA12 6F | — | |
| 16592-24010 |
Guide, Radiator Air, NO.3
2018-06 → 2022-09
ended
|
M20AFKS MZEA12 CVT | — | |
| 16592-24050 |
Guide, Radiator Air, NO.3
2022-09 → —
|
M20AFKS MZEA12 | — | |
| 16593B — Guide, Radiator Air, NO.1 RH | ||||
| 16593-24020 |
Guide, Radiator Air, NO.1 RH
2018-06 → 2022-09
ended
|
M20AFKS MZEA12 CVT | — | |
| 16593-24020 |
Guide, Radiator Air, NO.1 RH
2018-06 → —
|
M20AFKS MZEA12 6F | — | |
| 16593-24020 |
Guide, Radiator Air, NO.1 RH
2022-09 → —
|
M20AFKS MZEA12 | — | |
| 16594A — Guide, Radiator Air, NO.2 | ||||
| 16594-24010 |
Guide, Radiator Air, NO.2
2018-06 → 2022-09
ended
|
M20AFKS MZEA12 CVT | — | |
| 16594-24010 |
Guide, Radiator Air, NO.2
2018-06 → —
|
M20AFKS MZEA12 6F | — | |
| 16594-24040 |
Guide, Radiator Air, NO.2
2022-09 → —
|
M20AFKS MZEA12 | — | |
| 16595B — Guide, Radiator Air, NO.1 LH | ||||
| 16595-24020 |
Guide, Radiator Air, NO.1 LH
2018-06 → 2022-09
ended
|
M20AFKS MZEA12 CVT | — | |
| 16595-24020 |
Guide, Radiator Air, NO.1 LH
2018-06 → —
|
M20AFKS MZEA12 6F | — | |
| 16595-24020 |
Guide, Radiator Air, NO.1 LH
2022-09 → —
|
M20AFKS MZEA12 | — | |
| 53289A — Cover, Radiator Support Opening | ||||
| 53289-12090 |
Cover, Radiator Support Opening
2018-06 → 2022-08
ended
|
MZEA12 | — | |
| 53289-12130 |
Cover, Radiator Support Opening
2022-09 → —
|
MZEA12 | — | |
| 53289F — Clip(FOR RADIATOR SUPPORT OPENING COVER) | ||||
| 90467-07217 |
Clip(FOR RADIATOR SUPPORT OPENING COVER)
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 90467-07217 |
Clip(FOR RADIATOR SUPPORT OPENING COVER)
2018-06 → —
|
MZEA12 6F | — | |
| 90467-07214 |
Clip(FOR RADIATOR SUPPORT OPENING COVER)
2023-07 → 2023-11
ended
|
MZEA12 | — | |
| 90467-07217 |
Clip(FOR RADIATOR SUPPORT OPENING COVER)
2022-09 → 2023-07
ended
|
MZEA12 | — | |
| 90467-07217 |
Clip(FOR RADIATOR SUPPORT OPENING COVER)
2023-11 → —
|
MZEA12 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
