Toyota Corolla Hatchback

2018-06 → present · chassis MZEA12 · catalogue 165430 · United States

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

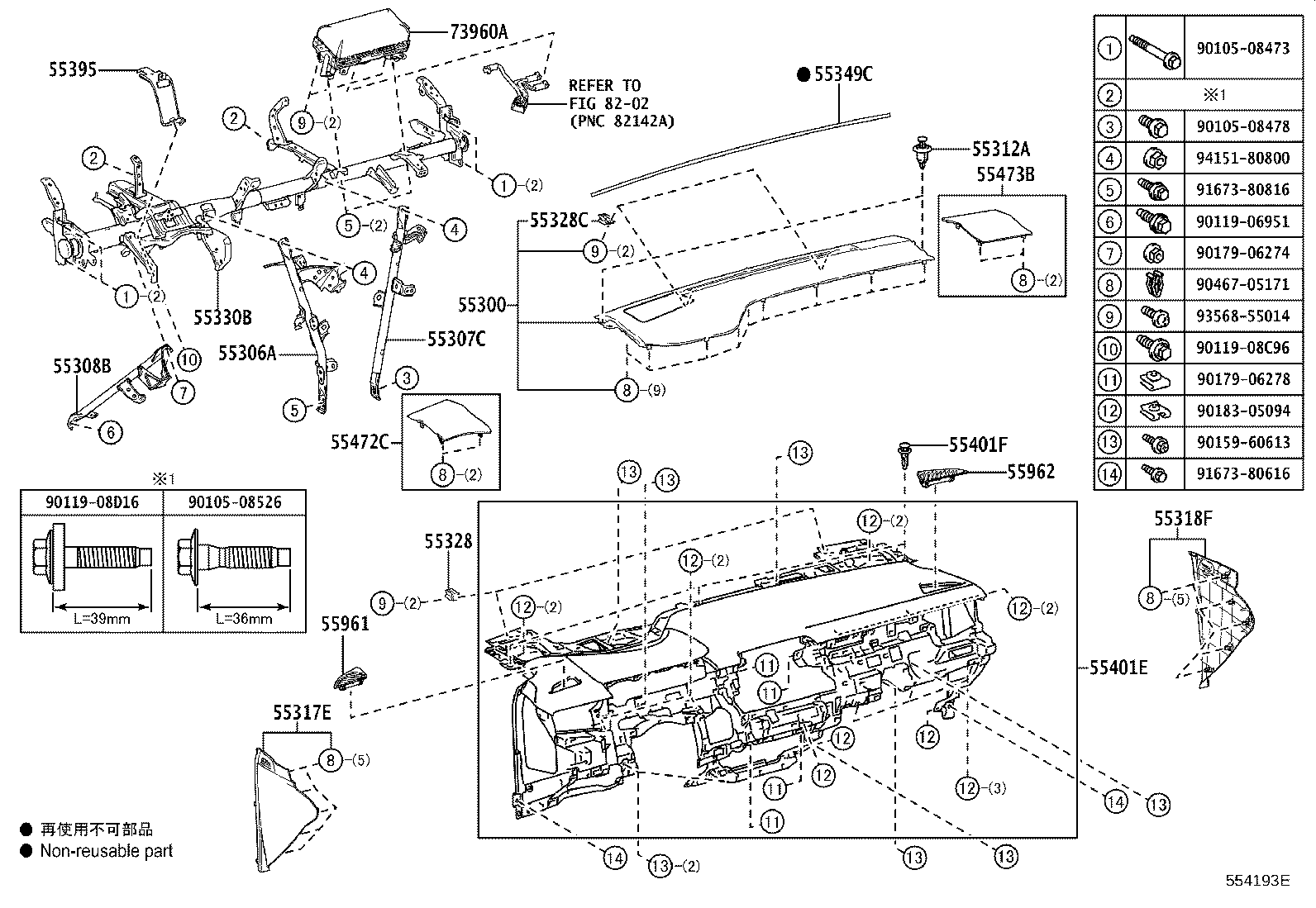

Exploded illustration 554193E 55330B — REINFORCEMENT ASSY, INSTRUMENT PANEL (11 parts) 55306A — BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 (3 parts) 55328C — PIN, INSTRUMENT PANEL, NO.2 (4 parts) 55300 — PANEL ASSY, INSTRUMENT, UPPER (5 parts) 55472C — PANEL, INSTRUMENT PANEL SPEAKER, NO.1 (14 parts) 55317E — PANEL, INSTRUMENT SIDE, NO.1 (3 parts) 55318F — PANEL, INSTRUMENT SIDE, NO.2 (3 parts) 55473B — PANEL, INSTRUMENT PANEL SPEAKER, NO.2 (14 parts) 73960A — AIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR (3 parts) 55308B — BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3 (3 parts) 55307C — BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 (3 parts) 55328 — PIN, INSTRUMENT PANEL, NO.1 (4 parts) 55961 — NOZZLE, SIDE DEFROSTER, NO.1 (10 parts) 55401F — CLIP(FOR SAFETY PAD) (3 parts) 55962 — NOZZLE, SIDE DEFROSTER, NO.2 (10 parts) 8202 — not listed in this catalogue 55349C — CUSHION, INSTRUMENT PANEL (3 parts) 55312A — CLIP, INSTRUMENT PANEL (3 parts) 9010508478 — not listed in this catalogue 9415180800 — not listed in this catalogue 9167380816 — not listed in this catalogue 9017906274 — not listed in this catalogue 9046705171 — not listed in this catalogue 9356855014 — not listed in this catalogue 9011908C96 — not listed in this catalogue 9017906278 — not listed in this catalogue 9018305094 — not listed in this catalogue 9015960613 — not listed in this catalogue 9010508473 — not listed in this catalogue 9011906951 — not listed in this catalogue 9167380616 — not listed in this catalogue 55401E — PAD SUB-ASSY, INSTRUMENT PANEL SAFETY (68 parts) 55395 — BRACKET, INSTRUMENT PANEL TO PEDAL (3 parts) 9011908D16 — not listed in this catalogue 9010508526 — not listed in this catalogue
554193E · 19 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
170 parts on this figure
Part number Description Fitment Price
55300 — Panel Assy, Instrument, Upper
55300-12040-C0 note Panel Assy, Instrument, Upper
2018-06 → 2022-08 ended
MZEA12 —
55300-12050-C0 note Panel Assy, Instrument, Upper
2018-06 → 2021-07 ended
MZEA12 CND —
55300-12050-C0 note Panel Assy, Instrument, Upper
2018-06 → 2022-08 ended
MZEA12 USA —
55300-12040-C0 note Panel Assy, Instrument, Upper
2022-09 → 2023-04 ended
MZEA12 —
55300-12041-C0 note Panel Assy, Instrument, Upper
2023-04 → —
MZEA12 —
55306A — Brace Sub-assy, Instrument Panel, NO.1
55306-12510 Brace Sub-assy, Instrument Panel, NO.1
2018-06 → 2022-09 ended
MZEA12 CVT —
55306-12510 Brace Sub-assy, Instrument Panel, NO.1
2018-06 → —
MZEA12 6F —
55306-12510 Brace Sub-assy, Instrument Panel, NO.1
2022-09 → —
MZEA12 —
55307C — Brace Sub-assy, Instrument Panel, NO.2
55307-12410 Brace Sub-assy, Instrument Panel, NO.2
2018-06 → 2022-09 ended
MZEA12 CVT —
55307-12410 Brace Sub-assy, Instrument Panel, NO.2
2018-06 → —
MZEA12 6F —
55307-12410 Brace Sub-assy, Instrument Panel, NO.2
2022-09 → —
MZEA12 —
55308B — Brace Sub-assy, Instrument Panel TO Cowl, NO.3
55308-12320 Brace Sub-assy, Instrument Panel TO Cowl, NO.3
2018-06 → 2022-09 ended
MZEA12 CVT —
55308-12320 Brace Sub-assy, Instrument Panel TO Cowl, NO.3
2018-06 → —
MZEA12 6F —
55308-12320 Brace Sub-assy, Instrument Panel TO Cowl, NO.3
2022-09 → —
MZEA12 —
55312A — Clip, Instrument Panel
90467-07217 Clip, Instrument Panel
2018-06 → 2022-09 ended
MZEA12 CVT —
90467-07217 Clip, Instrument Panel
2018-06 → —
MZEA12 6F —
90467-07217 Clip, Instrument Panel
2022-09 → —
MZEA12 —
55317E — Panel, Instrument Side, NO.1
55317-12230-C0 note Panel, Instrument Side, NO.1
2018-06 → 2022-09 ended
MZEA12 CVT —
55317-12230-C0 note Panel, Instrument Side, NO.1
2018-06 → —
MZEA12 6F —
55317-12230-C0 note Panel, Instrument Side, NO.1
2022-09 → —
MZEA12 —
55318F — Panel, Instrument Side, NO.2
55318-12170-C0 note Panel, Instrument Side, NO.2
2018-06 → 2022-09 ended
MZEA12 CVT —
55318-12170-C0 note Panel, Instrument Side, NO.2
2018-06 → —
MZEA12 6F —
55318-12170-C0 note Panel, Instrument Side, NO.2
2022-09 → —
MZEA12 —
55328 — Pin, Instrument Panel, NO.1
55328-12430 Pin, Instrument Panel, NO.1
2020-04 → 2022-09 ended
MZEA12 CVT —
55328-12430 Pin, Instrument Panel, NO.1
2020-04 → —
MZEA12 6F —
55328-60090 Pin, Instrument Panel, NO.1
2018-06 → 2020-04 ended
MZEA12 —
55328-12430 Pin, Instrument Panel, NO.1
2022-09 → —
MZEA12 —
55328C — Pin, Instrument Panel, NO.2
55328-12420 Pin, Instrument Panel, NO.2
2018-06 → 2020-03 ended
MZEA12 —
55328-12440 Pin, Instrument Panel, NO.2
2020-04 → 2022-09 ended
MZEA12 CVT —
55328-12440 Pin, Instrument Panel, NO.2
2020-04 → —
MZEA12 6F —
55328-12440 Pin, Instrument Panel, NO.2
2022-09 → —
MZEA12 —
55330B — Reinforcement Assy, Instrument Panel
55330-12620 note Reinforcement Assy, Instrument Panel
2018-06 → 2019-12 ended
MZEA12 6F —
55330-12621 note Reinforcement Assy, Instrument Panel
2020-01 → 2021-07 ended
MZEA12 6F CND —
55330-12621 note Reinforcement Assy, Instrument Panel
2020-01 → —
MZEA12 6F USA —
55330-12630 note Reinforcement Assy, Instrument Panel
2018-06 → 2019-12 ended
MZEA12 CVT —
55330-12631 note Reinforcement Assy, Instrument Panel
2020-01 → 2021-07 ended
MZEA12 CVT CND —
55330-12631 note Reinforcement Assy, Instrument Panel
2020-01 → 2022-09 ended
MZEA12 CVT USA —
55330-12840 Reinforcement Assy, Instrument Panel
2018-06 → 2019-12 ended
MZEA12 6F —
55330-12841 Reinforcement Assy, Instrument Panel
2020-01 → —
MZEA12 6F —
55330-12850 Reinforcement Assy, Instrument Panel
2018-06 → 2019-12 ended
MZEA12 CVT —
55330-12851 Reinforcement Assy, Instrument Panel
2020-01 → 2022-09 ended
MZEA12 CVT —
55330-12851 Reinforcement Assy, Instrument Panel
2022-09 → —
MZEA12 —
55349C — Cushion, Instrument Panel
55349-12190 Cushion, Instrument Panel
2018-06 → 2022-09 ended
MZEA12 CVT —
55349-12190 Cushion, Instrument Panel
2018-06 → —
MZEA12 6F —
55349-12200 Cushion, Instrument Panel
2022-09 → —
MZEA12 —
55395 — Bracket, Instrument Panel TO Pedal
55395-12020 Bracket, Instrument Panel TO Pedal
2018-06 → 2022-09 ended
MZEA12 CVT —
55395-12020 Bracket, Instrument Panel TO Pedal
2018-06 → —
MZEA12 6F —
55395-12020 Bracket, Instrument Panel TO Pedal
2022-09 → —
MZEA12 —
55401E — Pad Sub-assy, Instrument Panel Safety
55400-12900-C0 note Pad Sub-assy, Instrument Panel Safety
2018-06 → 2018-11 ended
MZEA12 CND —
55400-12900-C0 note Pad Sub-assy, Instrument Panel Safety
2018-06 → 2018-11 ended
MZEA12 USA —
55400-12900-C4 note Pad Sub-assy, Instrument Panel Safety
2018-11 → 2022-09 ended
MZEA12 CVT —
55400-12900-C4 note Pad Sub-assy, Instrument Panel Safety
2018-11 → —
MZEA12 6F —
55400-12901-C1 note Pad Sub-assy, Instrument Panel Safety
2018-06 → 2018-11 ended
MZEA12 —
55400-12901-C1 note Pad Sub-assy, Instrument Panel Safety
2018-06 → 2018-11 ended
MZEA12 —
55400-12901-C2 note Pad Sub-assy, Instrument Panel Safety
2018-06 → 2018-11 ended
MZEA12 —
55400-12901-C2 note Pad Sub-assy, Instrument Panel Safety
2018-06 → 2018-11 ended
MZEA12 —
55400-12901-C3 note Pad Sub-assy, Instrument Panel Safety
2018-06 → 2018-11 ended
MZEA12 —
55400-12901-C3 note Pad Sub-assy, Instrument Panel Safety
2018-06 → 2018-11 ended
MZEA12 —
55400-12901-C7 note Pad Sub-assy, Instrument Panel Safety
2021-11 → —
MZEA12 6F USA —
55400-12901-C7 note Pad Sub-assy, Instrument Panel Safety
2021-11 → —
MZEA12 6F USA —
55400-12901-C7 note Pad Sub-assy, Instrument Panel Safety
2021-11 → —
MZEA12 6F USA —
55400-12901-C7 note Pad Sub-assy, Instrument Panel Safety
2021-11 → —
MZEA12 6F CND —
55400-12901-C7 note Pad Sub-assy, Instrument Panel Safety
2021-11 → —
MZEA12 6F USA —
55400-12901-C7 note Pad Sub-assy, Instrument Panel Safety
2021-11 → 2022-09 ended
MZEA12 CVT USA —
55400-12901-C7 note Pad Sub-assy, Instrument Panel Safety
2021-11 → 2022-09 ended
MZEA12 CVT USA —
55400-12901-C7 note Pad Sub-assy, Instrument Panel Safety
2021-11 → 2022-09 ended
MZEA12 CVT USA —
55400-12901-C7 note Pad Sub-assy, Instrument Panel Safety
2021-11 → 2022-09 ended
MZEA12 CVT USA —
55400-12901-C7 note Pad Sub-assy, Instrument Panel Safety
2021-11 → 2022-09 ended
MZEA12 CVT CND —
55400-12901-C7 note Pad Sub-assy, Instrument Panel Safety
2021-07 → 2021-11 ended
MZEA12 USA —
55400-12901-C7 note Pad Sub-assy, Instrument Panel Safety
2020-06 → 2021-07 ended
MZEA12 USA —
55400-12901-C7 note Pad Sub-assy, Instrument Panel Safety
2018-11 → 2020-06 ended
MZEA12 —
55400-12901-C7 note Pad Sub-assy, Instrument Panel Safety
2018-11 → 2020-06 ended
MZEA12 —
55400-12901-C7 note Pad Sub-assy, Instrument Panel Safety
2020-06 → 2021-11 ended
MZEA12 CND —
55400-12901-C7 note Pad Sub-assy, Instrument Panel Safety
2020-06 → 2021-11 ended
MZEA12 USA —
55400-12901-C7 note Pad Sub-assy, Instrument Panel Safety
2020-06 → 2021-11 ended
MZEA12 USA —
55400-12901-C7 note Pad Sub-assy, Instrument Panel Safety
2020-06 → 2021-11 ended
MZEA12 USA —
55400-12901-C8 note Pad Sub-assy, Instrument Panel Safety
2021-11 → —
MZEA12 6F USA —
55400-12901-C8 note Pad Sub-assy, Instrument Panel Safety
2021-11 → 2022-09 ended
MZEA12 CVT USA —
55400-12901-C8 note Pad Sub-assy, Instrument Panel Safety
2021-11 → 2022-09 ended
MZEA12 CVT USA —
55400-12901-C8 note Pad Sub-assy, Instrument Panel Safety
2021-11 → 2022-09 ended
MZEA12 CVT USA —
55400-12901-C8 note Pad Sub-assy, Instrument Panel Safety
2021-11 → —
MZEA12 6F USA —
55400-12901-C8 note Pad Sub-assy, Instrument Panel Safety
2020-06 → 2021-07 ended
MZEA12 USA —
55400-12901-C8 note Pad Sub-assy, Instrument Panel Safety
2021-11 → —
MZEA12 6F USA —
55400-12901-C8 note Pad Sub-assy, Instrument Panel Safety
2021-11 → —
MZEA12 6F USA —
55400-12901-C8 note Pad Sub-assy, Instrument Panel Safety
2021-11 → —
MZEA12 6F CND —
55400-12901-C8 note Pad Sub-assy, Instrument Panel Safety
2018-11 → 2020-06 ended
MZEA12 —
55400-12901-C8 note Pad Sub-assy, Instrument Panel Safety
2018-11 → 2020-06 ended
MZEA12 —
55400-12901-C8 note Pad Sub-assy, Instrument Panel Safety
2021-11 → 2022-09 ended
MZEA12 CVT USA —
55400-12901-C8 note Pad Sub-assy, Instrument Panel Safety
2021-11 → 2022-09 ended
MZEA12 CVT CND —
55400-12901-C8 note Pad Sub-assy, Instrument Panel Safety
2021-07 → 2021-11 ended
MZEA12 USA —
55400-12901-C8 note Pad Sub-assy, Instrument Panel Safety
2020-06 → 2021-11 ended
MZEA12 CND —
55400-12901-C8 note Pad Sub-assy, Instrument Panel Safety
2020-06 → 2021-11 ended
MZEA12 USA —
55400-12901-C8 note Pad Sub-assy, Instrument Panel Safety
2020-06 → 2021-11 ended
MZEA12 USA —
55400-12901-C8 note Pad Sub-assy, Instrument Panel Safety
2020-06 → 2021-11 ended
MZEA12 USA —
55400-12901-C9 note Pad Sub-assy, Instrument Panel Safety
2018-11 → 2020-06 ended
MZEA12 —
55400-12901-C9 note Pad Sub-assy, Instrument Panel Safety
2021-11 → —
MZEA12 6F CND —
55400-12901-C9 note Pad Sub-assy, Instrument Panel Safety
2021-11 → —
MZEA12 6F USA —
55400-12901-C9 note Pad Sub-assy, Instrument Panel Safety
2021-11 → —
MZEA12 6F USA —
55400-12901-C9 note Pad Sub-assy, Instrument Panel Safety
2021-11 → —
MZEA12 6F USA —
55400-12901-C9 note Pad Sub-assy, Instrument Panel Safety
2021-11 → —
MZEA12 6F USA —
55400-12901-C9 note Pad Sub-assy, Instrument Panel Safety
2018-11 → 2020-06 ended
MZEA12 —
55400-12901-C9 note Pad Sub-assy, Instrument Panel Safety
2021-11 → 2022-09 ended
MZEA12 CVT USA —
55400-12901-C9 note Pad Sub-assy, Instrument Panel Safety
2021-11 → 2022-09 ended
MZEA12 CVT USA —
55400-12901-C9 note Pad Sub-assy, Instrument Panel Safety
2021-11 → 2022-09 ended
MZEA12 CVT USA —
55400-12901-C9 note Pad Sub-assy, Instrument Panel Safety
2021-11 → 2022-09 ended
MZEA12 CVT USA —
55400-12901-C9 note Pad Sub-assy, Instrument Panel Safety
2021-11 → 2022-09 ended
MZEA12 CVT CND —
55400-12901-C9 note Pad Sub-assy, Instrument Panel Safety
2020-06 → 2021-07 ended
MZEA12 USA —
55400-12901-C9 note Pad Sub-assy, Instrument Panel Safety
2021-07 → 2021-11 ended
MZEA12 USA —
55400-12901-C9 note Pad Sub-assy, Instrument Panel Safety
2020-06 → 2021-11 ended
MZEA12 USA —
55400-12901-C9 note Pad Sub-assy, Instrument Panel Safety
2020-06 → 2021-11 ended
MZEA12 USA —
55400-12901-C9 note Pad Sub-assy, Instrument Panel Safety
2020-06 → 2021-11 ended
MZEA12 USA —
55400-12901-C9 note Pad Sub-assy, Instrument Panel Safety
2020-06 → 2021-11 ended
MZEA12 CND —
55400-12900-C4 note Pad Sub-assy, Instrument Panel Safety
2022-09 → —
MZEA12 —
55400-12901-21 note Pad Sub-assy, Instrument Panel Safety
2022-09 → —
MZEA12 —
55400-12901-C8 note Pad Sub-assy, Instrument Panel Safety
2022-09 → —
MZEA12 —
55400-12901-C9 note Pad Sub-assy, Instrument Panel Safety
2022-09 → —
MZEA12 —
55401F — Clip(FOR SAFETY PAD)
52161-16010 Clip(FOR SAFETY PAD)
2018-06 → 2022-09 ended
MZEA12 CVT —
52161-16010 Clip(FOR SAFETY PAD)
2018-06 → —
MZEA12 6F —
52161-16010 Clip(FOR SAFETY PAD)
2022-09 → —
MZEA12 —
55472C — Panel, Instrument Panel Speaker, NO.1
55472-12100-C0 note Panel, Instrument Panel Speaker, NO.1
2018-06 → 2022-09 ended
MZEA12 CVT —
55472-12100-C0 note Panel, Instrument Panel Speaker, NO.1
2018-06 → —
MZEA12 6F —
55472-12110-C0 note Panel, Instrument Panel Speaker, NO.1
2018-06 → 2020-06 ended
MZEA12 —
55472-12110-C0 note Panel, Instrument Panel Speaker, NO.1
2021-07 → —
MZEA12 6F CND —
55472-12110-C0 note Panel, Instrument Panel Speaker, NO.1
2021-07 → —
MZEA12 6F USA —
55472-12110-C0 note Panel, Instrument Panel Speaker, NO.1
2021-07 → —
MZEA12 6F USA —
55472-12110-C0 note Panel, Instrument Panel Speaker, NO.1
2021-07 → 2022-09 ended
MZEA12 CVT CND —
55472-12110-C0 note Panel, Instrument Panel Speaker, NO.1
2020-06 → 2022-09 ended
MZEA12 CVT USA —
55472-12110-C0 note Panel, Instrument Panel Speaker, NO.1
2020-06 → 2022-09 ended
MZEA12 CVT CND —
55472-12110-C0 note Panel, Instrument Panel Speaker, NO.1
2020-06 → 2021-07 ended
MZEA12 6F USA —
55472-12110-C0 note Panel, Instrument Panel Speaker, NO.1
2020-06 → 2021-07 ended
MZEA12 6F CND —
55472-12110-C0 note Panel, Instrument Panel Speaker, NO.1
2021-07 → 2022-09 ended
MZEA12 CVT USA —
55472-12100-C0 note Panel, Instrument Panel Speaker, NO.1
2022-09 → —
MZEA12 —
55472-12110-C0 note Panel, Instrument Panel Speaker, NO.1
2022-09 → —
MZEA12 —
55473B — Panel, Instrument Panel Speaker, NO.2
55473-12080-C0 note Panel, Instrument Panel Speaker, NO.2
2018-06 → 2022-09 ended
MZEA12 CVT —
55473-12080-C0 note Panel, Instrument Panel Speaker, NO.2
2018-06 → —
MZEA12 6F —
55473-12090-C0 note Panel, Instrument Panel Speaker, NO.2
2021-07 → 2022-09 ended
MZEA12 CVT USA —
55473-12090-C0 note Panel, Instrument Panel Speaker, NO.2
2021-07 → —
MZEA12 6F CND —
55473-12090-C0 note Panel, Instrument Panel Speaker, NO.2
2021-07 → —
MZEA12 6F USA —
55473-12090-C0 note Panel, Instrument Panel Speaker, NO.2
2021-07 → —
MZEA12 6F USA —
55473-12090-C0 note Panel, Instrument Panel Speaker, NO.2
2021-07 → 2022-09 ended
MZEA12 CVT CND —
55473-12090-C0 note Panel, Instrument Panel Speaker, NO.2
2020-06 → 2022-09 ended
MZEA12 CVT USA —
55473-12090-C0 note Panel, Instrument Panel Speaker, NO.2
2020-06 → 2022-09 ended
MZEA12 CVT CND —
55473-12090-C0 note Panel, Instrument Panel Speaker, NO.2
2020-06 → 2021-07 ended
MZEA12 6F USA —
55473-12090-C0 note Panel, Instrument Panel Speaker, NO.2
2020-06 → 2021-07 ended
MZEA12 6F CND —
55473-12090-C0 note Panel, Instrument Panel Speaker, NO.2
2018-06 → 2020-06 ended
MZEA12 —
55473-12080-C0 note Panel, Instrument Panel Speaker, NO.2
2022-09 → —
MZEA12 —
55473-12090-C0 note Panel, Instrument Panel Speaker, NO.2
2022-09 → —
MZEA12 —
55961 — Nozzle, Side Defroster, NO.1
55961-12250-C0 note Nozzle, Side Defroster, NO.1
2018-06 → 2020-06 ended
MZEA12 CND —
55961-12250-C0 note Nozzle, Side Defroster, NO.1
2021-11 → —
MZEA12 6F CND —
55961-12250-C0 note Nozzle, Side Defroster, NO.1
2018-06 → —
MZEA12 6F CND —
55961-12250-C0 note Nozzle, Side Defroster, NO.1
2018-06 → —
MZEA12 6F USA —
55961-12250-C0 note Nozzle, Side Defroster, NO.1
2021-11 → 2022-09 ended
MZEA12 CVT CND —
55961-12250-C0 note Nozzle, Side Defroster, NO.1
2018-06 → 2022-09 ended
MZEA12 CVT USA —
55961-12250-C0 note Nozzle, Side Defroster, NO.1
2020-06 → 2021-11 ended
MZEA12 CND —
55961-12250-C0 note Nozzle, Side Defroster, NO.1
2018-06 → 2020-06 ended
MZEA12 CND —
55961-12250-C0 note Nozzle, Side Defroster, NO.1
2018-06 → 2022-09 ended
MZEA12 CVT CND —
55961-12250-C0 note Nozzle, Side Defroster, NO.1
2022-09 → —
MZEA12 —
55962 — Nozzle, Side Defroster, NO.2
55962-12220-C0 note Nozzle, Side Defroster, NO.2
2018-06 → 2022-09 ended
MZEA12 CVT CND —
55962-12220-C0 note Nozzle, Side Defroster, NO.2
2021-11 → —
MZEA12 6F CND —
55962-12220-C0 note Nozzle, Side Defroster, NO.2
2018-06 → —
MZEA12 6F CND —
55962-12220-C0 note Nozzle, Side Defroster, NO.2
2018-06 → —
MZEA12 6F USA —
55962-12220-C0 note Nozzle, Side Defroster, NO.2
2021-11 → 2022-09 ended
MZEA12 CVT CND —
55962-12220-C0 note Nozzle, Side Defroster, NO.2
2018-06 → 2022-09 ended
MZEA12 CVT USA —
55962-12220-C0 note Nozzle, Side Defroster, NO.2
2020-06 → 2021-11 ended
MZEA12 CND —
55962-12220-C0 note Nozzle, Side Defroster, NO.2
2018-06 → 2020-06 ended
MZEA12 CND —
55962-12220-C0 note Nozzle, Side Defroster, NO.2
2018-06 → 2020-06 ended
MZEA12 CND —
55962-12220-C0 note Nozzle, Side Defroster, NO.2
2022-09 → —
MZEA12 —
73960A — Airbag Assy, Instrument Panel Passenger W/O Door
73960-12240 Airbag Assy, Instrument Panel Passenger W/O Door
2018-06 → 2022-09 ended
MZEA12 CVT —
73960-12240 Airbag Assy, Instrument Panel Passenger W/O Door
2018-06 → —
MZEA12 6F —
73960-12240 Airbag Assy, Instrument Panel Passenger W/O Door
2022-09 → —
MZEA12 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
