Toyota Corolla Hatchback
2018-06 → present · chassis MZEA12 · catalogue 165430 · United States
Supported model
Data version 2022-09

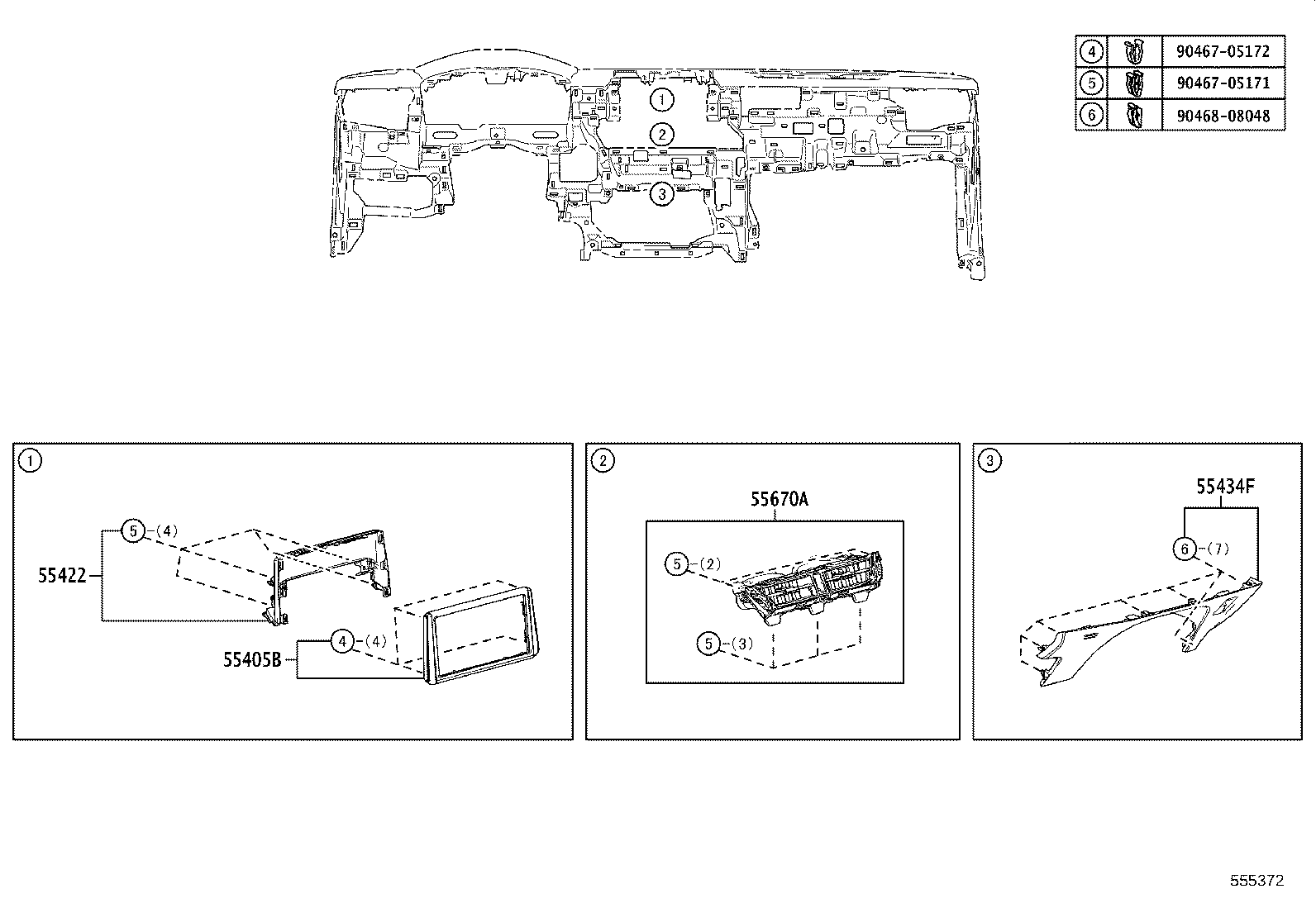

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55405B — Panel Sub-assy, Instrument Cluster Finish, Center | ||||
| 55405-12E90-B0 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 55405-12E90-B0 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2018-06 → —
|
MZEA12 6F | — | |
| 55405-12E90-B0 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2022-09 → —
|
MZEA12 | — | |
| 55422 — Ornament, Instrument Panel Meter, Upper | ||||
| 55422-12340 |
Ornament, Instrument Panel Meter, Upper
2018-06 → —
|
MZEA12 | — | |
| 55422-12340 |
Ornament, Instrument Panel Meter, Upper
2022-09 → —
|
MZEA12 | — | |
| 55434F — Panel, Instrument Panel Finish, Lower Center | ||||
| 55434-12310-C0 note |
Panel, Instrument Panel Finish, Lower Center
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 55434-12310-C0 note |
Panel, Instrument Panel Finish, Lower Center
2018-06 → —
|
MZEA12 6F | — | |
| 55434-12430-C0 note |
Panel, Instrument Panel Finish, Lower Center
2022-09 → —
|
MZEA12 | — | |
| 55670A — Register Assy, Instrument Panel, Center | ||||
| 55670-12720 |
Register Assy, Instrument Panel, Center
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 55670-12720 |
Register Assy, Instrument Panel, Center
2018-06 → —
|
MZEA12 6F | — | |
| 55670-12720 |
Register Assy, Instrument Panel, Center
2022-09 → —
|
MZEA12 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
