Toyota Corolla Hatchback

2018-06 → present · chassis MZEA12 · catalogue 165430 · United States

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

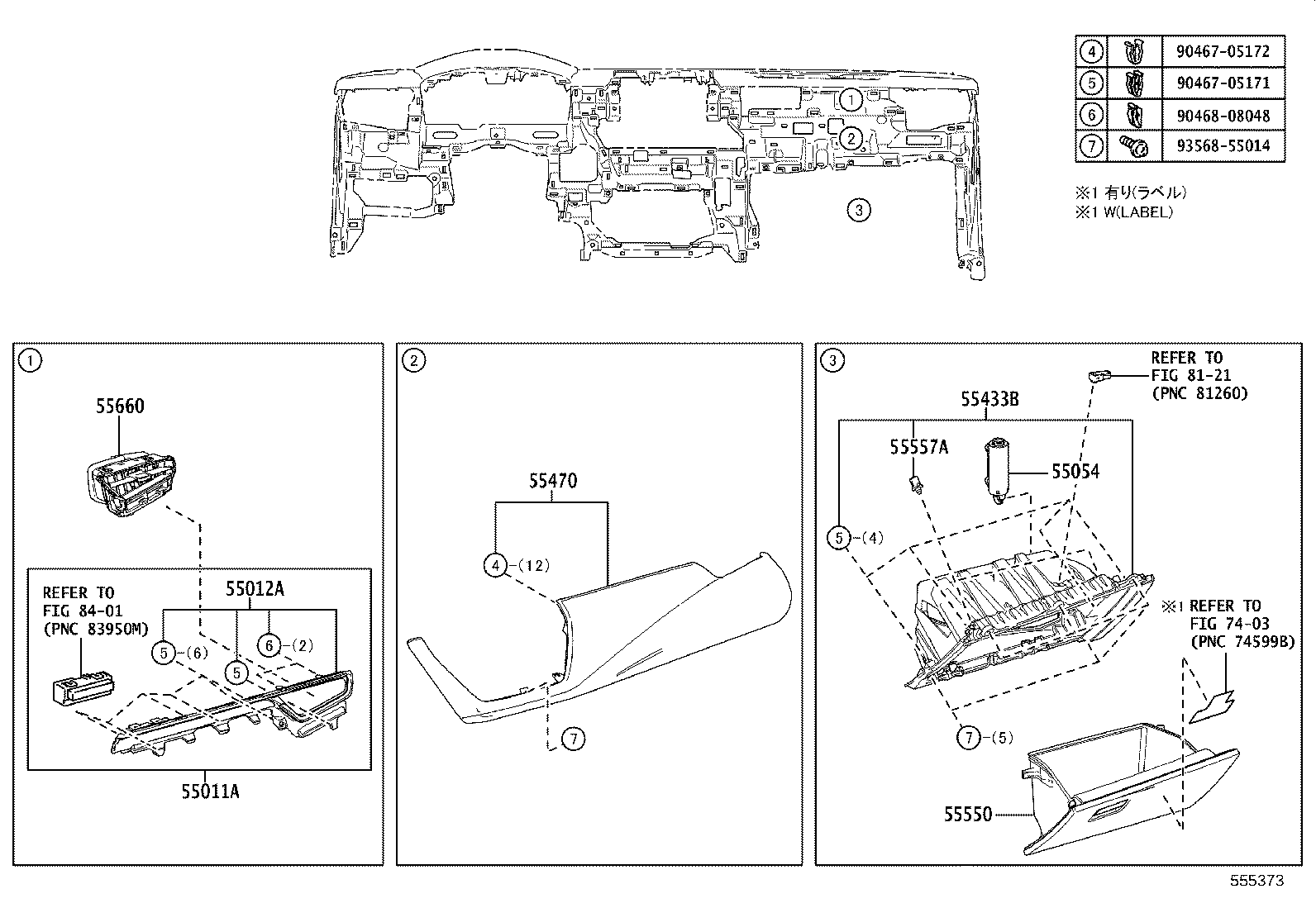

Exploded illustration 555373 9046705172 — not listed in this catalogue 9046705171 — not listed in this catalogue 9046808048 — not listed in this catalogue 9356855014 — not listed in this catalogue 55470 — GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL (16 parts) 8401 — not listed in this catalogue 55012A — GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2 (2 parts) 55660 — REGISTER ASSY, INSTRUMENT PANEL, NO.2 (3 parts) 55011A — GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1 (3 parts) 8121 — not listed in this catalogue 55550 — DOOR ASSY, GLOVE COMPARTMENT (3 parts) 55054 — STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR (3 parts) 55557A — CUSHION, GLOVE COMPARTMENT DOOR CHECK (3 parts) 55433B — PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 (3 parts) 7403 — not listed in this catalogue
555373 · 8 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
36 parts on this figure
Part number Description Fitment Price
55011A — Garnish Sub-assy, Instrument Panel, NO.1
55011-12160-B0 note Garnish Sub-assy, Instrument Panel, NO.1
2018-06 → —
MZEA12 6F —
55011-12160-B0 note Garnish Sub-assy, Instrument Panel, NO.1
2018-06 → 2022-09 ended
MZEA12 CVT —
55011-12140-B0 note Garnish Sub-assy, Instrument Panel, NO.1
2022-09 → —
MZEA12 —
55012A — Garnish Sub-assy, Instrument Panel, NO.2
55012-12080-B0 note Garnish Sub-assy, Instrument Panel, NO.2
2018-06 → 2022-09 ended
MZEA12 CVT —
55012-12080-B0 note Garnish Sub-assy, Instrument Panel, NO.2
2018-06 → —
MZEA12 6F —
55054 — Stopper Sub-assy, Glove Compartment Door
55054-47010 Stopper Sub-assy, Glove Compartment Door
2018-06 → 2022-09 ended
MZEA12 CVT —
55054-47010 Stopper Sub-assy, Glove Compartment Door
2018-06 → —
MZEA12 6F —
55054-47010 Stopper Sub-assy, Glove Compartment Door
2022-09 → —
MZEA12 —
55433B — Panel, Instrument Panel Finish, Lower NO.2
55433-12370-C0 note Panel, Instrument Panel Finish, Lower NO.2
2018-06 → 2022-09 ended
MZEA12 CVT —
55433-12370-C0 note Panel, Instrument Panel Finish, Lower NO.2
2018-06 → —
MZEA12 6F —
55433-12370-C0 note Panel, Instrument Panel Finish, Lower NO.2
2022-09 → —
MZEA12 —
55470 — Garnish Assy, Instrument Cluster Finish Panel
55470-12080-B0 note Garnish Assy, Instrument Cluster Finish Panel
2018-06 → 2020-04 ended
MZEA12 —
55470-12080-C2 note Garnish Assy, Instrument Cluster Finish Panel
2018-06 → 2020-04 ended
MZEA12 —
55470-12080-C3 note Garnish Assy, Instrument Cluster Finish Panel
2018-06 → 2020-04 ended
MZEA12 —
55470-12080-C4 note Garnish Assy, Instrument Cluster Finish Panel
2018-06 → 2020-04 ended
MZEA12 —
55470-12081-B0 note Garnish Assy, Instrument Cluster Finish Panel
2020-05 → 2022-09 ended
MZEA12 CVT —
55470-12081-B0 note Garnish Assy, Instrument Cluster Finish Panel
2020-05 → —
MZEA12 6F —
55470-12081-C2 note Garnish Assy, Instrument Cluster Finish Panel
2020-05 → 2022-09 ended
MZEA12 CVT —
55470-12081-C2 note Garnish Assy, Instrument Cluster Finish Panel
2020-05 → —
MZEA12 6F —
55470-12081-C3 note Garnish Assy, Instrument Cluster Finish Panel
2020-05 → 2022-09 ended
MZEA12 CVT —
55470-12081-C3 note Garnish Assy, Instrument Cluster Finish Panel
2020-05 → —
MZEA12 6F —
55470-12081-C4 note Garnish Assy, Instrument Cluster Finish Panel
2020-05 → 2022-09 ended
MZEA12 CVT —
55470-12081-C4 note Garnish Assy, Instrument Cluster Finish Panel
2020-05 → —
MZEA12 6F —
55470-12081-B0 note Garnish Assy, Instrument Cluster Finish Panel
2022-09 → —
MZEA12 —
55470-12081-C2 note Garnish Assy, Instrument Cluster Finish Panel
2022-09 → 2025-08 ended
MZEA12 —
55470-12081-C4 note Garnish Assy, Instrument Cluster Finish Panel
2022-09 → 2025-08 ended
MZEA12 —
55470-12081-C6 note Garnish Assy, Instrument Cluster Finish Panel
2022-09 → —
MZEA12 —
55550 — Door Assy, Glove Compartment
55550-12570-C0 note Door Assy, Glove Compartment
2018-06 → 2022-09 ended
MZEA12 CVT —
55550-12570-C0 note Door Assy, Glove Compartment
2018-06 → —
MZEA12 6F —
55550-12570-C0 note Door Assy, Glove Compartment
2022-09 → —
MZEA12 —
55557A — Cushion, Glove Compartment Door Check
55557-52030 Cushion, Glove Compartment Door Check
2018-06 → 2022-09 ended
MZEA12 CVT —
55557-52030 Cushion, Glove Compartment Door Check
2018-06 → —
MZEA12 6F —
55557-52030 Cushion, Glove Compartment Door Check
2022-09 → —
MZEA12 —
55660 — Register Assy, Instrument Panel, NO.2
55660-12530 Register Assy, Instrument Panel, NO.2
2018-06 → 2022-09 ended
MZEA12 CVT —
55660-12530 Register Assy, Instrument Panel, NO.2
2018-06 → —
MZEA12 6F —
55660-12530 Register Assy, Instrument Panel, NO.2
2022-09 → —
MZEA12 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
