Toyota Corolla Hatchback

2018-06 → present · chassis MZEA12 · catalogue 165430 · United States

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

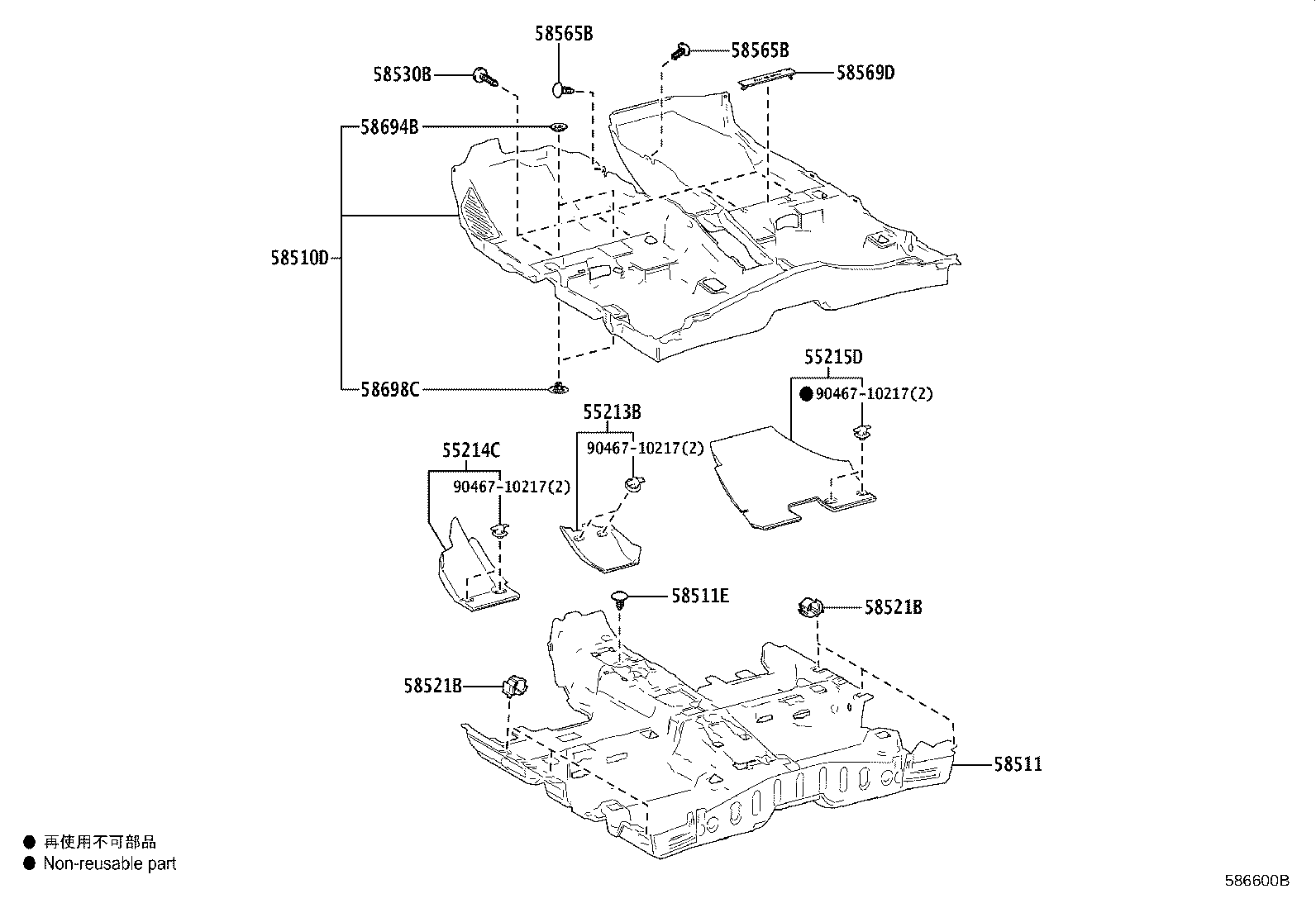

Exploded illustration 586600B 58511 — MAT, FLOOR, FRONT (3 parts) 58511E — CLIP(FOR FRONT FLOOR MAT) (3 parts) 58521B — HOOK, FLOOR CARPET (3 parts) 58521B — HOOK, FLOOR CARPET (3 parts) 58530B — CLIP(FOR FRONT FLOOR CARPET) (3 parts) 58565B — CLIP (2 parts) 58565B — CLIP (2 parts) 55213B — PAD, DASH PANEL INSULATOR, NO.1 (2 parts) 9046710217 — not listed in this catalogue 58569D — COVER, FRONT FLOOR CAUTION PLATE (2 parts) 55215D — PAD, DASH PANEL INSULATOR, NO.3 (3 parts) 9046710217 — not listed in this catalogue 55214C — PAD, DASH PANEL INSULATOR, NO.2 (3 parts) 9046710217 — not listed in this catalogue 58510D — CARPET ASSY, FLOOR, FRONT (2 parts) 58694B — PLATE, MAT SET, UPPER (2 parts) 58698C — PLATE, MAT SET, LOWER (2 parts)
586600B · 14 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
30 parts on this figure
Part number Description Fitment Price
55213B — Pad, Dash Panel Insulator, NO.1
55213-47100 Pad, Dash Panel Insulator, NO.1
2018-06 → 2022-08 ended
MZEA12 —
55213-47100 Pad, Dash Panel Insulator, NO.1
2022-09 → —
MZEA12 —
55214C — Pad, Dash Panel Insulator, NO.2
55214-47060 Pad, Dash Panel Insulator, NO.2
2018-06 → 2022-09 ended
MZEA12 CVT —
55214-47060 Pad, Dash Panel Insulator, NO.2
2018-06 → —
MZEA12 6F —
55214-47060 Pad, Dash Panel Insulator, NO.2
2022-09 → —
MZEA12 —
55215D — Pad, Dash Panel Insulator, NO.3
55215-47060 Pad, Dash Panel Insulator, NO.3
2018-06 → 2022-09 ended
MZEA12 CVT —
55215-47060 Pad, Dash Panel Insulator, NO.3
2018-06 → —
MZEA12 6F —
55215-47060 Pad, Dash Panel Insulator, NO.3
2022-09 → —
MZEA12 —
58510D — Carpet Assy, Floor, Front
58510-12Q80-C1 note Carpet Assy, Floor, Front
2018-06 → 2022-08 ended
MZEA12 —
58510-12Q81-C1 note Carpet Assy, Floor, Front
2022-09 → —
MZEA12 —
58511 — Mat, Floor, Front
58511-12770 Mat, Floor, Front
2018-06 → 2022-09 ended
MZEA12 CVT —
58511-12770 Mat, Floor, Front
2018-06 → —
MZEA12 6F —
58511-12770 Mat, Floor, Front
2022-09 → —
MZEA12 —
58511E — Clip(FOR FRONT FLOOR MAT)
90467-07042-C4 note Clip(FOR FRONT FLOOR MAT)
2018-06 → 2022-09 ended
MZEA12 CVT —
90467-07042-C4 note Clip(FOR FRONT FLOOR MAT)
2018-06 → —
MZEA12 6F —
90467-07042-C4 note Clip(FOR FRONT FLOOR MAT)
2022-09 → —
MZEA12 —
58521B — Hook, Floor Carpet
58521-33060 Hook, Floor Carpet
2018-06 → 2022-09 ended
MZEA12 CVT —
58521-33060 Hook, Floor Carpet
2018-06 → —
MZEA12 6F —
58521-33060 Hook, Floor Carpet
2022-09 → —
MZEA12 —
58530B — Clip(FOR FRONT FLOOR CARPET)
90467-07049-23 note Clip(FOR FRONT FLOOR CARPET)
2018-06 → 2020-06 ended
MZEA12 —
90467-07161-C1 note Clip(FOR FRONT FLOOR CARPET)
2020-06 → 2022-09 ended
MZEA12 —
90467-07161-C1 note Clip(FOR FRONT FLOOR CARPET)
2022-09 → —
MZEA12 —
58565B — Clip
90467-05164-C7 note Clip
2018-06 → —
MZEA12 —
90467-05164-C7 note Clip
2022-09 → —
MZEA12 —
58569D — Cover, Front Floor Caution Plate
58569-47020-C1 note Cover, Front Floor Caution Plate
2018-06 → —
MZEA12 —
58569-47020-C1 note Cover, Front Floor Caution Plate
2022-09 → —
MZEA12 —
58694B — Plate, Mat Set, Upper
58694-78010 Plate, Mat Set, Upper
2018-06 → —
MZEA12 —
58694-78010 Plate, Mat Set, Upper
2022-09 → —
MZEA12 —
58698C — Plate, Mat Set, Lower
58698-78010 Plate, Mat Set, Lower
2018-06 → —
MZEA12 —
58698-78010 Plate, Mat Set, Lower
2022-09 → —
MZEA12 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
