Toyota Corolla Hatchback

2018-06 → present · chassis MZEA12 · catalogue 165430 · United States

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

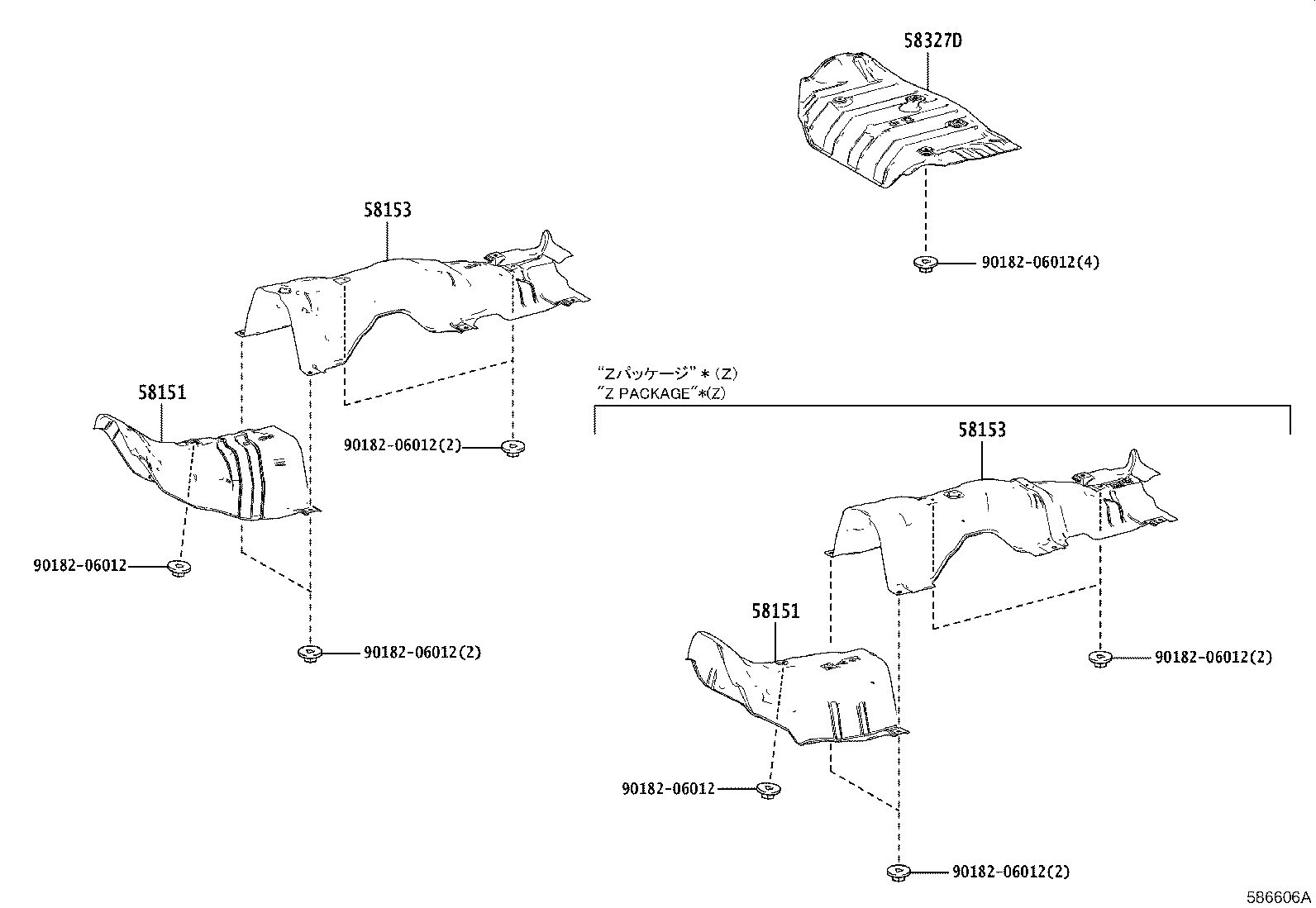

Exploded illustration 586606A 58151 — INSULATOR, FRONT FLOOR HEAT, NO.1 (14 parts) 58153 — INSULATOR, FRONT FLOOR HEAT, NO.2 (15 parts) 58153 — INSULATOR, FRONT FLOOR HEAT, NO.2 (15 parts) 58151 — INSULATOR, FRONT FLOOR HEAT, NO.1 (14 parts) 58327D — INSULATOR, MAIN MUFFLER HEAT, UPPER (3 parts) 9018206012 — not listed in this catalogue 9018206012 — not listed in this catalogue 9018206012 — not listed in this catalogue 9018206012 — not listed in this catalogue 9018206012 — not listed in this catalogue 9018206012 — not listed in this catalogue 9018206012 — not listed in this catalogue
586606A · 5 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
32 parts on this figure
Part number Description Fitment Price
58151 — Insulator, Front Floor Heat, NO.1
58151-12390 Insulator, Front Floor Heat, NO.1
2018-06 → 2022-09 ended
MZEA12 CVT —
58151-12390 Insulator, Front Floor Heat, NO.1
2018-06 → —
MZEA12 6F —
58151-12410 note Insulator, Front Floor Heat, NO.1
2019-09 → 2020-06 ended
MZEA12 —
58151-12410 note Insulator, Front Floor Heat, NO.1
2018-06 → 2022-09 ended
MZEA12 CVT —
58151-12410 note Insulator, Front Floor Heat, NO.1
2020-06 → 2022-09 ended
MZEA12 CVT —
58151-12410 note Insulator, Front Floor Heat, NO.1
2020-06 → 2022-09 ended
MZEA12 CVT —
58151-12410 note Insulator, Front Floor Heat, NO.1
2018-06 → —
MZEA12 6F —
58151-12410 note Insulator, Front Floor Heat, NO.1
2020-06 → —
MZEA12 6F —
58151-12410 note Insulator, Front Floor Heat, NO.1
2020-06 → —
MZEA12 6F —
58151-12410 note Insulator, Front Floor Heat, NO.1
2019-09 → 2020-06 ended
MZEA12 —
58151-12390 Insulator, Front Floor Heat, NO.1
2022-09 → —
MZEA12 —
58151-12410 note Insulator, Front Floor Heat, NO.1
2022-09 → —
MZEA12 —
58151-12410 note Insulator, Front Floor Heat, NO.1
2022-09 → —
MZEA12 —
58151-12410 note Insulator, Front Floor Heat, NO.1
2022-09 → —
MZEA12 —
58153 — Insulator, Front Floor Heat, NO.2
58153-12230 Insulator, Front Floor Heat, NO.2
2018-06 → 2021-05 ended
MZEA12 —
58153-12231 Insulator, Front Floor Heat, NO.2
2021-06 → —
MZEA12 6F —
58153-12231 Insulator, Front Floor Heat, NO.2
2021-06 → 2022-09 ended
MZEA12 CVT —
58153-12250 note Insulator, Front Floor Heat, NO.2
2019-09 → 2020-06 ended
MZEA12 —
58153-12250 note Insulator, Front Floor Heat, NO.2
2020-06 → —
MZEA12 6F —
58153-12250 note Insulator, Front Floor Heat, NO.2
2020-06 → —
MZEA12 6F —
58153-12250 note Insulator, Front Floor Heat, NO.2
2018-06 → —
MZEA12 6F —
58153-12250 note Insulator, Front Floor Heat, NO.2
2020-06 → 2022-09 ended
MZEA12 CVT —
58153-12250 note Insulator, Front Floor Heat, NO.2
2020-06 → 2022-09 ended
MZEA12 CVT —
58153-12250 note Insulator, Front Floor Heat, NO.2
2018-06 → 2022-09 ended
MZEA12 CVT —
58153-12250 note Insulator, Front Floor Heat, NO.2
2019-09 → 2020-06 ended
MZEA12 —
58153-12231 Insulator, Front Floor Heat, NO.2
2022-09 → —
MZEA12 —
58153-12250 note Insulator, Front Floor Heat, NO.2
2022-09 → —
MZEA12 —
58153-12250 note Insulator, Front Floor Heat, NO.2
2022-09 → —
MZEA12 —
58153-12250 note Insulator, Front Floor Heat, NO.2
2022-09 → —
MZEA12 —
58327D — Insulator, Main Muffler Heat, Upper
58327-12250 Insulator, Main Muffler Heat, Upper
2018-06 → 2022-09 ended
MZEA12 CVT —
58327-12250 Insulator, Main Muffler Heat, Upper
2018-06 → —
MZEA12 6F —
58327-12250 Insulator, Main Muffler Heat, Upper
2022-09 → —
MZEA12 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
