Toyota Corolla Hatchback

2018-06 → present · chassis MZEA12 · catalogue 165430 · United States

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

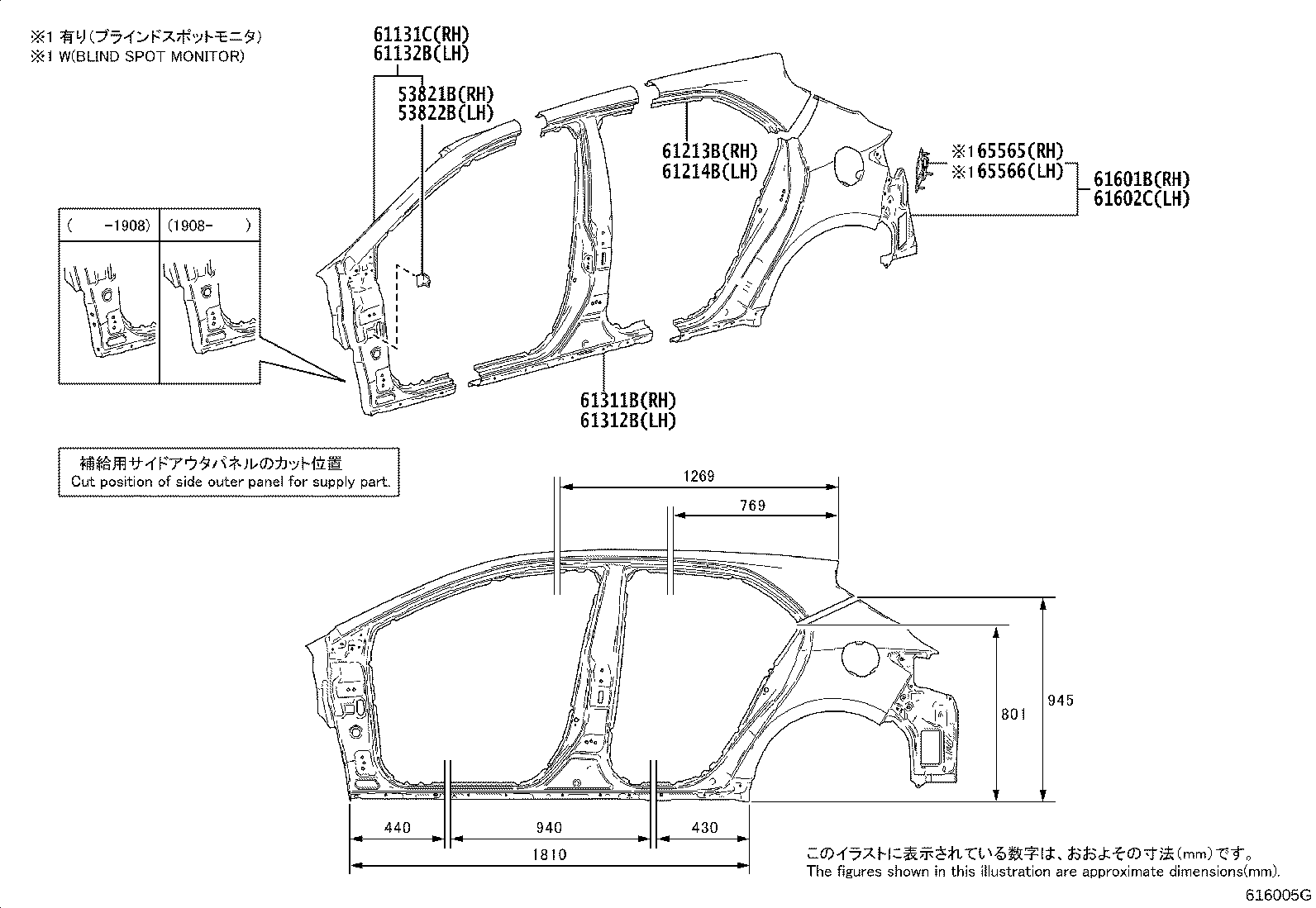

Exploded illustration 616005G 61131C — PILLAR, FRONT BODY, OUTER RH (4 parts) 61132B — PILLAR, FRONT BODY, OUTER LH (4 parts) 61213B — RAIL, ROOF SIDE, OUTER NO.2 RH (3 parts) 61214B — RAIL, ROOF SIDE, OUTER NO.2 LH (3 parts) 61311B — PILLAR, CENTER BODY, OUTER RH (3 parts) 61312B — PILLAR, CENTER BODY, OUTER LH (3 parts) 61601B — PANEL SUB-ASSY, QUARTER, RH (9 parts) 61602C — PANEL SUB-ASSY, QUARTER, LH (9 parts) 65565 — PATCH, SIDE PANEL REAR END, RH (4 parts) 65566 — PATCH, SIDE PANEL REAR END, LH (4 parts) 53821B — BRACKET, FRONT FENDER, REAR RH (3 parts) 53822B — BRACKET, FRONT FENDER, REAR LH (3 parts)
616005G · 12 callouts Full size ↗
52 parts on this figure
Part number Description Fitment Price
53821B — Bracket, Front Fender, Rear RH
53879-68020 Bracket, Front Fender, Rear RH
2018-06 → —
MZEA12 6F —
53879-68020 Bracket, Front Fender, Rear RH
2018-06 → 2022-09 ended
MZEA12 CVT —
53879-68020 Bracket, Front Fender, Rear RH
2022-09 → —
MZEA12 —
53822B — Bracket, Front Fender, Rear LH
53879-68020 Bracket, Front Fender, Rear LH
2018-06 → 2022-09 ended
MZEA12 CVT —
53879-68020 Bracket, Front Fender, Rear LH
2018-06 → —
MZEA12 6F —
53879-68020 Bracket, Front Fender, Rear LH
2022-09 → —
MZEA12 —
61131C — Pillar, Front Body, Outer RH
61131-12820 Pillar, Front Body, Outer RH
2018-06 → 2019-08 ended
MZEA12 —
61131-12870 Pillar, Front Body, Outer RH
2019-08 → 2022-09 ended
MZEA12 CVT —
61131-12870 Pillar, Front Body, Outer RH
2019-08 → —
MZEA12 6F —
61131-12870 Pillar, Front Body, Outer RH
2022-09 → —
MZEA12 —
61132B — Pillar, Front Body, Outer LH
61132-12800 Pillar, Front Body, Outer LH
2018-06 → 2019-08 ended
MZEA12 —
61132-12850 Pillar, Front Body, Outer LH
2019-08 → 2022-09 ended
MZEA12 CVT —
61132-12850 Pillar, Front Body, Outer LH
2019-08 → —
MZEA12 6F —
61132-12850 Pillar, Front Body, Outer LH
2022-09 → —
MZEA12 —
61213B — Rail, Roof Side, Outer NO.2 RH
61213-12110 Rail, Roof Side, Outer NO.2 RH
2018-06 → 2022-09 ended
MZEA12 CVT —
61213-12110 Rail, Roof Side, Outer NO.2 RH
2018-06 → —
MZEA12 6F —
61213-12110 Rail, Roof Side, Outer NO.2 RH
2022-09 → —
MZEA12 —
61214B — Rail, Roof Side, Outer NO.2 LH
61214-12110 Rail, Roof Side, Outer NO.2 LH
2018-06 → 2022-09 ended
MZEA12 CVT —
61214-12110 Rail, Roof Side, Outer NO.2 LH
2018-06 → —
MZEA12 6F —
61214-12110 Rail, Roof Side, Outer NO.2 LH
2022-09 → —
MZEA12 —
61311B — Pillar, Center Body, Outer RH
61311-12530 Pillar, Center Body, Outer RH
2018-06 → 2022-09 ended
MZEA12 CVT —
61311-12530 Pillar, Center Body, Outer RH
2018-06 → —
MZEA12 6F —
61311-12530 Pillar, Center Body, Outer RH
2022-09 → —
MZEA12 —
61312B — Pillar, Center Body, Outer LH
61312-12570 Pillar, Center Body, Outer LH
2018-06 → 2022-09 ended
MZEA12 CVT —
61312-12570 Pillar, Center Body, Outer LH
2018-06 → —
MZEA12 6F —
61312-12570 Pillar, Center Body, Outer LH
2022-09 → —
MZEA12 —
61601B — Panel Sub-assy, Quarter, RH
61601-12B90 note Panel Sub-assy, Quarter, RH
2018-06 → 2019-08 ended
MZEA12 —
61601-12C00 Panel Sub-assy, Quarter, RH
2018-06 → 2019-08 ended
MZEA12 —
61601-12C10 note Panel Sub-assy, Quarter, RH
2019-09 → 2020-06 ended
MZEA12 —
61601-12C10 note Panel Sub-assy, Quarter, RH
2020-06 → 2022-09 ended
MZEA12 CVT —
61601-12C10 note Panel Sub-assy, Quarter, RH
2020-06 → —
MZEA12 6F —
61601-12C20 Panel Sub-assy, Quarter, RH
2019-09 → 2022-09 ended
MZEA12 CVT —
61601-12C20 Panel Sub-assy, Quarter, RH
2019-09 → —
MZEA12 6F —
61601-12C10 note Panel Sub-assy, Quarter, RH
2022-09 → —
MZEA12 —
61601-12C20 Panel Sub-assy, Quarter, RH
2022-09 → —
MZEA12 —
61602C — Panel Sub-assy, Quarter, LH
61602-12B90 note Panel Sub-assy, Quarter, LH
2018-06 → 2019-08 ended
MZEA12 —
61602-12C00 Panel Sub-assy, Quarter, LH
2018-06 → 2019-08 ended
MZEA12 —
61602-12C10 note Panel Sub-assy, Quarter, LH
2020-06 → 2022-09 ended
MZEA12 CVT —
61602-12C10 note Panel Sub-assy, Quarter, LH
2020-06 → —
MZEA12 6F —
61602-12C10 note Panel Sub-assy, Quarter, LH
2019-09 → 2020-06 ended
MZEA12 —
61602-12C20 Panel Sub-assy, Quarter, LH
2019-09 → 2022-09 ended
MZEA12 CVT —
61602-12C20 Panel Sub-assy, Quarter, LH
2019-09 → —
MZEA12 6F —
61602-12C10 note Panel Sub-assy, Quarter, LH
2022-09 → —
MZEA12 —
61602-12C20 Panel Sub-assy, Quarter, LH
2022-09 → —
MZEA12 —
65565 — Patch, Side Panel Rear End, RH
65565-50010 note Patch, Side Panel Rear End, RH
2018-06 → 2020-06 ended
MZEA12 —
65565-50010 note Patch, Side Panel Rear End, RH
2020-06 → 2022-09 ended
MZEA12 CVT —
65565-50010 note Patch, Side Panel Rear End, RH
2020-06 → —
MZEA12 6F —
65565-50010 note Patch, Side Panel Rear End, RH
2022-09 → —
MZEA12 —
65566 — Patch, Side Panel Rear End, LH
65565-50010 note Patch, Side Panel Rear End, LH
2018-06 → 2020-06 ended
MZEA12 —
65565-50010 note Patch, Side Panel Rear End, LH
2020-06 → 2022-09 ended
MZEA12 CVT —
65565-50010 note Patch, Side Panel Rear End, LH
2020-06 → —
MZEA12 6F —
65565-50010 note Patch, Side Panel Rear End, LH
2022-09 → —
MZEA12 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
