Toyota Corolla Hatchback
2018-06 → present · chassis MZEA12 · catalogue 165430 · United States
Supported model
Data version 2022-09

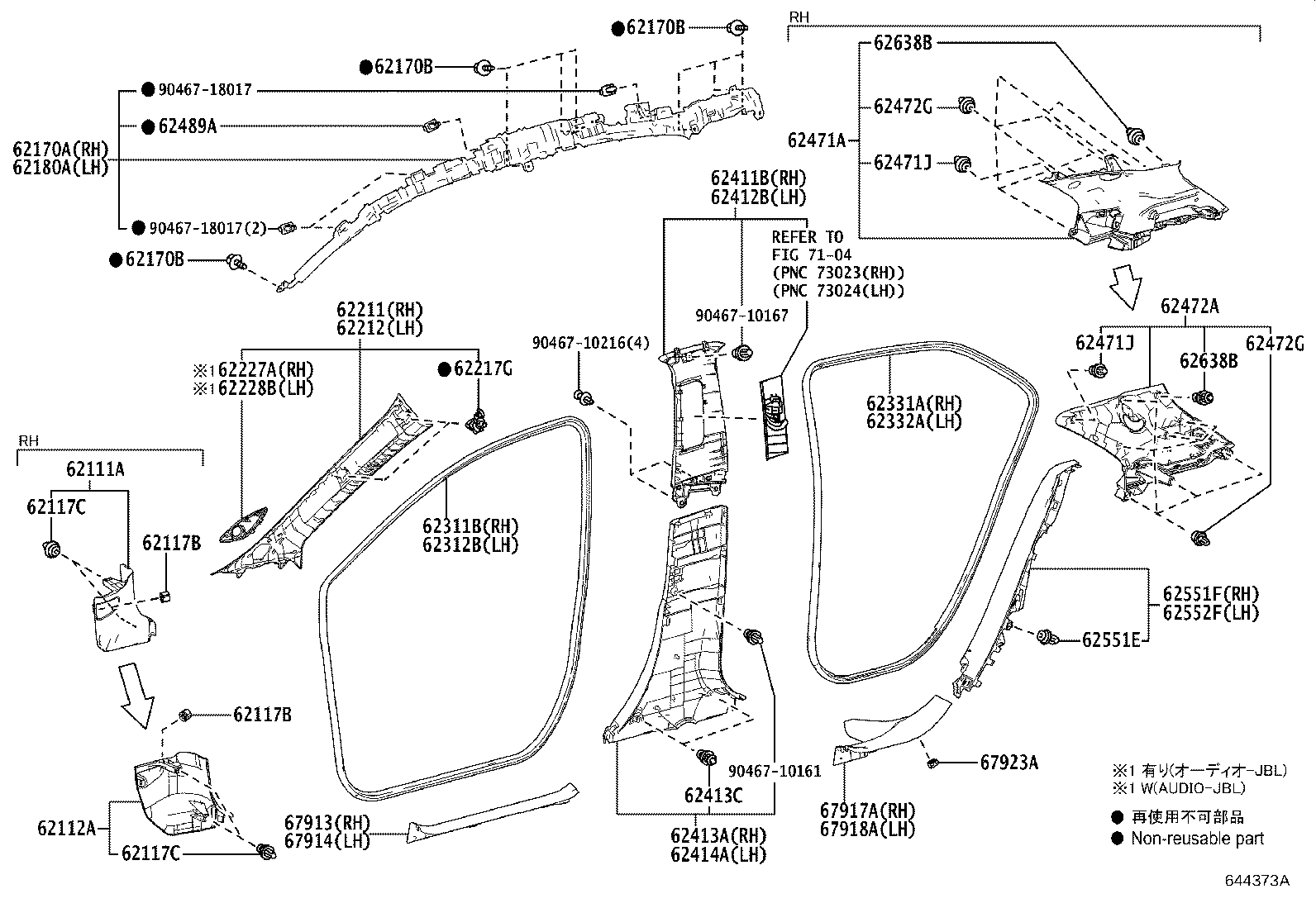

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 62111A — Trim Sub-assy, Cowl Side, RH | ||||
| 62111-12390-C0 note |
Trim Sub-assy, Cowl Side, RH
2018-06 → —
|
MZEA12 6F | — | |
| 62111-12390-C0 note |
Trim Sub-assy, Cowl Side, RH
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 62111-12390-C0 note |
Trim Sub-assy, Cowl Side, RH
2022-09 → —
|
MZEA12 | — | |
| 62112A — Trim Sub-assy, Cowl Side, LH | ||||
| 62112-12430-C0 note |
Trim Sub-assy, Cowl Side, LH
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 62112-12430-C0 note |
Trim Sub-assy, Cowl Side, LH
2018-06 → —
|
MZEA12 6F | — | |
| 62112-12430-C0 note |
Trim Sub-assy, Cowl Side, LH
2022-09 → —
|
MZEA12 | — | |
| 62117B — Clip, NO.1(FOR COWL SIDE TRIM) | ||||
| 90467-06147 |
Clip, NO.1(FOR COWL SIDE TRIM)
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 90467-06147 |
Clip, NO.1(FOR COWL SIDE TRIM)
2018-06 → —
|
MZEA12 6F | — | |
| 90467-06147 |
Clip, NO.1(FOR COWL SIDE TRIM)
2022-09 → —
|
MZEA12 | — | |
| 62117C — Clip, NO.2(FOR COWL SIDE TRIM) | ||||
| 90467-10167 |
Clip, NO.2(FOR COWL SIDE TRIM)
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 90467-10167 |
Clip, NO.2(FOR COWL SIDE TRIM)
2018-06 → —
|
MZEA12 6F | — | |
| 90467-10167 |
Clip, NO.2(FOR COWL SIDE TRIM)
2022-09 → —
|
MZEA12 | — | |
| 62170A — Airbag Assy, Curtain Shield, RH | ||||
| 62170-12140 |
Airbag Assy, Curtain Shield, RH
2018-06 → 2020-06
ended
|
MZEA12 | — | |
| 62170-12320 |
Airbag Assy, Curtain Shield, RH
2020-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 62170-12320 |
Airbag Assy, Curtain Shield, RH
2020-06 → —
|
MZEA12 6F | — | |
| 62170-12320 |
Airbag Assy, Curtain Shield, RH
2022-09 → —
|
MZEA12 | — | |
| 62170B — Bolt, W/Washer | ||||
| 91673-80616 |
Bolt, W/Washer
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 91673-80616 |
Bolt, W/Washer
2018-06 → —
|
MZEA12 6F | — | |
| 91673-80616 |
Bolt, W/Washer
2022-09 → —
|
MZEA12 | — | |
| 62180A — Airbag Assy, Curtain Shield, LH | ||||
| 62180-12140 |
Airbag Assy, Curtain Shield, LH
2018-06 → 2020-06
ended
|
MZEA12 | — | |
| 62180-12320 |
Airbag Assy, Curtain Shield, LH
2020-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 62180-12320 |
Airbag Assy, Curtain Shield, LH
2020-06 → —
|
MZEA12 6F | — | |
| 62180-12320 |
Airbag Assy, Curtain Shield, LH
2022-09 → —
|
MZEA12 | — | |
| 62211 — Garnish, Front Pillar, RH | ||||
| 62210-12120-C1 note |
Garnish, Front Pillar, RH
2018-06 → 2020-06
ended
|
MZEA12 | — | |
| 62210-12130-C1 note |
Garnish, Front Pillar, RH
2018-06 → 2020-06
ended
|
MZEA12 | — | |
| 62210-12170-C0 note |
Garnish, Front Pillar, RH
2020-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 62210-12170-C0 note |
Garnish, Front Pillar, RH
2020-06 → —
|
MZEA12 6F | — | |
| 62210-12180-C0 note |
Garnish, Front Pillar, RH
2020-06 → 2021-07
ended
|
MZEA12 6F CND | — | |
| 62210-12180-C0 note |
Garnish, Front Pillar, RH
2020-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 62210-12180-C0 note |
Garnish, Front Pillar, RH
2021-07 → 2022-09
ended
|
MZEA12 CVT | — | |
| 62210-12180-C0 note |
Garnish, Front Pillar, RH
2020-06 → —
|
MZEA12 6F USA | — | |
| 62210-12180-C0 note |
Garnish, Front Pillar, RH
2021-07 → —
|
MZEA12 6F | — | |
| 62210-12170-C0 note |
Garnish, Front Pillar, RH
2022-09 → —
|
MZEA12 | — | |
| 62210-12180-C0 note |
Garnish, Front Pillar, RH
2022-09 → —
|
MZEA12 | — | |
| 62212 — Garnish, Front Pillar, LH | ||||
| 62220-12120-C1 note |
Garnish, Front Pillar, LH
2018-06 → 2020-06
ended
|
MZEA12 | — | |
| 62220-12130-C1 note |
Garnish, Front Pillar, LH
2018-06 → 2020-06
ended
|
MZEA12 | — | |
| 62220-12170-C0 note |
Garnish, Front Pillar, LH
2020-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 62220-12170-C0 note |
Garnish, Front Pillar, LH
2020-06 → —
|
MZEA12 6F | — | |
| 62220-12180-C0 note |
Garnish, Front Pillar, LH
2020-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 62220-12180-C0 note |
Garnish, Front Pillar, LH
2021-07 → 2022-09
ended
|
MZEA12 CVT | — | |
| 62220-12180-C0 note |
Garnish, Front Pillar, LH
2020-06 → —
|
MZEA12 6F USA | — | |
| 62220-12180-C0 note |
Garnish, Front Pillar, LH
2021-07 → —
|
MZEA12 6F | — | |
| 62220-12180-C0 note |
Garnish, Front Pillar, LH
2020-06 → 2021-07
ended
|
MZEA12 6F CND | — | |
| 62220-12170-C0 note |
Garnish, Front Pillar, LH
2022-09 → —
|
MZEA12 | — | |
| 62220-12180-C0 note |
Garnish, Front Pillar, LH
2022-09 → —
|
MZEA12 | — | |
| 62217G — Clip, Front Pillar Garnish | ||||
| 62217-11010 |
Clip, Front Pillar Garnish
2018-06 → 2018-08
ended
|
MZEA12 | — | |
| 62217-42050 |
Clip, Front Pillar Garnish
2018-09 → 2022-09
ended
|
MZEA12 CVT | — | |
| 62217-42050 |
Clip, Front Pillar Garnish
2018-09 → —
|
MZEA12 6F | — | |
| 62217-42050 |
Clip, Front Pillar Garnish
2022-09 → —
|
MZEA12 | — | |
| 62227A — Grille, Speaker Front Pillar Garnish, RH | ||||
| 62227-12010 note |
Grille, Speaker Front Pillar Garnish, RH
2018-06 → —
|
MZEA12 6F USA | — | |
| 62227-12010 note |
Grille, Speaker Front Pillar Garnish, RH
2021-07 → —
|
MZEA12 6F | — | |
| 62227-12010 note |
Grille, Speaker Front Pillar Garnish, RH
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 62227-12010 note |
Grille, Speaker Front Pillar Garnish, RH
2018-06 → 2021-07
ended
|
MZEA12 6F CND | — | |
| 62227-12010 note |
Grille, Speaker Front Pillar Garnish, RH
2021-07 → 2022-09
ended
|
MZEA12 CVT | — | |
| 62227-12010 note |
Grille, Speaker Front Pillar Garnish, RH
2022-09 → —
|
MZEA12 | — | |
| 62228B — Grille, Speaker Front Pillar Garnish, LH | ||||
| 62228-12010 note |
Grille, Speaker Front Pillar Garnish, LH
2021-07 → —
|
MZEA12 6F | — | |
| 62228-12010 note |
Grille, Speaker Front Pillar Garnish, LH
2018-06 → —
|
MZEA12 6F USA | — | |
| 62228-12010 note |
Grille, Speaker Front Pillar Garnish, LH
2021-07 → 2022-09
ended
|
MZEA12 CVT | — | |
| 62228-12010 note |
Grille, Speaker Front Pillar Garnish, LH
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 62228-12010 note |
Grille, Speaker Front Pillar Garnish, LH
2018-06 → 2021-07
ended
|
MZEA12 6F CND | — | |
| 62228-12010 note |
Grille, Speaker Front Pillar Garnish, LH
2022-09 → —
|
MZEA12 | — | |
| 62311B — Weatherstrip, Front Door Opening Trim, RH | ||||
| 62311-12290 |
Weatherstrip, Front Door Opening Trim, RH
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 62311-12290 |
Weatherstrip, Front Door Opening Trim, RH
2018-06 → —
|
MZEA12 6F | — | |
| 62311-12290 |
Weatherstrip, Front Door Opening Trim, RH
2022-09 → —
|
MZEA12 | — | |
| 62312B — Weatherstrip, Front Door Opening Trim, LH | ||||
| 62312-12300 |
Weatherstrip, Front Door Opening Trim, LH
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 62312-12300 |
Weatherstrip, Front Door Opening Trim, LH
2018-06 → —
|
MZEA12 6F | — | |
| 62312-12300 |
Weatherstrip, Front Door Opening Trim, LH
2022-09 → —
|
MZEA12 | — | |
| 62331A — Weatherstrip, Rear Door Opening Trim, RH | ||||
| 62331-12300 |
Weatherstrip, Rear Door Opening Trim, RH
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 62331-12300 |
Weatherstrip, Rear Door Opening Trim, RH
2018-06 → —
|
MZEA12 6F | — | |
| 62331-12300 |
Weatherstrip, Rear Door Opening Trim, RH
2022-09 → —
|
MZEA12 | — | |
| 62332A — Weatherstrip, Rear Door Opening Trim, LH | ||||
| 62332-12300 |
Weatherstrip, Rear Door Opening Trim, LH
2018-06 → —
|
MZEA12 6F | — | |
| 62332-12300 |
Weatherstrip, Rear Door Opening Trim, LH
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 62332-12300 |
Weatherstrip, Rear Door Opening Trim, LH
2022-09 → —
|
MZEA12 | — | |
| 62411B — Garnish, Center Pillar, Upper RH | ||||
| 62410-12120-C0 note |
Garnish, Center Pillar, Upper RH
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 62410-12120-C0 note |
Garnish, Center Pillar, Upper RH
2018-06 → —
|
MZEA12 6F | — | |
| 62410-12120-C0 note |
Garnish, Center Pillar, Upper RH
2022-09 → —
|
MZEA12 | — | |
| 62412B — Garnish, Center Pillar, Upper LH | ||||
| 62420-12120-C0 note |
Garnish, Center Pillar, Upper LH
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 62420-12120-C0 note |
Garnish, Center Pillar, Upper LH
2018-06 → —
|
MZEA12 6F | — | |
| 62420-12120-C0 note |
Garnish, Center Pillar, Upper LH
2022-09 → —
|
MZEA12 | — | |
| 62413A — Garnish, Center Pillar, Lower RH | ||||
| 62413-12360-C0 note |
Garnish, Center Pillar, Lower RH
2018-06 → 2020-06
ended
|
MZEA12 | — | |
| 62413-12390-C0 note |
Garnish, Center Pillar, Lower RH
2020-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 62413-12390-C0 note |
Garnish, Center Pillar, Lower RH
2020-06 → —
|
MZEA12 6F | — | |
| 62413-12390-C0 note |
Garnish, Center Pillar, Lower RH
2022-09 → —
|
MZEA12 | — | |
| 62413C — Clip (FOR CENTER LOWER GARNISH) | ||||
| 90467-09236 |
Clip (FOR CENTER LOWER GARNISH)
2018-06 → 2021-11
ended
|
MZEA12 | — | |
| 90467-10161 |
Clip (FOR CENTER LOWER GARNISH)
2021-11 → —
|
MZEA12 6F | — | |
| 90467-10161 |
Clip (FOR CENTER LOWER GARNISH)
2021-11 → 2022-09
ended
|
MZEA12 CVT | — | |
| 90467-10161 |
Clip (FOR CENTER LOWER GARNISH)
2022-09 → —
|
MZEA12 | — | |
| 62414A — Garnish, Center Pillar, Lower LH | ||||
| 62414-12350-C0 note |
Garnish, Center Pillar, Lower LH
2018-06 → 2020-06
ended
|
MZEA12 | — | |
| 62414-12390-C0 note |
Garnish, Center Pillar, Lower LH
2020-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 62414-12390-C0 note |
Garnish, Center Pillar, Lower LH
2020-06 → —
|
MZEA12 6F | — | |
| 62414-12390-C0 note |
Garnish, Center Pillar, Lower LH
2022-09 → —
|
MZEA12 | — | |
| 62471A — Garnish, Roof Side, Inner RH | ||||
| 62470-12280-C0 note |
Garnish, Roof Side, Inner RH
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 62470-12280-C0 note |
Garnish, Roof Side, Inner RH
2018-06 → —
|
MZEA12 6F | — | |
| 62470-12280-C0 note |
Garnish, Roof Side, Inner RH
2022-09 → —
|
MZEA12 | — | |
| 62471J — Clip (FOR ROOF SIDE GARNISH) | ||||
| 90467-10188 note |
Clip (FOR ROOF SIDE GARNISH)
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 90467-10188 note |
Clip (FOR ROOF SIDE GARNISH)
2018-06 → —
|
MZEA12 6F | — | |
| 90467-10188 note |
Clip (FOR ROOF SIDE GARNISH)
2022-09 → —
|
MZEA12 | — | |
| 62472A — Garnish, Roof Side, Inner LH | ||||
| 62480-12280-C0 note |
Garnish, Roof Side, Inner LH
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 62480-12280-C0 note |
Garnish, Roof Side, Inner LH
2018-06 → —
|
MZEA12 6F | — | |
| 62480-12280-C0 note |
Garnish, Roof Side, Inner LH
2022-09 → —
|
MZEA12 | — | |
| 62472G — Clip (FOR ROOF SIDE GARNISH) | ||||
| 90467-09240 note |
Clip (FOR ROOF SIDE GARNISH)
2018-06 → —
|
MZEA12 6F | — | |
| 90467-09240 note |
Clip (FOR ROOF SIDE GARNISH)
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 90467-09240 note |
Clip (FOR ROOF SIDE GARNISH)
2022-09 → —
|
MZEA12 | — | |
| 62489A — Clip, Roof Side Inner Garnish | ||||
| 62489-28010 |
Clip, Roof Side Inner Garnish
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 62489-28010 |
Clip, Roof Side Inner Garnish
2018-06 → —
|
MZEA12 6F | — | |
| 62489-28010 |
Clip, Roof Side Inner Garnish
2022-09 → —
|
MZEA12 | — | |
| 62551E — Clip(FOR REAR SEAT SIDE GARNISH) | ||||
| 62217-13010 |
Clip(FOR REAR SEAT SIDE GARNISH)
2018-06 → 2020-06
ended
|
MZEA12 | — | |
| 62551F — Garnish, Rear Seat Side, RH | ||||
| 62551-12360-C0 note |
Garnish, Rear Seat Side, RH
2018-06 → 2020-06
ended
|
MZEA12 | — | |
| 62551-12390-C0 note |
Garnish, Rear Seat Side, RH
2020-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 62551-12390-C0 note |
Garnish, Rear Seat Side, RH
2020-06 → —
|
MZEA12 6F | — | |
| 62551-12390-C0 note |
Garnish, Rear Seat Side, RH
2022-09 → —
|
MZEA12 | — | |
| 62552F — Garnish, Rear Seat Side, LH | ||||
| 62552-12340-C0 note |
Garnish, Rear Seat Side, LH
2018-06 → 2020-06
ended
|
MZEA12 | — | |
| 62552-12380-C0 note |
Garnish, Rear Seat Side, LH
2020-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 62552-12380-C0 note |
Garnish, Rear Seat Side, LH
2020-06 → —
|
MZEA12 6F | — | |
| 62552-12380-C0 note |
Garnish, Rear Seat Side, LH
2022-09 → —
|
MZEA12 | — | |
| 62638B — Clip | ||||
| 90467-09236 note |
Clip
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 90467-09236 note |
Clip
2018-06 → —
|
MZEA12 6F | — | |
| 90467-09236 note |
Clip
2022-09 → —
|
MZEA12 | — | |
| 67913 — Plate, Front Door Scuff, RH | ||||
| 67913-12340-C0 note |
Plate, Front Door Scuff, RH
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 67913-12340-C0 note |
Plate, Front Door Scuff, RH
2018-06 → —
|
MZEA12 6F | — | |
| 67913-12340-C0 note |
Plate, Front Door Scuff, RH
2022-09 → —
|
MZEA12 | — | |
| 67914 — Plate, Front Door Scuff, LH | ||||
| 67914-12300-C0 note |
Plate, Front Door Scuff, LH
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 67914-12300-C0 note |
Plate, Front Door Scuff, LH
2018-06 → —
|
MZEA12 6F | — | |
| 67914-12300-C0 note |
Plate, Front Door Scuff, LH
2022-09 → —
|
MZEA12 | — | |
| 67917A — Plate, Rear Door Scuff, RH | ||||
| 67917-12210-C0 note |
Plate, Rear Door Scuff, RH
2020-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 67917-12210-C0 note |
Plate, Rear Door Scuff, RH
2020-06 → —
|
MZEA12 6F | — | |
| 67917-12280-C0 note |
Plate, Rear Door Scuff, RH
2018-06 → 2020-06
ended
|
MZEA12 | — | |
| 67917-12210-C0 note |
Plate, Rear Door Scuff, RH
2022-09 → —
|
MZEA12 | — | |
| 67918A — Plate, Rear Door Scuff, LH | ||||
| 67918-12200-C0 note |
Plate, Rear Door Scuff, LH
2020-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 67918-12200-C0 note |
Plate, Rear Door Scuff, LH
2020-06 → —
|
MZEA12 6F | — | |
| 67918-12270-C0 note |
Plate, Rear Door Scuff, LH
2018-06 → 2020-06
ended
|
MZEA12 | — | |
| 67918-12200-C0 note |
Plate, Rear Door Scuff, LH
2022-09 → —
|
MZEA12 | — | |
| 67923A — Clamp, Door Scuff Plate, NO.1 | ||||
| 67923-20090 |
Clamp, Door Scuff Plate, NO.1
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 67923-20090 |
Clamp, Door Scuff Plate, NO.1
2018-06 → —
|
MZEA12 6F | — | |
| 67923-20090 |
Clamp, Door Scuff Plate, NO.1
2022-09 → —
|
MZEA12 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
