Toyota Corolla Hatchback

2018-06 → present · chassis MZEA12 · catalogue 165430 · United States

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

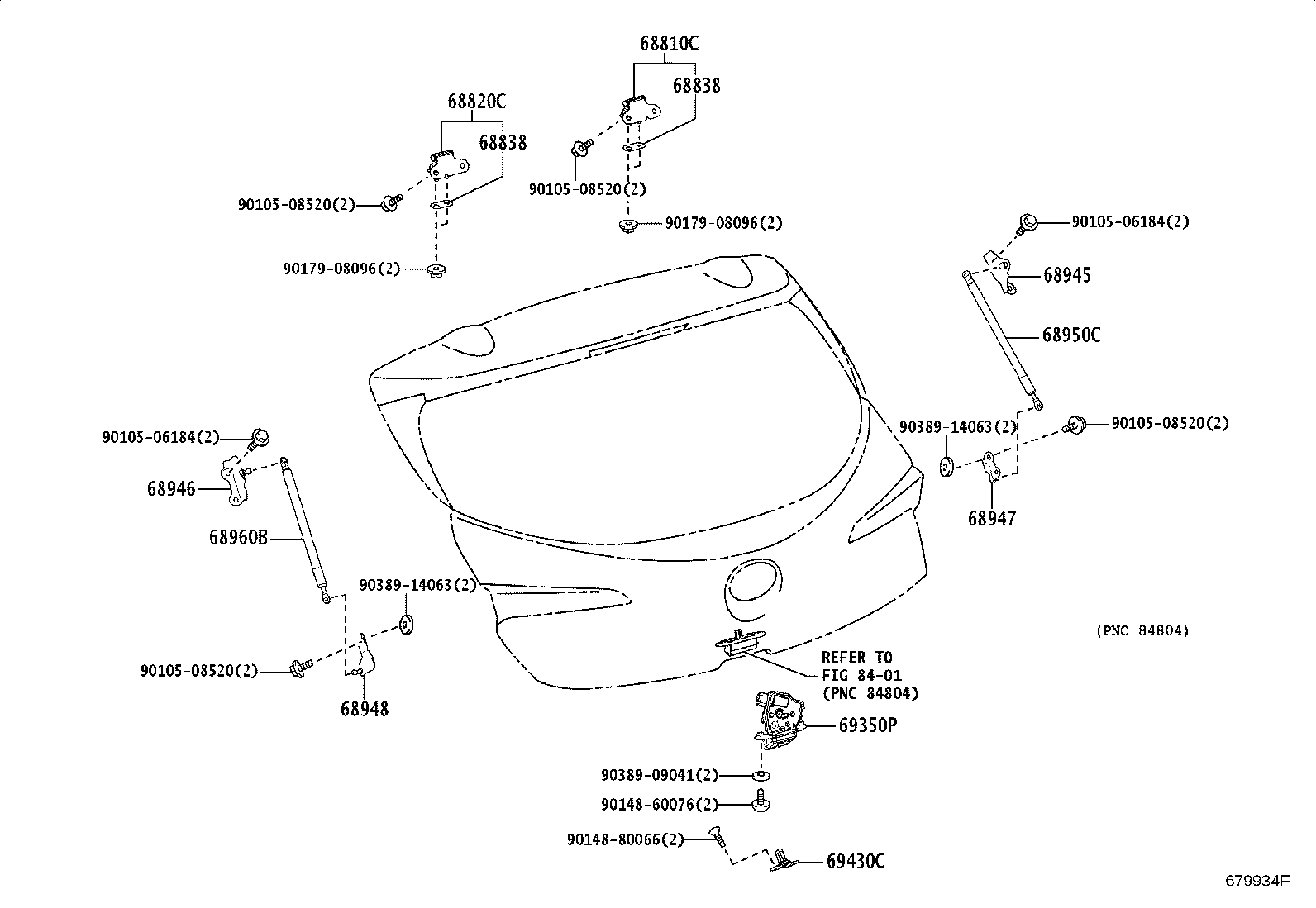

Exploded illustration 679934F 68838 — PAD, BACK DOOR HINGE, NO.1 (3 parts) 68820C — HINGE ASSY, BACK DOOR, LH (3 parts) 68838 — PAD, BACK DOOR HINGE, NO.1 (3 parts) 68810C — HINGE ASSY, BACK DOOR, RH (3 parts) 68945 — BRACKET, BACK DOOR DAMPER STAY, UPPER RH (3 parts) 68946 — BRACKET, BACK DOOR DAMPER STAY, UPPER LH (3 parts) 68950C — STAY ASSY, BACK DOOR, RH (3 parts) 68960B — STAY ASSY, BACK DOOR, LH (3 parts) 68947 — BRACKET, BACK DOOR DAMPER STAY, LOWER RH (3 parts) 68948 — BRACKET, BACK DOOR DAMPER STAY, LOWER LH (3 parts) 69350P — LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH (3 parts) 69430C — STRIKER ASSY, BACK DOOR LOCK (3 parts) 9017908096 — not listed in this catalogue 9017908096 — not listed in this catalogue 9010508520 — not listed in this catalogue 9010508520 — not listed in this catalogue 9010508520 — not listed in this catalogue 9010508520 — not listed in this catalogue 9038909041 — not listed in this catalogue 9038914063 — not listed in this catalogue 9038914063 — not listed in this catalogue 9010506184 — not listed in this catalogue 9010506184 — not listed in this catalogue 9014860076 — not listed in this catalogue 9014880066 — not listed in this catalogue 8401 — not listed in this catalogue
679934F · 12 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
33 parts on this figure
Part number Description Fitment Price
68810C — Hinge Assy, Back Door, RH
68810-12050 Hinge Assy, Back Door, RH
2018-06 → —
MZEA12 6F —
68810-12050 Hinge Assy, Back Door, RH
2018-06 → 2022-09 ended
MZEA12 CVT —
68810-12050 Hinge Assy, Back Door, RH
2022-09 → —
MZEA12 —
68820C — Hinge Assy, Back Door, LH
68820-12030 Hinge Assy, Back Door, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
68820-12030 Hinge Assy, Back Door, LH
2018-06 → —
MZEA12 6F —
68820-12030 Hinge Assy, Back Door, LH
2022-09 → —
MZEA12 —
68838 — Pad, Back Door Hinge, NO.1
68838-47020 note Pad, Back Door Hinge, NO.1
2018-06 → 2022-09 ended
MZEA12 CVT —
68838-47020 note Pad, Back Door Hinge, NO.1
2018-06 → —
MZEA12 6F —
68838-47020 note Pad, Back Door Hinge, NO.1
2022-09 → —
MZEA12 —
68945 — Bracket, Back Door Damper Stay, Upper RH
68945-12080 Bracket, Back Door Damper Stay, Upper RH
2018-06 → 2022-09 ended
MZEA12 CVT —
68945-12080 Bracket, Back Door Damper Stay, Upper RH
2018-06 → —
MZEA12 6F —
68945-12080 Bracket, Back Door Damper Stay, Upper RH
2022-09 → —
MZEA12 —
68946 — Bracket, Back Door Damper Stay, Upper LH
68946-12050 Bracket, Back Door Damper Stay, Upper LH
2018-06 → 2022-09 ended
MZEA12 CVT —
68946-12050 Bracket, Back Door Damper Stay, Upper LH
2018-06 → —
MZEA12 6F —
68946-12050 Bracket, Back Door Damper Stay, Upper LH
2022-09 → —
MZEA12 —
68947 — Bracket, Back Door Damper Stay, Lower RH
68947-12070 Bracket, Back Door Damper Stay, Lower RH
2018-06 → —
MZEA12 6F —
68947-12070 Bracket, Back Door Damper Stay, Lower RH
2018-06 → 2022-09 ended
MZEA12 CVT —
68947-12070 Bracket, Back Door Damper Stay, Lower RH
2022-09 → —
MZEA12 —
68948 — Bracket, Back Door Damper Stay, Lower LH
68948-12070 Bracket, Back Door Damper Stay, Lower LH
2018-06 → 2022-09 ended
MZEA12 CVT —
68948-12070 Bracket, Back Door Damper Stay, Lower LH
2018-06 → —
MZEA12 6F —
68948-12070 Bracket, Back Door Damper Stay, Lower LH
2022-09 → —
MZEA12 —
68950C — Stay Assy, Back Door, RH
68950-0WE20 Stay Assy, Back Door, RH
2018-06 → 2022-09 ended
MZEA12 CVT —
68950-0WE20 Stay Assy, Back Door, RH
2018-06 → —
MZEA12 6F —
68950-0WE20 Stay Assy, Back Door, RH
2022-09 → —
MZEA12 —
68960B — Stay Assy, Back Door, LH
68960-0WE20 Stay Assy, Back Door, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
68960-0WE20 Stay Assy, Back Door, LH
2018-06 → —
MZEA12 6F —
68960-0WE20 Stay Assy, Back Door, LH
2022-09 → —
MZEA12 —
69350P — Lock Assy, Back Door, W/Courtesy Lamp Switch
69350-13380 Lock Assy, Back Door, W/Courtesy Lamp Switch
2018-06 → 2022-09 ended
MZEA12 CVT —
69350-13380 Lock Assy, Back Door, W/Courtesy Lamp Switch
2018-06 → —
MZEA12 6F —
69350-13380 Lock Assy, Back Door, W/Courtesy Lamp Switch
2022-09 → —
MZEA12 —
69430C — Striker Assy, Back Door Lock
69430-52050 Striker Assy, Back Door Lock
2018-06 → 2022-09 ended
MZEA12 CVT —
69430-52050 Striker Assy, Back Door Lock
2018-06 → —
MZEA12 6F —
69430-52050 Striker Assy, Back Door Lock
2022-09 → —
MZEA12 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
