Toyota Corolla Hatchback

2018-06 → present · chassis MZEA12 · catalogue 165430 · United States

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

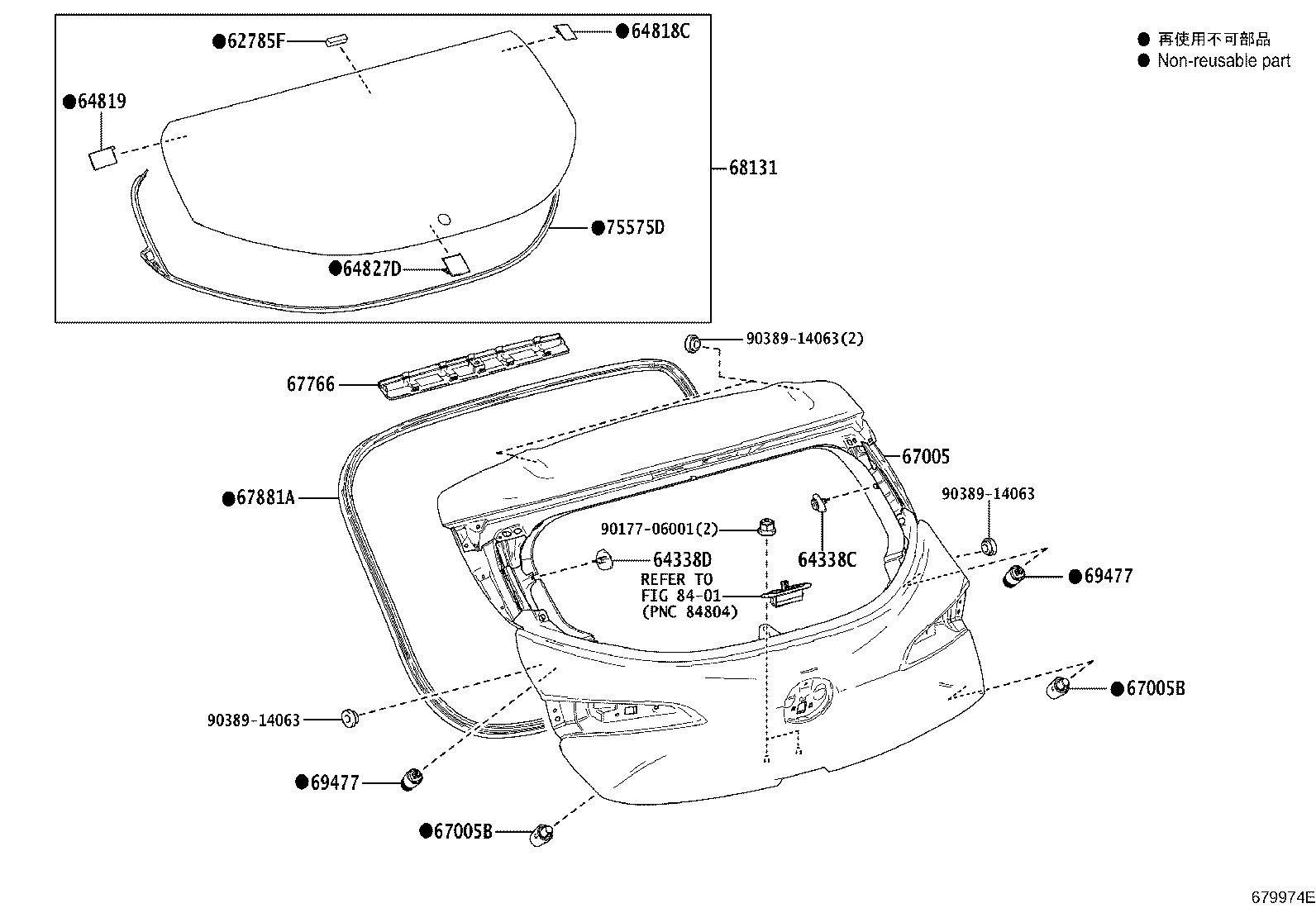

Exploded illustration 679974E 62785F — SPACER, BACK DOOR GLASS (3 parts) 64338C — HOOK, PACKAGE TRAY TRIM GARNISH, RH (2 parts) 64338D — HOOK, PACKAGE TRAY TRIM GARNISH, LH (3 parts) 64818C — SPACER, BACK WINDOW GLASS, NO.1 (3 parts) 64819 — SPACER, BACK WINDOW GLASS, NO.2 (3 parts) 64827D — CLIP, BACK WINDOW GLASS (3 parts) 67005B — CUSHION(FOR BACK DOOR PANEL) (3 parts) 67005B — CUSHION(FOR BACK DOOR PANEL) (3 parts) 67766 — COVER, BACK DOOR SERVICE HOLE, NO.2 (3 parts) 67881A — WEATHERSTRIP, BACK DOOR (3 parts) 68131 — GLASS, BACK DOOR (3 parts) 69477 — CUSHION, BACK DOOR UPPER STOPPER (3 parts) 69477 — CUSHION, BACK DOOR UPPER STOPPER (3 parts) 75575D — MOULDING, BACK WINDOW, LOWER (3 parts) 9038914063 — not listed in this catalogue 67005 — PANEL SUB-ASSY, BACK DOOR (4 parts) 9038914063 — not listed in this catalogue 9038914063 — not listed in this catalogue 64338C — HOOK, PACKAGE TRAY TRIM GARNISH, RH (2 parts) 9017706001 — not listed in this catalogue 8401 — not listed in this catalogue
679974E · 16 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
39 parts on this figure
Part number Description Fitment Price
62785F — Spacer, Back Door Glass
62785-60030 Spacer, Back Door Glass
2018-06 → —
MZEA12 6F —
62785-60030 Spacer, Back Door Glass
2018-06 → 2022-09 ended
MZEA12 CVT —
62785-60030 Spacer, Back Door Glass
2022-09 → —
MZEA12 —
64338C — Hook, Package Tray Trim Garnish, RH
64338-12060-C0 note Hook, Package Tray Trim Garnish, RH
2018-06 → 2022-08 ended
MZEA12 —
64338-12060-C0 note Hook, Package Tray Trim Garnish, RH
2022-09 → —
MZEA12 —
64338D — Hook, Package Tray Trim Garnish, LH
64338-12070-C0 note Hook, Package Tray Trim Garnish, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
64338-12070-C0 note Hook, Package Tray Trim Garnish, LH
2018-06 → —
MZEA12 6F —
64338-12070-C0 note Hook, Package Tray Trim Garnish, LH
2022-09 → —
MZEA12 —
64818C — Spacer, Back Window Glass, NO.1
64818-12080 Spacer, Back Window Glass, NO.1
2018-06 → 2022-09 ended
MZEA12 CVT —
64818-12080 Spacer, Back Window Glass, NO.1
2018-06 → —
MZEA12 6F —
64818-12080 Spacer, Back Window Glass, NO.1
2022-09 → —
MZEA12 —
64819 — Spacer, Back Window Glass, NO.2
64819-12060 Spacer, Back Window Glass, NO.2
2018-06 → 2022-09 ended
MZEA12 CVT —
64819-12060 Spacer, Back Window Glass, NO.2
2018-06 → —
MZEA12 6F —
64819-12060 Spacer, Back Window Glass, NO.2
2022-09 → —
MZEA12 —
64827D — Clip, Back Window Glass
64827-12020 Clip, Back Window Glass
2018-06 → 2022-09 ended
MZEA12 CVT —
64827-12020 Clip, Back Window Glass
2018-06 → —
MZEA12 6F —
64827-12020 Clip, Back Window Glass
2022-09 → —
MZEA12 —
67005 — Panel Sub-assy, Back Door
67005-12C70 Panel Sub-assy, Back Door
2018-06 → 2019-09 ended
MZEA12 —
67005-12F60 Panel Sub-assy, Back Door
2019-09 → —
MZEA12 6F —
67005-12F60 Panel Sub-assy, Back Door
2019-09 → 2022-09 ended
MZEA12 CVT —
67005-12F60 Panel Sub-assy, Back Door
2022-09 → —
MZEA12 —
67005B — Cushion(FOR BACK DOOR PANEL)
90541-09147 Cushion(FOR BACK DOOR PANEL)
2018-06 → 2022-09 ended
MZEA12 CVT —
90541-09147 Cushion(FOR BACK DOOR PANEL)
2018-06 → —
MZEA12 6F —
90541-09147 Cushion(FOR BACK DOOR PANEL)
2022-09 → —
MZEA12 —
67766 — Cover, Back Door Service Hole, NO.2
67766-12020-C0 note Cover, Back Door Service Hole, NO.2
2018-06 → 2022-09 ended
MZEA12 CVT —
67766-12020-C0 note Cover, Back Door Service Hole, NO.2
2018-06 → —
MZEA12 6F —
67766-12020-C0 note Cover, Back Door Service Hole, NO.2
2022-09 → —
MZEA12 —
67881A — Weatherstrip, Back Door
67881-12320 Weatherstrip, Back Door
2018-06 → 2022-09 ended
MZEA12 CVT —
67881-12320 Weatherstrip, Back Door
2018-06 → —
MZEA12 6F —
67881-12320 Weatherstrip, Back Door
2022-09 → —
MZEA12 —
68131 — Glass, Back Door
68105-12460 Glass, Back Door
2018-06 → 2022-09 ended
MZEA12 CVT —
68105-12460 Glass, Back Door
2018-06 → —
MZEA12 6F —
68105-12460 Glass, Back Door
2022-09 → —
MZEA12 —
69477 — Cushion, Back Door Upper Stopper
69477-12020 Cushion, Back Door Upper Stopper
2018-06 → 2022-09 ended
MZEA12 CVT —
69477-12020 Cushion, Back Door Upper Stopper
2018-06 → —
MZEA12 6F —
69477-12020 Cushion, Back Door Upper Stopper
2022-09 → —
MZEA12 —
75575D — Moulding, Back Window, Lower
75575-12480 Moulding, Back Window, Lower
2018-06 → 2022-09 ended
MZEA12 CVT —
75575-12480 Moulding, Back Window, Lower
2018-06 → —
MZEA12 6F —
75575-12480 Moulding, Back Window, Lower
2022-09 → —
MZEA12 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
