Toyota Corolla Hatchback

2018-06 → present · chassis MZEA12 · catalogue 165430 · United States

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

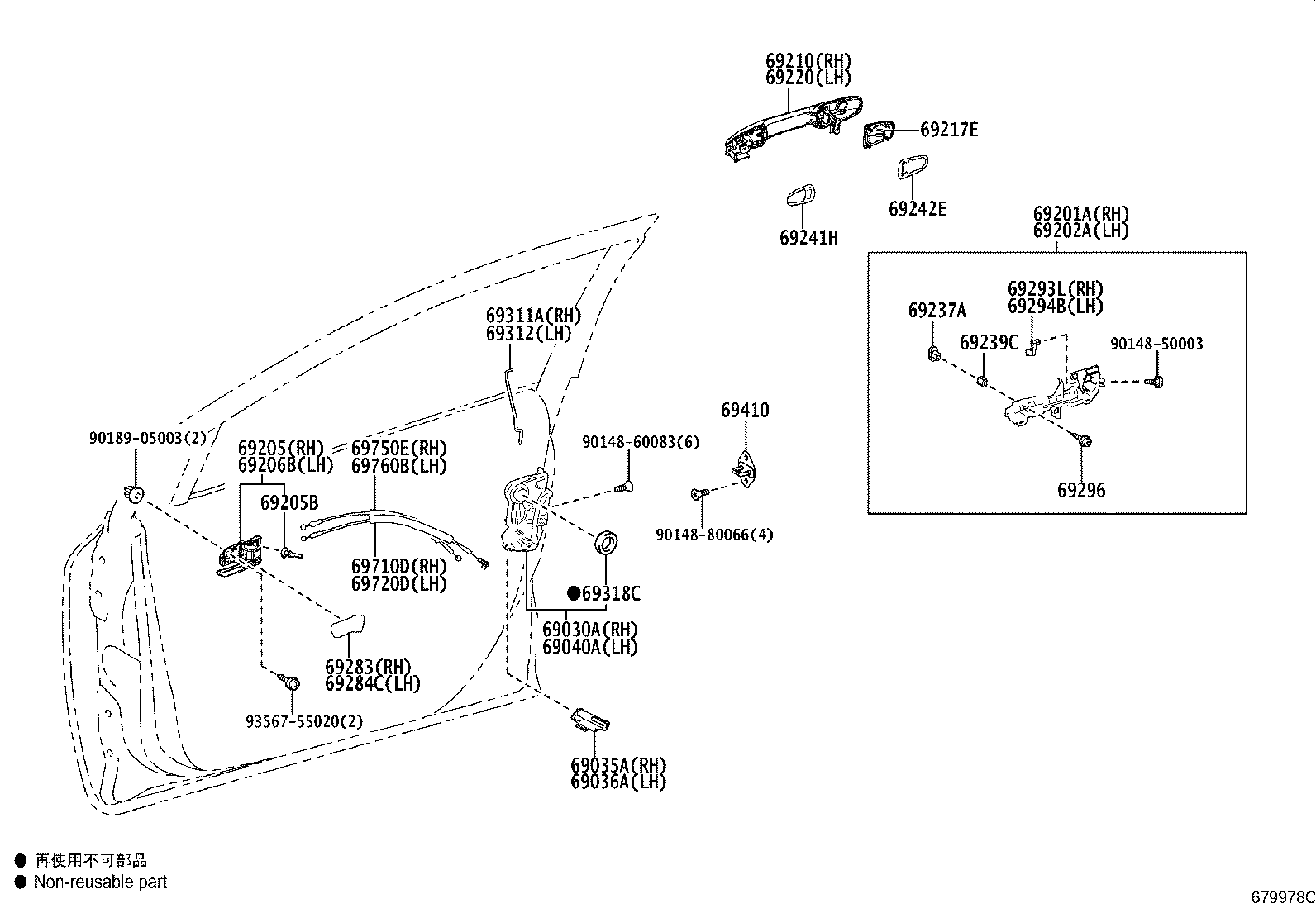

Exploded illustration 679978C 69205B — CUSHION(FOR FRONT DOOR INSIDE HANDLE) (3 parts) 69030A — LOCK ASSY, FRONT DOOR W/MOTOR, RH (3 parts) 69035A — COVER SUB-ASSY, FRONT DOOR LOCK, RH (3 parts) 69036A — COVER SUB-ASSY, FRONT DOOR LOCK, LH (3 parts) 69040A — LOCK ASSY, FRONT DOOR W/MOTOR, LH (3 parts) 69201A — FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH (3 parts) 69202A — FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH (3 parts) 69205 — HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH (6 parts) 69206B — HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH (6 parts) 69210 — HANDLE ASSY, FRONT DOOR, OUTSIDE RH (28 parts) 69220 — HANDLE ASSY, FRONT DOOR OUTSIDE, LH (28 parts) 69237A — NUT, FRONT DOOR HANDLE (3 parts) 69241H — PAD, FRONT DOOR OUTSIDE HANDLE, FRONT (3 parts) 69242E — PAD, FRONT DOOR OUTSIDE HANDLE, REAR (3 parts) 69283 — PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH (6 parts) 69284C — PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH (6 parts) 69293L — SNAP, FRONT DOOR OUTSIDE HANDLE, RH (3 parts) 69294B — SNAP, FRONT DOOR OUTSIDE HANDLE, LH (3 parts) 69311A — ROD, FRONT DOOR LOCK OPEN, RH (3 parts) 69312 — ROD, FRONT DOOR LOCK OPEN, LH (3 parts) 69239C — BUSH, FRONT DOOR HANDLE (3 parts) 69296 — SCREW, DOOR INSIDE HANDLE (4 parts) 69410 — PLATE ASSY, FRONT DOOR LOCK STRIKER (3 parts) 69710D — CABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER) (3 parts) 69720D — CABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER) (3 parts) 69750E — CABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB) (3 parts) 69760B — CABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB) (3 parts) 9014850003 — not listed in this catalogue 9014860083 — not listed in this catalogue 9014880066 — not listed in this catalogue 9356755020 — not listed in this catalogue 69217E — COVER, FRONT DOOR OUTSIDE HANDLE, RH (3 parts) 9018905003 — not listed in this catalogue 69318C — SEAL, DOOR LOCK WIRING HARNESS (3 parts)
679978C · 29 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
150 parts on this figure
Part number Description Fitment Price
69030A — Lock Assy, Front Door W/Motor, RH
69030-53120 Lock Assy, Front Door W/Motor, RH
2018-06 → —
MZEA12 6F —
69030-53120 Lock Assy, Front Door W/Motor, RH
2018-06 → 2022-09 ended
MZEA12 CVT —
69030-12560 Lock Assy, Front Door W/Motor, RH
2022-09 → —
MZEA12 —
69035A — Cover Sub-assy, Front Door Lock, RH
69035-30010 Cover Sub-assy, Front Door Lock, RH
2018-06 → 2022-09 ended
MZEA12 CVT —
69035-30010 Cover Sub-assy, Front Door Lock, RH
2018-06 → —
MZEA12 6F —
69035-28010 Cover Sub-assy, Front Door Lock, RH
2022-09 → —
MZEA12 —
69036A — Cover Sub-assy, Front Door Lock, LH
69036-30010 Cover Sub-assy, Front Door Lock, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
69036-30010 Cover Sub-assy, Front Door Lock, LH
2018-06 → —
MZEA12 6F —
69036-28010 Cover Sub-assy, Front Door Lock, LH
2022-09 → —
MZEA12 —
69040A — Lock Assy, Front Door W/Motor, LH
69040-53130 Lock Assy, Front Door W/Motor, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
69040-53130 Lock Assy, Front Door W/Motor, LH
2018-06 → —
MZEA12 6F —
69040-12580 Lock Assy, Front Door W/Motor, LH
2022-09 → —
MZEA12 —
69201A — Frame Sub-assy, Front Door Outside Handle, RH
69201-47070 Frame Sub-assy, Front Door Outside Handle, RH
2018-06 → —
MZEA12 6F —
69201-47070 Frame Sub-assy, Front Door Outside Handle, RH
2018-06 → 2022-09 ended
MZEA12 CVT —
69201-47070 Frame Sub-assy, Front Door Outside Handle, RH
2022-09 → —
MZEA12 —
69202A — Frame Sub-assy, Front Door Outside Handle, LH
69202-47040 Frame Sub-assy, Front Door Outside Handle, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
69202-47040 Frame Sub-assy, Front Door Outside Handle, LH
2018-06 → —
MZEA12 6F —
69202-47040 Frame Sub-assy, Front Door Outside Handle, LH
2022-09 → —
MZEA12 —
69205 — Handle Sub-assy, Front Door Inside, RH
69205-12250-B1 note Handle Sub-assy, Front Door Inside, RH
2018-06 → 2022-09 ended
MZEA12 CVT —
69205-12250-B1 note Handle Sub-assy, Front Door Inside, RH
2018-06 → —
MZEA12 6F —
69205-12250-C0 note Handle Sub-assy, Front Door Inside, RH
2018-06 → 2022-09 ended
MZEA12 CVT —
69205-12250-C0 note Handle Sub-assy, Front Door Inside, RH
2018-06 → —
MZEA12 6F —
69205-12250-B1 note Handle Sub-assy, Front Door Inside, RH
2022-09 → —
MZEA12 —
69205-12250-C0 note Handle Sub-assy, Front Door Inside, RH
2022-09 → —
MZEA12 —
69205B — Cushion(FOR FRONT DOOR INSIDE HANDLE)
90541-04014 Cushion(FOR FRONT DOOR INSIDE HANDLE)
2018-06 → —
MZEA12 6F —
90541-04014 Cushion(FOR FRONT DOOR INSIDE HANDLE)
2018-06 → 2022-09 ended
MZEA12 CVT —
90541-04014 Cushion(FOR FRONT DOOR INSIDE HANDLE)
2022-09 → —
MZEA12 —
69206B — Handle Sub-assy, Front Door Inside, LH
69206-12250-B1 note Handle Sub-assy, Front Door Inside, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
69206-12250-B1 note Handle Sub-assy, Front Door Inside, LH
2018-06 → —
MZEA12 6F —
69206-12250-C0 note Handle Sub-assy, Front Door Inside, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
69206-12250-C0 note Handle Sub-assy, Front Door Inside, LH
2018-06 → —
MZEA12 6F —
69206-12250-B1 note Handle Sub-assy, Front Door Inside, LH
2022-09 → —
MZEA12 —
69206-12250-C0 note Handle Sub-assy, Front Door Inside, LH
2022-09 → —
MZEA12 —
69210 — Handle Assy, Front Door, Outside RH
69210-47051-A0 note Handle Assy, Front Door, Outside RH
2018-06 → —
MZEA12 6F —
69210-47051-A0 note Handle Assy, Front Door, Outside RH
2018-06 → 2022-09 ended
MZEA12 CVT —
69210-47051-A1 note Handle Assy, Front Door, Outside RH
2018-06 → 2020-06 ended
MZEA12 —
69210-47051-A2 note Handle Assy, Front Door, Outside RH
2020-06 → —
MZEA12 6F —
69210-47051-A2 note Handle Assy, Front Door, Outside RH
2020-06 → 2022-09 ended
MZEA12 CVT —
69210-47051-B0 note Handle Assy, Front Door, Outside RH
2018-06 → 2022-09 ended
MZEA12 CVT —
69210-47051-B0 note Handle Assy, Front Door, Outside RH
2018-06 → —
MZEA12 6F —
69210-47051-B1 note Handle Assy, Front Door, Outside RH
2020-06 → —
MZEA12 6F —
69210-47051-B1 note Handle Assy, Front Door, Outside RH
2020-06 → 2022-09 ended
MZEA12 CVT —
69210-47051-C0 note Handle Assy, Front Door, Outside RH
2018-06 → 2022-09 ended
MZEA12 CVT —
69210-47051-C0 note Handle Assy, Front Door, Outside RH
2018-06 → —
MZEA12 6F —
69210-47051-C1 note Handle Assy, Front Door, Outside RH
2018-06 → 2022-09 ended
MZEA12 CVT —
69210-47051-C1 note Handle Assy, Front Door, Outside RH
2018-06 → —
MZEA12 6F —
69210-47051-D3 note Handle Assy, Front Door, Outside RH
2018-06 → 2020-06 ended
MZEA12 —
69210-47051-D4 note Handle Assy, Front Door, Outside RH
2019-09 → 2021-07 ended
MZEA12 —
69210-47051-D6 note Handle Assy, Front Door, Outside RH
2021-07 → 2022-09 ended
MZEA12 CVT —
69210-47051-D6 note Handle Assy, Front Door, Outside RH
2021-07 → —
MZEA12 6F —
69210-47051-G3 note Handle Assy, Front Door, Outside RH
2018-06 → 2020-06 ended
MZEA12 —
69210-47051-J5 note Handle Assy, Front Door, Outside RH
2018-06 → 2022-09 ended
MZEA12 CVT —
69210-47051-J5 note Handle Assy, Front Door, Outside RH
2018-06 → —
MZEA12 6F —
69210-K0020-A0 note Handle Assy, Front Door, Outside RH
2022-09 → —
MZEA12 —
69210-K0020-A3 note Handle Assy, Front Door, Outside RH
2022-09 → —
MZEA12 —
69210-K0020-B0 note Handle Assy, Front Door, Outside RH
2022-09 → —
MZEA12 —
69210-K0020-C3 note Handle Assy, Front Door, Outside RH
2022-09 → —
MZEA12 —
69210-K0020-D7 note Handle Assy, Front Door, Outside RH
2022-09 → —
MZEA12 —
69210-K0020-E6 note Handle Assy, Front Door, Outside RH
2022-09 → —
MZEA12 —
69210-K0020-J0 note Handle Assy, Front Door, Outside RH
2022-09 → —
MZEA12 —
69210-K0020-P3 note Handle Assy, Front Door, Outside RH
2022-09 → —
MZEA12 —
69217E — Cover, Front Door Outside Handle, RH
69217-47020 Cover, Front Door Outside Handle, RH
2018-06 → 2022-09 ended
MZEA12 CVT —
69217-47020 Cover, Front Door Outside Handle, RH
2018-06 → —
MZEA12 6F —
69217-47020 Cover, Front Door Outside Handle, RH
2022-09 → —
MZEA12 —
69220 — Handle Assy, Front Door Outside, LH
69210-47041-A0 note Handle Assy, Front Door Outside, LH
2018-06 → —
MZEA12 6F —
69210-47041-A0 note Handle Assy, Front Door Outside, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
69210-47041-A1 note Handle Assy, Front Door Outside, LH
2018-06 → 2020-06 ended
MZEA12 —
69210-47041-A2 note Handle Assy, Front Door Outside, LH
2020-06 → —
MZEA12 6F —
69210-47041-A2 note Handle Assy, Front Door Outside, LH
2020-06 → 2022-09 ended
MZEA12 CVT —
69210-47041-B0 note Handle Assy, Front Door Outside, LH
2018-06 → —
MZEA12 6F —
69210-47041-B0 note Handle Assy, Front Door Outside, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
69210-47041-B1 note Handle Assy, Front Door Outside, LH
2020-06 → —
MZEA12 6F —
69210-47041-B1 note Handle Assy, Front Door Outside, LH
2020-06 → 2022-09 ended
MZEA12 CVT —
69210-47041-C0 note Handle Assy, Front Door Outside, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
69210-47041-C0 note Handle Assy, Front Door Outside, LH
2018-06 → —
MZEA12 6F —
69210-47041-C1 note Handle Assy, Front Door Outside, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
69210-47041-C1 note Handle Assy, Front Door Outside, LH
2018-06 → —
MZEA12 6F —
69210-47041-D3 note Handle Assy, Front Door Outside, LH
2018-06 → 2020-06 ended
MZEA12 —
69210-47041-D4 note Handle Assy, Front Door Outside, LH
2019-09 → 2021-07 ended
MZEA12 —
69210-47041-D6 note Handle Assy, Front Door Outside, LH
2021-07 → 2022-09 ended
MZEA12 CVT —
69210-47041-D6 note Handle Assy, Front Door Outside, LH
2021-07 → —
MZEA12 6F —
69210-47041-G3 note Handle Assy, Front Door Outside, LH
2018-06 → 2020-06 ended
MZEA12 —
69210-47041-J5 note Handle Assy, Front Door Outside, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
69210-47041-J5 note Handle Assy, Front Door Outside, LH
2018-06 → —
MZEA12 6F —
69210-K0010-A0 note Handle Assy, Front Door Outside, LH
2022-09 → —
MZEA12 —
69210-K0010-A3 note Handle Assy, Front Door Outside, LH
2022-09 → —
MZEA12 —
69210-K0010-B0 note Handle Assy, Front Door Outside, LH
2022-09 → —
MZEA12 —
69210-K0010-C3 note Handle Assy, Front Door Outside, LH
2022-09 → —
MZEA12 —
69210-K0010-D7 note Handle Assy, Front Door Outside, LH
2022-09 → —
MZEA12 —
69210-K0010-E6 note Handle Assy, Front Door Outside, LH
2022-09 → —
MZEA12 —
69210-K0010-J0 note Handle Assy, Front Door Outside, LH
2022-09 → —
MZEA12 —
69210-K0010-P3 note Handle Assy, Front Door Outside, LH
2022-09 → —
MZEA12 —
69237A — Nut, Front Door Handle
69237-62010 Nut, Front Door Handle
2018-06 → 2022-09 ended
MZEA12 CVT —
69237-62010 Nut, Front Door Handle
2018-06 → —
MZEA12 6F —
69237-62010 Nut, Front Door Handle
2022-09 → —
MZEA12 —
69239C — Bush, Front Door Handle
69239-47010 Bush, Front Door Handle
2018-06 → 2022-09 ended
MZEA12 CVT —
69239-47010 Bush, Front Door Handle
2018-06 → —
MZEA12 6F —
69239-47010 Bush, Front Door Handle
2022-09 → —
MZEA12 —
69241H — Pad, Front Door Outside Handle, Front
69241-47020 Pad, Front Door Outside Handle, Front
2018-06 → 2022-09 ended
MZEA12 CVT —
69241-47020 Pad, Front Door Outside Handle, Front
2018-06 → —
MZEA12 6F —
69241-47020 Pad, Front Door Outside Handle, Front
2022-09 → —
MZEA12 —
69242E — Pad, Front Door Outside Handle, Rear
69242-47030 Pad, Front Door Outside Handle, Rear
2018-06 → 2022-09 ended
MZEA12 CVT —
69242-47030 Pad, Front Door Outside Handle, Rear
2018-06 → —
MZEA12 6F —
69242-47030 Pad, Front Door Outside Handle, Rear
2022-09 → —
MZEA12 —
69283 — Plug, Front Door Inside Handle Bezel, RH
74037-12020-B0 note Plug, Front Door Inside Handle Bezel, RH
2018-06 → 2022-09 ended
MZEA12 CVT —
74037-12020-B0 note Plug, Front Door Inside Handle Bezel, RH
2018-06 → —
MZEA12 6F —
74037-12020-C0 note Plug, Front Door Inside Handle Bezel, RH
2018-06 → 2022-09 ended
MZEA12 CVT —
74037-12020-C0 note Plug, Front Door Inside Handle Bezel, RH
2018-06 → —
MZEA12 6F —
74037-12020-B0 note Plug, Front Door Inside Handle Bezel, RH
2022-09 → —
MZEA12 —
74037-12020-C0 note Plug, Front Door Inside Handle Bezel, RH
2022-09 → —
MZEA12 —
69284C — Plug, Front Door Inside Handle Bezel, LH
74038-12020-B0 note Plug, Front Door Inside Handle Bezel, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
74038-12020-B0 note Plug, Front Door Inside Handle Bezel, LH
2018-06 → —
MZEA12 6F —
74038-12020-C0 note Plug, Front Door Inside Handle Bezel, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
74038-12020-C0 note Plug, Front Door Inside Handle Bezel, LH
2018-06 → —
MZEA12 6F —
74038-12020-B0 note Plug, Front Door Inside Handle Bezel, LH
2022-09 → —
MZEA12 —
74038-12020-C0 note Plug, Front Door Inside Handle Bezel, LH
2022-09 → —
MZEA12 —
69293L — Snap, Front Door Outside Handle, RH
69293-12030 Snap, Front Door Outside Handle, RH
2018-06 → —
MZEA12 6F —
69293-12030 Snap, Front Door Outside Handle, RH
2018-06 → 2022-09 ended
MZEA12 CVT —
69293-12030 Snap, Front Door Outside Handle, RH
2022-09 → —
MZEA12 —
69294B — Snap, Front Door Outside Handle, LH
69293-12040 Snap, Front Door Outside Handle, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
69293-12040 Snap, Front Door Outside Handle, LH
2018-06 → —
MZEA12 6F —
69293-12040 Snap, Front Door Outside Handle, LH
2022-09 → —
MZEA12 —
69296 — Screw, Door Inside Handle
69296-30010 Screw, Door Inside Handle
2018-06 → 2021-09 ended
MZEA12 —
90148-50006 Screw, Door Inside Handle
2021-09 → 2022-09 ended
MZEA12 CVT —
90148-50006 Screw, Door Inside Handle
2021-09 → —
MZEA12 6F —
90148-50006 Screw, Door Inside Handle
2022-09 → —
MZEA12 —
69311A — Rod, Front Door Lock Open, RH
69311-12220 Rod, Front Door Lock Open, RH
2018-06 → 2022-09 ended
MZEA12 CVT —
69311-12220 Rod, Front Door Lock Open, RH
2018-06 → —
MZEA12 6F —
69311-12220 Rod, Front Door Lock Open, RH
2022-09 → —
MZEA12 —
69312 — Rod, Front Door Lock Open, LH
69312-12220 Rod, Front Door Lock Open, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
69312-12220 Rod, Front Door Lock Open, LH
2018-06 → —
MZEA12 6F —
69312-12220 Rod, Front Door Lock Open, LH
2022-09 → —
MZEA12 —
69318C — Seal, Door Lock Wiring Harness
69318-51010 Seal, Door Lock Wiring Harness
2018-06 → —
MZEA12 6F —
69318-51010 Seal, Door Lock Wiring Harness
2018-06 → 2022-09 ended
MZEA12 CVT —
69318-51010 Seal, Door Lock Wiring Harness
2022-09 → —
MZEA12 —
69410 — Plate Assy, Front Door Lock Striker
69410-20110 Plate Assy, Front Door Lock Striker
2018-06 → 2022-09 ended
MZEA12 CVT —
69410-20110 Plate Assy, Front Door Lock Striker
2018-06 → —
MZEA12 6F —
69410-20110 Plate Assy, Front Door Lock Striker
2022-09 → —
MZEA12 —
69710D — Cable, Front Door Lock Remote Control, RH(FOR OPEN LEVER)
69710-12190 Cable, Front Door Lock Remote Control, RH(FOR OPEN LEVER)
2018-06 → 2022-09 ended
MZEA12 CVT —
69710-12190 Cable, Front Door Lock Remote Control, RH(FOR OPEN LEVER)
2018-06 → —
MZEA12 6F —
69710-12191 Cable, Front Door Lock Remote Control, RH(FOR OPEN LEVER)
2022-09 → —
MZEA12 —
69720D — Cable, Front Door Lock Remote Control, LH(FOR OPEN LEVER)
69710-12190 Cable, Front Door Lock Remote Control, LH(FOR OPEN LEVER)
2018-06 → 2022-09 ended
MZEA12 CVT —
69710-12190 Cable, Front Door Lock Remote Control, LH(FOR OPEN LEVER)
2018-06 → —
MZEA12 6F —
69710-12191 Cable, Front Door Lock Remote Control, LH(FOR OPEN LEVER)
2022-09 → —
MZEA12 —
69750E — Cable, Front Door Inside Locking, RH(FOR LOCK / UNLOCK KNOB)
69750-12220 Cable, Front Door Inside Locking, RH(FOR LOCK / UNLOCK KNOB)
2018-06 → 2022-09 ended
MZEA12 CVT —
69750-12220 Cable, Front Door Inside Locking, RH(FOR LOCK / UNLOCK KNOB)
2018-06 → —
MZEA12 6F —
69750-12221 Cable, Front Door Inside Locking, RH(FOR LOCK / UNLOCK KNOB)
2022-09 → —
MZEA12 —
69760B — Cable, Front Door Inside Locking, LH(FOR LOCK / UNLOCK KNOB)
69750-12220 Cable, Front Door Inside Locking, LH(FOR LOCK / UNLOCK KNOB)
2018-06 → 2022-09 ended
MZEA12 CVT —
69750-12220 Cable, Front Door Inside Locking, LH(FOR LOCK / UNLOCK KNOB)
2018-06 → —
MZEA12 6F —
69750-12221 Cable, Front Door Inside Locking, LH(FOR LOCK / UNLOCK KNOB)
2022-09 → —
MZEA12 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
