Toyota Corolla Hatchback

2018-06 → present · chassis MZEA12 · catalogue 165430 · United States

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

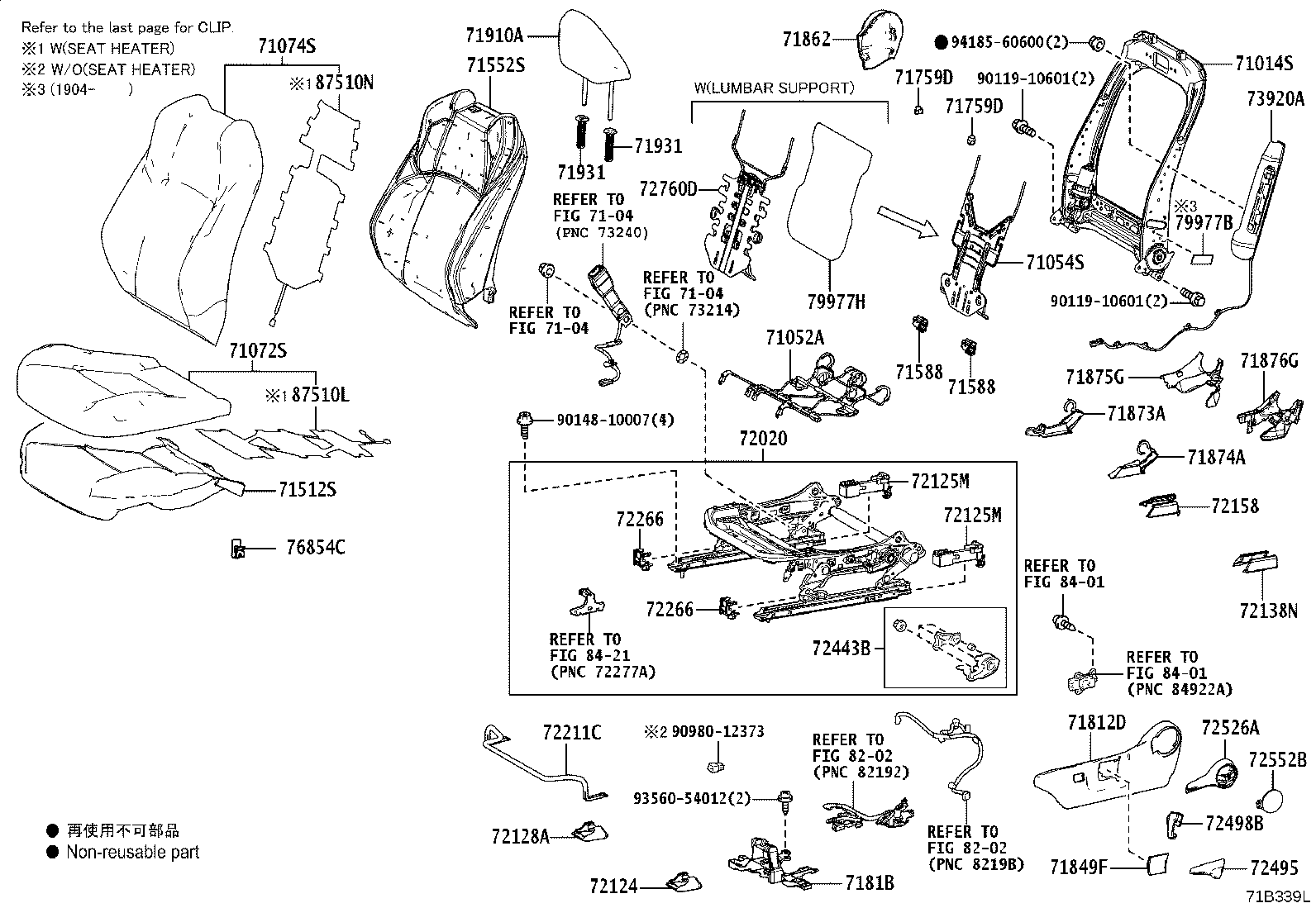

Exploded illustration 71B339L 8421 — not listed in this catalogue 8202 — not listed in this catalogue 71052A — SPRING SUB-ASSY, FRONT SEAT CUSHION, LH (3 parts) 71512S — PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) (9 parts) 71588 — PROTECTOR, FRONT SEATBACK EDGE, NO.2 (3 parts) 71588 — PROTECTOR, FRONT SEATBACK EDGE, NO.2 (3 parts) 71759D — HOOK, FRONT SEATBACK, NO.2 (6 parts) 71759D — HOOK, FRONT SEATBACK, NO.2 (6 parts) 71812D — SHIELD, FRONT SEAT CUSHION, LH (12 parts) 71849F — CAP, SEAT ADJUSTER COVER, LH(FOR LH SEAT) (4 parts) 72495 — HANDLE, VERTICAL ADJUSTING, LH (4 parts) 7181B — HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH (9 parts) 72498B — COVER, VERTICAL ADJUSTER BRACKET, OUTER (3 parts) 72526A — HANDLE, RECLINING ADJUSTER RELEASE, LH (3 parts) 72552B — COVER, RECLINING HINGE, LH (3 parts) 71862 — SHIELD, FRONT SEAT CUSHION, INNER LH (5 parts) 71873A — SHIELD, FRONT SEAT CUSHION, LOWER (3 parts) 71874A — SHIELD, FRONT SEAT CUSHION, LOWER LH (3 parts) 71876G — COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) (5 parts) 71875G — COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) (5 parts) 71910A — HEADREST ASSY, FRONT SEAT (30 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (20 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (20 parts) 72020 — ADJUSTER ASSY, FRONT SEAT, LH (10 parts) 72125M — COVER, SEAT TRACK, UPPER NO.3 (3 parts) 72760D — ADJUSTER ASSY, LUMBAR SUPPORT, LH (9 parts) 79977H — FELT, FRONT SEATBACK, LH (9 parts) 7104 — not listed in this catalogue 7104 — not listed in this catalogue 8202 — not listed in this catalogue 9356054012 — not listed in this catalogue 7104 — not listed in this catalogue 71074S — COVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (29 parts) 87510N — HEATER ASSY, FRONT SEATBACK, LH (9 parts) 71552S — PAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (6 parts) 73920A — AIRBAG ASSY, FRONT SEAT, LH (3 parts) 71014S — FRAME SUB-ASSY, FRONT SEATBACK, LH (9 parts) 8401 — not listed in this catalogue 8401 — not listed in this catalogue 72138N — COVER, SEAT TRACK BRACKET, OUTER REAR LH (3 parts) 72158 — COVER, SEAT TRACK BRACKET, INNER LH (3 parts) 72124 — COVER, SEAT TRACK BRACKET, OUTER FRONT LH (3 parts) 72128A — COVER, SEAT TRACK BRACKET, INNER FRONT LH (3 parts) 9418560600 — not listed in this catalogue 87510L — HEATER ASSY, FRONT SEAT CUSHION, LH (10 parts) 9011910601 — not listed in this catalogue 9011910601 — not listed in this catalogue 72266 — COVER, SEAT TRACK UPPER RAIL, LH (9 parts) 72266 — COVER, SEAT TRACK UPPER RAIL, LH (9 parts) 71072S — COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) (33 parts) 9014810007 — not listed in this catalogue 72211C — HANDLE, SEAT TRACK ADJUSTING (3 parts) 72443B — GEAR, VERTICAL ADJUSTER, LH (4 parts) 9098012373 — not listed in this catalogue 71054S — SPRING SUB-ASSY, FRONT SEATBACK, LH (3 parts) 72125M — COVER, SEAT TRACK, UPPER NO.3 (3 parts) 79977B — FELT, SEATBACK FRAME (9 parts) 76854C — RETAINER, FRONT SEAT CUSHION COVER (1 parts)
71B339L · 44 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
301 parts on this figure
Part number Description Fitment Price
71014S — Frame Sub-assy, Front Seatback, LH
71014-12680 Frame Sub-assy, Front Seatback, LH
2020-06 → 2022-08 ended
MZEA12 —
71014-12700 note Frame Sub-assy, Front Seatback, LH
2020-06 → 2022-08 ended
MZEA12 —
71014-12700 note Frame Sub-assy, Front Seatback, LH
2020-06 → 2022-08 ended
MZEA12 —
71014-33370 note Frame Sub-assy, Front Seatback, LH
2018-06 → 2020-06 ended
MZEA12 —
71014-33370 note Frame Sub-assy, Front Seatback, LH
2018-06 → 2020-06 ended
MZEA12 —
71014-33390 Frame Sub-assy, Front Seatback, LH
2018-06 → 2020-06 ended
MZEA12 —
71014-12680 Frame Sub-assy, Front Seatback, LH
2022-09 → —
MZEA12 —
71014-12700 note Frame Sub-assy, Front Seatback, LH
2022-09 → —
MZEA12 —
71014-12700 note Frame Sub-assy, Front Seatback, LH
2022-09 → —
MZEA12 —
71052A — Spring Sub-assy, Front Seat Cushion, LH
71051-47090 Spring Sub-assy, Front Seat Cushion, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
71051-47090 Spring Sub-assy, Front Seat Cushion, LH
2018-06 → —
MZEA12 6F —
71051-47090 Spring Sub-assy, Front Seat Cushion, LH
2022-09 → —
MZEA12 —
71054S — Spring Sub-assy, Front Seatback, LH
71053-47050 Spring Sub-assy, Front Seatback, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
71053-47050 Spring Sub-assy, Front Seatback, LH
2018-06 → —
MZEA12 6F —
71053-47050 Spring Sub-assy, Front Seatback, LH
2022-09 → —
MZEA12 —
71072S — Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71072-1AD50-C4 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-06 → —
MZEA12 6F —
71072-1AD50-C4 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-06 → 2022-09 ended
MZEA12 CVT —
71072-1AD50-C5 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-06 → 2022-09 ended
MZEA12 CVT —
71072-1AD50-C5 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-06 → —
MZEA12 6F —
71072-1AG00-C4 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-06 → 2022-09 ended
MZEA12 CVT —
71072-1AG00-C4 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-06 → —
MZEA12 6F —
71072-1AG00-C5 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-06 → 2022-09 ended
MZEA12 CVT —
71072-1AG00-C5 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-06 → —
MZEA12 6F —
71072-1AG10-B5 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-06 → 2022-09 ended
MZEA12 CVT —
71072-1AG10-B5 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-06 → —
MZEA12 6F —
71072-1AG10-B6 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-06 → 2022-09 ended
MZEA12 CVT —
71072-1AG10-B6 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-06 → —
MZEA12 6F —
71072-1AG10-E3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-06 → —
MZEA12 6F —
71072-1AG10-E3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-06 → 2022-09 ended
MZEA12 CVT —
71072-1AJ30-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-06 → 2021-11 ended
MZEA12 —
71072-1AJ30-C3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-06 → 2021-11 ended
MZEA12 —
71072-1AJ31-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2021-12 → 2022-09 ended
MZEA12 CVT —
71072-1AJ31-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2021-12 → —
MZEA12 6F —
71072-1AJ31-C3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2021-12 → 2022-09 ended
MZEA12 CVT —
71072-1AJ31-C3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2021-12 → —
MZEA12 6F —
71072-1AN10-C0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-09 → 2024-05 ended
MZEA12 —
71072-1AN10-C1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-09 → 2024-05 ended
MZEA12 —
71072-1AN11-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2024-05 → —
MZEA12 —
71072-1AN11-C3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2024-05 → —
MZEA12 —
71072-1AP90-C0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-09 → 2025-08 ended
MZEA12 —
71072-1AP90-C1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-09 → —
MZEA12 —
71072-1AQ70-C0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-09 → 2024-05 ended
MZEA12 —
71072-1AQ70-C1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-09 → 2024-05 ended
MZEA12 —
71072-1AQ71-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2024-05 → —
MZEA12 —
71072-1AQ71-C3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2024-05 → —
MZEA12 —
71072-1AQ80-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-09 → —
MZEA12 —
71072-1AQ80-B1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-09 → —
MZEA12 —
71072-1AQ80-E0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-09 → 2025-08 ended
MZEA12 —
71074S — Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71074-1AD30-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-06 → 2022-09 ended
MZEA12 CVT —
71074-1AD30-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-06 → —
MZEA12 6F —
71074-1AD30-C3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-06 → 2022-09 ended
MZEA12 CVT —
71074-1AD30-C3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-06 → —
MZEA12 6F —
71074-1AD60-C6 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-06 → 2020-11 ended
MZEA12 —
71074-1AD60-C7 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-06 → 2020-11 ended
MZEA12 —
71074-1AD61-C6 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2020-12 → —
MZEA12 6F —
71074-1AD61-C6 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2020-12 → 2022-09 ended
MZEA12 CVT —
71074-1AD61-C7 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2020-12 → —
MZEA12 6F —
71074-1AD61-C7 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2020-12 → 2022-09 ended
MZEA12 CVT —
71074-1AD70-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-06 → 2022-09 ended
MZEA12 CVT —
71074-1AD70-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-06 → —
MZEA12 6F —
71074-1AD70-C3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-06 → 2022-09 ended
MZEA12 CVT —
71074-1AD70-C3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-06 → —
MZEA12 6F —
71074-1AG30-B4 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-06 → 2022-09 ended
MZEA12 CVT —
71074-1AG30-B4 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-06 → —
MZEA12 6F —
71074-1AG30-B5 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-06 → —
MZEA12 6F —
71074-1AG30-B5 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-06 → 2022-09 ended
MZEA12 CVT —
71074-1AG30-E2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-06 → —
MZEA12 6F —
71074-1AG30-E2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-06 → 2022-09 ended
MZEA12 CVT —
71074-1AM90-C0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-09 → —
MZEA12 —
71074-1AM90-C1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-09 → —
MZEA12 —
71074-1AN00-C0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-09 → —
MZEA12 —
71074-1AN00-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-09 → —
MZEA12 —
71074-1AN40-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-09 → —
MZEA12 —
71074-1AN40-B1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-09 → —
MZEA12 —
71074-1AN40-E0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-09 → 2025-08 ended
MZEA12 —
71074-1AP10-C0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-09 → 2025-08 ended
MZEA12 —
71074-1AP10-C1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-09 → —
MZEA12 —
71512S — Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71512-12470 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2018-06 → 2022-09 ended
MZEA12 CVT —
71512-12470 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2018-06 → —
MZEA12 6F —
71512-12530 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2018-06 → 2022-09 ended
MZEA12 CVT —
71512-12530 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2018-06 → —
MZEA12 6F —
71512-12590 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2018-06 → —
MZEA12 6F —
71512-12590 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2018-06 → 2022-09 ended
MZEA12 CVT —
71512-12470 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2022-09 → —
MZEA12 —
71512-12530 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2022-09 → —
MZEA12 —
71512-12590 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2022-09 → —
MZEA12 —
71552S — Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71552-12710 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2018-06 → 2022-09 ended
MZEA12 CVT —
71552-12710 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2018-06 → —
MZEA12 6F —
71552-12740 note Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2018-06 → 2022-09 ended
MZEA12 CVT —
71552-12740 note Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2018-06 → —
MZEA12 6F —
71552-12710 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2022-09 → —
MZEA12 —
71552-12740 note Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2022-09 → —
MZEA12 —
71588 — Protector, Front Seatback Edge, NO.2
71587-47010 Protector, Front Seatback Edge, NO.2
2018-06 → 2022-09 ended
MZEA12 CVT —
71587-47010 Protector, Front Seatback Edge, NO.2
2018-06 → —
MZEA12 6F —
71587-47010 Protector, Front Seatback Edge, NO.2
2022-09 → —
MZEA12 —
71759D — Hook, Front Seatback, NO.2
71759-50040 Hook, Front Seatback, NO.2
2020-06 → —
MZEA12 6F —
71759-50040 Hook, Front Seatback, NO.2
2020-06 → 2022-09 ended
MZEA12 CVT —
71759-50040 note Hook, Front Seatback, NO.2
2018-06 → 2020-06 ended
MZEA12 —
71759-50040 note Hook, Front Seatback, NO.2
2018-06 → 2020-06 ended
MZEA12 —
71759-52050 Hook, Front Seatback, NO.2
2018-06 → 2020-06 ended
MZEA12 —
71759-50040 Hook, Front Seatback, NO.2
2022-09 → —
MZEA12 —
71812D — Shield, Front Seat Cushion, LH
71812-33400-C0 note Shield, Front Seat Cushion, LH
2018-06 → —
MZEA12 6F —
71812-33400-C0 note Shield, Front Seat Cushion, LH
2018-06 → —
MZEA12 6F —
71812-33400-C0 note Shield, Front Seat Cushion, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
71812-33400-C0 note Shield, Front Seat Cushion, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
71812-47130-C1 note Shield, Front Seat Cushion, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
71812-47130-C1 note Shield, Front Seat Cushion, LH
2018-06 → —
MZEA12 6F —
71812-47160-C1 note Shield, Front Seat Cushion, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
71812-47160-C1 note Shield, Front Seat Cushion, LH
2018-06 → —
MZEA12 6F —
71812-33400-C0 note Shield, Front Seat Cushion, LH
2022-09 → —
MZEA12 —
71812-33400-C0 note Shield, Front Seat Cushion, LH
2022-09 → —
MZEA12 —
71812-47130-C1 note Shield, Front Seat Cushion, LH
2022-09 → —
MZEA12 —
71812-47160-C1 note Shield, Front Seat Cushion, LH
2022-09 → —
MZEA12 —
7181B — Holder, Front Seat Cushion Wire Harness, LH
7181B-33010 note Holder, Front Seat Cushion Wire Harness, LH
2018-06 → —
MZEA12 6F —
7181B-33010 note Holder, Front Seat Cushion Wire Harness, LH
2018-06 → —
MZEA12 6F —
7181B-33010 note Holder, Front Seat Cushion Wire Harness, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
7181B-33010 note Holder, Front Seat Cushion Wire Harness, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
7181B-47010 Holder, Front Seat Cushion Wire Harness, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
7181B-47010 Holder, Front Seat Cushion Wire Harness, LH
2018-06 → —
MZEA12 6F —
7181B-33010 note Holder, Front Seat Cushion Wire Harness, LH
2022-09 → —
MZEA12 —
7181B-33010 note Holder, Front Seat Cushion Wire Harness, LH
2022-09 → —
MZEA12 —
7181B-47010 Holder, Front Seat Cushion Wire Harness, LH
2022-09 → —
MZEA12 —
71849F — Cap, Seat Adjuster Cover, LH(FOR LH SEAT)
71849-47010-C1 note Cap, Seat Adjuster Cover, LH(FOR LH SEAT)
2018-06 → 2022-09 ended
MZEA12 CVT —
71849-47010-C1 note Cap, Seat Adjuster Cover, LH(FOR LH SEAT)
2018-06 → —
MZEA12 6F —
71849-12020-C0 note Cap, Seat Adjuster Cover, LH(FOR LH SEAT)
2023-03 → —
MZEA12 —
71849-47010-C1 note Cap, Seat Adjuster Cover, LH(FOR LH SEAT)
2022-09 → 2023-03 ended
MZEA12 —
71862 — Shield, Front Seat Cushion, Inner LH
71862-47090-C1 note Shield, Front Seat Cushion, Inner LH
2018-06 → 2022-09 ended
MZEA12 CVT —
71862-47090-C1 note Shield, Front Seat Cushion, Inner LH
2018-06 → —
MZEA12 6F —
71862-47090-C1 note Shield, Front Seat Cushion, Inner LH
2022-09 → —
MZEA12 —
71862-47090-C1 note Shield, Front Seat Cushion, Inner LH
2022-09 → —
MZEA12 —
71862-47090-C1 note Shield, Front Seat Cushion, Inner LH
2022-09 → —
MZEA12 —
71873A — Shield, Front Seat Cushion, Lower
71874-47080 Shield, Front Seat Cushion, Lower
2018-06 → 2022-09 ended
MZEA12 CVT —
71874-47080 Shield, Front Seat Cushion, Lower
2018-06 → —
MZEA12 6F —
71874-47080 Shield, Front Seat Cushion, Lower
2022-09 → —
MZEA12 —
71874A — Shield, Front Seat Cushion, Lower LH
71874-47070 Shield, Front Seat Cushion, Lower LH
2018-06 → —
MZEA12 6F —
71874-47070 Shield, Front Seat Cushion, Lower LH
2018-06 → 2022-09 ended
MZEA12 CVT —
71874-47070 Shield, Front Seat Cushion, Lower LH
2022-09 → —
MZEA12 —
71875G — Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876-47080-C1 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2018-06 → 2022-09 ended
MZEA12 CVT —
71876-47080-C1 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2018-06 → —
MZEA12 6F —
71876-47080-C1 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2022-09 → —
MZEA12 —
71876-47080-C1 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2022-09 → —
MZEA12 —
71876-47080-C1 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2022-09 → —
MZEA12 —
71876G — Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71876-47040-C1 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2018-06 → 2022-09 ended
MZEA12 CVT —
71876-47040-C1 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2018-06 → —
MZEA12 6F —
71876-47040-C1 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2022-09 → —
MZEA12 —
71876-47040-C1 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2022-09 → —
MZEA12 —
71876-47040-C1 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2022-09 → —
MZEA12 —
71910A — Headrest Assy, Front Seat
71910-12M30-B1 note Headrest Assy, Front Seat
2018-06 → —
MZEA12 6F —
71910-12M30-B1 note Headrest Assy, Front Seat
2018-06 → 2022-09 ended
MZEA12 CVT —
71910-12M30-C3 note Headrest Assy, Front Seat
2018-06 → —
MZEA12 6F —
71910-12M30-C3 note Headrest Assy, Front Seat
2018-06 → 2022-09 ended
MZEA12 CVT —
71910-12M30-E2 note Headrest Assy, Front Seat
2018-06 → 2022-09 ended
MZEA12 CVT —
71910-12M30-E2 note Headrest Assy, Front Seat
2018-06 → —
MZEA12 6F —
71910-12N80-C1 note Headrest Assy, Front Seat
2018-06 → 2021-03 ended
MZEA12 —
71910-12N80-D1 note Headrest Assy, Front Seat
2018-06 → 2021-03 ended
MZEA12 —
71910-12N81-C2 note Headrest Assy, Front Seat
2021-03 → 2022-09 ended
MZEA12 CVT —
71910-12N81-C2 note Headrest Assy, Front Seat
2021-03 → —
MZEA12 6F —
71910-12N81-D2 note Headrest Assy, Front Seat
2021-03 → —
MZEA12 6F —
71910-12N81-D2 note Headrest Assy, Front Seat
2021-03 → 2022-09 ended
MZEA12 CVT —
71910-12N90-B1 note Headrest Assy, Front Seat
2018-06 → 2022-09 ended
MZEA12 CVT —
71910-12N90-B1 note Headrest Assy, Front Seat
2018-06 → —
MZEA12 6F —
71910-12N90-C1 note Headrest Assy, Front Seat
2018-06 → —
MZEA12 6F —
71910-12N90-C1 note Headrest Assy, Front Seat
2018-06 → 2022-09 ended
MZEA12 CVT —
71910-12M30-B1 note Headrest Assy, Front Seat
2022-09 → 2024-05 ended
MZEA12 —
71910-12M30-C3 note Headrest Assy, Front Seat
2022-09 → 2024-05 ended
MZEA12 —
71910-12M30-E2 note Headrest Assy, Front Seat
2022-09 → 2024-05 ended
MZEA12 —
71910-12M31-B2 note Headrest Assy, Front Seat
2024-05 → —
MZEA12 —
71910-12M31-C4 note Headrest Assy, Front Seat
2024-05 → —
MZEA12 —
71910-12M31-E3 note Headrest Assy, Front Seat
2024-05 → 2025-08 ended
MZEA12 —
71910-12N81-C2 note Headrest Assy, Front Seat
2022-09 → 2024-05 ended
MZEA12 —
71910-12N81-D2 note Headrest Assy, Front Seat
2022-09 → 2024-05 ended
MZEA12 —
71910-12N82-C3 note Headrest Assy, Front Seat
2024-05 → 2025-08 ended
MZEA12 —
71910-12N82-D3 note Headrest Assy, Front Seat
2024-05 → —
MZEA12 —
71910-12N90-B1 note Headrest Assy, Front Seat
2022-09 → 2024-05 ended
MZEA12 —
71910-12N90-C1 note Headrest Assy, Front Seat
2022-09 → 2024-05 ended
MZEA12 —
71910-12N91-B3 note Headrest Assy, Front Seat
2024-05 → —
MZEA12 —
71910-12N91-C3 note Headrest Assy, Front Seat
2024-05 → —
MZEA12 —
71931 — Support, Front Seat Headrest
71930-47050-B0 note Support, Front Seat Headrest
2018-06 → 2019-09 ended
MZEA12 —
71930-47050-B0 note Support, Front Seat Headrest
2020-06 → —
MZEA12 6F —
71930-47050-B0 note Support, Front Seat Headrest
2019-09 → 2020-06 ended
MZEA12 —
71930-47050-B0 note Support, Front Seat Headrest
2020-06 → 2022-09 ended
MZEA12 CVT —
71930-47050-C5 note Support, Front Seat Headrest
2020-06 → —
MZEA12 6F —
71930-47050-C5 note Support, Front Seat Headrest
2020-06 → 2022-09 ended
MZEA12 CVT —
71930-47050-C5 note Support, Front Seat Headrest
2019-09 → 2020-06 ended
MZEA12 —
71930-47050-C5 note Support, Front Seat Headrest
2018-06 → 2019-09 ended
MZEA12 —
71931-47030-B0 note Support, Front Seat Headrest
2019-09 → 2020-06 ended
MZEA12 —
71931-47030-B0 note Support, Front Seat Headrest
2020-06 → 2022-09 ended
MZEA12 CVT —
71931-47030-B0 note Support, Front Seat Headrest
2020-06 → —
MZEA12 6F —
71931-47030-B0 note Support, Front Seat Headrest
2018-06 → 2019-09 ended
MZEA12 —
71931-47030-C4 note Support, Front Seat Headrest
2019-09 → 2020-06 ended
MZEA12 —
71931-47030-C4 note Support, Front Seat Headrest
2020-06 → —
MZEA12 6F —
71931-47030-C4 note Support, Front Seat Headrest
2020-06 → 2022-09 ended
MZEA12 CVT —
71931-47030-C4 note Support, Front Seat Headrest
2018-06 → 2019-09 ended
MZEA12 —
71930-47050-B0 note Support, Front Seat Headrest
2022-09 → —
MZEA12 —
71930-47050-C5 note Support, Front Seat Headrest
2022-09 → —
MZEA12 —
71931-47030-B0 note Support, Front Seat Headrest
2022-09 → —
MZEA12 —
71931-47030-C4 note Support, Front Seat Headrest
2022-09 → —
MZEA12 —
72020 — Adjuster Assy, Front Seat, LH
72020-33450 note Adjuster Assy, Front Seat, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
72020-33450 note Adjuster Assy, Front Seat, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
72020-33450 note Adjuster Assy, Front Seat, LH
2018-06 → —
MZEA12 6F —
72020-33450 note Adjuster Assy, Front Seat, LH
2018-06 → —
MZEA12 6F —
72020-47370 Adjuster Assy, Front Seat, LH
2018-06 → 2019-05 ended
MZEA12 —
72020-47371 Adjuster Assy, Front Seat, LH
2019-06 → 2022-09 ended
MZEA12 CVT —
72020-47371 Adjuster Assy, Front Seat, LH
2019-06 → —
MZEA12 6F —
72020-33450 note Adjuster Assy, Front Seat, LH
2022-09 → —
MZEA12 —
72020-33450 note Adjuster Assy, Front Seat, LH
2022-09 → —
MZEA12 —
72020-47371 Adjuster Assy, Front Seat, LH
2022-09 → —
MZEA12 —
72124 — Cover, Seat Track Bracket, Outer Front LH
72123-47060 Cover, Seat Track Bracket, Outer Front LH
2018-06 → —
MZEA12 6F —
72123-47060 Cover, Seat Track Bracket, Outer Front LH
2018-06 → 2022-09 ended
MZEA12 CVT —
72123-47060 Cover, Seat Track Bracket, Outer Front LH
2022-09 → —
MZEA12 —
72125M — Cover, Seat Track, Upper NO.3
72125-47010 Cover, Seat Track, Upper NO.3
2018-06 → 2022-09 ended
MZEA12 CVT —
72125-47010 Cover, Seat Track, Upper NO.3
2018-06 → —
MZEA12 6F —
72125-47010 Cover, Seat Track, Upper NO.3
2022-09 → —
MZEA12 —
72128A — Cover, Seat Track Bracket, Inner Front LH
72123-47060 Cover, Seat Track Bracket, Inner Front LH
2018-06 → 2022-09 ended
MZEA12 CVT —
72123-47060 Cover, Seat Track Bracket, Inner Front LH
2018-06 → —
MZEA12 6F —
72123-47060 Cover, Seat Track Bracket, Inner Front LH
2022-09 → —
MZEA12 —
72138N — Cover, Seat Track Bracket, Outer Rear LH
72137-47060 Cover, Seat Track Bracket, Outer Rear LH
2018-06 → 2022-09 ended
MZEA12 CVT —
72137-47060 Cover, Seat Track Bracket, Outer Rear LH
2018-06 → —
MZEA12 6F —
72137-47060 Cover, Seat Track Bracket, Outer Rear LH
2022-09 → —
MZEA12 —
72158 — Cover, Seat Track Bracket, Inner LH
72158-47080 Cover, Seat Track Bracket, Inner LH
2018-06 → 2022-09 ended
MZEA12 CVT —
72158-47080 Cover, Seat Track Bracket, Inner LH
2018-06 → —
MZEA12 6F —
72158-47080 Cover, Seat Track Bracket, Inner LH
2022-09 → —
MZEA12 —
72211C — Handle, Seat Track Adjusting
72211-47050 Handle, Seat Track Adjusting
2018-06 → 2022-09 ended
MZEA12 CVT —
72211-47050 Handle, Seat Track Adjusting
2018-06 → —
MZEA12 6F —
72211-47050 Handle, Seat Track Adjusting
2022-09 → —
MZEA12 —
72266 — Cover, Seat Track Upper Rail, LH
72265-47010 Cover, Seat Track Upper Rail, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
72265-47010 Cover, Seat Track Upper Rail, LH
2018-06 → —
MZEA12 6F —
72265-47020 note Cover, Seat Track Upper Rail, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
72265-47020 note Cover, Seat Track Upper Rail, LH
2018-06 → —
MZEA12 6F —
72265-47020 note Cover, Seat Track Upper Rail, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
72265-47020 note Cover, Seat Track Upper Rail, LH
2018-06 → —
MZEA12 6F —
72265-47010 Cover, Seat Track Upper Rail, LH
2022-09 → —
MZEA12 —
72265-47020 note Cover, Seat Track Upper Rail, LH
2022-09 → —
MZEA12 —
72265-47020 note Cover, Seat Track Upper Rail, LH
2022-09 → —
MZEA12 —
72443B — Gear, Vertical Adjuster, LH
72443-47020 Gear, Vertical Adjuster, LH
2018-06 → 2019-03 ended
MZEA12 —
72443-47021 Gear, Vertical Adjuster, LH
2019-04 → 2022-09 ended
MZEA12 CVT —
72443-47021 Gear, Vertical Adjuster, LH
2019-04 → —
MZEA12 6F —
72443-47021 Gear, Vertical Adjuster, LH
2022-09 → —
MZEA12 —
72495 — Handle, Vertical Adjusting, LH
72495-47020-C1 note Handle, Vertical Adjusting, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
72495-47020-C1 note Handle, Vertical Adjusting, LH
2018-06 → —
MZEA12 6F —
72495-12020-C0 note Handle, Vertical Adjusting, LH
2023-03 → —
MZEA12 —
72495-47020-C1 note Handle, Vertical Adjusting, LH
2022-09 → 2023-03 ended
MZEA12 —
72498B — Cover, Vertical Adjuster Bracket, Outer
72498-47020 Cover, Vertical Adjuster Bracket, Outer
2018-06 → 2022-09 ended
MZEA12 CVT —
72498-47020 Cover, Vertical Adjuster Bracket, Outer
2018-06 → —
MZEA12 6F —
72498-47020 Cover, Vertical Adjuster Bracket, Outer
2022-09 → —
MZEA12 —
72526A — Handle, Reclining Adjuster Release, LH
72526-33050-C0 note Handle, Reclining Adjuster Release, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
72526-33050-C0 note Handle, Reclining Adjuster Release, LH
2018-06 → —
MZEA12 6F —
72526-33050-C0 note Handle, Reclining Adjuster Release, LH
2022-09 → —
MZEA12 —
72552B — Cover, Reclining Hinge, LH
72551-33010-C0 note Cover, Reclining Hinge, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
72551-33010-C0 note Cover, Reclining Hinge, LH
2018-06 → —
MZEA12 6F —
72551-33010-C0 note Cover, Reclining Hinge, LH
2022-09 → —
MZEA12 —
72760D — Adjuster Assy, Lumbar Support, LH
72750-33140 note Adjuster Assy, Lumbar Support, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
72750-33140 note Adjuster Assy, Lumbar Support, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
72750-33140 note Adjuster Assy, Lumbar Support, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
72750-33140 note Adjuster Assy, Lumbar Support, LH
2018-06 → —
MZEA12 6F —
72750-33140 note Adjuster Assy, Lumbar Support, LH
2018-06 → —
MZEA12 6F —
72750-33140 note Adjuster Assy, Lumbar Support, LH
2018-06 → —
MZEA12 6F —
72750-33140 note Adjuster Assy, Lumbar Support, LH
2022-09 → —
MZEA12 —
72750-33140 note Adjuster Assy, Lumbar Support, LH
2022-09 → —
MZEA12 —
72750-33140 note Adjuster Assy, Lumbar Support, LH
2022-09 → —
MZEA12 —
73920A — Airbag Assy, Front Seat, LH
73920-12090 Airbag Assy, Front Seat, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
73920-12090 Airbag Assy, Front Seat, LH
2018-06 → —
MZEA12 6F —
73920-12090 Airbag Assy, Front Seat, LH
2022-09 → —
MZEA12 —
76854C — Retainer, Front Seat Cushion Cover
76854-44010 Retainer, Front Seat Cushion Cover
2022-09 → —
MZEA12 —
79977B — Felt, Seatback Frame
79977-12090 Felt, Seatback Frame
2019-04 → —
MZEA12 6F —
79977-12090 note Felt, Seatback Frame
2019-04 → 2022-09 ended
MZEA12 CVT —
79977-12090 note Felt, Seatback Frame
2019-04 → —
MZEA12 6F —
79977-12090 Felt, Seatback Frame
2019-04 → 2022-09 ended
MZEA12 CVT —
79977-12090 note Felt, Seatback Frame
2019-04 → 2022-09 ended
MZEA12 CVT —
79977-12090 note Felt, Seatback Frame
2019-04 → —
MZEA12 6F —
79977-12090 note Felt, Seatback Frame
2022-09 → —
MZEA12 —
79977-12090 note Felt, Seatback Frame
2022-09 → —
MZEA12 —
79977-12090 Felt, Seatback Frame
2022-09 → —
MZEA12 —
79977H — Felt, Front Seatback, LH
79977-33030 note Felt, Front Seatback, LH
2018-06 → —
MZEA12 6F —
79977-33030 note Felt, Front Seatback, LH
2018-06 → —
MZEA12 6F —
79977-33030 note Felt, Front Seatback, LH
2018-06 → —
MZEA12 6F —
79977-33030 note Felt, Front Seatback, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
79977-33030 note Felt, Front Seatback, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
79977-33030 note Felt, Front Seatback, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
79977-33030 note Felt, Front Seatback, LH
2022-09 → —
MZEA12 —
79977-33030 note Felt, Front Seatback, LH
2022-09 → —
MZEA12 —
79977-33030 note Felt, Front Seatback, LH
2022-09 → —
MZEA12 —
87510L — Heater Assy, Front Seat Cushion, LH
87510-12370 note Heater Assy, Front Seat Cushion, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
87510-12370 note Heater Assy, Front Seat Cushion, LH
2018-06 → —
MZEA12 6F —
87510-12390 note Heater Assy, Front Seat Cushion, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
87510-12390 note Heater Assy, Front Seat Cushion, LH
2018-06 → —
MZEA12 6F —
87510-12390 note Heater Assy, Front Seat Cushion, LH
2018-06 → —
MZEA12 6F —
87510-12390 note Heater Assy, Front Seat Cushion, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
87510-12370 note Heater Assy, Front Seat Cushion, LH
2022-09 → 2024-02 ended
MZEA12 —
87510-12371 note Heater Assy, Front Seat Cushion, LH
2024-03 → —
MZEA12 —
87510-12390 note Heater Assy, Front Seat Cushion, LH
2022-09 → —
MZEA12 —
87510-12390 note Heater Assy, Front Seat Cushion, LH
2022-09 → —
MZEA12 —
87510N — Heater Assy, Front Seatback, LH
87530-12090 note Heater Assy, Front Seatback, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
87530-12090 note Heater Assy, Front Seatback, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
87530-12090 note Heater Assy, Front Seatback, LH
2018-06 → —
MZEA12 6F —
87530-12090 note Heater Assy, Front Seatback, LH
2018-06 → —
MZEA12 6F —
87530-12110 note Heater Assy, Front Seatback, LH
2018-06 → 2022-09 ended
MZEA12 CVT —
87530-12110 note Heater Assy, Front Seatback, LH
2018-06 → —
MZEA12 6F —
87530-12090 note Heater Assy, Front Seatback, LH
2022-09 → —
MZEA12 —
87530-12090 note Heater Assy, Front Seatback, LH
2022-09 → —
MZEA12 —
87530-12110 note Heater Assy, Front Seatback, LH
2022-09 → —
MZEA12 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
