Toyota Corolla Hatchback
2018-06 → present · chassis MZEA12 · catalogue 165430 · United States
Supported model
Data version 2022-09

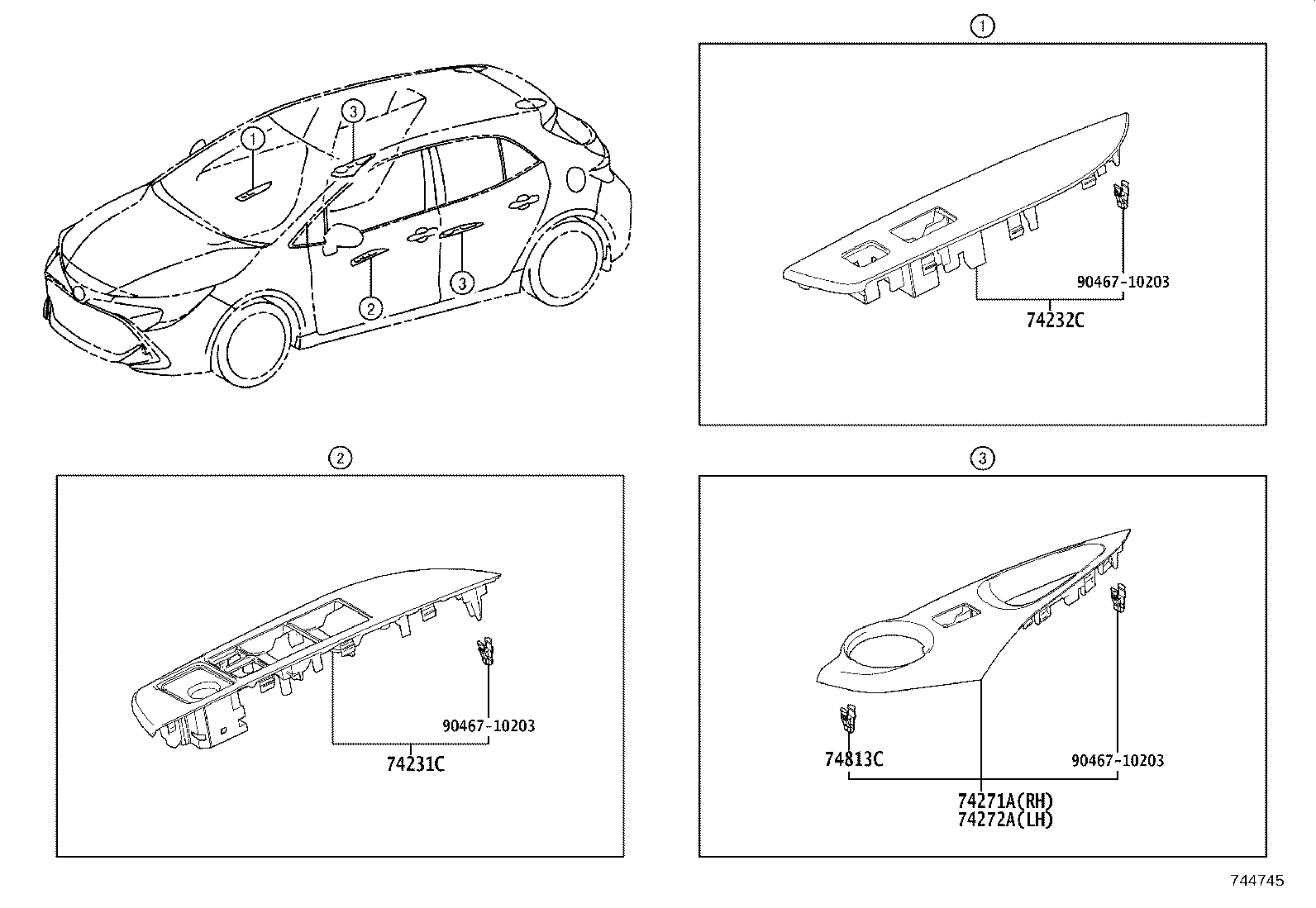

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 74231C — Panel, Front Door Armrest Base, Upper Driver Side | ||||
| 74232-12A90 |
Panel, Front Door Armrest Base, Upper Driver Side
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 74232-12A90 |
Panel, Front Door Armrest Base, Upper Driver Side
2018-06 → —
|
MZEA12 6F | — | |
| 74232-12A90 |
Panel, Front Door Armrest Base, Upper Driver Side
2022-09 → —
|
MZEA12 | — | |
| 74232C — Panel, Front Door Armrest Base, Upper Passenger Side | ||||
| 74231-12D00 |
Panel, Front Door Armrest Base, Upper Passenger Side
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 74231-12D00 |
Panel, Front Door Armrest Base, Upper Passenger Side
2018-06 → —
|
MZEA12 6F | — | |
| 74231-12D00 |
Panel, Front Door Armrest Base, Upper Passenger Side
2022-09 → —
|
MZEA12 | — | |
| 74271A — Panel, Rear Door Armrest Base, Upper RH | ||||
| 74271-12560 |
Panel, Rear Door Armrest Base, Upper RH
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 74271-12560 |
Panel, Rear Door Armrest Base, Upper RH
2018-06 → —
|
MZEA12 6F | — | |
| 74271-12560 |
Panel, Rear Door Armrest Base, Upper RH
2022-09 → —
|
MZEA12 | — | |
| 74272A — Panel, Rear Door Armrest Base, Upper LH | ||||
| 74272-12530 |
Panel, Rear Door Armrest Base, Upper LH
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 74272-12530 |
Panel, Rear Door Armrest Base, Upper LH
2018-06 → —
|
MZEA12 6F | — | |
| 74272-12530 |
Panel, Rear Door Armrest Base, Upper LH
2022-09 → —
|
MZEA12 | — | |
| 74813C — Clip | ||||
| 90467-12080 note |
Clip
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 90467-12080 note |
Clip
2018-06 → —
|
MZEA12 6F | — | |
| 90467-12080 note |
Clip
2022-09 → —
|
MZEA12 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
