Toyota Corolla Hatchback
2018-06 → present · chassis MZEA12 · catalogue 165430 · United States
Supported model
Data version 2022-09

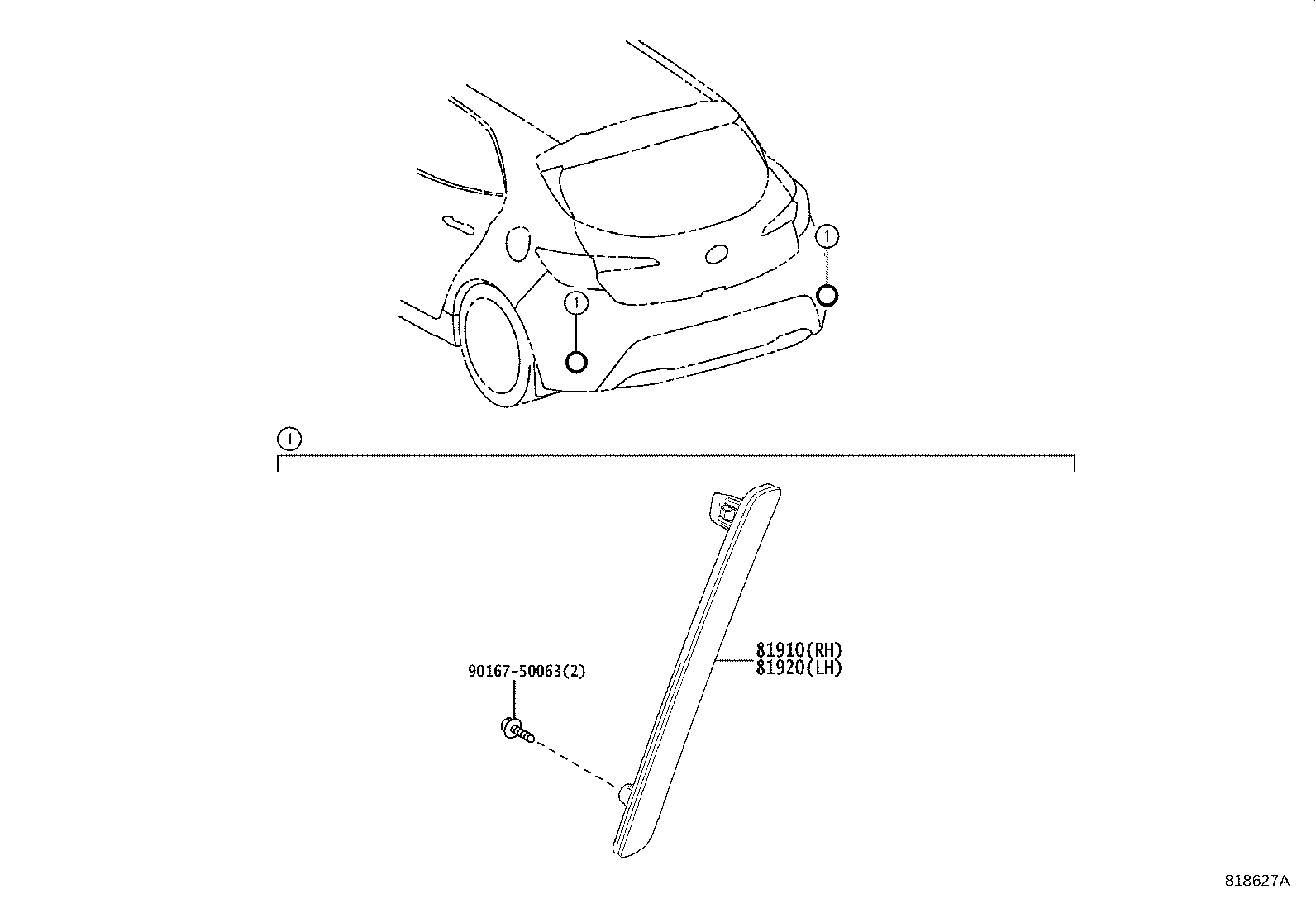

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81910 — Reflector Assy, Reflex, RH | ||||
| 81910-12140 |
Reflector Assy, Reflex, RH
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 81910-12140 |
Reflector Assy, Reflex, RH
2018-06 → —
|
MZEA12 6F | — | |
| 81910-12140 |
Reflector Assy, Reflex, RH
2022-09 → —
|
MZEA12 | — | |
| 81920 — Reflector Assy, Reflex, LH | ||||
| 81920-12130 |
Reflector Assy, Reflex, LH
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 81920-12130 |
Reflector Assy, Reflex, LH
2018-06 → —
|
MZEA12 6F | — | |
| 81920-12130 |
Reflector Assy, Reflex, LH
2022-09 → —
|
MZEA12 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
