Toyota Corolla Hatchback
2018-06 → present · chassis MZEA12 · catalogue 165430 · United States
Supported model
Data version 2022-09

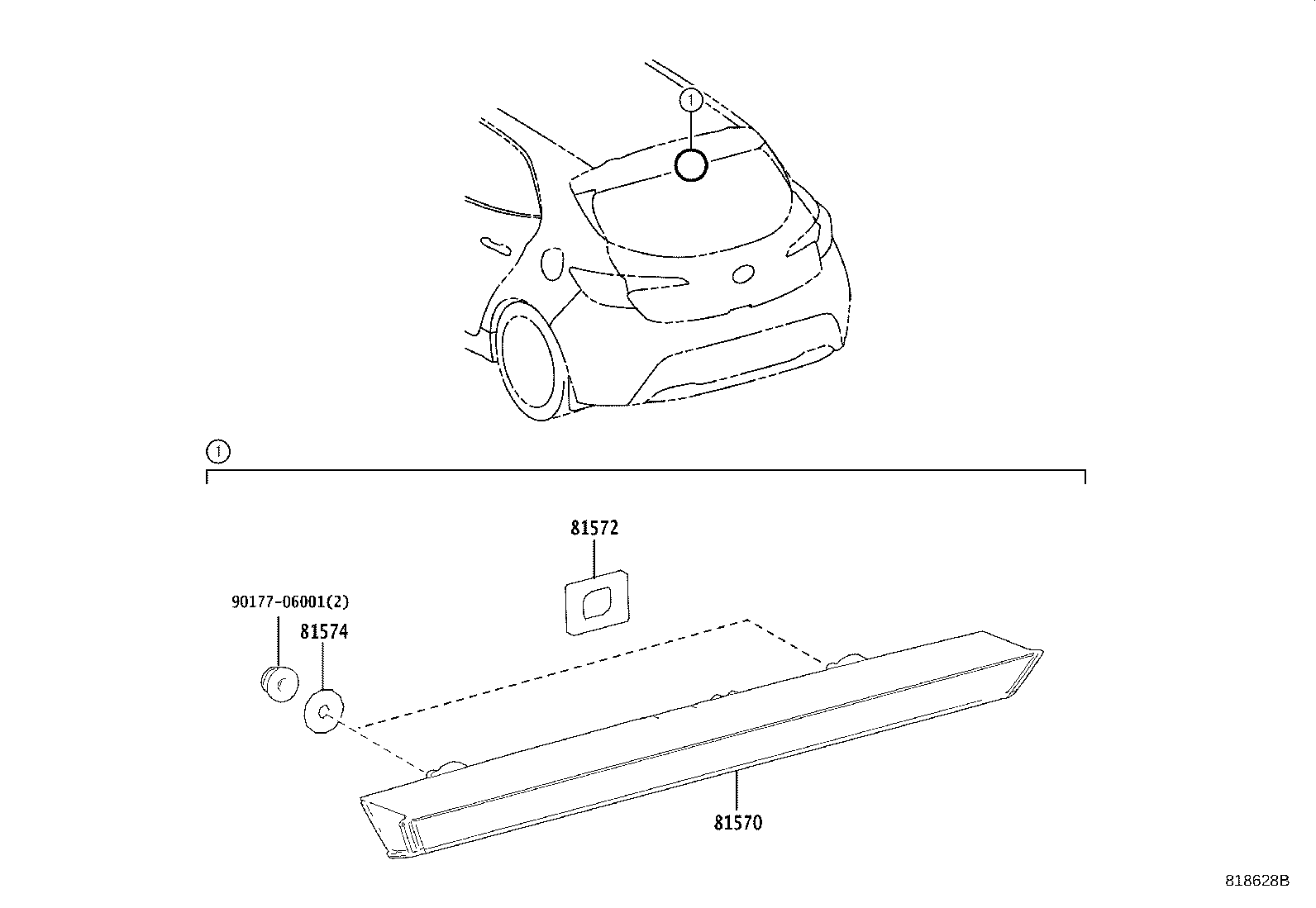

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81570 — Lamp Assy, Center Stop | ||||
| 81570-12450 |
Lamp Assy, Center Stop
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 81570-12450 |
Lamp Assy, Center Stop
2018-06 → —
|
MZEA12 6F | — | |
| 81570-12450 |
Lamp Assy, Center Stop
2022-09 → —
|
MZEA12 | — | |
| 81572 — Gasket, Center Stop Lamp | ||||
| 81572-12450 |
Gasket, Center Stop Lamp
2018-06 → —
|
MZEA12 | — | |
| 81572-12450 |
Gasket, Center Stop Lamp
2022-09 → —
|
MZEA12 | — | |
| 81574 — Cover, Center Stop Lamp | ||||
| 81574-13210 |
Cover, Center Stop Lamp
2018-06 → —
|
MZEA12 | — | |
| 81574-13210 |
Cover, Center Stop Lamp
2022-09 → —
|
MZEA12 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
