Toyota Corolla Hatchback
2018-06 → present · chassis MZEA12 · catalogue 165430 · United States
Supported model
Data version 2022-09

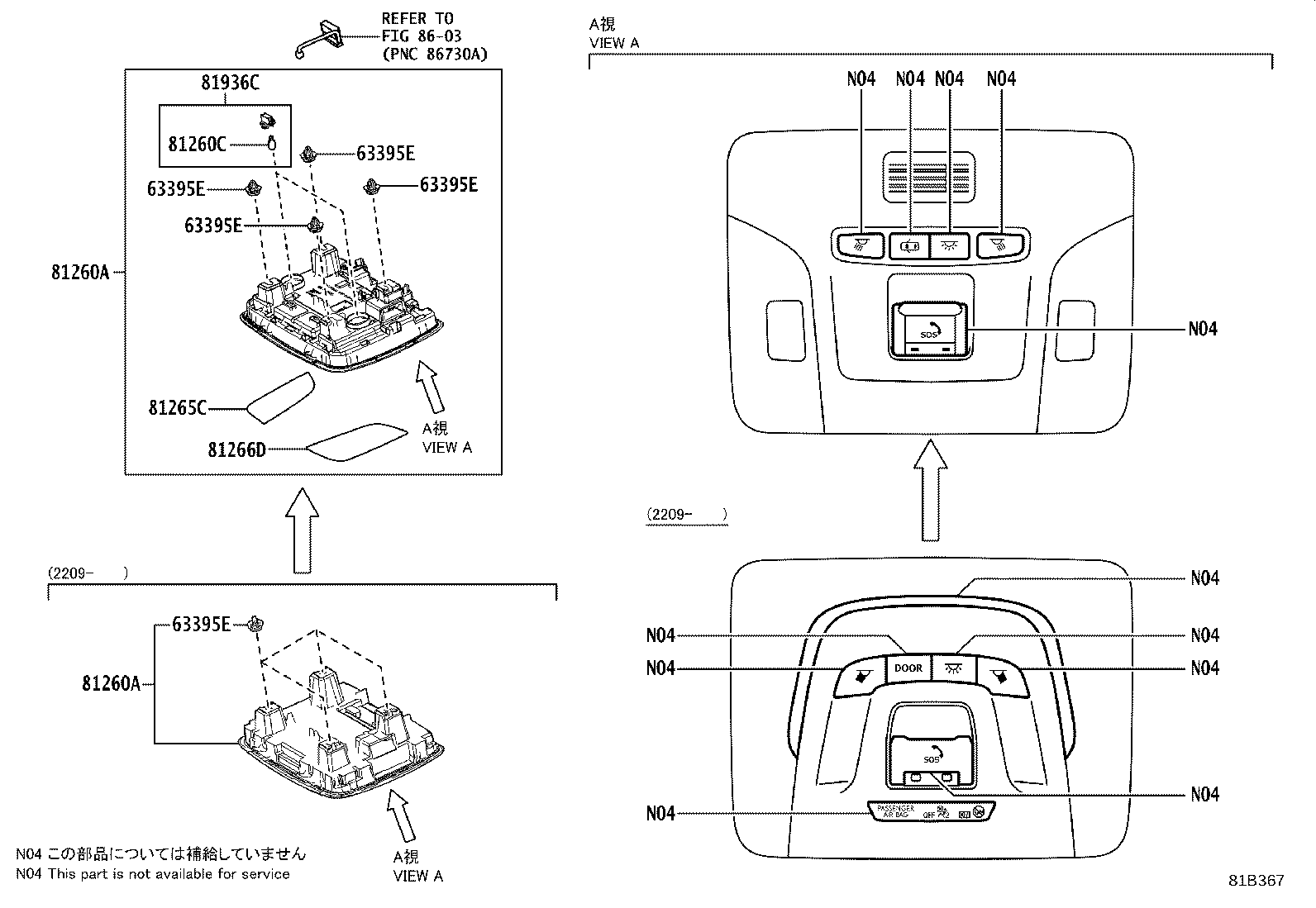

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 63395E — Clip(FOR MAP LAMP) | ||||
| 90467-09240 |
Clip(FOR MAP LAMP)
2018-06 → —
|
MZEA12 6F | — | |
| 90467-09240 |
Clip(FOR MAP LAMP)
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 90467-09245 |
Clip(FOR MAP LAMP)
2022-09 → —
|
MZEA12 | — | |
| 81260A — Lamp Assy, Map | ||||
| 81208-12010-C0 note |
Lamp Assy, Map
2019-09 → —
|
MZEA12 6F USA | — | |
| 81208-12010-C0 note |
Lamp Assy, Map
2018-10 → —
|
MZEA12 6F CND | — | |
| 81208-12010-C0 note |
Lamp Assy, Map
2019-09 → —
|
MZEA12 6F USA | — | |
| 81208-12010-C0 note |
Lamp Assy, Map
2019-09 → —
|
MZEA12 6F USA | — | |
| 81208-12010-C0 note |
Lamp Assy, Map
2019-09 → 2022-09
ended
|
MZEA12 CVT USA | — | |
| 81208-12010-C0 note |
Lamp Assy, Map
2019-09 → 2022-09
ended
|
MZEA12 CVT USA | — | |
| 81208-12010-C0 note |
Lamp Assy, Map
2019-09 → 2022-09
ended
|
MZEA12 CVT USA | — | |
| 81208-12010-C0 note |
Lamp Assy, Map
2018-10 → 2022-09
ended
|
MZEA12 CVT CND | — | |
| 81208-12010-C0 note |
Lamp Assy, Map
2018-10 → 2019-09
ended
|
MZEA12 USA | — | |
| 81208-12010-C0 note |
Lamp Assy, Map
2018-10 → 2019-09
ended
|
MZEA12 USA | — | |
| 81208-12010-C0 note |
Lamp Assy, Map
2018-10 → 2019-09
ended
|
MZEA12 USA | — | |
| 81208-12020-C0 note |
Lamp Assy, Map
2018-10 → 2019-09
ended
|
MZEA12 USA | — | |
| 81208-12020-C0 note |
Lamp Assy, Map
2018-10 → 2019-09
ended
|
MZEA12 USA | — | |
| 81208-12020-C0 note |
Lamp Assy, Map
2018-10 → 2019-09
ended
|
MZEA12 USA | — | |
| 81208-12020-C0 note |
Lamp Assy, Map
2018-10 → 2019-09
ended
|
MZEA12 CND | — | |
| 81208-12020-C0 note |
Lamp Assy, Map
2018-10 → 2019-09
ended
|
MZEA12 CND | — | |
| 81208-12020-C0 note |
Lamp Assy, Map
2018-10 → 2019-09
ended
|
MZEA12 CND | — | |
| 81208-12190-C0 note |
Lamp Assy, Map
2018-06 → 2018-10
ended
|
MZEA12 USA | — | |
| 81208-12190-C0 note |
Lamp Assy, Map
2018-06 → 2018-10
ended
|
MZEA12 USA | — | |
| 81208-12190-C0 note |
Lamp Assy, Map
2018-06 → 2018-10
ended
|
MZEA12 USA | — | |
| 81208-12190-C0 note |
Lamp Assy, Map
2018-06 → 2018-10
ended
|
MZEA12 CND | — | |
| 81208-12210-C0 note |
Lamp Assy, Map
2018-06 → 2018-10
ended
|
MZEA12 CND | — | |
| 81208-12210-C0 note |
Lamp Assy, Map
2018-06 → 2018-10
ended
|
MZEA12 USA | — | |
| 81208-12210-C0 note |
Lamp Assy, Map
2018-06 → 2018-10
ended
|
MZEA12 USA | — | |
| 81208-12210-C0 note |
Lamp Assy, Map
2018-06 → 2018-10
ended
|
MZEA12 USA | — | |
| 81208-12210-C0 note |
Lamp Assy, Map
2018-06 → 2018-10
ended
|
MZEA12 CND | — | |
| 81208-12210-C0 note |
Lamp Assy, Map
2018-06 → 2018-10
ended
|
MZEA12 CND | — | |
| 81208-12240-C0 note |
Lamp Assy, Map
2019-09 → 2020-06
ended
|
MZEA12 CND | — | |
| 81208-12240-C0 note |
Lamp Assy, Map
2019-09 → —
|
MZEA12 6F USA | — | |
| 81208-12240-C0 note |
Lamp Assy, Map
2020-06 → —
|
MZEA12 6F CND | — | |
| 81208-12240-C0 note |
Lamp Assy, Map
2020-06 → 2022-09
ended
|
MZEA12 CVT CND | — | |
| 81208-12240-C0 note |
Lamp Assy, Map
2019-09 → 2022-09
ended
|
MZEA12 CVT USA | — | |
| 81208-12240-C0 note |
Lamp Assy, Map
2019-09 → 2020-06
ended
|
MZEA12 CND | — | |
| 81208-12240-C0 note |
Lamp Assy, Map
2019-09 → 2020-06
ended
|
MZEA12 CND | — | |
| 81260-16170-C0 note |
Lamp Assy, Map
2022-09 → —
|
MZEA12 | — | |
| 81260C — Bulb(FOR MAP LAMP) | ||||
| 99132-12050 note |
Bulb(FOR MAP LAMP)
2018-06 → —
|
MZEA12 | — | |
| 81265C — Lens, Map Lamp, NO.1 | ||||
| 81265-12370 |
Lens, Map Lamp, NO.1
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 81265-12370 |
Lens, Map Lamp, NO.1
2018-06 → —
|
MZEA12 6F | — | |
| 81266D — Lens, Map Lamp, NO.2 | ||||
| 81266-12370 |
Lens, Map Lamp, NO.2
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 81266-12370 |
Lens, Map Lamp, NO.2
2018-06 → —
|
MZEA12 6F | — | |
| 81936C — Bulb Assy | ||||
| 81936-12160 |
Bulb Assy
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 81936-12160 |
Bulb Assy
2018-06 → —
|
MZEA12 6F | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
