Toyota Corolla Hatchback
2018-06 → present · chassis MZEA12 · catalogue 165430 · United States
Supported model
Data version 2022-09

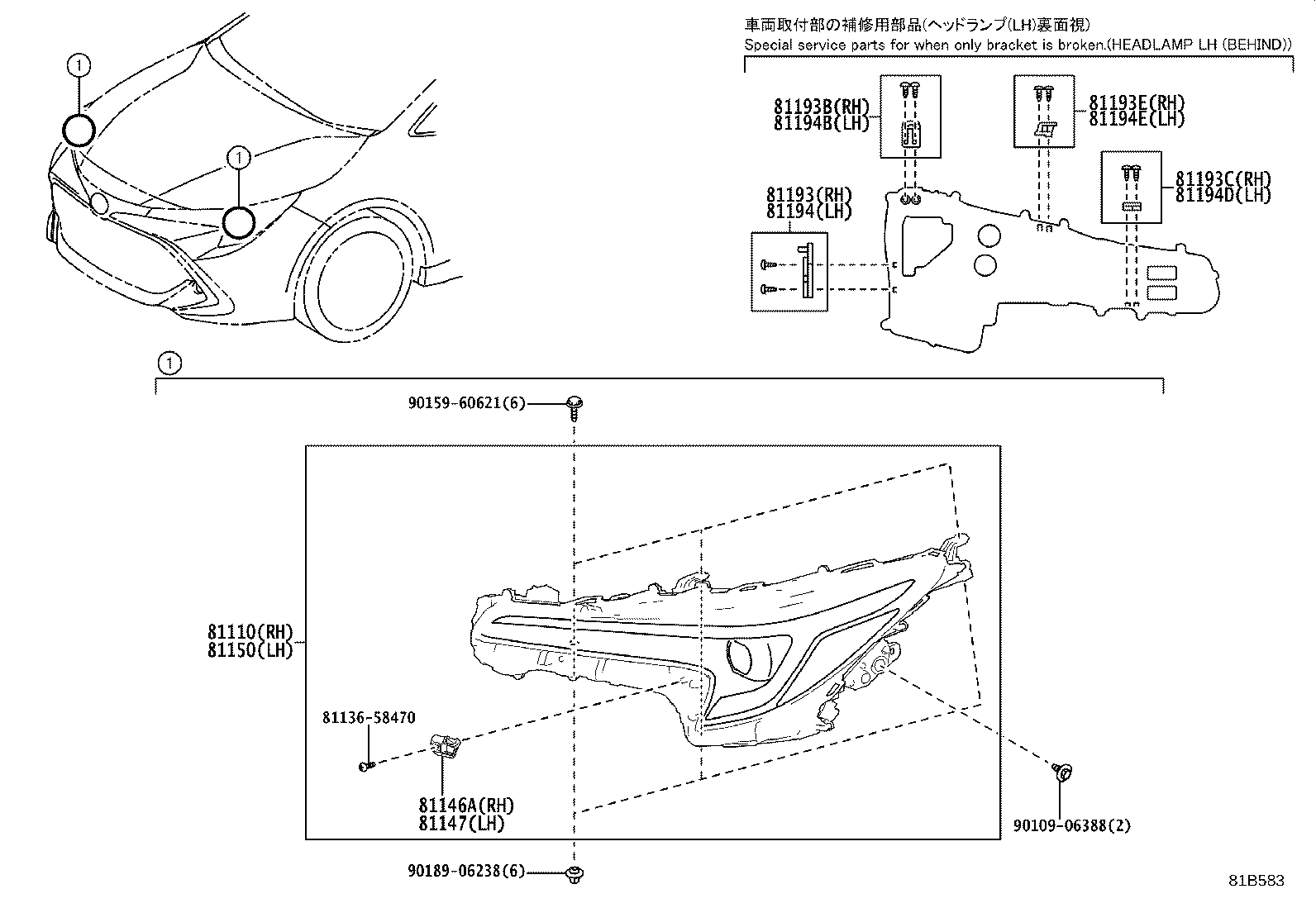

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81110 — Headlamp Assy, RH | ||||
| 81110-12N20 |
Headlamp Assy, RH
2022-09 → —
|
MZEA12 | — | |
| 81146A — Fitting, Headlamp, RH | ||||
| 81146-12L00 |
Fitting, Headlamp, RH
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 81146-12L00 |
Fitting, Headlamp, RH
2018-06 → —
|
MZEA12 6F | — | |
| 81146-12L00 |
Fitting, Headlamp, RH
2022-09 → —
|
MZEA12 | — | |
| 81147 — Fitting, Headlamp, LH | ||||
| 81186-12L00 |
Fitting, Headlamp, LH
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 81186-12L00 |
Fitting, Headlamp, LH
2018-06 → —
|
MZEA12 6F | — | |
| 81186-12L00 |
Fitting, Headlamp, LH
2022-09 → —
|
MZEA12 | — | |
| 81150 — Headlamp Assy, LH | ||||
| 81150-12N20 |
Headlamp Assy, LH
2022-09 → —
|
MZEA12 | — | |
| 81193 — Retainer, Headlamp Protector, Upper RH | ||||
| 81193-12250 |
Retainer, Headlamp Protector, Upper RH
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 81193-12250 |
Retainer, Headlamp Protector, Upper RH
2018-06 → —
|
MZEA12 6F | — | |
| 81193-12250 |
Retainer, Headlamp Protector, Upper RH
2022-09 → —
|
MZEA12 | — | |
| 81193B — Retainer, Headlamp Protector, Upper RH NO.2 | ||||
| 81193-12260 |
Retainer, Headlamp Protector, Upper RH NO.2
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 81193-12260 |
Retainer, Headlamp Protector, Upper RH NO.2
2018-06 → —
|
MZEA12 6F | — | |
| 81193-12260 |
Retainer, Headlamp Protector, Upper RH NO.2
2022-09 → —
|
MZEA12 | — | |
| 81193C — Retainer, RH Headlamp Protector, Upper RH | ||||
| 81193-12270 |
Retainer, RH Headlamp Protector, Upper RH
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 81193-12270 |
Retainer, RH Headlamp Protector, Upper RH
2018-06 → —
|
MZEA12 6F | — | |
| 81193-12270 |
Retainer, RH Headlamp Protector, Upper RH
2022-09 → —
|
MZEA12 | — | |
| 81193E — Retainer, Headlamp Protector, Upper RH NO.3 | ||||
| 81193-12280 |
Retainer, Headlamp Protector, Upper RH NO.3
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 81193-12280 |
Retainer, Headlamp Protector, Upper RH NO.3
2018-06 → —
|
MZEA12 6F | — | |
| 81193-12280 |
Retainer, Headlamp Protector, Upper RH NO.3
2022-09 → —
|
MZEA12 | — | |
| 81194 — Retainer, Headlamp Protector, Upper LH | ||||
| 81194-12250 |
Retainer, Headlamp Protector, Upper LH
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 81194-12250 |
Retainer, Headlamp Protector, Upper LH
2018-06 → —
|
MZEA12 6F | — | |
| 81194-12250 |
Retainer, Headlamp Protector, Upper LH
2022-09 → —
|
MZEA12 | — | |
| 81194B — Retainer, Headlamp Protector, Upper LH NO.2 | ||||
| 81194-12260 |
Retainer, Headlamp Protector, Upper LH NO.2
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 81194-12260 |
Retainer, Headlamp Protector, Upper LH NO.2
2018-06 → —
|
MZEA12 6F | — | |
| 81194-12260 |
Retainer, Headlamp Protector, Upper LH NO.2
2022-09 → —
|
MZEA12 | — | |
| 81194D — Retainer, LH Headlamp Protector, Upper LH | ||||
| 81194-12270 |
Retainer, LH Headlamp Protector, Upper LH
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 81194-12270 |
Retainer, LH Headlamp Protector, Upper LH
2018-06 → —
|
MZEA12 6F | — | |
| 81194-12270 |
Retainer, LH Headlamp Protector, Upper LH
2022-09 → —
|
MZEA12 | — | |
| 81194E — Retainer, Headlamp Protector, Upper LH NO.3 | ||||
| 81194-12280 |
Retainer, Headlamp Protector, Upper LH NO.3
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 81194-12280 |
Retainer, Headlamp Protector, Upper LH NO.3
2018-06 → —
|
MZEA12 6F | — | |
| 81194-12280 |
Retainer, Headlamp Protector, Upper LH NO.3
2022-09 → —
|
MZEA12 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
