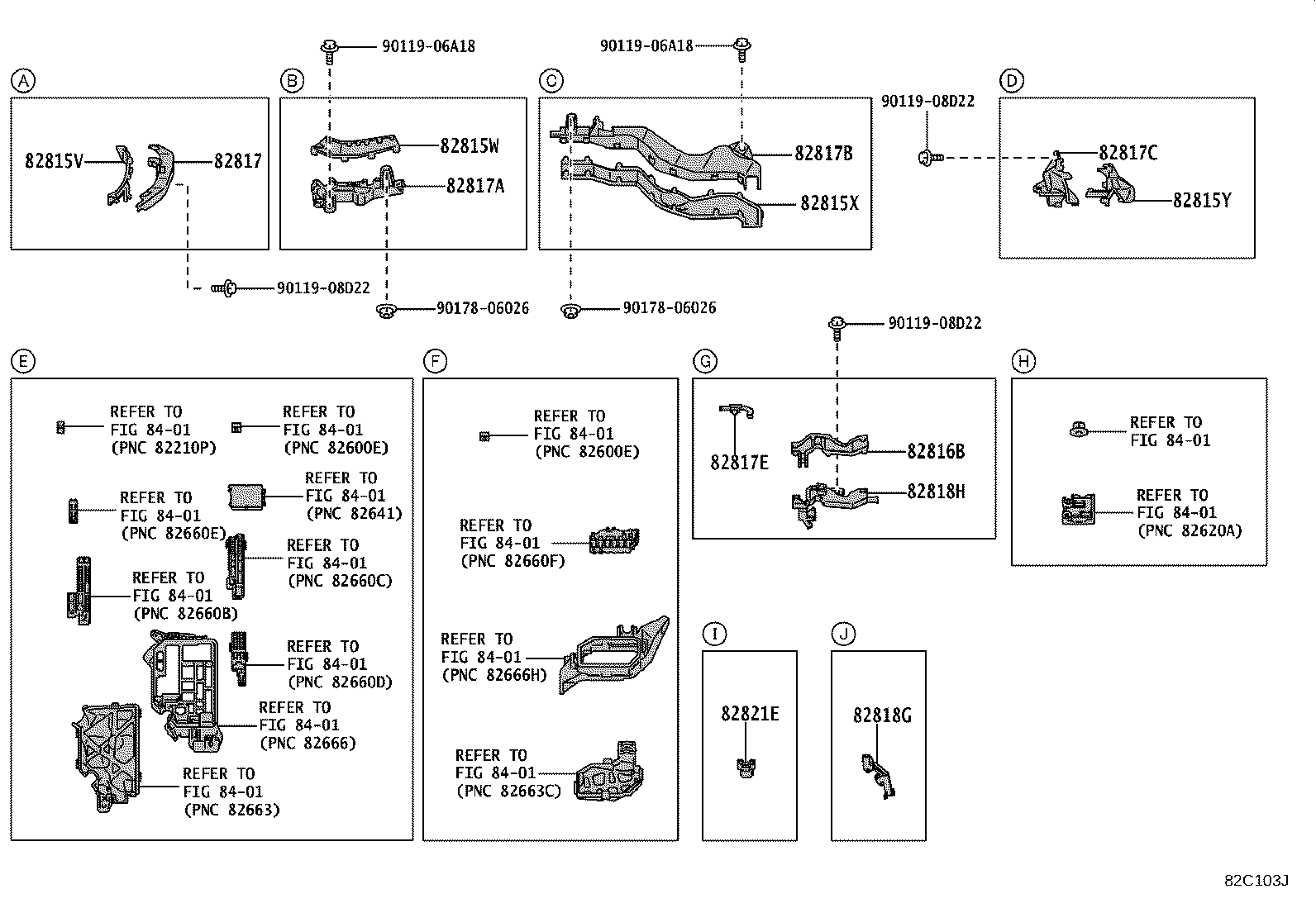

Exploded illustration 82C103J 9011908D22 — not listed in this catalogue 82815V — COVER, WIRING HARNESS PROTECTOR, NO.1 (3 parts) 82817 — PROTECTOR, WIRING HARNESS, NO.1 (3 parts) 9011908D22 — not listed in this catalogue 9011906A18 — not listed in this catalogue 9017806026 — not listed in this catalogue 82817A — PROTECTOR, WIRING HARNESS, NO.2 (3 parts) 82815W — COVER, WIRING HARNESS PROTECTOR, NO.2 (3 parts) 82815X — COVER, WIRING HARNESS PROTECTOR, NO.3 (3 parts) 82817B — PROTECTOR, WIRING HARNESS, NO.3 (3 parts) 9011906A18 — not listed in this catalogue 9017806026 — not listed in this catalogue 82815Y — COVER, WIRING HARNESS PROTECTOR, NO.4 (3 parts) 82817C — PROTECTOR, WIRING HARNESS, NO.4 (3 parts) 9011908D22 — not listed in this catalogue 82817E — PROTECTOR, WIRING HARNESS, NO.6 (2 parts) 82818H — PROTECTOR, WIRING HARNESS, NO.9 (3 parts) 82816B — COVER, WIRING HARNESS PROTECTOR, NO.1 (3 parts) 82821E — COVER, CONNECTOR (3 parts) 82818G — PROTECTOR, WIRING HARNESS, NO.8 (3 parts) 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue
82C103J · 13 callouts, 22 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
38 parts on this figure
Part number Description Fitment Price
82815V — Cover, Wiring Harness Protector, NO.1
82815-12L00 Cover, Wiring Harness Protector, NO.1
2018-06 → —
MZEA12 6F —
82815-12L00 Cover, Wiring Harness Protector, NO.1
2018-06 → 2022-09 ended
MZEA12 CVT —
82815-12L00 Cover, Wiring Harness Protector, NO.1
2022-09 → —
MZEA12 —
82815W — Cover, Wiring Harness Protector, NO.2
82815-12L10 Cover, Wiring Harness Protector, NO.2
2018-06 → 2022-09 ended
MZEA12 CVT —
82815-12L10 Cover, Wiring Harness Protector, NO.2
2018-06 → —
MZEA12 6F —
82815-12L10 Cover, Wiring Harness Protector, NO.2
2022-09 → —
MZEA12 —
82815X — Cover, Wiring Harness Protector, NO.3
82815-12L20 Cover, Wiring Harness Protector, NO.3
2018-06 → 2022-09 ended
MZEA12 CVT —
82815-12L20 Cover, Wiring Harness Protector, NO.3
2018-06 → —
MZEA12 6F —
82815-12L20 Cover, Wiring Harness Protector, NO.3
2022-09 → —
MZEA12 —
82815Y — Cover, Wiring Harness Protector, NO.4
82815-12L30 Cover, Wiring Harness Protector, NO.4
2018-06 → —
MZEA12 6F —
82815-12L30 Cover, Wiring Harness Protector, NO.4
2018-06 → 2022-09 ended
MZEA12 CVT —
82815-12L30 Cover, Wiring Harness Protector, NO.4
2022-09 → —
MZEA12 —
82816B — Cover, Wiring Harness Protector, NO.1
82815-12D10 Cover, Wiring Harness Protector, NO.1
2018-06 → 2022-09 ended
MZEA12 CVT —
82815-12D10 Cover, Wiring Harness Protector, NO.1
2018-06 → —
MZEA12 6F —
82815-12D10 Cover, Wiring Harness Protector, NO.1
2022-09 → —
MZEA12 —
82817 — Protector, Wiring Harness, NO.1
82817-12Y70 Protector, Wiring Harness, NO.1
2018-06 → 2022-09 ended
MZEA12 CVT —
82817-12Y70 Protector, Wiring Harness, NO.1
2018-06 → —
MZEA12 6F —
82817-12Y70 Protector, Wiring Harness, NO.1
2022-09 → —
MZEA12 —
82817A — Protector, Wiring Harness, NO.2
82817-12Y80 Protector, Wiring Harness, NO.2
2018-06 → —
MZEA12 6F —
82817-12Y80 Protector, Wiring Harness, NO.2
2018-06 → 2022-09 ended
MZEA12 CVT —
82817-12Y80 Protector, Wiring Harness, NO.2
2022-09 → —
MZEA12 —
82817B — Protector, Wiring Harness, NO.3
82817-12Y90 Protector, Wiring Harness, NO.3
2018-06 → 2022-09 ended
MZEA12 CVT —
82817-12Y90 Protector, Wiring Harness, NO.3
2018-06 → —
MZEA12 6F —
82817-12Y90 Protector, Wiring Harness, NO.3
2022-09 → —
MZEA12 —
82817C — Protector, Wiring Harness, NO.4
82817-12Z00 Protector, Wiring Harness, NO.4
2018-06 → 2022-09 ended
MZEA12 CVT —
82817-12Z00 Protector, Wiring Harness, NO.4
2018-06 → —
MZEA12 6F —
82817-12Z00 Protector, Wiring Harness, NO.4
2022-09 → —
MZEA12 —
82817E — Protector, Wiring Harness, NO.6
82817-12Z10 Protector, Wiring Harness, NO.6
2018-06 → —
MZEA12 6F —
82817-12Z10 Protector, Wiring Harness, NO.6
2018-06 → 2022-09 ended
MZEA12 CVT —
82818G — Protector, Wiring Harness, NO.8
82817-12W30 Protector, Wiring Harness, NO.8
2018-06 → 2022-09 ended
MZEA12 CVT —
82817-12W30 Protector, Wiring Harness, NO.8
2018-06 → —
MZEA12 6F —
82817-12W30 Protector, Wiring Harness, NO.8
2022-09 → —
MZEA12 —
82818H — Protector, Wiring Harness, NO.9
82817-12V50 Protector, Wiring Harness, NO.9
2018-06 → 2022-09 ended
MZEA12 CVT —
82817-12V50 Protector, Wiring Harness, NO.9
2018-06 → —
MZEA12 6F —
82817-12V50 Protector, Wiring Harness, NO.9
2022-09 → —
MZEA12 —
82821E — Cover, Connector
82821-30650 Cover, Connector
2018-06 → 2022-09 ended
MZEA12 CVT —
82821-30650 Cover, Connector
2018-06 → —
MZEA12 6F —
82821-30650 Cover, Connector
2022-09 → —
MZEA12 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
