Toyota Corolla Hatchback

2018-06 → present · chassis MZEA12 · catalogue 165430 · United States

Supported model Data version 2022-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

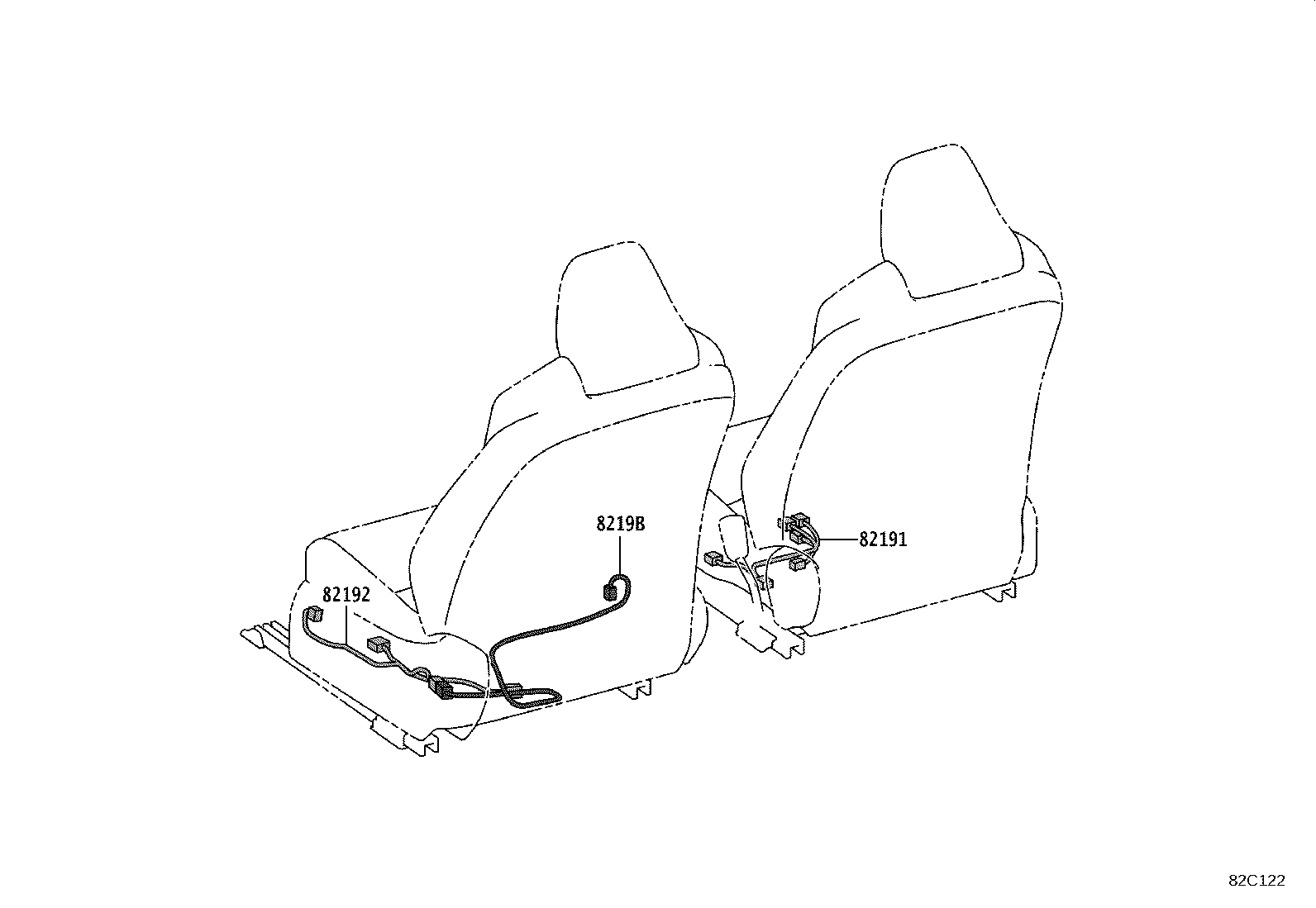

21 parts on this figure

Part number	Description	Fitment	Price
82191 — Wire, Front Seat, RH
82191-12110	Wire, Front Seat, RH 2018-06 → —	MZEA12 6F	—
82191-12110	Wire, Front Seat, RH 2018-06 → 2022-09 ended	MZEA12 CVT	—
82191-12130	Wire, Front Seat, RH 2022-09 → —	MZEA12	—
82192 — Wire, Front Seat, LH
82192-12030 note	Wire, Front Seat, LH 2018-06 → 2022-09 ended	MZEA12 CVT	—
82192-12030 note	Wire, Front Seat, LH 2018-06 → 2022-09 ended	MZEA12 CVT	—
82192-12030 note	Wire, Front Seat, LH 2018-06 → —	MZEA12 6F	—
82192-12030 note	Wire, Front Seat, LH 2018-06 → —	MZEA12 6F	—
82192-47100 note	Wire, Front Seat, LH 2018-06 → 2022-09 ended	MZEA12 CVT	—
82192-47100 note	Wire, Front Seat, LH 2018-06 → —	MZEA12 6F	—
82192-12030 note	Wire, Front Seat, LH 2022-09 → —	MZEA12	—
82192-12030 note	Wire, Front Seat, LH 2022-09 → —	MZEA12	—
82192-47100 note	Wire, Front Seat, LH 2022-09 → —	MZEA12	—
8219B — Wire, Front Seat, LH NO.2
8219B-12020 note	Wire, Front Seat, LH NO.2 2018-06 → 2022-09 ended	MZEA12 CVT	—
8219B-12020 note	Wire, Front Seat, LH NO.2 2018-06 → —	MZEA12 6F	—
8219B-33150 note	Wire, Front Seat, LH NO.2 2018-06 → 2022-09 ended	MZEA12 CVT	—
8219B-33150 note	Wire, Front Seat, LH NO.2 2018-06 → 2022-09 ended	MZEA12 CVT	—
8219B-33150 note	Wire, Front Seat, LH NO.2 2018-06 → —	MZEA12 6F	—
8219B-33150 note	Wire, Front Seat, LH NO.2 2018-06 → —	MZEA12 6F	—
8219B-12020 note	Wire, Front Seat, LH NO.2 2022-09 → —	MZEA12	—
8219B-33150 note	Wire, Front Seat, LH NO.2 2022-09 → —	MZEA12	—
8219B-33150 note	Wire, Front Seat, LH NO.2 2022-09 → —	MZEA12	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
