Toyota Corolla Hatchback
2018-06 → present · chassis MZEA12 · catalogue 165430 · United States
Supported model
Data version 2022-09

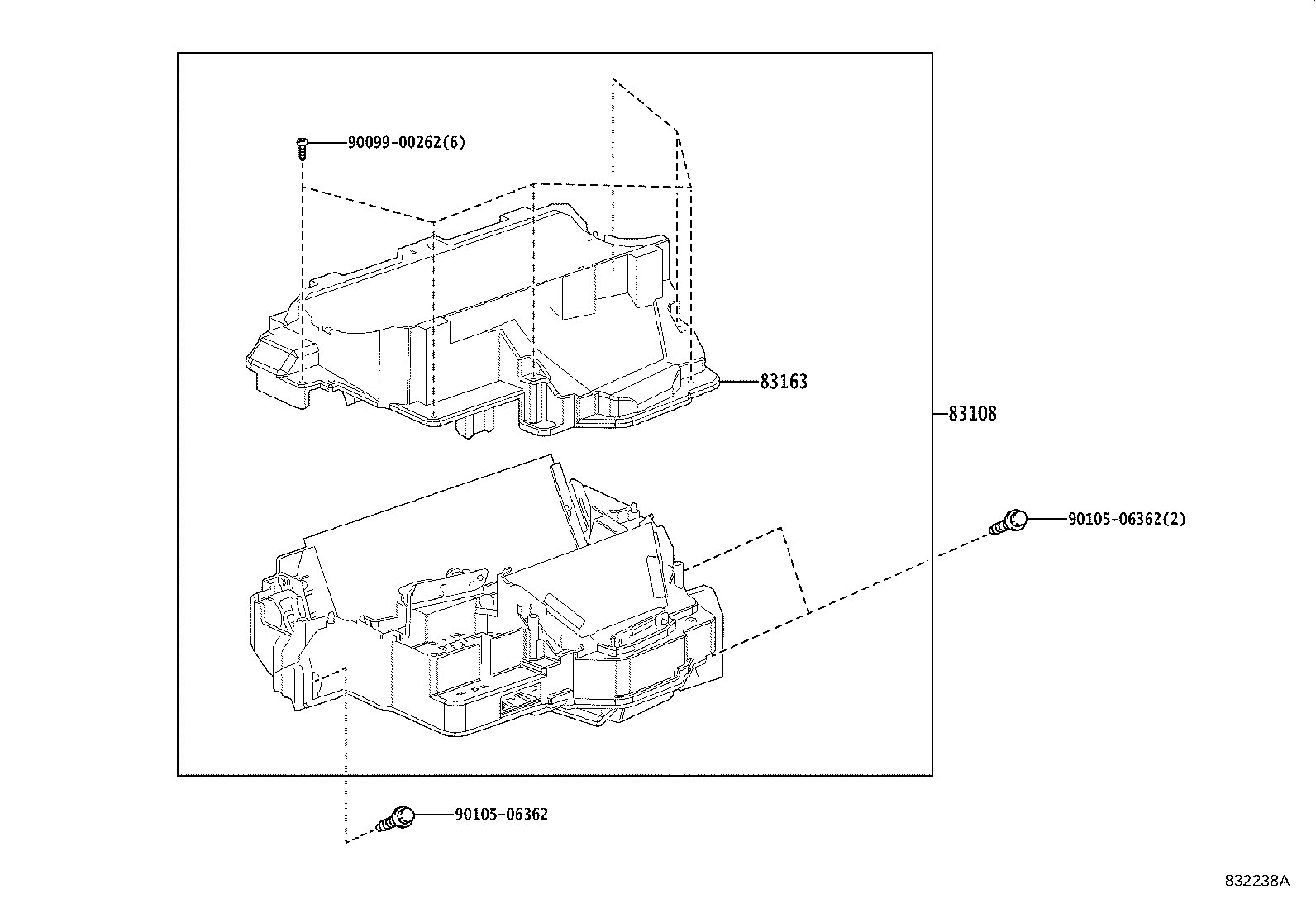

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83108 — Mirror Sub-assy, Meter | ||||
| 83108-1E030 note |
Mirror Sub-assy, Meter
2018-06 → 2021-07
ended
|
MZEA12 CND | — | |
| 83108-1E030 note |
Mirror Sub-assy, Meter
2018-06 → 2022-09
ended
|
MZEA12 CVT USA | — | |
| 83108-1E030 note |
Mirror Sub-assy, Meter
2018-06 → —
|
MZEA12 6F USA | — | |
| 83163 — Plate, Combination Meter Mirror, NO.1 | ||||
| 83163-1E030 note |
Plate, Combination Meter Mirror, NO.1
2018-06 → 2021-07
ended
|
MZEA12 CND | — | |
| 83163-1E030 note |
Plate, Combination Meter Mirror, NO.1
2018-06 → 2022-09
ended
|
MZEA12 CVT USA | — | |
| 83163-1E030 note |
Plate, Combination Meter Mirror, NO.1
2018-06 → —
|
MZEA12 6F USA | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
