Toyota Corolla Hatchback
2018-06 → present · chassis MZEA12 · catalogue 165430 · United States
Supported model
Data version 2022-09

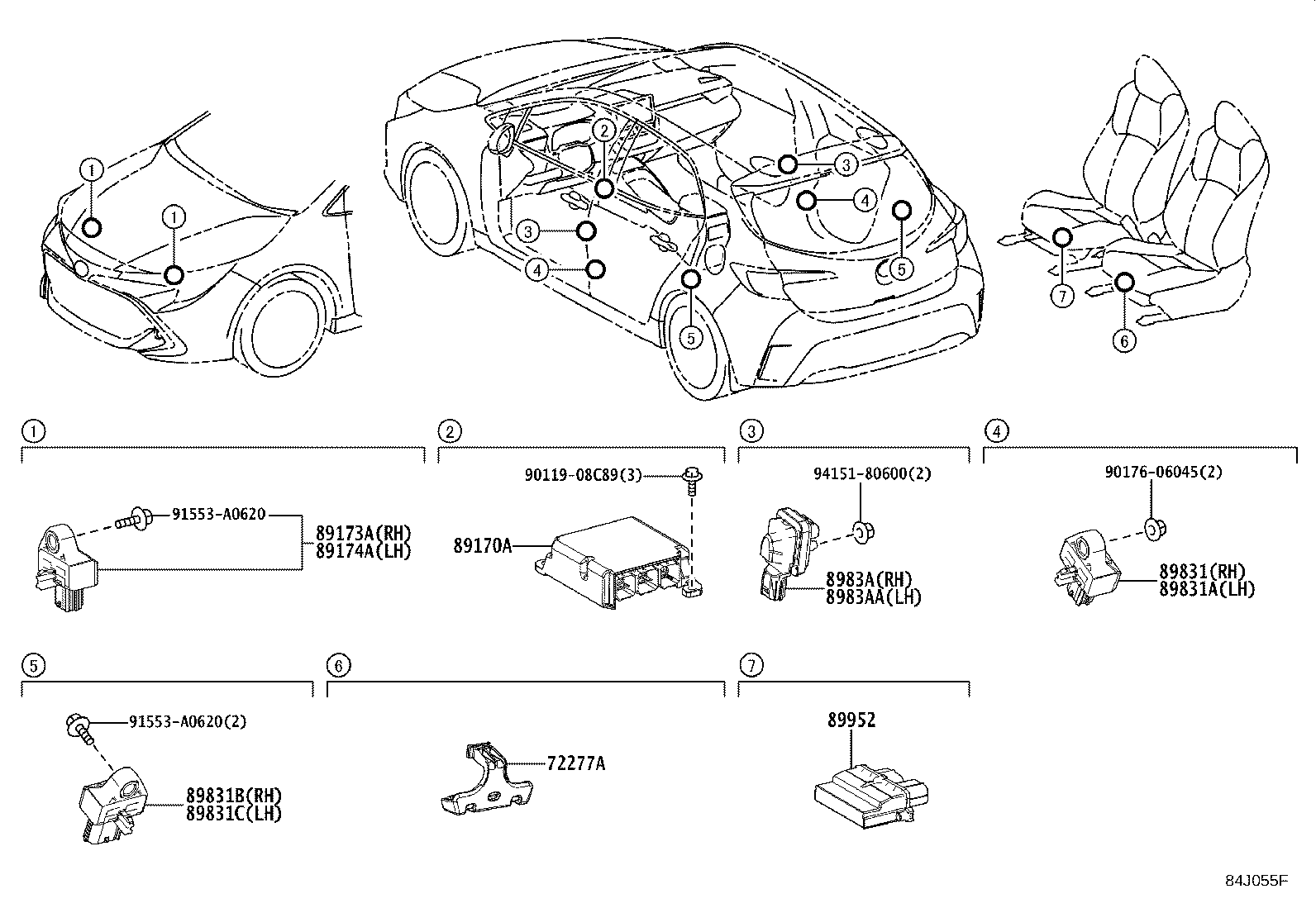

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 72277A — Protector, Seat Slide Position Sensor | ||||
| 72277-47050 |
Protector, Seat Slide Position Sensor
2018-06 → —
|
MZEA12 6F | — | |
| 72277-47050 |
Protector, Seat Slide Position Sensor
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 72277-47050 |
Protector, Seat Slide Position Sensor
2022-09 → —
|
MZEA12 | — | |
| 89170A — Computer Assy, Airbag | ||||
| 89170-12D90 |
Computer Assy, Airbag
2019-11 → 2020-06
ended
|
MZEA12 | — | |
| 89170-12E20 |
Computer Assy, Airbag
2018-06 → 2019-10
ended
|
MZEA12 | — | |
| 89170-12J00 |
Computer Assy, Airbag
2020-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 89170-12J00 |
Computer Assy, Airbag
2020-06 → —
|
MZEA12 6F | — | |
| 89170-12G10 note |
Computer Assy, Airbag
2022-09 → 2023-09
ended
|
MZEA12 | — | |
| 89170-12G11 note |
Computer Assy, Airbag
2023-09 → 2024-05
ended
|
MZEA12 | — | |
| 89170-12N10 note |
Computer Assy, Airbag
2024-05 → —
|
MZEA12 | — | |
| 89173A — Sensor, Airbag, Front RH | ||||
| 89173-49495 |
Sensor, Airbag, Front RH
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 89173-49495 |
Sensor, Airbag, Front RH
2018-06 → —
|
MZEA12 6F | — | |
| 89173-49495 |
Sensor, Airbag, Front RH
2023-09 → 2024-04
ended
|
MZEA12 | — | |
| 89173-59335 |
Sensor, Airbag, Front RH
2022-09 → 2023-09
ended
|
MZEA12 | — | |
| 89173-59335 |
Sensor, Airbag, Front RH
2024-04 → —
|
MZEA12 | — | |
| 89174A — Sensor, Airbag, Front LH | ||||
| 89173-49495 |
Sensor, Airbag, Front LH
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 89173-49495 |
Sensor, Airbag, Front LH
2018-06 → —
|
MZEA12 6F | — | |
| 89173-49495 |
Sensor, Airbag, Front LH
2023-09 → 2024-04
ended
|
MZEA12 | — | |
| 89173-59335 |
Sensor, Airbag, Front LH
2022-09 → 2023-09
ended
|
MZEA12 | — | |
| 89173-59335 |
Sensor, Airbag, Front LH
2024-04 → —
|
MZEA12 | — | |
| 89831 — Sensor, Side Airbag, RH, NO.1 | ||||
| 89831-47050 |
Sensor, Side Airbag, RH, NO.1
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 89831-47050 |
Sensor, Side Airbag, RH, NO.1
2018-06 → —
|
MZEA12 6F | — | |
| 89831-42020 |
Sensor, Side Airbag, RH, NO.1
2022-09 → 2023-09
ended
|
MZEA12 | — | |
| 89831-42020 |
Sensor, Side Airbag, RH, NO.1
2024-04 → —
|
MZEA12 | — | |
| 89831-47050 |
Sensor, Side Airbag, RH, NO.1
2023-09 → 2024-04
ended
|
MZEA12 | — | |
| 89831A — Sensor, Side Airbag, LH, NO.1 | ||||
| 89831-47050 |
Sensor, Side Airbag, LH, NO.1
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 89831-47050 |
Sensor, Side Airbag, LH, NO.1
2018-06 → —
|
MZEA12 6F | — | |
| 89831-42020 |
Sensor, Side Airbag, LH, NO.1
2022-09 → 2023-09
ended
|
MZEA12 | — | |
| 89831-42020 |
Sensor, Side Airbag, LH, NO.1
2024-04 → —
|
MZEA12 | — | |
| 89831-47050 |
Sensor, Side Airbag, LH, NO.1
2023-09 → 2024-04
ended
|
MZEA12 | — | |
| 89831B — Sensor, Side Airbag, RH, NO.2 | ||||
| 89831-28040 |
Sensor, Side Airbag, RH, NO.2
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 89831-28040 |
Sensor, Side Airbag, RH, NO.2
2018-06 → —
|
MZEA12 6F | — | |
| 89831C — Sensor, Side Airbag, LH, NO.2 | ||||
| 89831-28040 |
Sensor, Side Airbag, LH, NO.2
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 89831-28040 |
Sensor, Side Airbag, LH, NO.2
2018-06 → —
|
MZEA12 6F | — | |
| 8983A — Sensor, Side Airbag Pressure, RH | ||||
| 8983A-33010 |
Sensor, Side Airbag Pressure, RH
2018-06 → 2020-12
ended
|
MZEA12 | — | |
| 8983A-33011 |
Sensor, Side Airbag Pressure, RH
2021-01 → 2022-09
ended
|
MZEA12 CVT | — | |
| 8983A-33011 |
Sensor, Side Airbag Pressure, RH
2021-01 → —
|
MZEA12 6F | — | |
| 8983A-12030 |
Sensor, Side Airbag Pressure, RH
2022-09 → —
|
MZEA12 | — | |
| 8983AA — Sensor, Side Airbag Pressure, LH | ||||
| 8983A-33010 |
Sensor, Side Airbag Pressure, LH
2018-06 → 2020-12
ended
|
MZEA12 | — | |
| 8983A-33011 |
Sensor, Side Airbag Pressure, LH
2021-01 → 2022-09
ended
|
MZEA12 CVT | — | |
| 8983A-33011 |
Sensor, Side Airbag Pressure, LH
2021-01 → —
|
MZEA12 6F | — | |
| 8983A-12030 |
Sensor, Side Airbag Pressure, LH
2022-09 → —
|
MZEA12 | — | |
| 89952 — Computer, Occupant Detection | ||||
| 89952-12030 |
Computer, Occupant Detection
2018-06 → 2020-05
ended
|
MZEA12 | — | |
| 89952-12040 |
Computer, Occupant Detection
2020-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 89952-12040 |
Computer, Occupant Detection
2020-06 → —
|
MZEA12 6F | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
