Toyota Corolla Hatchback
2018-06 → present · chassis MZEA12 · catalogue 165430 · United States
Supported model
Data version 2022-09

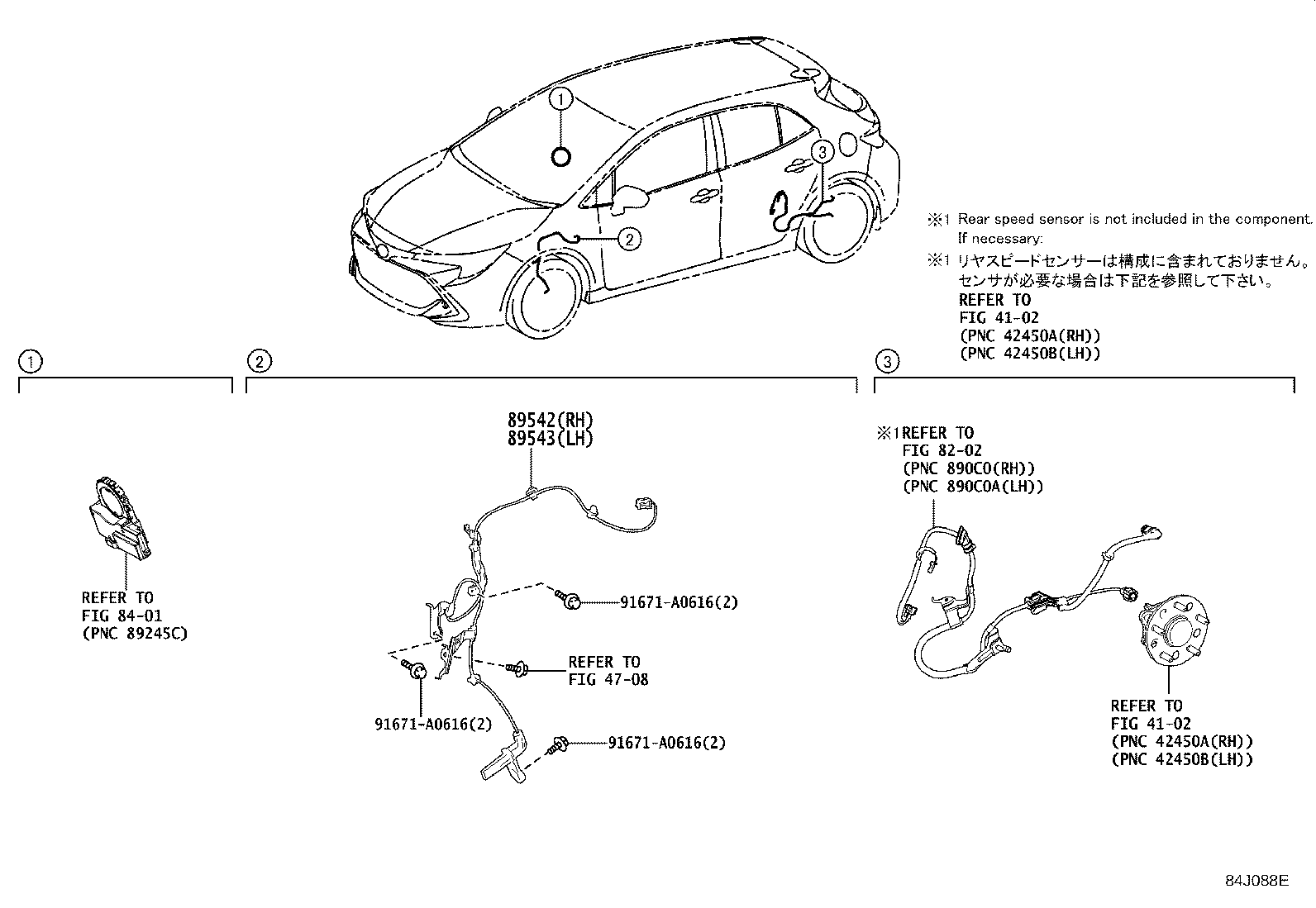

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89542 — Sensor, Speed, Front RH | ||||
| 89542-12110 |
Sensor, Speed, Front RH
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 89542-12110 |
Sensor, Speed, Front RH
2018-06 → —
|
MZEA12 6F | — | |
| 89542-12110 |
Sensor, Speed, Front RH
2022-09 → —
|
MZEA12 | — | |
| 89543 — Sensor, Speed, Front LH | ||||
| 89543-12110 |
Sensor, Speed, Front LH
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 89543-12110 |
Sensor, Speed, Front LH
2018-06 → —
|
MZEA12 6F | — | |
| 89543-12110 |
Sensor, Speed, Front LH
2022-09 → —
|
MZEA12 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
