Toyota Corolla Hatchback
2018-06 → present · chassis MZEA12 · catalogue 165430 · United States
Supported model
Data version 2022-09

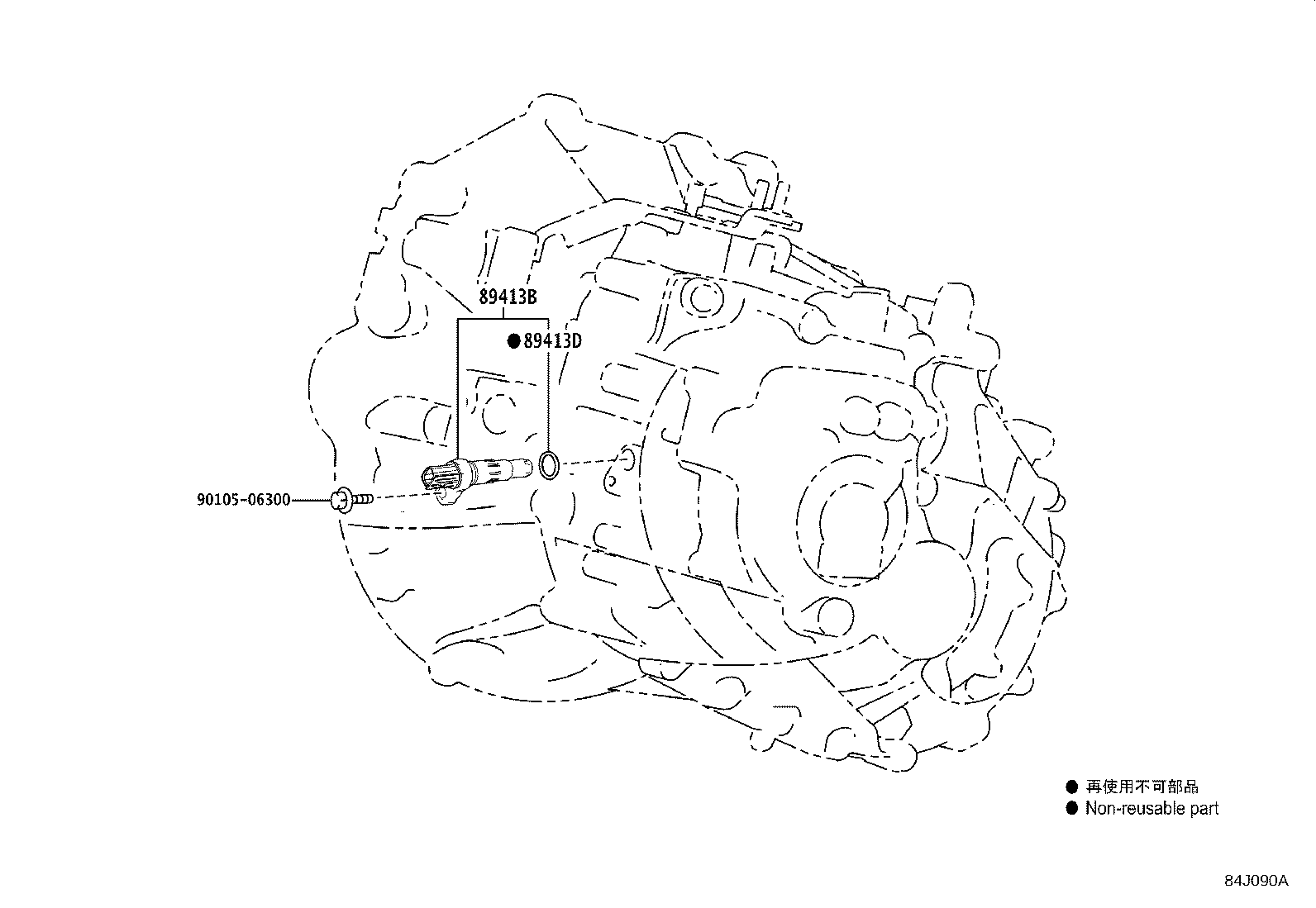

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89413B — Sensor, Transmission Revolution | ||||
| 89413-12040 |
Sensor, Transmission Revolution
2018-06 → 2021-02
ended
|
MZEA12 6F | — | |
| 89413-12041 |
Sensor, Transmission Revolution
2021-03 → —
|
MZEA12 6F | — | |
| 89413D — Ring, O(FOR TRANSMISSION REVOLUTION SENSOR) | ||||
| 90301-11008 |
Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
2018-06 → 2021-06
ended
|
MZEA12 CVT | — | |
| 90301-11008 |
Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
2018-06 → 2022-08
ended
|
MZEA12 6F | — | |
| 90301-11008 |
Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
2021-07 → 2022-08
ended
|
MZEA12 CVT | — | |
| 90301-11008 |
Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
2022-09 → 2023-08
ended
|
MZEA12 | — | |
| 90301-11008 note |
Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
2023-03 → 2023-08
ended
|
MZEA12 | — | |
| 90301-11008 |
Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
2023-08 → —
|
MZEA12 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
