Toyota Corolla Hatchback
2018-06 → present · chassis MZEA12 · catalogue 165430 · United States
Supported model
Data version 2022-09

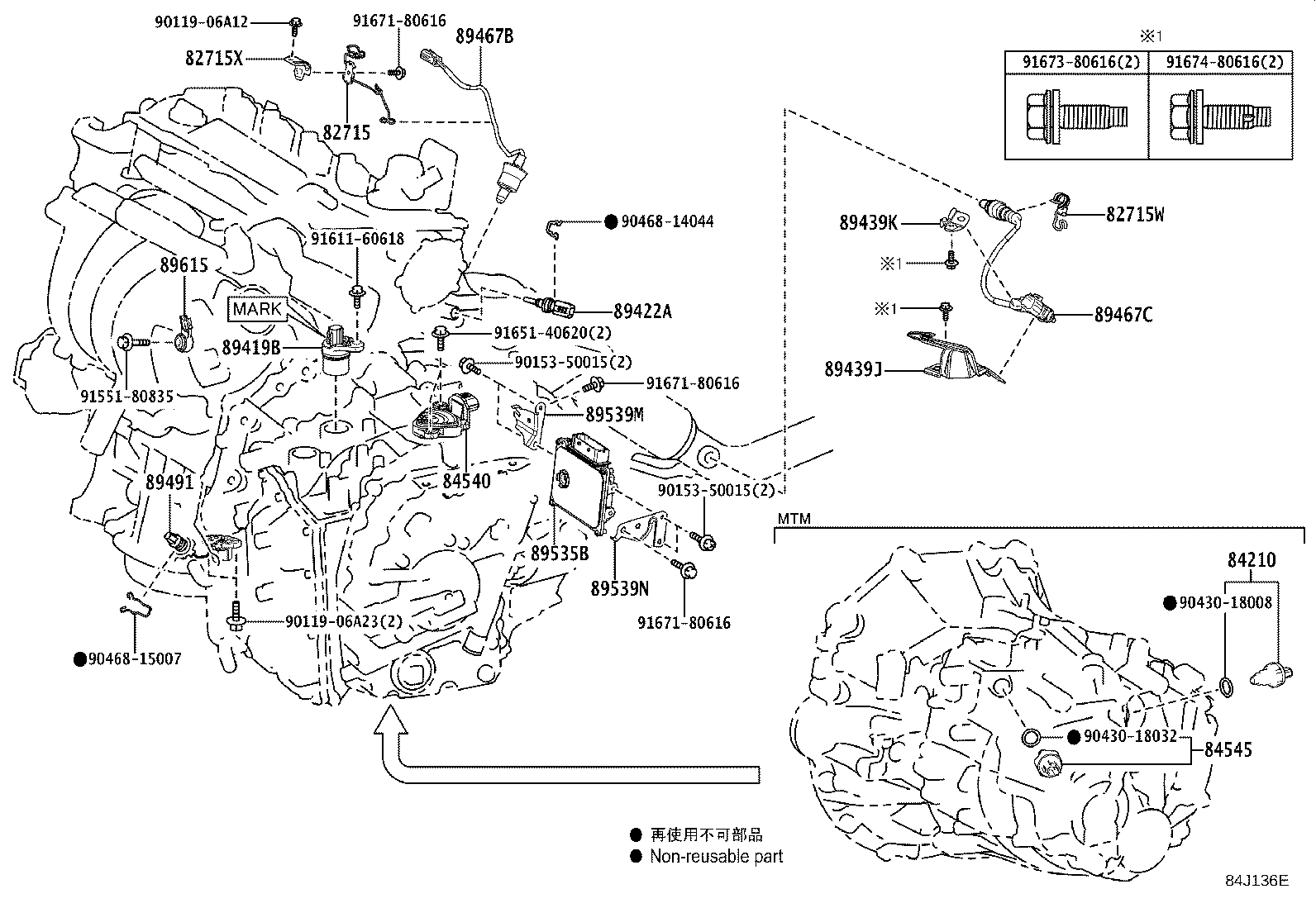

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82715 — Bracket,Wiring Harness Clamp | ||||
| 82715-12V90 |
Bracket,Wiring Harness Clamp
2018-06 → —
|
MZEA12 6F | — | |
| 82715-12V90 |
Bracket,Wiring Harness Clamp
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 82715-12V90 |
Bracket,Wiring Harness Clamp
2022-09 → —
|
MZEA12 | — | |
| 82715W — Bracket, Wiring Harness Clamp | ||||
| 82729-20040 |
Bracket, Wiring Harness Clamp
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 82729-20040 |
Bracket, Wiring Harness Clamp
2018-06 → —
|
MZEA12 6F | — | |
| 82729-20040 |
Bracket, Wiring Harness Clamp
2022-09 → —
|
MZEA12 | — | |
| 82715X — Bracket, Wiring Harness Clamp, NO.2 | ||||
| 82715-12X50 |
Bracket, Wiring Harness Clamp, NO.2
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 82715-12X50 |
Bracket, Wiring Harness Clamp, NO.2
2018-06 → —
|
MZEA12 6F | — | |
| 82715-12X50 |
Bracket, Wiring Harness Clamp, NO.2
2022-09 → —
|
MZEA12 | — | |
| 84210 — Switch Assy, Back-up Lamp | ||||
| 84210-52050 |
Switch Assy, Back-up Lamp
2018-06 → —
|
MZEA12 6F | — | |
| 84540 — Switch Assy, Neutral Start | ||||
| 84540-12240 |
Switch Assy, Neutral Start
2018-06 → 2022-08
ended
|
MZEA12 CVT | — | |
| 84540-12240 note |
Switch Assy, Neutral Start
2022-09 → 2023-04
ended
|
MZEA12 | — | |
| 84540-12240 |
Switch Assy, Neutral Start
2022-09 → 2023-08
ended
|
MZEA12 | — | |
| 89451-42010 note |
Switch Assy, Neutral Start
2023-03 → 2023-08
ended
|
MZEA12 | — | |
| 89451-42010 |
Switch Assy, Neutral Start
2023-08 → —
|
MZEA12 | — | |
| 84545 — Switch, Neutral Position | ||||
| 84545-52010 |
Switch, Neutral Position
2018-06 → —
|
MZEA12 6F | — | |
| 89419B — Sensor, Shift Stroke | ||||
| 89419-12010 |
Sensor, Shift Stroke
2018-06 → 2019-04
ended
|
MZEA12 CVT | — | |
| 89419-12011 note |
Sensor, Shift Stroke
2021-07 → 2022-03
ended
|
MZEA12 CVT | — | |
| 89419-12011 |
Sensor, Shift Stroke
2019-05 → 2022-08
ended
|
MZEA12 CVT | — | |
| 89419-K2010 note |
Sensor, Shift Stroke
2021-07 → 2022-08
ended
|
MZEA12 CVT | — | |
| 89419-12011 note |
Sensor, Shift Stroke
2022-09 → 2023-08
ended
|
MZEA12 | — | |
| 89419-K2010 note |
Sensor, Shift Stroke
2022-09 → 2023-08
ended
|
MZEA12 | — | |
| 89419-K2010 note |
Sensor, Shift Stroke
2023-03 → 2023-08
ended
|
MZEA12 | — | |
| 89419-K2010 |
Sensor, Shift Stroke
2023-08 → —
|
MZEA12 | — | |
| 89422A — Sensor, Water Temperature | ||||
| 89422-33040 |
Sensor, Water Temperature
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 89422-33040 |
Sensor, Water Temperature
2018-06 → —
|
MZEA12 6F | — | |
| 89422-33040 |
Sensor, Water Temperature
2022-09 → —
|
MZEA12 | — | |
| 89439J — Bracket, Sensor, NO.2 | ||||
| 82715-47A60 |
Bracket, Sensor, NO.2
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 82715-47A60 |
Bracket, Sensor, NO.2
2018-06 → —
|
MZEA12 6F | — | |
| 82715-47A60 |
Bracket, Sensor, NO.2
2022-09 → —
|
MZEA12 | — | |
| 89439K — Bracket, Sensor, NO.3 | ||||
| 82715-47690 |
Bracket, Sensor, NO.3
2018-06 → —
|
MZEA12 6F | — | |
| 82715-47690 |
Bracket, Sensor, NO.3
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 82715-47690 |
Bracket, Sensor, NO.3
2022-09 → —
|
MZEA12 | — | |
| 89467B — Sensor, Air Fuel Ratio | ||||
| 89467-12280 |
Sensor, Air Fuel Ratio
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 89467-12280 |
Sensor, Air Fuel Ratio
2018-06 → —
|
MZEA12 6F | — | |
| 89467-12280 |
Sensor, Air Fuel Ratio
2022-09 → 2023-08
ended
|
MZEA12 | — | |
| 89467-47040 note |
Sensor, Air Fuel Ratio
2023-03 → 2023-08
ended
|
MZEA12 | — | |
| 89467-47040 |
Sensor, Air Fuel Ratio
2023-08 → —
|
MZEA12 | — | |
| 89467C — Sensor, Air Fuel Ratio, NO.2 | ||||
| 89467-12290 |
Sensor, Air Fuel Ratio, NO.2
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 89467-12290 |
Sensor, Air Fuel Ratio, NO.2
2018-06 → —
|
MZEA12 6F | — | |
| 89467-12290 |
Sensor, Air Fuel Ratio, NO.2
2022-09 → 2023-08
ended
|
MZEA12 | — | |
| 89467-12330 note |
Sensor, Air Fuel Ratio, NO.2
2023-03 → 2023-08
ended
|
MZEA12 | — | |
| 89467-12330 |
Sensor, Air Fuel Ratio, NO.2
2023-08 → —
|
MZEA12 | — | |
| 89491 — Sensor, Engine Oil Level | ||||
| 89491-33051 |
Sensor, Engine Oil Level
2018-06 → 2022-04
ended
|
MZEA12 | — | |
| 89491-33052 |
Sensor, Engine Oil Level
2022-05 → 2022-09
ended
|
MZEA12 CVT | — | |
| 89491-33052 |
Sensor, Engine Oil Level
2022-05 → —
|
MZEA12 6F | — | |
| 89491-33052 |
Sensor, Engine Oil Level
2022-09 → 2023-08
ended
|
MZEA12 | — | |
| 89535B — Computer, Transmission Control | ||||
| 89535-12070 |
Computer, Transmission Control
2018-06 → 2018-08
ended
|
MZEA12 CVT | — | |
| 89535-12071 |
Computer, Transmission Control
2018-08 → 2019-06
ended
|
MZEA12 CVT | — | |
| 89535-12072 |
Computer, Transmission Control
2019-07 → 2021-07
ended
|
MZEA12 CVT | — | |
| 89535-12380 |
Computer, Transmission Control
2021-07 → 2022-09
ended
|
MZEA12 CVT | — | |
| 89535-12280 note |
Computer, Transmission Control
2022-09 → 2023-04
ended
|
MZEA12 | — | |
| 89535-12280 note |
Computer, Transmission Control
2022-09 → 2023-08
ended
|
MZEA12 | — | |
| 89539M — Bracket, Transmission Control Computer, NO.1 | ||||
| 89539-12070 |
Bracket, Transmission Control Computer, NO.1
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 89539-12070 note |
Bracket, Transmission Control Computer, NO.1
2022-09 → 2023-04
ended
|
MZEA12 | — | |
| 89539-12070 |
Bracket, Transmission Control Computer, NO.1
2022-09 → 2023-08
ended
|
MZEA12 | — | |
| 89539N — Bracket, Transmission Control Computer, NO.2 | ||||
| 89539-12080 |
Bracket, Transmission Control Computer, NO.2
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 89539-12080 note |
Bracket, Transmission Control Computer, NO.2
2022-09 → 2023-04
ended
|
MZEA12 | — | |
| 89539-12080 |
Bracket, Transmission Control Computer, NO.2
2022-09 → 2023-08
ended
|
MZEA12 | — | |
| 89615 — Sensor, Knock Control | ||||
| 89615-20090 |
Sensor, Knock Control
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 89615-20090 |
Sensor, Knock Control
2018-06 → —
|
MZEA12 6F | — | |
| 89615-20090 |
Sensor, Knock Control
2022-09 → —
|
MZEA12 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
