Toyota Corolla Hatchback
2018-06 → present · chassis MZEA12 · catalogue 165430 · United States
Supported model
Data version 2022-09

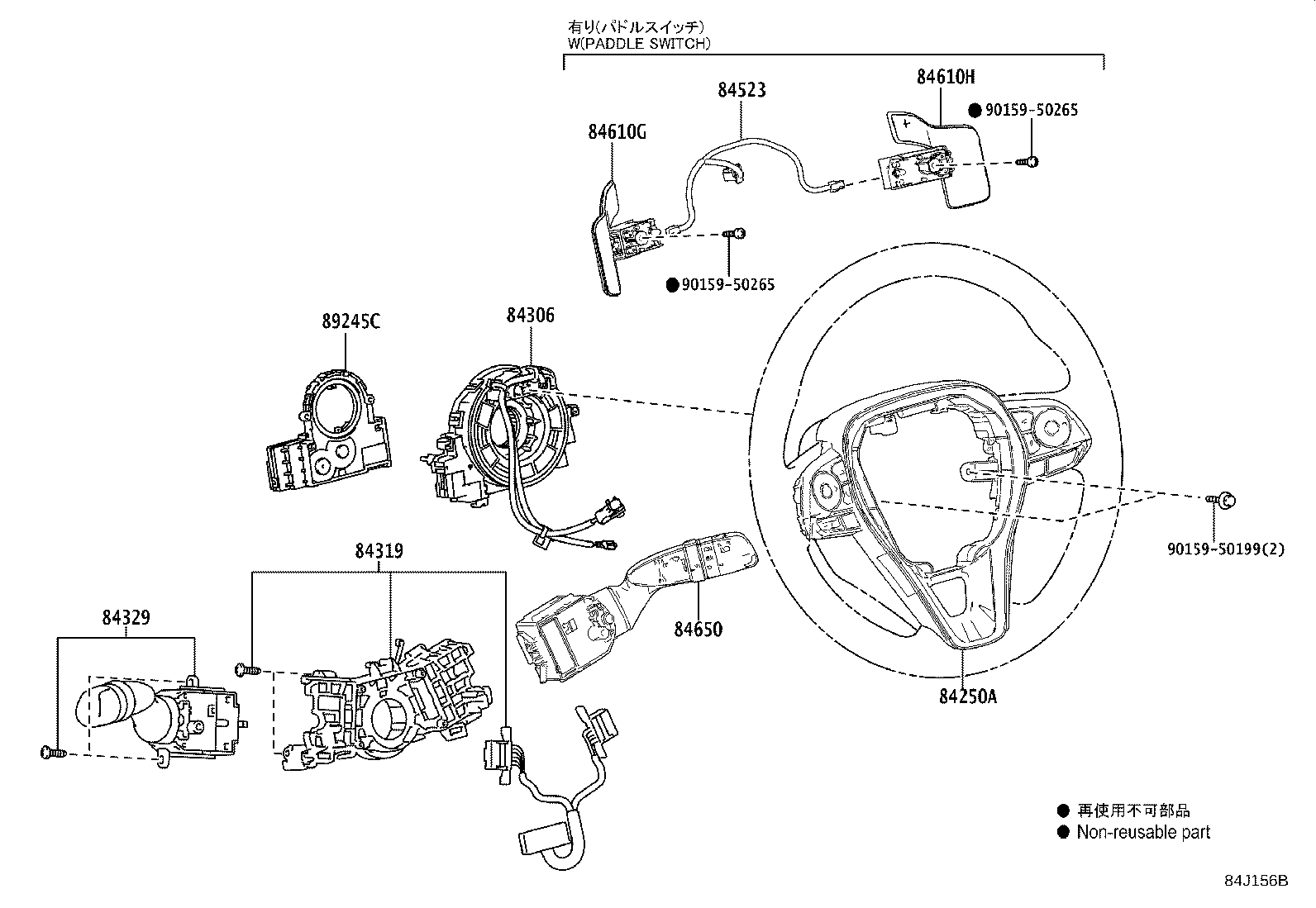

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84250A — Switch Assy, Steering Pad | ||||
| 84250-12690 |
Switch Assy, Steering Pad
2018-06 → —
|
MZEA12 6F | — | |
| 84250-12690 |
Switch Assy, Steering Pad
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 84250-12730 |
Switch Assy, Steering Pad
2022-09 → —
|
MZEA12 | — | |
| 84306 — Cable Sub-assy, Spiral | ||||
| 84308-11020 note |
Cable Sub-assy, Spiral
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 84308-11020 note |
Cable Sub-assy, Spiral
2018-06 → —
|
MZEA12 6F | — | |
| 84308-12030 |
Cable Sub-assy, Spiral
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 84308-12030 |
Cable Sub-assy, Spiral
2018-06 → —
|
MZEA12 6F | — | |
| 84308-78010 |
Cable Sub-assy, Spiral
2022-09 → —
|
MZEA12 | — | |
| 84308-78020 note |
Cable Sub-assy, Spiral
2022-09 → —
|
MZEA12 | — | |
| 84319 — Housing, Steering Wheel Switch | ||||
| 84319-11010 |
Housing, Steering Wheel Switch
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 84319-11010 |
Housing, Steering Wheel Switch
2018-06 → —
|
MZEA12 6F | — | |
| 84319-11010 |
Housing, Steering Wheel Switch
2022-09 → —
|
MZEA12 | — | |
| 84329 — Switch, Turn Signal | ||||
| 84329-12110 |
Switch, Turn Signal
2018-06 → 2021-07
ended
|
MZEA12 CND | — | |
| 84329-12140 note |
Switch, Turn Signal
2018-06 → 2021-07
ended
|
MZEA12 CND | — | |
| 84329-12150 note |
Switch, Turn Signal
2018-06 → 2022-09
ended
|
MZEA12 CVT USA | — | |
| 84329-12150 note |
Switch, Turn Signal
2018-06 → —
|
MZEA12 6F USA | — | |
| 84329-33080 |
Switch, Turn Signal
2018-06 → 2022-09
ended
|
MZEA12 CVT USA | — | |
| 84329-33080 |
Switch, Turn Signal
2018-06 → —
|
MZEA12 6F USA | — | |
| 84329-33110 note |
Switch, Turn Signal
2021-07 → 2022-09
ended
|
MZEA12 CVT CND | — | |
| 84329-33110 note |
Switch, Turn Signal
2021-07 → —
|
MZEA12 6F CND | — | |
| 84329-33120 |
Switch, Turn Signal
2021-07 → 2022-09
ended
|
MZEA12 CVT CND | — | |
| 84329-33120 |
Switch, Turn Signal
2021-07 → —
|
MZEA12 6F CND | — | |
| 84329-12150 note |
Switch, Turn Signal
2022-09 → —
|
MZEA12 USA | — | |
| 84329-33080 |
Switch, Turn Signal
2022-09 → —
|
MZEA12 USA | — | |
| 84329-33110 note |
Switch, Turn Signal
2022-09 → —
|
MZEA12 CND | — | |
| 84329-33120 |
Switch, Turn Signal
2022-09 → —
|
MZEA12 CND | — | |
| 84523 — Wire, Switch NO.1 | ||||
| 84523-11010 |
Wire, Switch NO.1
2018-06 → 2022-09
ended
|
MZEA12 CVT USA | — | |
| 84523-11010 note |
Wire, Switch NO.1
2018-06 → 2022-09
ended
|
MZEA12 CVT CND | — | |
| 84523-11010 note |
Wire, Switch NO.1
2018-06 → 2022-09
ended
|
MZEA12 CVT CND | — | |
| 84523-11010 |
Wire, Switch NO.1
2022-09 → —
|
MZEA12 USA | — | |
| 84523-11010 note |
Wire, Switch NO.1
2022-09 → —
|
MZEA12 CND | — | |
| 84523-11010 note |
Wire, Switch NO.1
2022-09 → —
|
MZEA12 CND | — | |
| 84610G — Switch Assy, Transmission Shift, NO.1 | ||||
| 84610-33010 note |
Switch Assy, Transmission Shift, NO.1
2018-06 → 2018-07
ended
|
MZEA12 CVT USA | — | |
| 84610-33010 note |
Switch Assy, Transmission Shift, NO.1
2018-06 → 2018-07
ended
|
MZEA12 CVT CND | — | |
| 84610-33010 note |
Switch Assy, Transmission Shift, NO.1
2018-06 → 2018-07
ended
|
MZEA12 CVT CND | — | |
| 84610-33011 note |
Switch Assy, Transmission Shift, NO.1
2018-07 → 2022-09
ended
|
MZEA12 CVT USA | — | |
| 84610-33011 note |
Switch Assy, Transmission Shift, NO.1
2018-07 → 2022-09
ended
|
MZEA12 CVT CND | — | |
| 84610-33011 note |
Switch Assy, Transmission Shift, NO.1
2018-07 → 2022-09
ended
|
MZEA12 CVT CND | — | |
| 84610-33011 note |
Switch Assy, Transmission Shift, NO.1
2022-09 → —
|
MZEA12 USA | — | |
| 84610-33011 note |
Switch Assy, Transmission Shift, NO.1
2022-09 → —
|
MZEA12 CND | — | |
| 84610-33011 note |
Switch Assy, Transmission Shift, NO.1
2022-09 → —
|
MZEA12 CND | — | |
| 84610H — Switch Assy, Transmission Shift, NO.2 | ||||
| 84610-33020 note |
Switch Assy, Transmission Shift, NO.2
2018-06 → 2018-07
ended
|
MZEA12 CVT USA | — | |
| 84610-33020 note |
Switch Assy, Transmission Shift, NO.2
2018-06 → 2018-07
ended
|
MZEA12 CVT CND | — | |
| 84610-33020 note |
Switch Assy, Transmission Shift, NO.2
2018-06 → 2018-07
ended
|
MZEA12 CVT CND | — | |
| 84610-33021 note |
Switch Assy, Transmission Shift, NO.2
2018-07 → 2022-09
ended
|
MZEA12 CVT CND | — | |
| 84610-33021 note |
Switch Assy, Transmission Shift, NO.2
2018-07 → 2022-09
ended
|
MZEA12 CVT CND | — | |
| 84610-33021 note |
Switch Assy, Transmission Shift, NO.2
2018-07 → 2022-09
ended
|
MZEA12 CVT USA | — | |
| 84610-33021 note |
Switch Assy, Transmission Shift, NO.2
2022-09 → —
|
MZEA12 USA | — | |
| 84610-33021 note |
Switch Assy, Transmission Shift, NO.2
2022-09 → —
|
MZEA12 CND | — | |
| 84610-33021 note |
Switch Assy, Transmission Shift, NO.2
2022-09 → —
|
MZEA12 CND | — | |
| 84650 — Switch Assy, Windshield Wiper | ||||
| 84652-12A60 |
Switch Assy, Windshield Wiper
2018-06 → 2022-09
ended
|
MZEA12 CVT USA | — | |
| 84652-12A60 |
Switch Assy, Windshield Wiper
2018-06 → —
|
MZEA12 6F USA | — | |
| 84652-12A70 |
Switch Assy, Windshield Wiper
2018-06 → 2022-09
ended
|
MZEA12 CVT CND | — | |
| 84652-12A70 |
Switch Assy, Windshield Wiper
2018-06 → —
|
MZEA12 6F CND | — | |
| 84652-12A60 |
Switch Assy, Windshield Wiper
2022-09 → —
|
MZEA12 USA | — | |
| 84652-12A70 |
Switch Assy, Windshield Wiper
2022-09 → —
|
MZEA12 CND | — | |
| 89245C — Sensor, Steering | ||||
| 8924B-50010 |
Sensor, Steering
2018-06 → 2022-09
ended
|
MZEA12 CVT | — | |
| 8924B-50010 |
Sensor, Steering
2018-06 → —
|
MZEA12 6F | — | |
| 8924B-V1010 note |
Sensor, Steering
2022-09 → —
|
MZEA12 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
